Makita HR1820 - Rotary Hammer 18mm - Power Tool Diagram

Description

Model No. HR1820

Rotary Hammer 18mm

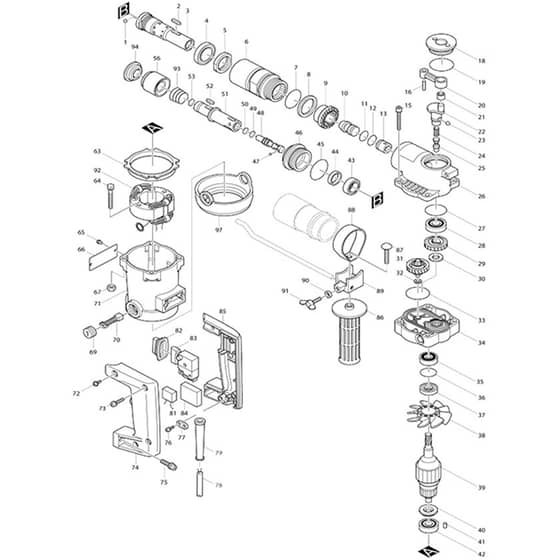

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK216007-8 Available to backorder	Steel Ball 6.4	£0.48 £0.40
2	MK254231-5 Available to backorder	Key 4	£1.32 £1.10
3	MK331269-8 Available to backorder	Cylinder Liner 20	£91.32 £76.10
4	MK211443-3 Available to backorder	Ball Bearing 3007	£28.60 £23.83
5	MK252214-9 Available to backorder	Nut M30.3-36	£12.42 £10.35
7	MK213507-9 Available to backorder	O Ring 40 (Alt.)	£3.46 £2.88
8	MK253854-6 Available to backorder	Flat Washer 30	£3.34 £2.78
9	MK221358-6 Available to backorder	Spiral Bevel Gear 26	£29.46 £24.55
11	MK213214-4 Available to backorder	O Ring 16 (Alt.)	£3.34 £2.78
13	MK321483-4 Available to backorder	Piston	£10.26 £8.55
15	MK922371-4 Available to backorder	Hex. Socket Head Bolt M6x50	£1.16 £0.97
16	MK256123-4 Available to backorder	Pin 5	£1.32 £1.10
18	MK410018-7 Available to backorder	Crank Cap	£2.60 £2.17
19	MK213460-9 Available to backorder	O Ring 35 (Alt.)	£2.02 £1.68
20	MK321489-2 Available to backorder	Rod	£18.78 £15.65
21	MK212005-0 Available to backorder	Needle Bearing 810	£2.60 £2.17
22	MK321485-0 Available to backorder	Crank Shaft	£47.38 £39.48
23	MK216011-7 Available to backorder	Steel Ball 5.6	£0.48 £0.40
24	MK231327-9 Available to backorder	Compression Spring 6	£0.58 £0.48
25	MK321484-2 Available to backorder	Change Pin 8	£2.02 £1.68
26	MK156911-8 Available to backorder	Crank Housing	£44.78 £37.32
27	MK213459-4 Available to backorder	O Ring 32 (Alt.)	£2.02 £1.68
28	MK211204-1 Available to backorder	Ball Bearing 6002	£8.08 £6.73
29	MK221705-1 Available to backorder	Helical Gear 29	£9.24 £7.70
30	MK253853-8 Available to backorder	Flat Washer 15	£0.74 £0.62
31	MK151153-9 Available to backorder	Torque Limiter Complete	£106.46 £88.72
32	MK253715-0 Available to backorder	Flat Washer 6	£0.48 £0.40
33	MK213707-1 Available to backorder	O Ring 65 (Alt.)	£1.32 £1.10
34	MK213011-8 Available to backorder	O Ring 7 (Alt.) (C30)	£0.58 £0.48
34	MK156910-0 Available to backorder	Gear Housing (INC. 36)	£65.58 £54.65
34	MK212011-5 Available to backorder	Needle Bearing 609 (C10)	£6.52 £5.43
34	MK256122-6 Available to backorder	Pin 4 (C40)	£0.58 £0.48
35	MK211069-1 Available to backorder	Ball Bearing 6200	£5.64 £4.70
36	MK213406-5 Available to backorder	O Ring 30 (Alt.)	£1.32 £1.10
37	MK213157-0 Available to backorder	Oil Seal 13	£20.38 £16.98
40	MK681625-5 Available to backorder	Insulation Washer (Alt.)	£0.58 £0.48
41	MK263014-2 Available to backorder	Rubber Pin 4	£0.48 £0.40
42	MK211033-2 Available to backorder	Ball Bearing 608Lb	£5.36 £4.47
43	MK213377-6 Available to backorder	Oil Seal 21	£9.40 £7.83
44	MK443061-1 Available to backorder	Felt Ring 20	£0.48 £0.40
46	MK322095-6 Available to backorder	Seal Holder	£37.94 £31.62
48	MK321616-1 Available to backorder	Impact Bolt	£25.28 £21.07
49	MK213058-2 Available to backorder	O Ring 10 (Alt.)	£2.32 £1.93
51	MK322254-2 Available to backorder	Drill Holder	£91.74 £76.45
52	MK322255-0 Available to backorder	Roller 6.5	£5.36 £4.47
53	MK213064-7 Available to backorder	O Ring 10 (Alt.)	£4.04 £3.37
56	MK414425-6 Available to backorder	Change Ring	£20.38 £16.98
65	MK953106-2 Available to backorder	Rivet 0-5	£0.48 £0.40
67	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
69	MK643600-9 Available to backorder	Brush Holder Cap 6-10	£0.74 £0.62
70	MK181038-5 Available to backorder	A.C. Carbon Brush Cb-105	£9.98 £8.32
71	MK913206-0 Available to backorder	Set Screw M5x8 (C21)	£0.48 £0.40
71	MK643603-3 Available to backorder	Brush Holder 6-10 (C10)	£3.34 £2.78
72	MK911323-0 Available to backorder	Pan Head Screw M6x16	£0.58 £0.48
73	MK911238-1 Available to backorder	Pan Head Screw M5x22	£0.48 £0.40
74	MK181488-4 Available to backorder	Handle Set (INC. 85)	£20.74 £17.28
75	MK911343-4 Available to backorder	Pan Head Screw M6x25	£0.74 £0.62
76	MK911133-5 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
77	MK687031-2 Available to backorder	Strain Relief	£0.58 £0.48
79	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
79	MK682505-8 Available to backorder	Cord Guard 10-90 (Alt.)	£1.32 £1.10
80	MK646325-4 Available to backorder	Line Coil	£12.58 £10.48
81	MK645173-8 Available to backorder	Noise Suppressor	£5.94 £4.95
82	MK421145-5 Available to backorder	Dust Cover	£1.32 £1.10
83	MK651258-0 Available to backorder	Switch Sge106Cv-1A	£35.98 £29.98
84	MK685700-9 Available to backorder	Sponge Sheet	£0.48 £0.40
87	MK923456-9 Available to backorder	Cap Square Neck Bolt M8x35	£0.74 £0.62
89	MK315145-4 Available to backorder	Grip Base	£3.46 £2.88
90	MK261042-1 Available to backorder	Rubber Washer 4.5	£0.48 £0.40
91	MK654019-7 Available to backorder	Ring Terminal (C10)	£0.58 £0.48
91	MK924216-2 Available to backorder	Wing Bolt M5x15	£0.96 £0.80
91	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
93	MK231946-1 Available to backorder	Conical Compr. Spring 21-25	£0.58 £0.48
94	MK286220-2 Available to backorder	Cap 34	£3.04 £2.53
400	MK122375-8 Available to backorder	Dust Collecter Ass'y	£16.28 £13.57
401	MK181573-3 Available to backorder	Grease Vessel 93G	£4.76 £3.97
402	MK321144-6 Available to backorder	Depth Gauge	£1.44 £1.20
405	MK819033-2 Available to backorder	Makita Label (C10)	£0.58 £0.48
405	MK417059-4 Available to backorder	Latch (C10)	£0.68 £0.57
