Makita HR1800 - Rotary Hammer 18mm - Power Tool Diagram

Description

Model No. HR1800

Rotary Hammer 18mm

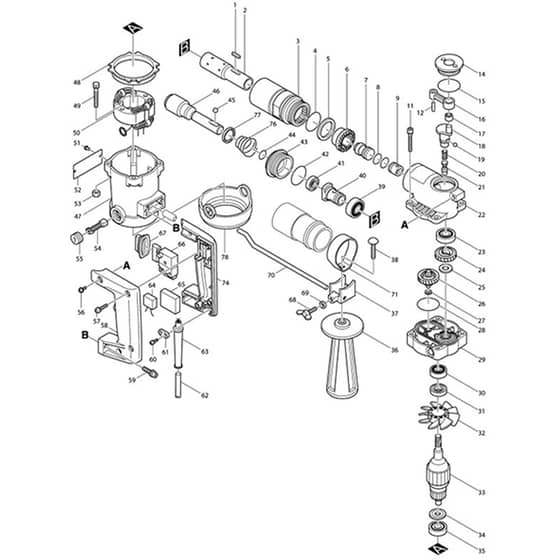

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK254231-5 Available to backorder	Key 4 (Alt.)	£1.32 £1.10
4	MK213507-9 Available to backorder	O Ring 40 (Alt.)	£3.46 £2.88
5	MK253854-6 Available to backorder	Flat Washer 30	£3.34 £2.78
6	MK221358-6 Available to backorder	Spiral Bevel Gear 26	£29.46 £24.55
8	MK213214-4 Available to backorder	O Ring 16 (Alt.)	£3.34 £2.78
9	MK321483-4 Available to backorder	Piston	£10.26 £8.55
11	MK922371-4 Available to backorder	Hex. Socket Head Bolt M6x50	£1.16 £0.97
12	MK256123-4 Available to backorder	Pin 5	£1.32 £1.10
14	MK410018-7 Available to backorder	Crank Cap	£2.60 £2.17
15	MK213460-9 Available to backorder	O Ring 35 (Alt.)	£2.02 £1.68
16	MK321489-2 Available to backorder	Rod	£18.78 £15.65
17	MK212005-0 Available to backorder	Needle Bearing 810	£2.60 £2.17
18	MK321485-0 Available to backorder	Crank Shaft	£47.38 £39.48
19	MK216011-7 Available to backorder	Steel Ball 5.6	£0.48 £0.40
20	MK231327-9 Available to backorder	Compression Spring 6	£0.58 £0.48
21	MK321484-2 Available to backorder	Change Pin 8	£2.02 £1.68
22	MK213459-4 Available to backorder	O Ring 32 (Alt.) (C10)	£2.02 £1.68
22	MK156911-8 Available to backorder	Crank Housing	£44.78 £37.32
23	MK211204-1 Available to backorder	Ball Bearing 6002	£8.08 £6.73
24	MK221705-1 Available to backorder	Helical Gear 29	£9.24 £7.70
25	MK253853-8 Available to backorder	Flat Washer 15	£0.74 £0.62
26	MK151153-9 Available to backorder	Torque Limiter Complete	£106.46 £88.72
27	MK253715-0 Available to backorder	Flat Washer 6	£0.48 £0.40
28	MK213707-1 Available to backorder	O Ring 65 (Alt.)	£1.32 £1.10
29	MK156910-0 Available to backorder	Gear Housing	£65.58 £54.65
29	MK213406-5 Available to backorder	O Ring 30 (Alt.) (C60)	£1.32 £1.10
29	MK212011-5 Available to backorder	Needle Bearing 609 (C10)	£6.52 £5.43
29	MK256122-6 Available to backorder	Pin 4 (C40)	£0.58 £0.48
29	MK213011-8 Available to backorder	O Ring 7 (Alt.) (C30)	£0.58 £0.48
30	MK211069-1 Available to backorder	Ball Bearing 6200	£5.64 £4.70
31	MK213157-0 Available to backorder	Oil Seal 13	£20.38 £16.98
34	MK681613-2 Available to backorder	Insulation Washer	£0.58 £0.48
35	MK211033-2 Available to backorder	Ball Bearing 608Lb	£5.36 £4.47
36	MK273479-0 Available to backorder	Grip 37	£9.38 £7.82
37	MK315145-4 Available to backorder	Grip Base	£3.46 £2.88
38	MK923456-9 Available to backorder	Cap Square Neck Bolt M8x35	£0.74 £0.62
39	MK211304-7 Available to backorder	Ball Bearing 6004	£5.06 £4.22
41	MK213163-5 Available to backorder	Oil Seal 14	£6.82 £5.68
45	MK213064-7 Available to backorder	O Ring 10 (Alt.) (C10)	£4.04 £3.37
45	MK231946-1 Available to backorder	Conical Compr. Spring (C50)	£0.58 £0.48
45	MK414425-6 Available to backorder	Change Ring (C30)	£20.38 £16.98
45	MK286220-2 Available to backorder	Cap 34 (C20)	£3.04 £2.53
45	MK322255-0 Available to backorder	Roller 6.5 (C40)	£5.36 £4.47
47	MK263014-2 Available to backorder	Rubber Pin 4 (C30)	£0.48 £0.40
47	MK643603-3 Available to backorder	Brush Holder 6-10 (C10)	£3.34 £2.78
47	MK913206-0 Available to backorder	Set Screw M5x8 (C21)	£0.48 £0.40
49	MK654019-7 Available to backorder	Ring Terminal (C10)	£0.58 £0.48
49	MK654501-6 Available to backorder	Connector P-1.25 (C20)	£0.48 £0.40
51	MK953106-2 Available to backorder	Rivet 0-5	£0.48 £0.40
52	MK854795-5 Available to backorder	Name Plate Hr1800	£0.82 £0.68
53	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
54	MK181038-5 Available to backorder	A.C. Carbon Brush Cb-105	£9.98 £8.32
55	MK643600-9 Available to backorder	Brush Holder Cap 6-10	£0.74 £0.62
56	MK911323-0 Available to backorder	Pan Head Screw M6x16	£0.58 £0.48
57	MK911238-1 Available to backorder	Pan Head Screw M5x22	£0.48 £0.40
58	MK181488-4 Available to backorder	Handle Set	£20.74 £17.28
59	MK911343-4 Available to backorder	Pan Head Screw M6x25	£0.74 £0.62
60	MK911133-5 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
61	MK687001-1 Available to backorder	Strain Relief	£0.48 £0.40
63	MK682505-8 Available to backorder	Cord Guard 10-90	£1.32 £1.10
64	MK645173-8 Available to backorder	Noise Suppressor	£5.94 £4.95
65	MK685700-9 Available to backorder	Sponge Sheet	£0.48 £0.40
67	MK421145-5 Available to backorder	Dust Cover	£1.32 £1.10
68	MK924216-2 Available to backorder	Wing Bolt M5x15	£0.96 £0.80
69	MK261042-1 Available to backorder	Rubber Washer 4.5	£0.48 £0.40
70	MK321144-6 Available to backorder	Depth Gauge	£1.44 £1.20
73	MK646325-4 Available to backorder	Line Coil (INC. 32-35)	£12.58 £10.48
400	MK163141-4 Available to backorder	Clamp	£2.52 £2.10
401	MK122246-9 Available to backorder	Dust Collector Ass'y	£13.12 £10.93
402	MK819033-2 Available to backorder	Makita Label (C10)	£0.58 £0.48
402	MK417059-4 Available to backorder	Latch (C10)	£0.68 £0.57
403	MK765009-6 Available to backorder	Blow-Out Bulb 64	£4.42 £3.68
404	MK765010-1 Available to backorder	Cotter	£3.78 £3.15
405	MK783203-8 Available to backorder	Hex. Wrench 5	£0.72 £0.60
407	MK421342-3 Available to backorder	Dust Cup 5	£3.20 £2.67
