Model No. HR010G

20mm Crdls Combination Hammer

Power Tool Parts Diagrams

	Part No.	Details
1	MK122D63-1 Available to backorder	Grip Assembly	£21.00 £17.50
3	MK233360-7 Available to backorder	Compression Spring 4	£0.48 £0.40
4	MK265625-9 Available to backorder	Thumb Screw M6x50	£1.39 £1.16
8	MK213262-3 Available to backorder	O Ring 18 (Alt.)	£0.70 £0.58
10	MK422255-1 Available to backorder	Cap	£1.49 £1.24
12	MK286037-3 Available to backorder	Cap 34	£1.22 £1.02
13	MK961057-5 Available to backorder	Retaining Ring S-17	£0.48 £0.40
14	MK253377-4 Available to backorder	Flat Washer 17	£0.70 £0.58
15	MK458845-4 Available to backorder	Chuck Cover	£1.15 £0.96
16	MK257416-2 Available to backorder	Ring 21	£1.90 £1.58
17	MK216022-2 In stock	Steel Ball 7.0	£0.48 £0.40
18	MK346177-0 In stock	Guide Washer	£0.70 £0.58
19	MK232347-6 Available to backorder	Conical Comp. Spring 21-29	£0.48 £0.40
20	MK136975-8 Available to backorder	Gear Housing Ass'y	£24.12 £20.10
21	MK266050-7 Available to backorder	Tapping Screw 4x30	£0.70 £0.58
22	MK458851-9 Available to backorder	Lock Button	£0.84 £0.70
23	MK234264-6 Available to backorder	Compression Spring 3	£0.48 £0.40
24	MK213278-8 Available to backorder	O Ring 17 (Alt.)	£0.48 £0.40
25	MK162C16-2 Available to backorder	Change Lever Complete	£2.10 £1.75
26	MK210035-5 Available to backorder	Ball Bearing 625Ddw	£1.94 £1.62
27	MK232805-2 Available to backorder	Compression Spring 4	£0.48 £0.40
28	MK347A82-0 Available to backorder	Lock Plate	£1.32 £1.10
29	MK232795-9 Available to backorder	Compression Spring 8	£0.48 £0.40
30	MK347A83-8 Available to backorder	Change Plate B	£1.79 £1.49
31	MK347555-7 Available to backorder	Spiral Retaining Ring 25	£0.84 £0.70
32	MK267304-5 Available to backorder	Flat Washer 25	£0.89 £0.74
33	MK232360-4 Available to backorder	Compression Spring 25	£1.15 £0.96
34	MK226854-9 Available to backorder	Spur Gear 44	£5.76 £4.80
36	MK326886-7 Available to backorder	Tool Holder	£15.12 £12.60
37	MK216019-1 Available to backorder	Steel Ball 3	£0.48 £0.40
38	MK326887-5 Available to backorder	Impact Bolt	£1.63 £1.36
39	MK213117-2 Available to backorder	O Ring 11 (Alt.)	£2.21 £1.84
41	MK233942-5 Available to backorder	Ring Spring 22	£1.03 £0.86
42	MK267175-0 Available to backorder	Flat Washer 24	£0.89 £0.74
43	MK345681-6 Available to backorder	Joint Plate	£0.89 £0.74
44	MK347A81-2 Available to backorder	Change Plate A	£1.32 £1.10
45	MK232794-1 Available to backorder	Compression Spring 6	£0.48 £0.40
46	MK922137-2 Available to backorder	Hex. Socket Head Bolt M4x20	£0.65 £0.54
47	MK141M98-7 Available to backorder	Inner Support Complete	£5.64 £4.70
48	MK327215-7 Available to backorder	Striker	£2.24 £1.87
49	MK213832-8 Available to backorder	O-Ring 13	£1.15 £0.96
50	MK327B06-8 Available to backorder	Piston Cylinder	£4.92 £4.10
51	MK324612-8 Available to backorder	Piston Joint	£1.39 £1.16
52	MK347A84-6 Available to backorder	Guide Plate	£0.65 £0.54
53	MK227A97-2 Available to backorder	Spur Gear 12	£5.52 £4.60
54	MK327B05-0 Available to backorder	Clutch Cam	£4.08 £3.40
60	MK210025-8 Available to backorder	Ball Bearing 627Llb	£2.69 £2.24
62	MK266273-7 Available to backorder	Hex. Socket Head Bolt M4x12	£0.70 £0.58
63	MK232793-3 Available to backorder	Compression Spring 12	£0.48 £0.40
64	MK266831-9 Available to backorder	Hex Socket Head Bolt M4x8	£1.49 £1.24
65	MK347A80-4 Available to backorder	Spring Guide	£0.65 £0.54
66	MK213833-6 Available to backorder	O-Ring 60	£0.98 £0.82
67	MK443138-2 Available to backorder	Filter	£0.48 £0.40
68	MK136976-6 Available to backorder	Inner Housing Ass'y	£14.40 £12.00
69	MK347A85-4 Available to backorder	Bearing Retainer	£1.63 £1.36
70	MK213325-5 Available to backorder	O Ring 19 (Alt.)	£0.70 £0.58
71	MK232797-5 Available to backorder	Compression Spring 8	£0.48 £0.40
72	MK413N16-4 Available to backorder	Pusher	£0.50 £0.42
73	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16	£0.48 £0.40
74	MK183Y25-0 Available to backorder	Housing Set	£11.64 £9.70
75	MK140G30-2 Available to backorder	Cap Complete	£3.14 £2.62
76	MK422A09-2 Available to backorder	Cushion Ring 8	£0.48 £0.40
77	MK629B82-1 Available to backorder	Stator Complete	£217.44 £181.20
78	MK213134-2 Available to backorder	O-Ring 11 (C10)	£0.48 £0.40
78	MK619782-9 Available to backorder	Rotor	£51.72 £43.10
79	MK413N13-0 Available to backorder	Air Duct	£1.49 £1.24
80	MK232796-7 Available to backorder	Compression Spring 37	£0.50 £0.42
81	MK413N14-8 Available to backorder	Valve	£0.50 £0.42
82	MK413N15-6 Available to backorder	Cap	£0.65 £0.54
83	MK620K85-2 Available to backorder	Led Circuit	£7.20 £6.00
86	MK183Y92-5 Available to backorder	Handle Set	£15.96 £13.30
86	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
86	MK8007R2-2 Available to backorder	xgt Logo Label (C20)	£0.48 £0.40
88	MK422A08-4 Available to backorder	Cap	£0.48 £0.40
89	MK454980-6 Available to backorder	F/R Change Lever	£1.03 £0.86
90	MK651439-6 Available to backorder	Switch C3Jr-4B-2	£27.96 £23.30
92	MK632P65-6 Available to backorder	Terminal Unit	£11.04 £9.20
93	MK136977-4 Available to backorder	Tool Holder Ass'y	£38.04 £31.70
94	MK136978-2 Available to backorder	Cam Shaft Ass'y	£36.36 £30.30
901	MK195127-0 Available to backorder	Oil Vessel Set (C10)	£3.60 £3.00
901	MK199544-6 Available to backorder	Hammer Service Kit (B01)	£10.92 £9.10

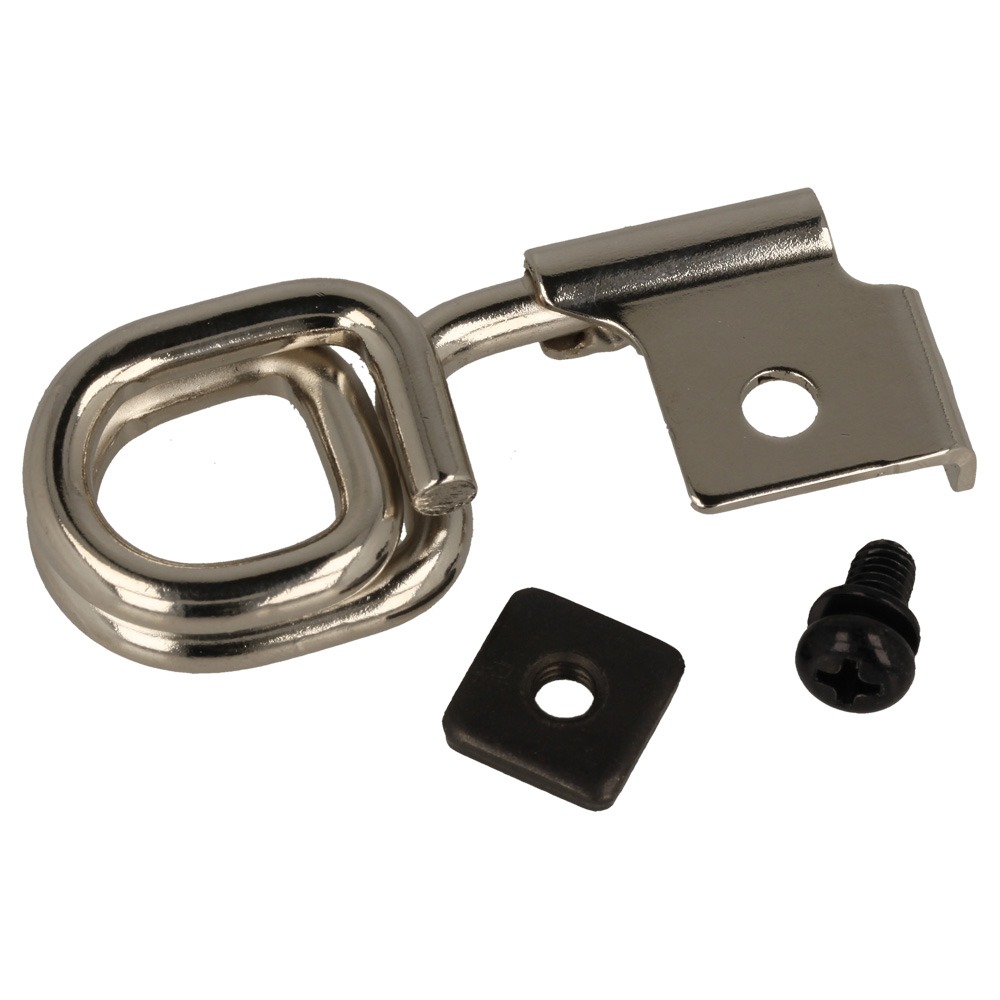

903	MK1911K0-5 Available to backorder	Tool Hanger Set (F03)	£6.48 £5.40
905	MK1911P5-0 Available to backorder	Dust Case Set (F05)	£34.44 £28.70
906	MK1911P8-4 Available to backorder	Dustcup Set (F06)	£23.40 £19.50
924	MK1911P2-6 Available to backorder	Dx16Dust Collection System Set (F24)	£97.68 £81.40
