Makita HR006G - 52mm Cordless Rotary Hammer - Power Tool 02 Diagram

Description

Model No. HR006G

52mm Cordless Rotary Hammer

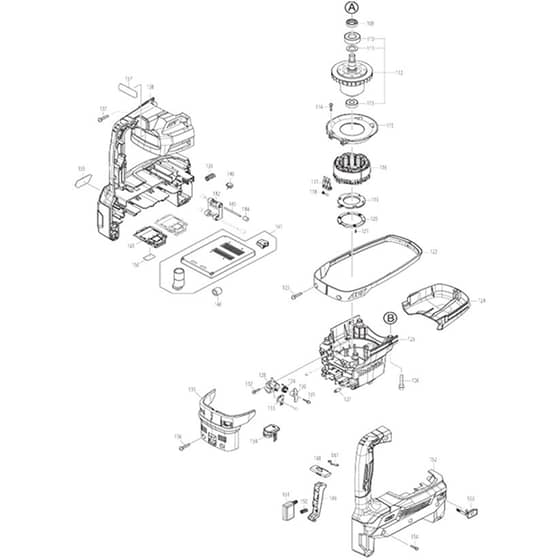

Power Tool 02 Parts Diagrams

	Part No.	Details
108	MK213231-4 Available to backorder	Oil Seal 15	£7.32 £6.10
110	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.72 £8.10
111	MK267215-4 Available to backorder	Flat Washer 15	£1.03 £0.86
112	MK519652-1 Available to backorder	Rotor Assembly (INC. 110 111 113 *)	£197.28 £164.40
113	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
114	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 132 \| 154)	£0.48 £0.40
115	MK413260-9 Available to backorder	Baffle Plate	£7.20 £6.00
116	MK629A27-3 Available to backorder	Stator	£48.48 £40.40
117	MK632R89-4 Available to backorder	Lead Unit	£10.32 £8.60
118	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
119	MK620E26-2 Available to backorder	Controller B	£22.68 £18.90
120	MK687B69-9 Available to backorder	Stopper	£2.24 £1.87
121	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
122	MK454780-4 Available to backorder	Guard 52	£13.92 £11.60
123	MK266041-8 Available to backorder	Binding Head Tapping Screw 5x25 (Refs 136 \| 137)	£0.70 £0.58
124	MK454763-4 Available to backorder	Gear Housing Cover	£5.28 £4.40
125	MK413256-0 Available to backorder	Motor Housing	£46.32 £38.60
126	MK922359-4 Available to backorder	Hex. Socket Head Bolt M6x35 Wg	£2.21 £1.84
127	MK256380-4 Available to backorder	Shoulder Pin 4-6	£0.84 £0.70
128	MK412985-2 Available to backorder	Base	£1.49 £1.24
129	MK232643-2 Available to backorder	Torsion Spring 13	£0.48 £0.40
130	MK140W48-9 Available to backorder	Lever Complete	£7.32 £6.10
131	MK263046-9 Available to backorder	Tapping Screw 3x14	£0.48 £0.40
133	MK620E28-8 Available to backorder	Sensor Circuit	£10.08 £8.40
134	MK620E29-6 Available to backorder	Dial Circuit	£23.76 £19.80
135	MK140X97-2 Available to backorder	Motor Housing Cover Complete	£16.08 £13.40
138	MK183S32-7 Available to backorder	Housing Set (INC. 152)	£144.24 £120.20
138	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
139	MK232663-6 Available to backorder	Compression Spring 8	£0.48 £0.40
140	MK620E27-0 Available to backorder	Led Circuit	£5.52 £4.60
141	MK620E25-4 Available to backorder	Controller	£316.78 £263.98
142	MK620E30-1 Available to backorder	Accelerometer Circuit	£64.68 £53.90
143	MK256886-2 Available to backorder	Rod 3	£0.65 £0.54
144	MK422472-3 Available to backorder	Sponge Sleeve 3	£2.38 £1.98
145	MK632R98-3 Available to backorder	Terminal Unit	£12.24 £10.20
146	MK688163-8 Available to backorder	Line Filter	£1.58 £1.32
147	MK232152-1 Available to backorder	Leaf Spring	£2.21 £1.84
148	MK412953-5 Available to backorder	Trigger Lock	£3.24 £2.70
149	MK458097-7 Available to backorder	Switch Lever	£2.24 £1.87
150	MK232418-9 Available to backorder	Compression Spring 5	£0.84 £0.70
151	MK651083-9 Available to backorder	Switch C3xa-1Pspm	£28.56 £23.80
153	MK140F99-0 Available to backorder	Cap Complete	£2.83 £2.36
153	MK818H07-8 Available to backorder	Cap Label (C20)	£0.84 £0.70
153	MK213218-6 Available to backorder	O-Ring 16 (C10)	£0.89 £0.74
901	MK198993-4 In stock	Grease Vessel Set (A01)	£9.00 £7.50
901	MK1914C5-7 In stock	Grease Set (Alt.) (C11)	£8.58 £7.15
901	MK191N79-7 Available to backorder	Hammer Service Kit (B01)	£74.04 £61.70
902	MK331955-1 Available to backorder	Depth Gauge (A02)	£5.52 £4.60
903	MK443122-7 Available to backorder	Cloth (A03)	£3.48 £2.90
904	MK191N81-0 Available to backorder	Dust Extractor Attachment Set (F04)	£108.48 £90.40
904	MK266163-4 Available to backorder	Round Head Square Neck Bolt M8x80 (C30)	£3.12 £2.60
904	MK346750-6 Available to backorder	Grip Spring 90 (C60)	£5.64 £4.70
904	MK234226-4 Available to backorder	Compression Spring 6 (C20)	£0.48 £0.40
904	MK313223-4 Available to backorder	Rack Guide (C40)	£2.21 £1.84
904	MK158131-0 Available to backorder	Grip 36 Complete (C10)	£11.52 £9.60
904	MK135629-4 Available to backorder	Side Grip Assembly (A04)	£42.72 £35.60
904	MK344492-6 Available to backorder	Plate (C50)	£1.58 £1.32
904	MK453114-8 Available to backorder	Lock Button (C70)	£3.48 £2.90
904	MK454781-2 Available to backorder	Side Grip Base 90 (C80)	£6.48 £5.40
905	MK318430-4 Available to backorder	Side Handle Base 90A (C30)	£19.44 £16.20
905	MK318431-2 Available to backorder	Side Handle Base 90B (C40)	£16.32 £13.60
905	MK252640-2 Available to backorder	Thumb Nut M8 (C10)	£5.64 £4.70
905	MK417002-3 Available to backorder	Side Handle Cam (C50)	£1.73 £1.44
905	MK951166-8 Available to backorder	Spring Pin 5-24 (C70)	£0.48 £0.40
905	MK135283-4 Available to backorder	Side Handle 90 Assembly (A05)	£93.12 £77.60
905	MK265439-6 Available to backorder	Hex. Head Bolt M8x150 (C20)	£2.21 £1.84
905	MK417003-1 Available to backorder	Side Handle (C60)	£11.76 £9.80
906	MK821848-5 Available to backorder	Plastic Case (A06)	£56.16 £46.80
908	MK199143-4 Available to backorder	Dust Extractor Attachment Set (F08)	£24.84 £20.70
909	MK199144-2 Available to backorder	Dust Extractor Attachment Set (F09)	£71.04 £59.20
