Model No. HR005G

40mm Cordless Rotary Hammer

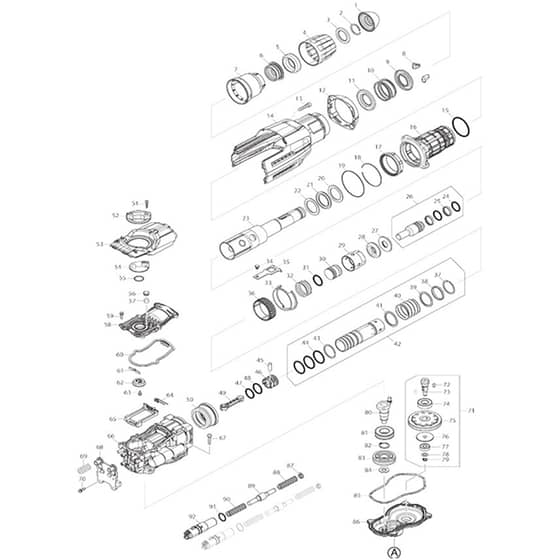

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK286292-7 Available to backorder	Tool Holder Cap	£2.53 £2.11
2	MK233948-3 Available to backorder	Ring Spring 25	£1.39 £1.16
3	MK257308-5 Available to backorder	Ring 28	£2.21 £1.84
4	MK454330-5 Available to backorder	Chuck Cover	£2.83 £2.36
5	MK262167-4 Available to backorder	Rubber Ring 30	£9.00 £7.50
6	MK326272-2 Available to backorder	Chuck Ring	£10.92 £9.10
7	MK454331-3 Available to backorder	Release Cover	£3.72 £3.10
8	MK310257-8 Available to backorder	Tool Retainer	£6.24 £5.20
9	MK346670-4 Available to backorder	Spring Guide	£1.22 £1.02
10	MK234288-2 Available to backorder	Compression Spring 46	£0.89 £0.74
12	MK424560-2 Available to backorder	Housing Cap	£2.38 £1.98
13	MK922351-0 Available to backorder	Hex. Socket Head Bolt M6x30	£0.89 £0.74
14	MK141957-7 Available to backorder	Housing Cover A Complete	£30.96 £25.80
14	MK810100-6 Available to backorder	Caution Label (C10)	£0.70 £0.58
15	MK213615-6 Available to backorder	O Ring 46 (Alt.)	£0.89 £0.74
16	MK213490-0 Available to backorder	Oil Seal 32 (C10)	£4.20 £3.50
16	MK233963-7 Available to backorder	Ring Spring 45 (C30)	£0.48 £0.40
16	MK213492-6 Available to backorder	O-Ring 32 (C20)	£2.53 £2.11
16	MK141956-9 Available to backorder	Barrel Complete	£75.36 £62.80
17	MK454337-1 Available to backorder	Lock Sleeve	£1.90 £1.58
18	MK234290-5 Available to backorder	Ring Spring 59	£0.48 £0.40
19	MK213707-1 Available to backorder	O Ring 65 (Alt.)	£1.58 £1.32
20	MK267469-3 Available to backorder	Flat Washer 32	£0.89 £0.74
21	MK262168-2 Available to backorder	Rubber Ring 32	£4.08 £3.40
23	MK326268-3 Available to backorder	Tool Holder	£154.08 £128.40
24	MK213317-4 Available to backorder	O Ring 20 (Alt.)	£0.89 £0.74
25	MK213392-0 Available to backorder	Fluoride Ring 25	£9.00 £7.50
26	MK136377-8 Available to backorder	Impact Bolt Assy (INC. 24 25)	£46.92 £39.10
27	MK326274-8 Available to backorder	Ring 17	£4.44 £3.70
28	MK262166-6 Available to backorder	Rubber Ring 18	£9.60 £8.00
29	MK454347-8 Available to backorder	Slide Sleeve	£2.38 £1.98
30	MK326270-6 Available to backorder	Striker	£4.80 £4.00
31	MK213695-2 Available to backorder	O-Ring 22	£6.00 £5.00
32	MK234289-0 Available to backorder	Compression Spring 33	£0.48 £0.40
33	MK346673-8 Available to backorder	Guide Ring	£7.32 £6.10
34	MK256548-2 Available to backorder	Flat Fillister Head Pin 6	£1.39 £1.16
35	MK346671-2 Available to backorder	Link Plate	£1.58 £1.32
36	MK313255-1 Available to backorder	Driving Sleeve	£16.44 £13.70
37	MK257991-8 Available to backorder	Retaining Ring (Ext) Wr-32.5	£1.22 £1.02
38	MK257340-9 Available to backorder	Ring 33	£2.05 £1.71
39	MK267470-8 Available to backorder	Flat Washer 33	£2.21 £1.84
40	MK234287-4 Available to backorder	Compression Spring 34	£1.39 £1.16
42	MK136378-6 Available to backorder	Cylinder Assy (INC. 37-41 43 44)	£80.52 £67.10
44	MK213406-5 Available to backorder	O Ring 30 (Alt.)	£1.58 £1.32
45	MK256197-5 Available to backorder	Pin 7	£1.39 £1.16
46	MK419004-5 Available to backorder	Piston	£1.73 £1.44
47	MK213379-2 Available to backorder	O Ring 21 (Alt.)	£0.70 £0.58
49	MK454317-7 Available to backorder	Connecting Rod	£8.28 £6.90
50	MK227613-4 Available to backorder	Spiral Bevel Gear 26	£27.12 £22.60
51	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
52	MK454326-6 Available to backorder	Change Lever	£2.83 £2.36
53	MK313325-6 Available to backorder	Crank Cap Cover	£10.92 £9.10
54	MK454345-2 Available to backorder	Crank Lever	£2.21 £1.84
55	MK213262-3 Available to backorder	O Ring 18 (Alt.)	£0.70 £0.58
56	MK424556-3 Available to backorder	Filter Cap	£0.70 £0.58
57	MK443182-9 Available to backorder	Filter	£0.89 £0.74
58	MK454319-3 Available to backorder	Crank Cap	£5.40 £4.50
59	MK911128-8 In stock	P.H.Screw M4x16 With Wr	£0.54 £0.45
60	MK424559-7 Available to backorder	Seal Ring B	£1.90 £1.58
61	MK232280-2 Available to backorder	Leaf Spring	£1.22 £1.02
62	MK458100-4 Available to backorder	Link Lever	£2.38 £1.98
63	MK911511-9 Available to backorder	Pan Head Screw M4x10	£0.89 £0.74
64	MK233603-7 Available to backorder	Torsion Spring 7	£0.48 £0.40
65	MK454338-9 Available to backorder	Link Guide	£3.48 £2.90
66	MK141953-5 Available to backorder	Crank Housing A Complete	£89.04 £74.20
67	MK266041-8 Available to backorder	Tapping Screw 5x25	£0.70 £0.58
68	MK140Y51-2 Available to backorder	Spring Holder Complete	£5.88 £4.90
69	MK234282-4 Available to backorder	Compression Spring 12	£0.70 £0.58
71	MK126290-8 Available to backorder	Torque Limiter Assembly (INC. 72-79)	£152.64 £127.20
72	MK254239-9 Available to backorder	Key 4	£1.73 £1.44
73	MK227612-6 Available to backorder	Spiral Bevel Gear 7	£3.84 £3.20
74	MK211232-6 Available to backorder	Ball Bearing 6002Llu	£5.64 £4.70
75	MK141959-3 Available to backorder	Torque Limitter Complete	£101.76 £84.80
76	MK324727-1 Available to backorder	Shoulder Washer 8	£6.72 £5.60
77	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£8.04 £6.70
78	MK253215-0 Available to backorder	Flat Washer 8	£0.48 £0.40
79	MK961004-6 Available to backorder	Retaining Ring (Ext) S-8	£0.48 £0.40
80	MK326271-4 Available to backorder	Crank Shaft	£17.52 £14.60
81	MK210183-0 Available to backorder	Ball Bearing 6004Llu	£18.84 £15.70
82	MK961060-6 Available to backorder	Retaining Ring S-20	£0.70 £0.58
83	MK227772-4 Available to backorder	Helical Gear 37	£11.76 £9.80
84	MK253180-3 Available to backorder	Flat Washer 10	£0.70 £0.58
85	MK424558-9 Available to backorder	Seal Ring A	£1.90 £1.58
86	MK141955-1 Available to backorder	Gear Housing Complete	£59.64 £49.70
87	MK454342-8 Available to backorder	Spring Plate	£1.22 £1.02
88	MK234286-6 Available to backorder	Compression Spring 11	£1.03 £0.86
89	MK326273-0 Available to backorder	Counter Weight	£4.08 £3.40
91	MK213325-5 Available to backorder	O Ring 19 (Alt.)	£0.70 £0.58
92	MK142289-5 Available to backorder	Holder Complete	£9.60 £8.00
