Model No. HP2070F

2-Speed Hammer Drill 20mm

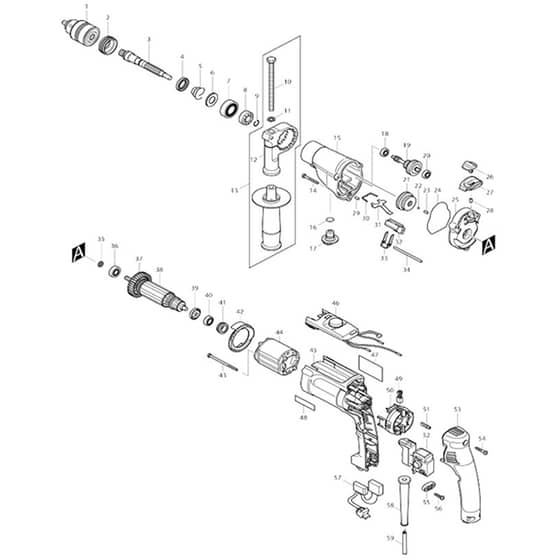

Power Tool Parts Diagrams

	Part No.	Details
1	MK763430-3 Available to backorder	Chuck Key S13 (C10)	£5.88 £4.90
1	MK193822-6 Available to backorder	Drill Chuck 13 Set	£40.92 £34.10
2	MK285839-4 Available to backorder	Bearing Retainer 20-36	£2.69 £2.24
3	MK324247-5 Available to backorder	Spindle	£12.24 £10.20
4	MK213314-0 Available to backorder	Oil Seal 19	£6.24 £5.20
5	MK233921-3 Available to backorder	Conical Compression Spring 15-24	£0.70 £0.58
6	MK345224-4 Available to backorder	Cup Washer 15	£0.70 £0.58
7	MK211206-7 Available to backorder	Ball Bearing 6202Llb	£3.72 £3.10
8	MK223141-7 Available to backorder	Cam A	£1.74 £1.45
9	MK233920-5 Available to backorder	Ring Spring 11	£0.70 £0.58
10	MK265439-6 Available to backorder	Hex. Head Bolt M8x150 <	£2.21 £1.84
10	MK921923-8 Available to backorder	Hex. Head Bolt M8x120	£1.32 £1.10
11	MK345280-4 Available to backorder	Hex. Washer	£0.70 £0.58
12	MK459485-1 Available to backorder	Grip Base <	£3.12 £2.60
12	MK417630-4 Available to backorder	Grip Base	£1.90 £1.58
13	MK136603-5 Available to backorder	Grip 36 Assembly < (INC. 10-12)	£28.80 £24.00
13	MK135302-6 Available to backorder	Grip 36 Assembly (Alt.) (INC. 10-12 *)	£5.28 £4.40
14	MK266053-1 Available to backorder	Binding Head Tapping Screw 4x35	£0.70 £0.58
14	MK266351-3 Available to backorder	Binding Head Tapping Screw 4x35	£0.48 £0.40
15	MK153621-8 Available to backorder	Gear Housing Complete	£14.88 £12.40
16	MK213122-9 Available to backorder	O-Ring 12	£0.48 £0.40
17	MK417805-5 Available to backorder	Change Lever B	£0.89 £0.74
18	MK211012-0 Available to backorder	Ball Bearing 606Zz (Alt.)	£13.32 £11.10
18	MK211014-6 Available to backorder	Ball Bearing 606	£8.40 £7.00
19	MK153622-6 Available to backorder	Gear Complete	£14.04 £11.70
21	MK227030-8 Available to backorder	Spur Gear 29-37	£2.69 £2.24
21	MK227119-2 Available to backorder	Spur Gear 29-37 <	£8.64 £7.20
22	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
23	MK256251-5 Available to backorder	Pin 4	£0.70 £0.58
24	MK421810-6 Available to backorder	Seal Ring	£1.03 £0.86
25	MK153620-0 Available to backorder	Gear Housing Cover Complete	£9.00 £7.50
26	MK418083-0 Available to backorder	Change Lever A	£0.70 £0.58
27	MK417802-1 Available to backorder	Lever Case	£0.89 £0.74
28	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
30	MK232143-2 Available to backorder	Leaf Spring	£1.03 £0.86
31	MK345225-2 Available to backorder	Lock Plate	£1.03 £0.86
32	MK417804-7 Available to backorder	Rack 12	£0.89 £0.74
33	MK345223-6 Available to backorder	Change Plate B	£0.70 £0.58
34	MK268092-7 Available to backorder	Pin 4	£0.48 £0.40
35	MK257857-2 Available to backorder	Ring 8 <	£0.48 £0.40
36	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£8.04 £6.70
37	MK240065-2 Available to backorder	Fan 52	£1.58 £1.32
38	MK517464-6 Available to backorder	Armature Assembly 240V (INC. 35-37 39 40)	£33.96 £28.30
39	MK681636-0 Available to backorder	Insulation Washer	£2.21 £1.84
40	MK211021-9 Available to backorder	Ball Bearing 607Llb	£8.04 £6.70
41	MK421494-0 Available to backorder	Labyrinth Rubber Ring 19	£5.88 £4.90
42	MK418269-6 Available to backorder	Baffle Plate	£0.48 £0.40
43	MK266004-4 Available to backorder	Binding Head Tapping Screw 4x70	£1.22 £1.02
43	MK266325-4 Available to backorder	Binding Head Tapping Screw 4x70	£0.48 £0.40
44	MK633573-4 Available to backorder	Field	£14.16 £11.80
45	MK413848-5 Available to backorder	Motor Housing S	£9.60 £8.00
46	MK631534-8 Available to backorder	Controller	£67.80 £56.50
48	MK819063-3 Available to backorder	Makita Logo Label	£1.39 £1.16
49	MK191962-4 Available to backorder	Carbon Brush Set Cb-419	£5.40 £4.50
49	MK195015-1 Available to backorder	Carbon Brush Set Cb-419 (Alt.)	£5.04 £4.20
50	MK638413-1 Available to backorder	Brush Holder Unit (Alt.)	£12.96 £10.80
51	MK686038-5 Available to backorder	Receptacle Sleeve	£0.48 £0.40
52	MK650212-1 Available to backorder	Switch Tg813Tb-4	£22.68 £18.90
53	MK413850-8 Available to backorder	Handle Cover S	£6.48 £5.40
54	MK265999-8 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
55	MK687052-4 Available to backorder	Strain Relief	£0.89 £0.74
55	MK687124-5 Available to backorder	Strain Relief (Alt.)	£0.48 £0.40
56	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
57	MK631545-3 Available to backorder	Light Circuit	£24.48 £20.40
58	MK682559-5 Available to backorder	Cord Guard 8	£1.03 £0.86
901	MK324219-0 Available to backorder	Depth Gauge (A01)	£0.89 £0.74
902	MK410102-8 Available to backorder	Key Holder 12 (A02)	£1.03 £0.86
904	MK821896-4 Available to backorder	Plastic Case < (A04-1)	£18.96 £15.80
904	MK417724-5 Available to backorder	Latch (C10)	£0.82 £0.68
904	MK824650-5 Available to backorder	Plastic Case (A04)	£17.04 £14.20
904	MK819144-3 Available to backorder	Makita Logo Label (C20)	£0.89 £0.74
905	MK8050N6-9 Available to backorder	Plastic Case Label Hp2070F (A05)	£2.10 £1.75
916	MK194254-0 Available to backorder	Keyless Drill Chuck Set (F16)	£101.28 £84.40
