Model No. HM1511

Electric Breaker

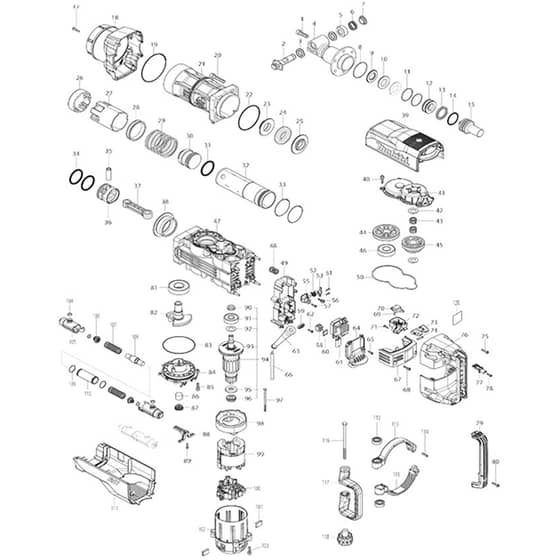

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK265B53-0 Available to backorder	H.S Head Bolt M10x35 Wm	£2.06 £1.72
2	MK327671-1 Available to backorder	Tool Retainer	£46.28 £38.57
3	MK262197-5 Available to backorder	Rubber Ring 20	£4.10 £3.42
4	MK313322-2 Available to backorder	Tool Holder A	£94.06 £78.38
5	MK327672-9 Available to backorder	Spring Base B	£2.60 £2.17
6	MK232641-6 Available to backorder	Compression Spring 28	£2.18 £1.82
7	MK327670-3 Available to backorder	Retainer Sleeve	£11.06 £9.22
8	MK213670-8 Available to backorder	O Ring 58 (Alt.)	£1.16 £0.97
9	MK253487-7 Available to backorder	Flat Washer 26	£2.06 £1.72
10	MK262198-3 Available to backorder	Urethane Ring 26	£9.16 £7.63
11	MK213569-7 Available to backorder	O Ring 45 (Alt.)	£0.74 £0.62
12	MK327674-5 Available to backorder	Ring 24	£9.00 £7.50
13	MK213911-2 Available to backorder	x-Ring 38	£9.16 £7.63
14	MK213912-0 Available to backorder	O-Ring 40	£3.16 £2.63
15	MK327668-0 Available to backorder	Impact Bolt A	£18.44 £15.37
17	MK266041-8 Available to backorder	Tapping Screw 5x25 (Refs 068 \| 075 \| 080)	£0.58 £0.48
18	MK412874-1 Available to backorder	Barrel Cover	£48.74 £40.62
19	MK213916-2 Available to backorder	O-Ring106	£2.46 £2.05
20	MK265B55-6 Available to backorder	H.S Head Bolt M10x50 Wm	£2.88 £2.40
21	MK313324-8 Available to backorder	Barrel	£173.78 £144.82
22	MK213806-9 Available to backorder	O Ring 90 (Alt.)	£2.18 £1.82
23	MK327667-2 Available to backorder	Shoulder Ring 30 B	£18.30 £15.25
24	MK262196-7 Available to backorder	Rubber Ring 31	£16.38 £13.65
25	MK327666-4 Available to backorder	Shoulder Ring 30 A	£21.02 £17.52
26	MK313321-4 Available to backorder	Guide Ring	£64.42 £53.68
27	MK412859-7 Available to backorder	Slide Sleeve	£31.94 £26.62
28	MK327664-8 Available to backorder	Sleeve 65	£5.06 £4.22
29	MK232646-6 Available to backorder	Compression Spring 66	£8.46 £7.05
30	MK327665-6 Available to backorder	Striker	£15.44 £12.87
31	MK213913-8 Available to backorder	O-Ring 48	£8.88 £7.40
32	MK327662-2 Available to backorder	Cylinder 59	£188.24 £156.87
33	MK213656-2 Available to backorder	O Ring 53 (Alt.)	£1.74 £1.45
35	MK327663-0 Available to backorder	Pipe 15	£2.06 £1.72
36	MK412858-9 Available to backorder	Piston	£20.74 £17.28
37	MK412857-1 Available to backorder	Connecting Rod	£14.34 £11.95
38	MK327661-4 Available to backorder	Spacer	£13.38 £11.15
39	MK412875-9 Available to backorder	Top Cover	£21.84 £18.20
40	MK266923-4 Available to backorder	H.S.Head Bolt M6x25 With Gm (Refs 085 \| 103)	£1.02 £0.85
41	MK413211-2 Available to backorder	Gear Cover	£15.28 £12.73
42	MK267487-1 Available to backorder	Flat Washer 17	£0.86 £0.72
43	MK212230-3 Available to backorder	Needle Cage 1715	£8.88 £7.40
44	MK227832-2 Available to backorder	Helical Gear 53	£15.84 £13.20
45	MK227833-0 Available to backorder	Gear Complete 31-45	£21.44 £17.87
46	MK210234-9 Available to backorder	Ball Bearing 2216Llb	£13.92 £11.60
47	MK140W38-2 Available to backorder	Crank Housing A Complete	£273.31 £227.76
48	MK232644-0 Available to backorder	Compression Spring 16 A	£0.96 £0.80
49	MK412868-6 Available to backorder	Controller Case	£8.46 £7.05
50	MK422636-9 Available to backorder	Seal Ring	£3.54 £2.95
51	MK263046-9 Available to backorder	Tapping Screw 3x14	£0.48 £0.40
52	MK232643-2 Available to backorder	Torsion Spring 13	£0.48 £0.40
53	MK140W48-9 Available to backorder	Lever Complete	£7.10 £5.92
55	MK412871-7 Available to backorder	Base	£2.46 £2.05
56	MK266903-0 Available to backorder	Hex.S.Head Bolt M5x20 With Wr	£1.10 £0.92
57	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 062 \| 065 \| 071 \| 078 \| 089)	£0.48 £0.40
58	MK654741-6 Available to backorder	Terminal Block	£1.52 £1.27
59	MK687053-2 Available to backorder	Strain Relief	£0.86 £0.72
60	MK685756-2 Available to backorder	Rubber Sheet	£0.86 £0.72
61	MK688165-4 Available to backorder	Line Filter (C10)	£0.86 £0.72
61	MK620E02-6 Available to backorder	Controller	£83.14 £69.28
63	MK682560-0 Available to backorder	Cord Guard 10	£2.18 £1.82
64	MK412869-4 Available to backorder	Cord Cover	£4.92 £4.10
66	MK695123-3 Available to backorder	Power Supply Cord 1.5-2-4.0	£39.58 £32.98
67	MK140W49-7 Available to backorder	Controller Cover Complete	£9.98 £8.32
69	MK263027-3 Available to backorder	Rubber Pin 4	£0.58 £0.48
70	MK651423-1 Available to backorder	Switch	£10.56 £8.80
72	MK412878-3 Available to backorder	Switch Holder	£1.92 £1.60
73	MK451112-6 Available to backorder	Slide Lever	£5.20 £4.33
74	MK232209-8 Available to backorder	Leaf Spring	£0.86 £0.72
76	MK140W50-2 Available to backorder	Handle Complete	£32.90 £27.42
76	MK263044-3 Available to backorder	Rubber Pin 6 (C10)	£0.54 £0.45
77	MK412879-1 Available to backorder	Switch Support	£1.92 £1.60
79	MK412880-6 Available to backorder	Handle Cover	£13.38 £11.15
81	MK210233-1 Available to backorder	Ball Bearing 2818Llu	£29.90 £24.92
82	MK327660-6 Available to backorder	Crank Shaft	£11.88 £9.90
83	MK213914-6 Available to backorder	O-Ring 100	£2.18 £1.82
84	MK412862-8 Available to backorder	Crank Cap A	£13.26 £11.05
86	MK443127-7 Available to backorder	Filter	£0.86 £0.72
87	MK424668-2 Available to backorder	Filter Cap	£1.32 £1.10
88	MK412867-8 Available to backorder	Filter Guide	£2.18 £1.82
90	MK332129-7 Available to backorder	Sealing Screw	£2.02 £1.68
91	MK211152-4 Available to backorder	Ball Bearing 6303Llu	£14.88 £12.40
93	MK240213-3 Available to backorder	Fan 80	£5.18 £4.32
94	MK515544-2 Available to backorder	Armature Assy 240V	£147.84 £123.20
95	MK681630-2 Available to backorder	Insulation Washer	£0.48 £0.40
96	MK210232-3 Available to backorder	Ball Bearing 6200Ddw	£9.82 £8.18
97	MK265B54-8 Available to backorder	+ Hex Bolt M5x95 With Gm	£2.60 £2.17
98	MK412861-0 Available to backorder	Buffle Plate	£3.70 £3.08
99	MK634749-6 Available to backorder	Field 240V	£84.36 £70.30
100	MK632R65-8 Available to backorder	Brush Holder Unit	£13.66 £11.38
101	MK197129-2 Available to backorder	Carbon Brush Cb-218	£7.66 £6.38
102	MK412860-2 Available to backorder	Motor Housing	£26.36 £21.97
104	MK213058-2 Available to backorder	O Ring 10 (Alt.)	£2.32 £1.93
105	MK412865-2 Available to backorder	Pipe Holder	£2.88 £2.40
106	MK412866-0 Available to backorder	Spring Guide	£2.88 £2.40
107	MK232642-4 Available to backorder	Compression Spring 18	£1.64 £1.37
108	MK327679-5 Available to backorder	Counter Weight	£2.60 £2.17
109	MK213915-4 Available to backorder	O-Ring 25	£0.54 £0.45
110	MK327680-0 Available to backorder	Pipe 22	£2.88 £2.40
111	MK412876-7 Available to backorder	Rear Cover A	£21.44 £17.87
112	MK417002-3 Available to backorder	Side Handle Cam	£1.44 £1.20
113	MK312A28-5 Available to backorder	Side Handle Base A	£12.70 £10.58
114	MK951166-8 Available to backorder	Spring Pin 5-24	£0.48 £0.40
115	MK312A29-3 Available to backorder	Side Handle Base B	£10.92 £9.10
116	MK265439-6 Available to backorder	Hex. Bolt M8x150	£2.02 £1.68
117	MK412881-4 Available to backorder	Side Handle	£24.18 £20.15
118	MK252640-2 Available to backorder	Wing Nut M8	£5.48 £4.57
120	MK858C53-9 Available to backorder	Hm1511 Name Plate	£0.96 £0.80
901	MKD-15285 Available to backorder	Bull Point 400 (A01)	£23.44 £19.53
901	MK191M24-6 Available to backorder	Hammer Service Kit (B01)	£45.74 £38.12
901	MK1914C5-7 In stock	Grease Set (Alt.) (C11)	£7.54 £6.28
902	MK821836-2 Available to backorder	Plastic Carrying Case (A02)	£116.40 £97.00
