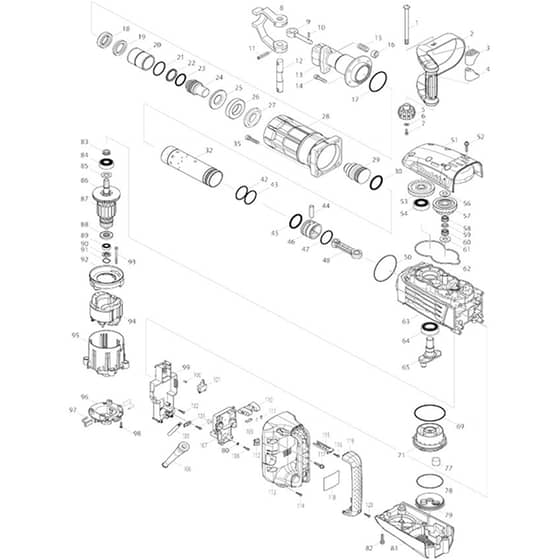

Makita HM1307CB - Electric Breaker - Power Tool Diagram

Description

Model No. HM1307CB

Electric Breaker

Power Tool Parts Diagrams

	Part No.	Details
1	MK266512-5 Available to backorder	Set Bolt M10x142	£10.32 £8.60
2	MK163506-0 Available to backorder	Side Handle	£38.88 £32.40
3	MK451331-4 Available to backorder	Handle Base	£1.74 £1.45
5	MK252654-1 Available to backorder	Thumb Nut M10	£5.40 £4.50
6	MK253194-2 Available to backorder	Flat Washer 5	£0.70 £0.58
7	MK922221-3 Available to backorder	Hex. Socket Head Bolt M5x16 W	£0.70 £0.58
8	MK325895-3 Available to backorder	Tool Retainer	£226.80 £189.00
9	MK322477-2 Available to backorder	Tool Retainer Pole	£38.88 £32.40
10	MK256219-1 Available to backorder	Pin 4	£0.89 £0.74
11	MK951272-9 Available to backorder	Spring Pin 8-40	£1.58 £1.32
12	MK324238-6 Available to backorder	Tool Retainer Shaft	£34.92 £29.10
13	MK331872-5 Available to backorder	Tool Holder	£361.20 £301.00
14	MK266011-7 Available to backorder	Hex. Socket Head Bolt M8x35	£2.38 £1.98
15	MK233083-7 Available to backorder	Compression Spring 12	£2.05 £1.71
16	MK322560-5 Available to backorder	Retaining Ring	£17.28 £14.40
17	MK213720-9 Available to backorder	O-Ring 67	£1.90 £1.58
18	MK262151-9 Available to backorder	Urethane Ring 32	£9.48 £7.90
19	MK257301-9 Available to backorder	Ring 35	£16.92 £14.10
20	MK257788-5 Available to backorder	Sleeve 43	£29.64 £24.70
21	MK213569-7 Available to backorder	O-Ring 45 (Refs 042 \| 043 \| 047)	£0.89 £0.74
22	MK213192-8 Available to backorder	x-Ring 36	£9.24 £7.70
23	MK213150-4 Available to backorder	O-Ring 36	£2.83 £2.36
24	MK325687-0 Available to backorder	Impact Bolt	£61.92 £51.60
25	MK325683-8 Available to backorder	Washer 30	£21.12 £17.60
26	MK424206-0 Available to backorder	Rubber Ring 36	£20.28 £16.90
27	MK325684-6 Available to backorder	Shoulder Ring 32	£26.16 £21.80
28	MK318458-2 Available to backorder	Barrel	£99.00 £82.50
29	MK325685-4 Available to backorder	Striker	£23.76 £19.80
30	MK213193-6 Available to backorder	O-Ring 42	£4.32 £3.60
32	MK331870-9 Available to backorder	Cylinder 52	£187.08 £155.90
35	MK265367-5 Available to backorder	Hex. Socket Head Bolt M8x40	£2.05 £1.71
44	MK256238-7 Available to backorder	Pin 12	£3.12 £2.60
46	MK318459-0 Available to backorder	Piston	£41.52 £34.60
48	MK451164-7 Available to backorder	Connecting Rod	£6.12 £5.10
50	MK213806-9 Available to backorder	O-Ring 90	£2.38 £1.98
51	MK318462-1 Available to backorder	Gear Cover	£62.64 £52.20
52	MK266499-1 Available to backorder	Hex. Socket Head Bolt M6x30 Gm (Refs 082 \| 117)	£1.58 £1.32
53	MK227709-1 Available to backorder	Helical Gear 47	£54.24 £45.20
54	MK211306-3 Available to backorder	Ball Bearing 6204Llb	£11.64 £9.70
56	MK267166-1 Available to backorder	Flat Washer 14	£1.39 £1.16
57	MK226156-3 Available to backorder	Gear Complete 31-43	£106.92 £89.10
58	MK212159-3 Available to backorder	Needle Cage 1412	£6.84 £5.70
59	MK262157-7 Available to backorder	Nylon Ring 14	£1.74 £1.45
62	MK424207-8 Available to backorder	Seal Ring	£1.90 £1.58
64	MK211373-8 Available to backorder	Ball Bearing 6205Llu	£11.40 £9.50
65	MK331871-7 Available to backorder	Crankshaft	£21.96 £18.30
69	MK213809-3 Available to backorder	O-Ring 87	£2.69 £2.24
77	MK443127-7 Available to backorder	Filter	£1.03 £0.86
78	MK213758-4 Available to backorder	O-Ring 74	£4.20 £3.50
79	MK451166-3 Available to backorder	Crank Cap Cover	£4.44 £3.70
80	MK346546-5 Available to backorder	Plate x	£1.03 £0.86
80	MK941051-3 Available to backorder	Flat Washer 4	£0.48 £0.40
83	MK331855-5 Available to backorder	Screw Seal	£1.90 £1.58
84	MK211249-9 Available to backorder	Ball Bearing 6302Llu	£16.32 £13.60
85	MK267397-2 Available to backorder	Flat Washer 15	£1.73 £1.44
86	MK240003-4 Available to backorder	Fan 80	£3.48 £2.90
87	MK517788-0 Available to backorder	Armature Assembly 220-240V (INC. 84-86 88 89)	£149.76 £124.80
88	MK681642-5 Available to backorder	Insulation Washer	£10.32 £8.60
89	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
90	MK451107-9 Available to backorder	Washer Guide	£2.21 £1.84
91	MK267809-5 Available to backorder	Wave Washer 19	£0.89 £0.74
92	MK451111-8 Available to backorder	Baffle Plate	£4.44 £3.70
93	MK266044-2 Available to backorder	Binding Head Tapping Screw 5x60	£2.38 £1.98
94	MK636333-3 Available to backorder	Field 220-240V	£49.56 £41.30
95	MK451117-6 Available to backorder	Motor Housing	£28.68 £23.90
96	MK632D00-2 Available to backorder	Brush Holder Unit <	£9.24 £7.70
97	MK195844-2 In stock	Carbon Brush Set (Alt.)	£9.24 £7.70
98	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 102 \| 104 \| 114 \| 116 \| 120)	£0.48 £0.40
99	MK158986-3 Available to backorder	Controller Cover Complete	£15.96 £13.30
100	MK263027-3 Available to backorder	Rubber Pin 4	£0.70 £0.58
101	MK651423-1 Available to backorder	Switch St115A-43	£10.92 £9.10
103	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
105	MK695123-3 Available to backorder	Power Supply Cord 1.5-2-4.0	£40.92 £34.10
106	MK682560-0 Available to backorder	Cord Guard 10	£2.38 £1.98
108	MK265490-6 Available to backorder	Hex. Socket Head Bolt M4x16	£0.48 £0.40
108	MK266834-3 Available to backorder	Hex. Socket Head Bolt M4x18 Gm S	£1.22 £1.02
109	MK232209-8 Available to backorder	Leaf Spring	£1.03 £0.86
110	MK451112-6 Available to backorder	Slide Lever	£5.40 £4.50
112	MK451105-3 Available to backorder	Lens	£3.01 £2.51
113	MK451118-4 Available to backorder	Handle	£56.64 £47.20
115	MK451106-1 Available to backorder	Switch Lever	£3.72 £3.10
119	MK451119-2 Available to backorder	Handle Cover	£28.68 £23.90
121	MK442180-0 Available to backorder	Both Side Adhesive Tape 38x80 S	£1.73 £1.44
901	MKD-17631 Available to backorder	Bull Point 410 < (A01-1)	£24.36 £20.30
901	MK195103-4 Available to backorder	Hammer Service Kit (B01)	£37.20 £31.00
901	MK1914C5-7 In stock	Grease Set (Alt.) (C11)	£8.58 £7.15
902	MK162271-8 In stock	Latch (C10)	£2.16 £1.80
908	MK197148-8 Available to backorder	Dust Extractor Attachment Set (F08)	£146.88 £122.40
910	MK197168-2 Available to backorder	Dust Extractor Attachment Set (F10)	£68.28 £56.90
