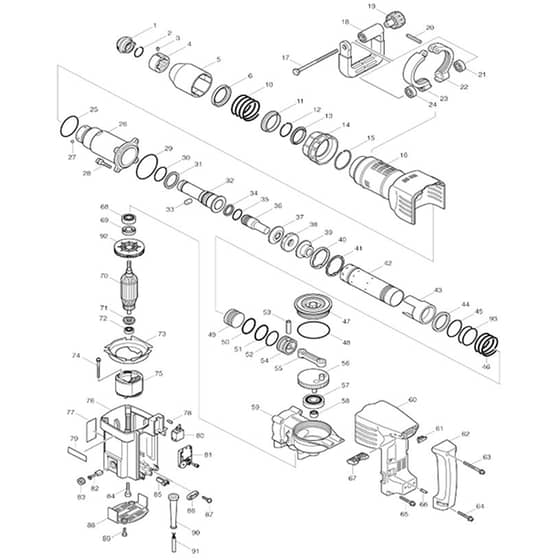

Makita HM1242C - Demolition Hammer - Power Tool Diagram

Description

Model No. HM1242C

Demolition Hammer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
3	MK256156-9 Available to backorder	Pin 6	£0.74 £0.62
6	MK267735-8 Available to backorder	Cup Washer 45	£4.04 £3.37
10	MK233218-0 Available to backorder	Compression Spring 55	£1.44 £1.20
11	MK324131-4 Available to backorder	Steel Ball Guide x	£12.58 £10.48
12	MK231988-5 Available to backorder	Ring Spring 34	£0.86 £0.72
13	MK267197-0 Available to backorder	Flat Washer 37	£2.06 £1.72
14	MK416934-1 Available to backorder	Change Ring	£5.48 £4.57
15	MK231989-3 Available to backorder	Ring Spring 46	£1.16 £0.97
16	MK416938-3 Available to backorder	Housing Cover	£23.68 £19.73
17	MK265439-6 Available to backorder	Hex. Bolt M8x150	£2.02 £1.68
18	MK417003-1 Available to backorder	Side Handle	£11.42 £9.52
19	MK252640-2 Available to backorder	Wing Nut M8	£5.48 £4.57
20	MK951166-8 Available to backorder	Spring Pin 5-24	£0.48 £0.40
21	MK417002-3 Available to backorder	Side Handle Cam	£1.44 £1.20
23	MK318506-7 Available to backorder	Side Handle Base 82B (Alt.)	£17.92 £14.93
25	MK213670-8 Available to backorder	O Ring 58 (Alt.)	£1.16 £0.97
26	MK310087-7 Available to backorder	Barrel	£78.58 £65.48
27	MK216011-7 Available to backorder	Steel Ball 5.6	£0.48 £0.40
28	MK922451-6 Available to backorder	Hex. Socket Head Bolt M8x30	£1.32 £1.10
29	MK213720-9 Available to backorder	O Ring 67 (Alt.)	£1.74 £1.45
30	MK213508-7 Available to backorder	O Ring 38 (Alt.) (Refs 045 \| 093)	£0.86 £0.72
30	MK213510-0 Available to backorder	O Ring 36 (Alt.)	£1.44 £1.20
31	MK262095-3 Available to backorder	Urethane Ring 41 x	£2.46 £2.05
34	MK213431-6 Available to backorder	Fluoride Ring 28	£14.02 £11.68
35	MK213394-6 Available to backorder	O Ring 23 (Alt.)	£0.58 £0.48
36	MK323908-4 Available to backorder	Impact Bolt	£16.26 £13.55
37	MK323909-2 Available to backorder	Impact Bolt Guide	£5.94 £4.95
38	MK421691-8 Available to backorder	Rubber Ring 25	£10.40 £8.67
39	MK323875-3 Available to backorder	Collared Sleeve 24	£9.98 £8.32
40	MK417600-3 Available to backorder	Guide Ring x	£3.34 £2.78
41	MK344998-4 Available to backorder	Flat Washer 49 x	£5.48 £4.57
42	MK331608-2 Available to backorder	Cylinder Liner 44 x	£45.94 £38.28
43	MK416928-6 Available to backorder	Slide Sleeve 49	£4.20 £3.50
44	MK257224-1 Available to backorder	Ring 49	£11.14 £9.28
46	MK233246-5 Available to backorder	Compression Spring 50	£2.32 £1.93
47	MK416935-9 Available to backorder	Crank Cap	£7.08 £5.90
48	MK213806-9 Available to backorder	O Ring 90 (Alt.)	£2.18 £1.82
49	MK323910-7 Available to backorder	Striker	£12.42 £10.35
50	MK213485-3 Available to backorder	O Ring 34 (Alt.)	£2.02 £1.68
52	MK213523-1 Available to backorder	O Ring 36 (Alt.)	£0.74 £0.62
53	MK257693-6 Available to backorder	Sleeve 9	£1.74 £1.45
54	MK416929-4 Available to backorder	Piston	£6.64 £5.53
55	MK416930-9 Available to backorder	Rod	£2.32 £1.93
56	MK323877-9 Available to backorder	Crank Shaft	£49.12 £40.93
57	MK211327-5 Available to backorder	Ball Bearing 6304Llu	£6.94 £5.78
58	MK212113-7 Available to backorder	Needle Bearing 1212	£9.54 £7.95
59	MK318102-1 Available to backorder	Crank Housing <	£32.80 £27.33
60	MK416940-6 Available to backorder	Controller Cover	£23.68 £19.73
61	MK415692-6 Available to backorder	Stopper	£1.44 £1.20
62	MK421507-7 Available to backorder	Handle	£35.98 £29.98
63	MK922361-7 Available to backorder	Hex. Socket Head Bolt M6x40	£1.16 £0.97
64	MK922353-6 Available to backorder	Hex.Socket Head Bolt M6x30	£0.86 £0.72
66	MK416932-5 Available to backorder	Acrylic Pin 5	£1.44 £1.20
67	MK416931-7 Available to backorder	Switch Lever	£3.34 £2.78
68	MK211228-7 Available to backorder	Ball Bearing 6202Ddw (Alt.)	£9.40 £7.83
68	MK211238-4 Available to backorder	Ball Bearing 6202Llu x	£9.40 £7.83
69	MK213273-8 Available to backorder	Oil Seal 17	£7.80 £6.50
70	MK516803-7 Available to backorder	Armature Ass'y 220/240V	£114.68 £95.57
71	MK681642-5 Available to backorder	Insulation Washer	£9.98 £8.32
72	MK211088-7 Available to backorder	Ball Bearing 6000Ddw	£5.48 £4.57
73	MK416936-7 Available to backorder	Baffle Plate	£2.60 £2.17
74	MK266095-5 Available to backorder	Tapping Screw 5x55	£0.86 £0.72
75	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
75	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.58 £0.48
75	MK526093-4 Available to backorder	Field Ass'y 220/240V	£37.56 £31.30
76	MK158581-9 Available to backorder	Motor Housing Complete S	£78.58 £65.48
76	MK632924-8 Available to backorder	Lead Wire Unit (C30)	£1.16 £0.97
76	MK151795-9 Available to backorder	Motor Housing Complete	£46.66 £38.88
76	MK643661-9 Available to backorder	Brush Holder (C20)	£8.08 £6.73
76	MK643653-8 Available to backorder	Brush Holder 6.5-13.5 (C10)	£3.46 £2.88
78	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
79	MK819064-1 Available to backorder	Makita Mark	£1.74 £1.45
80	MK651481-7 Available to backorder	Switch Ste215K	£27.74 £23.12
81	MK631273-0 Available to backorder	Controller	£65.58 £54.65
82	MK194987-7 Available to backorder	Carbon Brush Set Cb-155 (Alt.)	£10.52 £8.77
83	MK643650-4 Available to backorder	Brush Holder Cap 6.5-13.5	£0.74 £0.62
84	MK922364-1 Available to backorder	Hex. Socket Head Bolt M6x40	£1.16 £0.97
85	MK415695-0 Available to backorder	Fix Rod	£1.74 £1.45
86	MK687053-2 Available to backorder	Strain Relief	£0.86 £0.72
87	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
88	MK416937-5 Available to backorder	Rear Cover	£6.06 £5.05
90	MK682560-0 Available to backorder	Cord Guard 10	£2.18 £1.82
91	MK695123-3 Available to backorder	Power Supply Cord 1.5-2-4.0	£39.58 £32.98
92	MK241908-1 Available to backorder	Fan 80	£2.60 £2.17
95	MK267809-5 Available to backorder	Wave Washer 19	£0.74 £0.62
901	MK135269-8 Available to backorder	Side Handle 82 Ass'y (Alt.) (B01-1)	£90.00 £75.00
901	MK181573-3 Available to backorder	Grease Vessel 93G (A01)	£4.76 £3.97
902	MK163467-4 Available to backorder	Latch x (C11)	£2.60 £2.17
902	MK819145-1 Available to backorder	Makita Logo Label (C20)	£0.86 £0.72
902	MK824564-8 Available to backorder	Plastic Carrying Case (A02)	£78.76 £65.63
902	MK416401-6 Available to backorder	Latch (C10)	£2.12 £1.77
