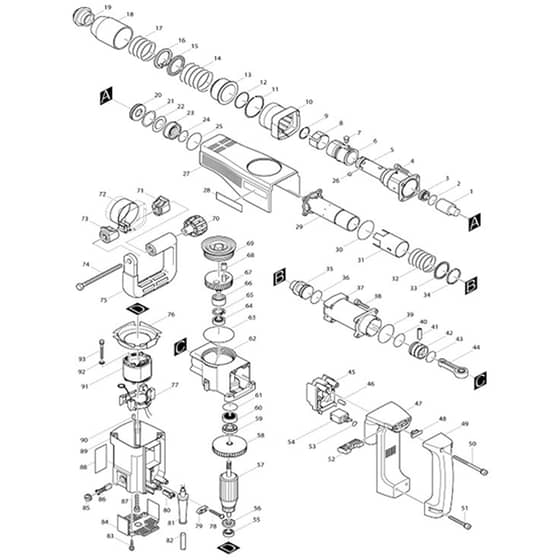

Makita HM1130 - Demolition Hammer - Power Tool Diagram

Description

Model No. HM1130

Demolition Hammer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
2	MK213411-2 Available to backorder	O-Ring 27	£4.34 £3.62
3	MK213428-5 Available to backorder	x-Ring 28	£21.96 £18.30
4	MK922351-0 Available to backorder	Six-Piece Socket Head Cap Screw Hollow M6x30	£0.74 £0.62
5	MK323755-3 Available to backorder	Tool Holder	£106.46 £88.72
6	MK323754-5 Available to backorder	Chuck Ring	£23.68 £19.73
7	MK256450-9 Available to backorder	8-Head Pin	£2.32 £1.93
9	MK231983-5 Available to backorder	Retaining Ring 27	£0.58 £0.48
10	MK416086-8 Available to backorder	Side Handle Support	£5.20 £4.33
11	MK231972-0 Available to backorder	Retaining Ring 52	£0.58 £0.48
12	MK213554-0 Available to backorder	O-Ring 44	£1.32 £1.10
14	MK233208-3 Available to backorder	47 1mm Coil Spring	£1.44 £1.20
15	MK344618-0 Available to backorder	Washer 40	£2.60 £2.17
16	MK961176-7 Available to backorder	External Circlip S-40	£1.74 £1.45
17	MK233207-5 Available to backorder	46 1mm Coil Spring	£1.16 £0.97
18	MK416490-1 Available to backorder	Tool Holder Cover	£4.20 £3.50
19	MK286249-8 Available to backorder	Tool Holder Cap	£2.02 £1.68
20	MK331525-6 Available to backorder	Impact Bolt Guide	£6.64 £5.53
21	MK421570-0 Available to backorder	Ring 36	£0.86 £0.72
22	MK213391-2 Available to backorder	O-Ring 25	£9.98 £8.32
23	MK331526-4 Available to backorder	Sleeve Guide	£8.54 £7.12
24	MK213370-0 Available to backorder	O-Ring 22	£0.54 £0.45
26	MK216004-4 Available to backorder	Steel Ball 7.9	£0.48 £0.40
27	MK415698-4 Available to backorder	Housing Cover	£17.92 £14.93
28	MK819064-1 Available to backorder	Makita Logo Label	£1.74 £1.45
29	MK134820-1 Available to backorder	Cylinder Liner Assembly	£135.94 £113.28
30	MK213614-8 Available to backorder	O-Ring 50	£0.86 £0.72
31	MK331527-2 Available to backorder	Sleeve 39	£31.06 £25.88
33	MK267156-4 Available to backorder	Flat Washer 39	£1.16 £0.97
34	MK231971-2 Available to backorder	Retaining Ring 36	£0.58 £0.48
36	MK213429-3 Available to backorder	O-Ring 27	£1.44 £1.20
37	MK316672-4 Available to backorder	Body	£42.62 £35.52
39	MK213606-7 Available to backorder	O-Ring 48	£1.32 £1.10
41	MK256165-8 Available to backorder	Pin 8 (Alt.)	£2.18 £1.82
42	MK415773-6 Available to backorder	Piston	£5.20 £4.33
43	MK213415-4 Available to backorder	O-Ring 28	£0.74 £0.62
44	MK415689-5 Available to backorder	Curtain Rod	£15.46 £12.88
45	MK415699-2 Available to backorder	Control Box	£5.36 £4.47
46	MK263002-9 Available to backorder	Rubber Dowel 4	£0.48 £0.40
47	MK417446-7 Available to backorder	Controller Support x	£12.58 £10.48
48	MK415692-6 Available to backorder	Stop Bar	£1.44 £1.20
49	MK421507-7 Available to backorder	Handle	£35.98 £29.98
50	MK266135-9 Available to backorder	Six-Piece Pan Head Bolt Hollow M6x90	£2.60 £2.17
51	MK922371-4 Available to backorder	Six-Piece Pan Head Bolt Hollow M6x50 W	£1.16 £0.97
52	MK415691-8 Available to backorder	Extended Trigger	£2.02 £1.68
53	MK213107-5 Available to backorder	O-Ring 12	£2.18 £1.82
54	MK651481-7 Available to backorder	Ste215K Switch	£27.74 £23.12
55	MK211033-2 Available to backorder	Ball Bearing 608Lb	£5.36 £4.47
56	MK681651-4 Available to backorder	Insulating Washer	£1.16 £0.97
57	MK510028-5 Available to backorder	Armature Assembly 220/240V	£145.76 £121.47
58	MK241876-8 Available to backorder	Fan 76	£3.62 £3.02
59	MK213160-1 Available to backorder	Oil Seal 14	£9.98 £8.32
60	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
62	MK134875-6 Available to backorder	Crankcase Assembly (Alt.) (INC. 64-66 *)	£61.24 £51.03
63	MK213707-1 Available to backorder	O-Ring 65	£1.32 £1.10
64	MK210054-1 Available to backorder	Ball Bearing 6000Llu	£5.64 £4.70
66	MK212259-9 Available to backorder	Needle Bearing 2116	£23.68 £19.73
67	MK153249-2 Available to backorder	Complete Crankshaft	£53.16 £44.30
68	MK216116-3 Available to backorder	Inner Sleeve 812	£7.96 £6.63
69	MK415690-0 Available to backorder	Crank Cap	£7.08 £5.90
70	MK252640-2 Available to backorder	Knurled Nut M8	£5.48 £4.57
72	MK152620-7 Available to backorder	Side Handle Base	£16.34 £13.62
74	MK265439-6 Available to backorder	M8x15 Hex Head Bolt	£2.02 £1.68
75	MK417003-1 Available to backorder	Side Handle x	£11.42 £9.52
76	MK415693-4 Available to backorder	Chicane	£2.46 £2.05
77	MK632678-7 Available to backorder	Full Support	£5.48 £4.57
78	MK265995-6 Available to backorder	4x Pan Head Self-Tapping Screw	£0.48 £0.40
79	MK687063-9 Available to backorder	Cord Necklace	£0.48 £0.40
79	MK687052-4 Available to backorder	Cord Collar x	£0.74 £0.62
80	MK416167-8 Available to backorder	Fixed Stem	£1.60 £1.33
81	MK682540-6 Available to backorder	Cord Protector 9.3-90	£1.32 £1.10
81	MK682560-0 Available to backorder	Cord Protector 10 x	£2.18 £1.82
83	MK266021-4 Available to backorder	5x Pan Head Self-Tapping Screw	£0.48 £0.40
84	MK415700-3 Available to backorder	Rear Hood	£3.76 £3.13
85	MK643515-0 Available to backorder	Support Cap 7-11 (Alt.)	£1.02 £0.85
85	MK643750-0 Available to backorder	Support Cap 7-11	£1.32 £1.10
86	MK193922-2 Available to backorder	Carbon Brush Cb-323 (Alt.)	£7.52 £6.27
86	MK195003-8 Available to backorder	Carbon Brush Set (Alt.)	£7.64 £6.37
87	MK922364-1 Available to backorder	Six-Piece Socket Head Cap Screw Hollow M6x40 Wg	£1.16 £0.97
89	MK152662-1 Available to backorder	Complete Engine Housing x (INC. 90)	£34.38 £28.65
89	MK643754-2 Available to backorder	Carbon Holder 5-11 (C10)	£4.62 £3.85
90	MK263014-2 Available to backorder	Rubber Dowel 4	£0.48 £0.40
92	MK941102-2 Available to backorder	Flat Washer 5	£0.48 £0.40
93	MK265345-5 Available to backorder	Hex Head Bolt M5x60	£1.60 £1.33
94	MK417002-3 Available to backorder	Side Support Cam	£1.44 £1.20
901	MK416401-6 Available to backorder	Clip Box (C10)	£2.12 £1.77
901	MK819145-1 Available to backorder	Makita Logo Label (C30)	£0.86 £0.72
901	MK134909-5 Available to backorder	Side Handle Assembly (B01-1)	£34.38 £28.65
901	MK163467-4 Available to backorder	Clip Box x (C11)	£2.60 £2.17
901	MK645105-5 Available to backorder	Noise Attenuator (E01)	£2.18 £1.82
901	MK150676-4 Available to backorder	Plastic Case (A01)	£62.22 £51.85
902	MK181573-3 Available to backorder	Drill Grease (A02)	£4.76 £3.97
903	MK798023-7 Available to backorder	Point Bulb 17-280 (1 Pc) (A03)	£7.24 £6.03
905	MK646078-5 Available to backorder	Stop Coil (E05)	£5.20 £4.33
