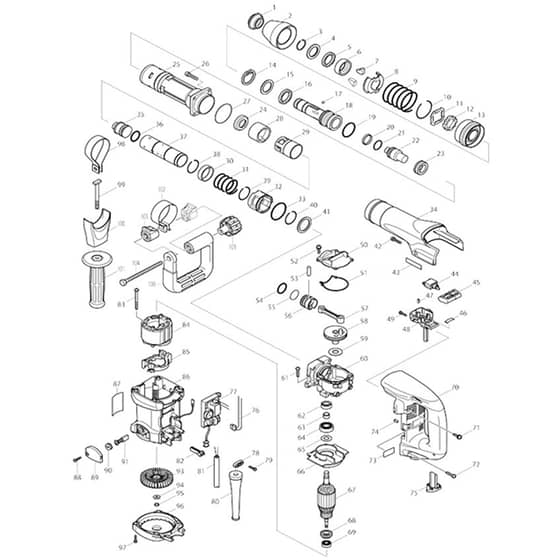

Makita HM0860C - Demolition Hammer - Power Tool Diagram

Description

Model No. HM0860C

Demolition Hammer

Power Tool Parts Diagrams

	Part No.	Details
1	MK286269-2 Available to backorder	Tool Holder Cap	£1.74 £1.45
2	MK418351-1 Available to backorder	Chuck Cover	£2.53 £2.11
3	MK231984-3 Available to backorder	Ring Spring 25	£1.39 £1.16
4	MK267272-2 Available to backorder	Flat Washer 28	£2.69 £2.24
5	MK262110-3 Available to backorder	Urethan Ring 28	£4.92 £4.10
5	MK424261-2 Available to backorder	Rubber Ring 28 S	£2.82 £2.35
6	MK331659-5 Available to backorder	Chuck Ring	£6.24 £5.20
7	MK310108-5 Available to backorder	Tool Retainer	£5.88 £4.90
8	MK346677-0 Available to backorder	Spring Guide <	£14.76 £12.30
9	MK233387-7 Available to backorder	Compression Spring 52	£1.39 £1.16
10	MK233928-9 Available to backorder	Ring Spring 50	£0.89 £0.74
11	MK346141-1 Available to backorder	Plate S	£2.69 £2.24
11	MK345371-1 Available to backorder	Plate	£1.39 £1.16
12	MK310145-9 Available to backorder	Lock Ring	£12.36 £10.30
13	MK418357-9 Available to backorder	Change Ring	£3.60 £3.00
14	MK962211-4 Available to backorder	Retaining Ring R-42	£1.74 £1.45
14	MK257960-9 Available to backorder	Retaining Ring(Int) Round R42	£5.64 £4.70
15	MK267273-0 Available to backorder	Flat Washer 29	£1.58 £1.32
17	MK216002-8 Available to backorder	Steel Ball 4.8	£0.48 £0.40
18	MK324387-9 Available to backorder	Tool Holder	£75.36 £62.80
19	MK213527-3 Available to backorder	O Ring 38 (Alt.)	£1.58 £1.32
20	MK213431-6 Available to backorder	Fluoride Ring 28	£14.52 £12.10
21	MK213394-6 Available to backorder	O Ring 23 (Alt.)	£0.70 £0.58
22	MK324389-5 Available to backorder	Impact Bolt	£11.64 £9.70
23	MK421852-0 Available to backorder	Rubber Ring 20	£7.20 £6.00
24	MK267780-3 Available to backorder	Cup Washer 23	£2.69 £2.24
25	MK318052-0 Available to backorder	Barrel <	£81.24 £67.70
26	MK922351-0 Available to backorder	Hex. Socket Head Bolt M6x30	£0.89 £0.74
27	MK213656-2 Available to backorder	O Ring 53 (Alt.)	£1.90 £1.58
28	MK418352-9 Available to backorder	Guide Ring	£1.74 £1.45
28	MK450097-3 Available to backorder	Guide Ring S	£1.90 £1.58
28	MK451639-6 Available to backorder	Guide Ring (Alt.)	£3.72 £3.10
29	MK450098-1 Available to backorder	Slide Sleeve S	£3.12 £2.60
30	MK331660-0 Available to backorder	Ring 36	£8.64 £7.20
31	MK233386-9 Available to backorder	Compression Spring 37	£1.39 £1.16
32	MK317719-7 Available to backorder	Cylinder Guide	£8.52 £7.10
33	MK213611-4 Available to backorder	O Ring 46 (Alt.)	£1.03 £0.86
34	MK183719-7 Available to backorder	Crank Housing Cover (INC. 43)	£12.24 £10.20
35	MK324388-7 Available to backorder	Striker	£8.64 £7.20
36	MK213958-6 Available to backorder	O Ring 24 (Alt.)	£2.53 £2.11
37	MK331658-7 Available to backorder	Cylinder 32	£41.52 £34.60
38	MK233927-1 Available to backorder	Ring Spring 34 (Refs 039 \| 040)	£0.48 £0.40
41	MK267079-6 Available to backorder	Flat Washer 34	£10.92 £9.10
42	MK922243-3 Available to backorder	Hex. Socket Head Bolt M5x25	£0.70 £0.58
43	MK819063-3 Available to backorder	Makita Label	£1.39 £1.16
44	MK651423-1 Available to backorder	Switch	£10.92 £9.10
45	MK418360-0 Available to backorder	Switch Lever	£1.39 £1.16
46	MK232209-8 Available to backorder	Leaf Spring	£1.03 £0.86
47	MK263027-3 Available to backorder	Rubber Pin 4	£0.70 £0.58
48	MK418361-8 Available to backorder	Switch Box	£2.38 £1.98
49	MK265995-6 Available to backorder	Tapping Screw 4x18 (Refs 079 \| 088 \| 097)	£0.48 £0.40
50	MK418358-7 Available to backorder	Crank Cap	£2.53 £2.11
51	MK421851-2 Available to backorder	Seal Ring	£0.89 £0.74
52	MK911233-1 Available to backorder	Pan Head Screw M5x20	£0.48 £0.40
53	MK268104-6 Available to backorder	Pin 8	£1.03 £0.86
55	MK213432-4 Available to backorder	O Ring 26 (Alt.)	£0.70 £0.58
56	MK418349-8 Available to backorder	Piston	£1.90 £1.58
57	MK418350-3 Available to backorder	Connecting Rod	£1.58 £1.32
58	MK153676-3 Available to backorder	Crank Shaft Complete	£56.52 £47.10
59	MK267166-1 Available to backorder	Flat Washer 14	£1.39 £1.16
60	MK212151-9 Available to backorder	Needle Bearing 1412 (C10)	£11.40 £9.50
60	MK153678-9 Available to backorder	Crank Housing Complete	£81.24 £67.70
60	MK212157-7 Available to backorder	Needle Bearing 1412 (C20)	£3.84 £3.20
61	MK266041-8 Available to backorder	Tapping Screw 5x25	£0.70 £0.58
62	MK213231-4 Available to backorder	Oil Seal 15	£7.32 £6.10
63	MK331596-3 Available to backorder	Sleeve 12	£5.28 £4.40
64	MK211137-0 Available to backorder	Ball Bearing 6201Llu	£4.80 £4.00
65	MK253759-0 Available to backorder	Flat Washer 12	£0.89 £0.74
66	MK418355-3 Available to backorder	Baffle Plate	£1.74 £1.45
67	MK513563-2 Available to backorder	Armature Ass'y 220-240V (INC. 68 69)	£69.36 £57.80
68	MK681650-6 Available to backorder	Insulation Washer	£6.24 £5.20
69	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£8.04 £6.70
70	MK418366-8 Available to backorder	Handle	£22.68 £18.90
73	MK815954-6 Available to backorder	Hm0860C Serial No.Label	£0.70 £0.58
74	MK416285-2 Available to backorder	Acrylic Pin 5	£0.89 £0.74
75	MK418359-5 Available to backorder	Handle Cap	£1.73 £1.44
76	MK638294-3 Available to backorder	Lead Unit	£2.21 £1.84
77	MK631554-2 Available to backorder	Controller	£27.12 £22.60
78	MK687053-2 Available to backorder	Strain Relief	£1.03 £0.86
80	MK682560-0 Available to backorder	Cord Guard 10	£2.38 £1.98
81	MK695123-3 Available to backorder	Power Supply Cord 1.5-2-4.0	£40.92 £34.10
82	MK418353-7 Available to backorder	Fix Rod	£1.03 £0.86
83	MK266044-2 Available to backorder	Tapping Screw 5x60	£2.38 £1.98
84	MK634508-8 Available to backorder	Field 220-240V	£16.92 £14.10
85	MK638293-5 Available to backorder	Support Complete	£4.44 £3.70
86	MK643754-2 Available to backorder	Brush Holder (C20)	£4.80 £4.00
86	MK153677-1 Available to backorder	Motor Housing Complete	£32.16 £26.80
86	MK643757-6 Available to backorder	Brush Holder 5x11 (C30)	£8.40 £7.00
87	MK850965-4 Available to backorder	Name Plate Hm0860C	£0.89 £0.74
89	MK418362-6 Available to backorder	Brush Holder Cover	£1.39 £1.16
90	MK643515-0 Available to backorder	Holder Cap 7-11 (Alt.)	£1.22 £1.02
90	MK643750-0 Available to backorder	Brush Holder Cap 7-11	£1.58 £1.32
91	MK195003-8 Available to backorder	Carbon Brush Set Cb-327 (Alt.)	£7.92 £6.60
91	MK193922-2 Available to backorder	Carbon Brush Cb-323 <	£7.80 £6.50
93	MK135058-1 Available to backorder	Fan 76 Ass'y	£5.28 £4.40
94	MK253047-5 Available to backorder	Flat Washer 6	£0.48 £0.40
95	MK931303-0 Available to backorder	Hex. Nut M6	£0.48 £0.40
96	MK418354-5 Available to backorder	Rear Cover	£4.44 £3.70
98	MK345361-4 Available to backorder	Grip Spring 60	£5.88 £4.90
99	MK266322-0 Available to backorder	Square Bolt M8x80	£1.74 £1.45
100	MK418363-4 Available to backorder	Side Grip Base 60	£2.83 £2.36
101	MK152554-4 Available to backorder	Grip 36 Complete	£11.52 £9.60
901	MK181573-3 Available to backorder	Grease Vessel 93G (A01)	£4.92 £4.10
902	MK824708-0 Available to backorder	Plastic Carrying Case (A02)	£57.12 £47.60
902	MK162202-7 Available to backorder	Latch (C10)	£1.39 £1.16
902	MK416549-4 Available to backorder	Handle (C20)	£2.83 £2.36
902	MK416556-7 Available to backorder	Cover (C30)	£1.73 £1.44
902	MK819140-1 Available to backorder	Makita Logo Label (C40)	£5.52 £4.60
905	MK199143-4 Available to backorder	Dust Extractor Att Set(Eu) < (F05-1)	£24.84 £20.70
908	MK415021-3 Available to backorder	Hose Joint (C30)	£3.96 £3.30
908	MK199144-2 Available to backorder	Dust Extractor Att Set(Eu) < (F08-1)	£71.04 £59.20
908	MK417765-1 Available to backorder	Front Cuff 22 (C10)	£2.21 £1.84
908	MK417766-9 Available to backorder	Front Cuff 38 (C20)	£5.04 £4.20
