Makita HK1820L - Power Scraper - Power Tool Diagram

Description

Model No. HK1820L

Power Scraper

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK286283-8 Available to backorder	Cap 38	£1.44 £1.20
2	MK233966-1 Available to backorder	Ring Spring 19	£2.02 £1.68
3	MK450275-5 Available to backorder	Chuck Cover	£2.60 £2.17
4	MK234039-3 Available to backorder	Compression Spring 42	£1.32 £1.10
5	MK345874-5 Available to backorder	Steel Ball Guide	£5.48 £4.57
6	MK450274-7 Available to backorder	Change Ring	£2.60 £2.17
7	MK216002-8 Available to backorder	Steel Ball 4.8	£0.48 £0.40
8	MK331796-5 Available to backorder	Ring 25	£10.98 £9.15
9	MK262142-0 Available to backorder	Urethan Ring 26	£1.74 £1.45
10	MK257288-5 Available to backorder	Ring 21	£10.40 £8.67

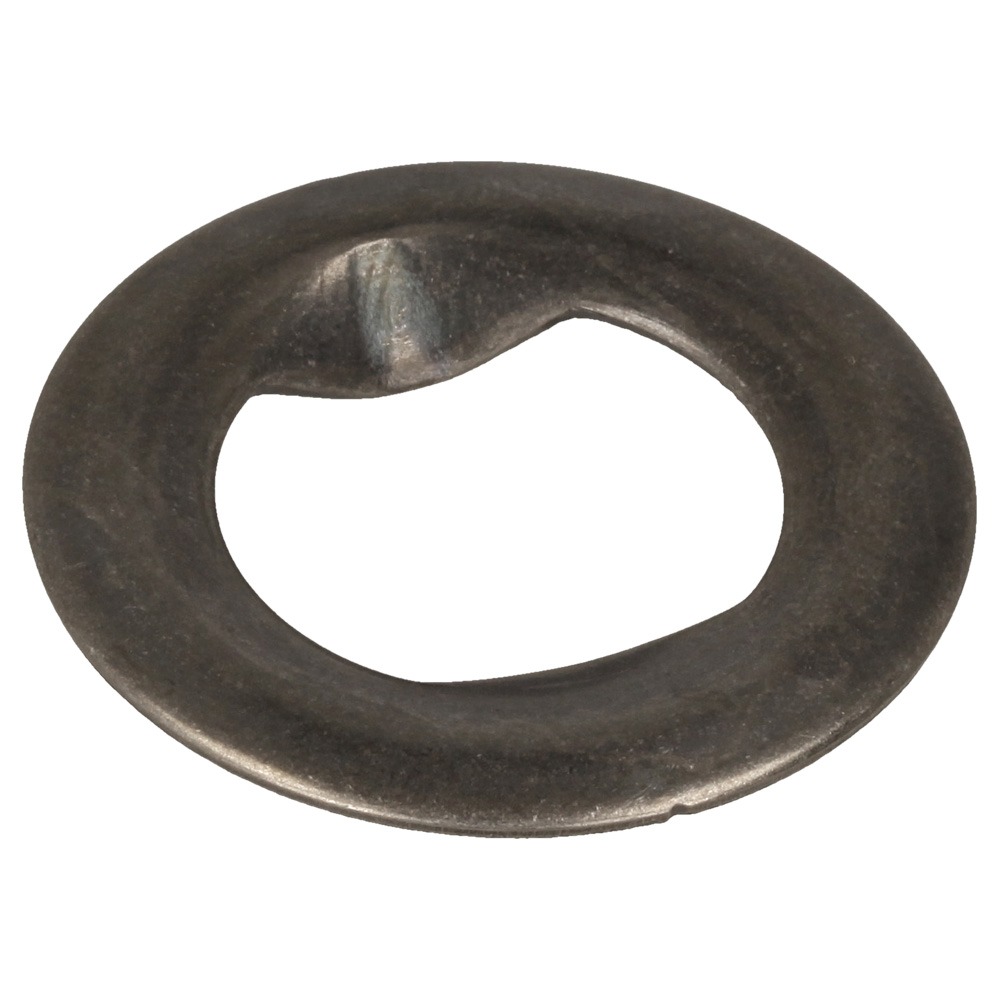

11	MK345873-7 Available to backorder	Guide Washer	£1.44 £1.20

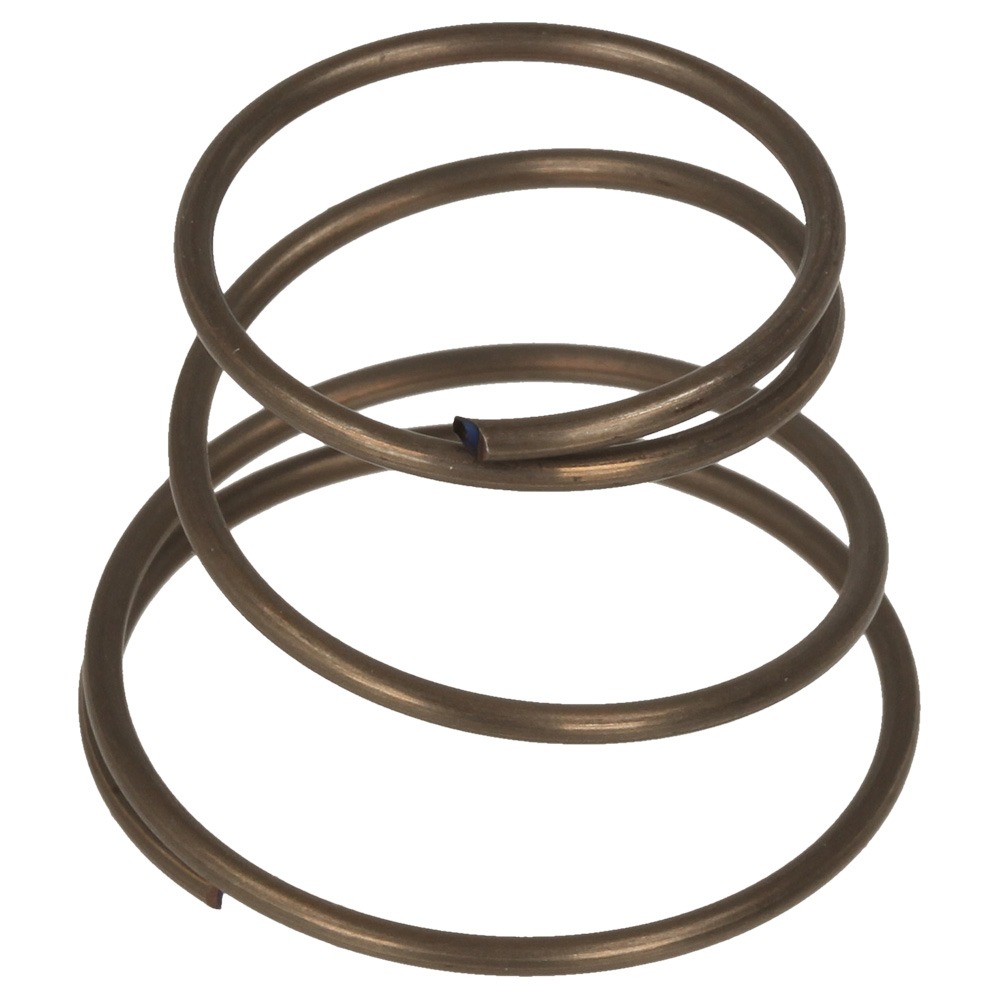

12	MK233916-6 In stock	Conical Comp. Spring 21-29	£0.48 £0.40
13	MK231985-1 Available to backorder	Ring Spring 43	£0.58 £0.48
14	MK450273-9 Available to backorder	Barrel Cover Support	£2.18 £1.82
15	MK424066-0 Available to backorder	Barrel Cover	£3.34 £2.78
16	MK213465-9 Available to backorder	O Ring 31 (Alt.)	£0.58 £0.48
17	MK318196-6 Available to backorder	Barrel	£12.00 £10.00
18	MK213606-7 Available to backorder	O Ring 48 (Alt.)	£1.32 £1.10
19	MK922243-3 Available to backorder	Hex. Socket Head Bolt M5x25	£0.58 £0.48
20	MK233956-4 Available to backorder	Ring Spring 37	£0.58 £0.48
21	MK257296-6 Available to backorder	Ring 39 S	£18.78 £15.65
22	MK213008-7 Available to backorder	O Ring 22.4 (Alt.)	£0.74 £0.62
23	MK216022-2 Available to backorder	Steel Ball 7.0	£0.48 £0.40
24	MK324837-4 Available to backorder	Tool Holder	£93.32 £77.77
25	MK256266-2 Available to backorder	Pin 6	£0.58 £0.48
25	MK268226-2 Available to backorder	Pin 6 S	£5.06 £4.22
26	MK324844-7 Available to backorder	Impact Bolt	£7.08 £5.90
27	MK213128-7 Available to backorder	O Ring 12 (Alt.)	£1.16 £0.97
28	MK424065-2 Available to backorder	Rubber Ring 13	£7.22 £6.02
29	MK267363-9 Available to backorder	Flat Washer 12	£3.04 £2.53
30	MK331849-0 Available to backorder	Cylinder S	£58.06 £48.38
31	MK256862-6 Available to backorder	Rod 2.5 S	£1.32 £1.10
31	MK256833-3 Available to backorder	Rod 3	£0.82 £0.68
32	MK331799-9 Available to backorder	Ring 29	£11.84 £9.87
33	MK234041-6 Available to backorder	Compression Spring 32	£1.44 £1.20
34	MK345872-9 Available to backorder	Cup Washer 29	£2.46 £2.05
35	MK213435-8 Available to backorder	O Ring 26 (Alt.)	£0.48 £0.40
36	MK324847-1 Available to backorder	Striker	£6.64 £5.53
37	MK213283-5 Available to backorder	O-Ring 18	£2.02 £1.68
39	MK256087-2 Available to backorder	Pin 7	£0.48 £0.40
40	MK213262-3 Available to backorder	O Ring 18 (Alt.)	£0.58 £0.48
41	MK450278-9 Available to backorder	Connecting Rod	£1.60 £1.33
42	MK331797-3 Available to backorder	Sleeve 29	£4.48 £3.73
43	MK450298-3 Available to backorder	Piston	£4.04 £3.37
44	MK922148-7 Available to backorder	Hex. Socket Head Bolt M4x25	£0.74 £0.62
45	MK450277-1 Available to backorder	Crank Housing Cover	£5.20 £4.33
46	MK419988-7 Available to backorder	Filter Cap	£0.58 £0.48
47	MK213218-6 Available to backorder	O Ring 16 (Alt.)	£0.74 £0.62
48	MK443129-3 Available to backorder	Filter	£0.74 £0.62
49	MK450276-3 Available to backorder	Crank Cap	£3.34 £2.78
50	MK911133-5 Available to backorder	Pan Head Screw M4x18	£0.48 £0.40
51	MK424067-8 Available to backorder	Seal Ring	£0.74 £0.62
52	MK324845-5 Available to backorder	Crank Shaft	£9.12 £7.60
53	MK211232-6 Available to backorder	Ball Bearing 6002Llu	£5.48 £4.57
54	MK213219-4 Available to backorder	Oil Seal 15	£3.76 £3.13
55	MK265490-6 Available to backorder	Hex. Socket Head Bolt M4x16	£0.48 £0.40
56	MK318202-7 Available to backorder	Bearing Box	£3.04 £2.53
57	MK213513-4 Available to backorder	O Ring 39 (Alt.)	£0.74 £0.62
58	MK267126-3 Available to backorder	Flat Washer 22	£0.86 £0.72
60	MK226675-9 Available to backorder	Helical Gear 36	£14.16 £11.80
61	MK158523-3 Available to backorder	Crank Housing Complete	£56.48 £47.07
61	MK213415-4 Available to backorder	O Ring 28 (Alt.) (C10)	£0.74 £0.62
62	MK266041-8 Available to backorder	Tapping Screw 5x25	£0.58 £0.48
63	MK331798-1 Available to backorder	Fix Guide	£5.20 £4.33
64	MK424068-6 Available to backorder	Cushion Plate	£0.74 £0.62
65	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
66	MK253748-5 Available to backorder	Flat Washer 12	£0.74 £0.62
67	MK241879-2 Available to backorder	Fan 60	£3.04 £2.53
69	MK681644-1 Available to backorder	Insulation Washer	£0.74 £0.62
70	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
71	MK450265-8 Available to backorder	Baffle Plate	£2.02 £1.68
72	MK266211-9 Available to backorder	Tapping Screw 5x40	£0.74 £0.62
74	MK450263-2 Available to backorder	Motor Housing	£21.96 £18.30
75	MK864991-7 Available to backorder	Hk1820L Nameplate	£0.74 £0.62
76	MK638607-8 Available to backorder	Lead Unit	£2.32 £1.93
78	MK638577-1 Available to backorder	Brush Holder Unit	£12.00 £10.00
79	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
80	MK194160-9 In stock	Carbon Brush Cb-350	£3.62 £3.02
81	MK450264-0 Available to backorder	Rear Cover	£5.48 £4.57
83	MK922371-4 Available to backorder	Hex. Socket Head Bolt M6x50	£1.16 £0.97
83	MK922374-8 Available to backorder	H.S.H.Bolt M6x50 With Wg S	£0.54 £0.45
84	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
85	MK257734-8 Available to backorder	Sleeve 6	£2.18 £1.82
86	MK683247-7 Available to backorder	Polyethylene Tube 10-960 <	£0.58 £0.48
87	MK450467-6 Available to backorder	Handle Base	£80.18 £66.82
88	MK252115-1 Available to backorder	Flange Hex.Nut M6	£2.02 £1.68
90	MK266439-9 Available to backorder	Hex Socket Head Bolt M5x20	£3.76 £3.13
91	MK331839-3 Available to backorder	Pipe 29-900	£25.28 £21.07
92	MK922323-5 Available to backorder	Hex.Socket Head Bolt M6x16	£0.74 £0.62
94	MK259011-4 Available to backorder	Snap Pin 6	£1.44 £1.20
95	MK321962-2 Available to backorder	Rod	£2.18 £1.82
96	MK941152-7 Available to backorder	Flat Washer 6 (Refs 098 \| 100 \| 102 \| 105)	£0.48 £0.40
97	MK421310-6 Available to backorder	Caster 75	£7.96 £6.63
99	MK345890-7 Available to backorder	Supporter	£15.32 £12.77
104	MK911366-2 Available to backorder	Pan Head Screw M6x45	£0.82 £0.68
106	MK257632-6 Available to backorder	Sleeve 6	£1.32 £1.10
107	MK911243-8 Available to backorder	Pan Head Screw M5x25	£0.48 £0.40
108	MK181954-1 Available to backorder	Handle Set	£23.68 £19.73
109	MK911109-2 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
110	MK651018-0 Available to backorder	Switch Hpahr2-3S	£10.98 £9.15
111	MK682505-8 Available to backorder	Cord Guard 10-90	£1.32 £1.10
113	MK911128-8 Available to backorder	P.H.Screw M4x16 With Wr	£0.47 £0.39
114	MK687031-2 Available to backorder	Strain Relief	£0.58 £0.48
116	MK424091-1 Available to backorder	Grip Cover 28	£12.00 £10.00
117	MK423122-3 Available to backorder	Cushion Plate S	£0.48 £0.40
118	MK213142-3 Available to backorder	O-Ring 35 S	£0.74 £0.62
901	MK783203-8 Available to backorder	Hex. Wrench 5 (A01)	£0.72 £0.60
