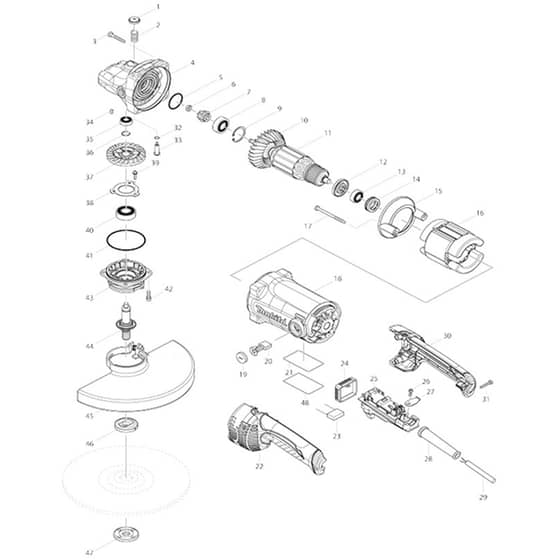

Makita GA9050R - 230mm Angle Grinder - Power Tool Diagram

Description

Model No. GA9050R

230mm Angle Grinder

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK451485-7 Available to backorder	Pin Cap	£0.58 £0.48
3	MK266373-3 Available to backorder	Binding Head Tapping Screw 5x35	£0.48 £0.40
3	MK265B72-6 Available to backorder	Binding Head Tapping Screw 5x35	£0.48 £0.40
3	MK266012-5 Available to backorder	Binding Head Tapping Screw 5x35	£0.74 £0.62
4	MK143016-3 Available to backorder	Gear Housing Complete <	£21.24 £17.70
4	MK262153-5 Available to backorder	Felt Ring 16 (C10)	£1.16 £0.97
5	MK213487-9 Available to backorder	O-Ring 31	£0.58 £0.48
5	MK213883-1 Available to backorder	O-Ring 31 (Alt.)	£0.48 £0.40
6	MK264010-3 Available to backorder	Hex. Nut M7	£0.48 £0.40
7	MK227563-3 Available to backorder	Spiral Bevel Gear 10B	£5.64 £4.70
8	MK211137-0 Available to backorder	Ball Bearing 6201Llu <	£4.62 £3.85
8	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
9	MK257965-9 Available to backorder	Retaining Ring (Int) R-32	£45.94 £38.28
12	MK681657-2 Available to backorder	Insulation Washer	£1.88 £1.57
13	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
14	MK421490-8 Available to backorder	Rubber Ring 26	£6.94 £5.78
15	MK451480-7 Available to backorder	Baffle Plate	£3.76 £3.13
16	MK654098-5 Available to backorder	Receptacle (C10)	£0.54 £0.45
17	MK266389-8 Available to backorder	Binding Head Tapping Screw 5x70	£0.58 £0.48
18	MK140222-1 Available to backorder	Motor Housing Complete	£17.92 £14.93
18	MK643707-1 Available to backorder	Brush Holder 7-18 (C10)	£5.06 £4.22
19	MK643700-5 Available to backorder	Holder Cap 7-18	£0.86 £0.72
20	MK191957-7 Available to backorder	Carbon Brush Set Cb-204	£8.08 £6.73
22	MK423404-3 Available to backorder	Sponge Sheet (C10)	£1.16 £0.97
23	MK645088-9 Available to backorder	Noise Suppressor	£1.16 £0.97
26	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
26	MK265B74-2 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
26	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
27	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
28	MK682574-9 Available to backorder	Cord Guard 10	£1.16 £0.97
31	MK265B73-4 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
31	MK265999-8 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
31	MK266374-1 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
32	MK213A14-8 Available to backorder	O-Ring 7 (Alt.)	£0.48 £0.40
32	MK213026-5 Available to backorder	O-Ring 7	£0.48 £0.40
33	MK256516-5 Available to backorder	Shoulder Pin 11	£1.32 £1.10
34	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
35	MK210029-0 Available to backorder	Ball Bearing 608Zz	£1.16 £0.97
36	MK233925-5 Available to backorder	Ring Spring 13	£0.48 £0.40
37	MK227561-7 Available to backorder	Spiral Bevel Gear 49	£14.32 £11.93
38	MK285851-4 Available to backorder	Bearing Retainer	£0.58 £0.48
39	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr	£0.47 £0.39
40	MK211241-5 Available to backorder	Ball Bearing 6202Ddw	£2.02 £1.68
41	MK213720-9 Available to backorder	O-Ring 67	£1.74 £1.45
42	MK922221-3 Available to backorder	Hex. Socket Head Bolt M5x16 W	£0.58 £0.48
43	MK318523-7 Available to backorder	Bearing Box	£9.98 £8.32
44	MK346166-5 Available to backorder	Labyrinth Ring 23 (C10)	£0.58 £0.48
44	MK140224-7 Available to backorder	Spindle Complete A	£5.64 £4.70
45	MK213017-6 Available to backorder	O-Ring 6 (C10)	£0.48 £0.40
45	MK265198-2 Available to backorder	Pan Head Screw M8x25 (C20)	£0.86 £0.72
45	MK8050A1-8 Available to backorder	Caution Label (C30)	£1.24 £1.03
45	MK122891-0 Available to backorder	Wheel Cover 230K Assembly	£15.02 £12.52
46	MK122444-5 Available to backorder	Inner Flange 47 Assembly	£24.02 £20.02
47	MK224543-0 In stock	Lock Nut 14-45	£2.21 £1.84
48	MK805W68-7 Available to backorder	Clear Label (Alt.)	£0.48 £0.40
48	MK892805-0 Available to backorder	Clear Label	£0.58 £0.48
901	MK152539-0 In stock	Grip 36 Complete (A01)	£3.94 £3.28
902	MK197610-3 In stock	Lock Nut Wrench 35 Set (Alt.) (A02-1)	£2.56 £2.13
902	MK192227-7 Available to backorder	Inner Flange 47 Set (F02)	£22.62 £18.85
906	MK122913-6 Available to backorder	Wheel Cover 230Ck Assembly (A06A)	£21.24 £17.70
