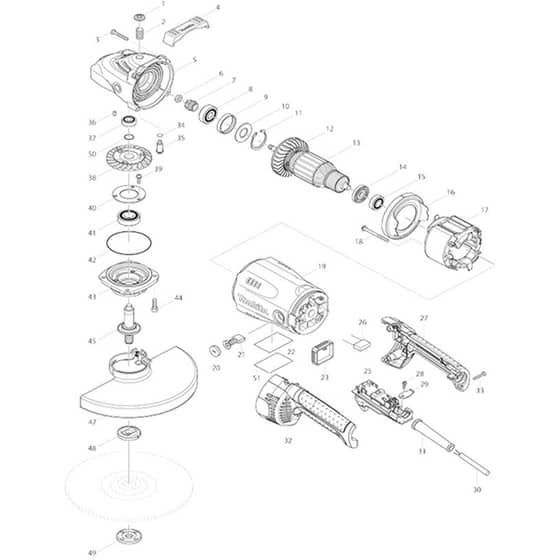

Makita GA9020R - Angle Grinder - Power Tool Diagram

Description

Model No. GA9020R

Angle Grinder

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
3	MK266012-5 Available to backorder	Binding Head Tapping Screw 5x35	£0.74 £0.62
3	MK265B72-6 Available to backorder	Binding Head Tapping Screw 5x35	£0.48 £0.40
3	MK266373-3 Available to backorder	Binding Head Tapping Screw 5x35	£0.48 £0.40
4	MK419144-9 Available to backorder	Bumper	£0.74 £0.62
5	MK262118-7 Available to backorder	Felt Ring 18 (C10)	£0.86 £0.72
5	MK142754-4 Available to backorder	Gear Housing Complete <	£22.54 £18.78
6	MK252194-9 Available to backorder	Hex. Nut M8	£0.48 £0.40
7	MK227490-4 Available to backorder	Spiral Bevel Gear 12	£5.20 £4.33
8	MK211132-0 Available to backorder	Ball Bearing 6301Ddw	£9.24 £7.70
9	MK262085-6 Available to backorder	Rubber Ring 38	£0.74 £0.62
10	MK267299-2 Available to backorder	Flat Washer 20	£0.74 £0.62
11	MK962211-4 Available to backorder	Retaining Ring (Int) Round R-42	£1.60 £1.33
12	MK240081-4 Available to backorder	Fan 80	£2.46 £2.05
14	MK681630-2 Available to backorder	Insulation Washer	£0.48 £0.40
15	MK211087-9 Available to backorder	Ball Bearing 6200Ddw	£8.96 £7.47
16	MK419135-0 Available to backorder	Baffle Plate	£0.74 £0.62
17	MK654486-6 Available to backorder	Non-Insulated Splice (Alt.) (C21)	£0.48 £0.40
17	MK654502-4 Available to backorder	Non-Insulated Splice (C20)	£0.58 £0.48
17	MK654197-3 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
18	MK266044-2 Available to backorder	Binding Head Tapping Screw 5x60	£2.18 £1.82
18	MK265B71-8 Available to backorder	Binding Head Tapping Screw 5x60	£0.48 £0.40
19	MK154671-6 Available to backorder	Motor Housing Complete	£21.82 £18.18
19	MK643712-8 Available to backorder	Brush Holder (C10)	£8.38 £6.98
20	MK643700-5 Available to backorder	Holder Cap 7-18	£0.86 £0.72
21	MK191957-7 Available to backorder	Carbon Brush Set Cb-204	£8.08 £6.73
26	MK645088-9 Available to backorder	Noise Suppressor	£1.16 £0.97
27	MK423404-3 Available to backorder	Sponge Sheet (C10)	£1.16 £0.97
28	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
28	MK265B74-2 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
28	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
29	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
31	MK682560-0 Available to backorder	Cord Guard 10	£2.18 £1.82
33	MK265999-8 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
33	MK266374-1 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
33	MK265B73-4 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
34	MK213062-1 Available to backorder	O-Ring 9	£0.48 £0.40
35	MK256491-5 Available to backorder	Shoulder Pin 5	£0.86 £0.72
36	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
37	MK211061-7 Available to backorder	Ball Bearing 6000Llb	£8.08 £6.73
38	MK227491-2 Available to backorder	Spiral Bevel Gear 53A	£9.54 £7.95
39	MK265120-9 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
40	MK285724-1 Available to backorder	Bearing Retainer 50	£0.58 £0.48
41	MK211278-2 Available to backorder	Ball Bearing 6203Ddw	£9.54 £7.95
42	MK213760-7 Available to backorder	O-Ring 78	£1.60 £1.33
43	MK318377-2 Available to backorder	Bearing Box	£6.06 £5.05
44	MK265541-5 Available to backorder	Hex. Socket Head Bolt M6x22	£0.58 £0.48
45	MK158206-5 Available to backorder	Spindle Complete	£6.52 £5.43
45	MK345629-8 Available to backorder	Labyrinth Ring 25 (C10)	£0.58 £0.48
47	MK265198-2 Available to backorder	Pan Head Screw M8x25 (C20)	£0.86 £0.72
47	MK8050A1-8 Available to backorder	Caution Label (C30)	£1.24 £1.03
47	MK122891-0 Available to backorder	Wheel Cover 230K Assembly	£15.02 £12.52
47	MK213017-6 Available to backorder	O-Ring 6 (C10)	£0.48 £0.40
48	MK122444-5 Available to backorder	Inner Flange 47 Assembly	£24.02 £20.02
49	MK224543-0 In stock	Lock Nut 14-45	£2.21 £1.84
50	MK233946-7 Available to backorder	Ring Spring 15	£0.48 £0.40
51	MK804Y42-4 Available to backorder	Clear Label <	£0.48 £0.40
901	MK152539-0 In stock	Grip 36 Complete (A01)	£3.94 £3.28
901	MK162264-5 Available to backorder	Vibration Proof Grip (A01)	£16.06 £13.38
902	MK197610-3 In stock	Lock Nut Wrench 35 Set (Alt.) (A02-1)	£2.56 £2.13
903	MK824958-7 Available to backorder	Plastic Case (A03D)	£59.44 £49.53
903	MK163455-1 Available to backorder	Latch (C10)	£1.60 £1.33
906	MK122913-6 Available to backorder	Wheel Cover 230Ck Assembly (A06)	£21.24 £17.70
908	MK194289-1 Available to backorder	Dust Cover Attachment Set (F08)	£9.26 £7.72
909	MK195354-9 Available to backorder	Toolless Lock Nut Set (F09)	£64.72 £53.93
910	MK198440-5 Available to backorder	Dust Collect Cover K Set (230mm) (F10)	£186.56 £155.47
