Makita GA9012C - 230mm Angle Grinder - Power Tool Diagram

Description

Model No. GA9012C

230mm Angle Grinder

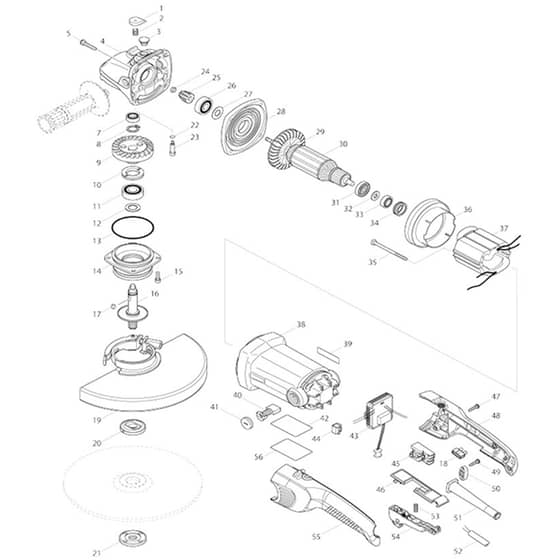

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK418517-3 Available to backorder	Pin Cap	£0.58 £0.48
2	MK231037-8 Available to backorder	Compression Spring 7	£0.48 £0.40
3	MK416972-3 Available to backorder	Cap	£0.58 £0.48
4	MK318817-0 Available to backorder	Gear Housing (Alt.)	£22.98 £19.15
4	MK317752-9 Available to backorder	Gear Housing	£16.92 £14.10
5	MK266553-1 Available to backorder	Tapping Screw 5x30	£0.48 £0.40
7	MK210043-6 Available to backorder	Ball Bearing 608Llb	£2.76 £2.30
8	MK961055-9 Available to backorder	Retaining Ring S-15	£0.48 £0.40
9	MK227A49-3 Available to backorder	Spiral Bevel Gear 43 S	£15.28 £12.73
9	MK227457-2 Available to backorder	Spiral Bevel Gear 43	£42.62 £35.52
10	MK285809-3 Available to backorder	Bearing Retainer 23-36	£4.62 £3.85
11	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.40 £7.83
12	MK267215-4 Available to backorder	Flat Washer 15	£0.86 £0.72
13	MK213720-9 Available to backorder	O Ring 67 (Alt.)	£1.74 £1.45
14	MK318376-4 Available to backorder	Bearing Box	£7.80 £6.50
15	MK922221-3 Available to backorder	Hex. Socket Head Bolt M5x16	£0.58 £0.48
16	MK153785-8 Available to backorder	Spindle Complete	£8.24 £6.87
17	MK254011-9 Available to backorder	Woodruff Key 4	£0.74 £0.62
18	MK654532-5 Available to backorder	Terminal Block 1P	£3.46 £2.88
19	MK8050A1-8 Available to backorder	Caution Label (C10)	£1.24 £1.03
19	MK122847-3 Available to backorder	Toolless Wheel Cover 230K	£17.20 £14.33
20	MK122444-5 Available to backorder	Inner Flange 47 Ass'y	£24.02 £20.02
20	MK224490-5 In stock	Inner Flange 14-45 (Alt.)	£1.90 £1.58
21	MK224543-0 In stock	Lock Nut 14-45	£2.21 £1.84
22	MK213026-5 Available to backorder	O Ring 7 (Alt.)	£0.48 £0.40
23	MK256483-4 Available to backorder	Shoulder Pin 7	£1.16 £0.97
24	MK931303-0 Available to backorder	Hex. Nut M6	£0.48 £0.40
24	MK252268-6 Available to backorder	Hex. Nut M6 (Alt.)	£0.48 £0.40
25	MK227A48-5 Available to backorder	Spiral Bevel Gear 9 S	£7.38 £6.15
25	MK227456-4 Available to backorder	Spiral Bevel Gear 9	£13.74 £11.45
26	MK211106-1 Available to backorder	Ball Bearing 6201Llb	£8.66 £7.22
27	MK253759-0 Available to backorder	Flat Washer 12	£0.74 £0.62
28	MK317753-7 Available to backorder	Gear Housing Cover	£5.48 £4.57
29	MK240070-9 Available to backorder	Fan 76	£1.60 £1.33
30	MK513568-2 Available to backorder	Armature Ass'y 220-240V	£34.38 £28.65
31	MK681660-3 Available to backorder	Insulation Washer	£5.36 £4.47
32	MK267281-1 Available to backorder	Flat Washer 8	£0.48 £0.40
33	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
34	MK421720-7 Available to backorder	Rubber Ring 22	£9.12 £7.60
36	MK418516-5 Available to backorder	Buffle Plate	£1.16 £0.97
37	MK654502-4 Available to backorder	Connector P-2 (C20)	£0.58 £0.48
37	MK654197-3 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
38	MK153786-6 Available to backorder	Motor Housing Complete <	£20.38 £16.98
38	MK643712-8 Available to backorder	Brush Holder (C10)	£8.38 £6.98
40	MK191957-7 Available to backorder	A.C. Carbon Brush Cb-204	£8.08 £6.73
41	MK643700-5 Available to backorder	Brush Holder Cap 7-18	£0.86 £0.72
44	MK418518-1 Available to backorder	Sleeve	£0.74 £0.62
45	MK650677-7 Available to backorder	Switch C3Pa-1112 <	£11.56 £9.63
45	MK651922-3 Available to backorder	Switch Tg71B	£14.30 £11.92
46	MK451637-0 Available to backorder	Switch Base	£1.24 £1.03
47	MK265995-6 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
48	MK450184-8 Available to backorder	Lens (C10)	£0.86 £0.72
50	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
51	MK682573-1 Available to backorder	Cord Guard 10	£0.74 £0.62
53	MK233117-6 Available to backorder	Compression Spring 6	£0.58 £0.48
54	MK140358-6 Available to backorder	Switch Lever Complete	£6.82 £5.68
56	MK892810-7 Available to backorder	Clear Label	£0.48 £0.40
901	MK152539-0 In stock	Grip 36 Complete (A01)	£3.94 £3.28
901	MK193956-5 Available to backorder	Dust Cover Attachment (F01)	£21.78 £18.15
903	MK213017-6 Available to backorder	O Ring 6 (Alt.) (C10)	£0.48 £0.40
903	MK122913-6 Available to backorder	Wheel Cover 230Ck Assembly (A03)	£21.24 £17.70
903	MK265198-2 Available to backorder	+Pan Head Screw M8x25 (C20)	£0.86 £0.72
