Makita GA7060 - 180mm Angle Grinder - Power Tool Diagram

Description

Model No. GA7060

180mm Angle Grinder

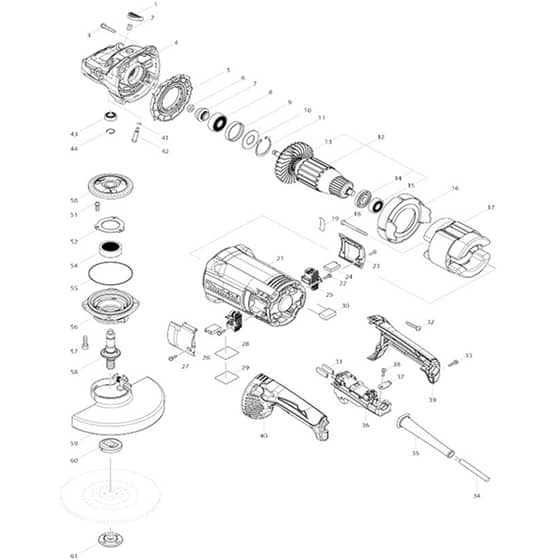

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK456247-8 Available to backorder	Pin Cap	£0.58 £0.48
2	MK234391-9 Available to backorder	Compression Spring 8	£0.48 £0.40
3	MK251489-7 Available to backorder	Binding Head Tapping Screw 5x30	£0.58 £0.48
4	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
4	MK143485-8 Available to backorder	Gear Housing Complete	£28.46 £23.72
5	MK456238-9 Available to backorder	Diffuser	£1.74 £1.45
6	MK252194-9 Available to backorder	Hex. Nut M8	£0.48 £0.40
7	MK227655-8 Available to backorder	Spiral Bevel Gear 17	£5.94 £4.95
8	MK211132-0 Available to backorder	Ball Bearing 6301Ddw	£9.24 £7.70
9	MK262085-6 Available to backorder	Rubber Ring 38	£0.74 £0.62
10	MK267299-2 Available to backorder	Flat Washer 20	£0.74 £0.62
11	MK962211-4 Available to backorder	Retaining Ring (Int) Round R-42	£1.60 £1.33
13	MK240161-6 Available to backorder	Fan 86	£7.38 £6.15
14	MK681630-2 Available to backorder	Insulation Washer	£0.48 £0.40
15	MK211087-9 Available to backorder	Ball Bearing 6200Ddw	£8.96 £7.47
16	MK456239-7 Available to backorder	Baffle Plate	£0.74 £0.62
17	MK621779-6 Available to backorder	Field 240V	£54.02 £45.02
18	MK266044-2 Available to backorder	Binding Head Tapping Screw 5x60	£2.18 £1.82
19	MK851U59-4 Available to backorder	Serial No. Label Ga7060	£0.48 £0.40
21	MK456240-2 Available to backorder	Motor Housing	£26.74 £22.28
22	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x14 (Refs 027 \| 038)	£0.48 £0.40
23	MK456246-0 Available to backorder	Brush Holder Cover R >	£2.32 £1.93
23	MK143950-7 Available to backorder	Brush Holder Cover R Complete	£4.78 £3.98
24	MK197129-2 Available to backorder	Carbon Brush Set Cb-218	£7.66 £6.38
25	MK643714-4 Available to backorder	Brush Holder	£1.44 £1.20
25	MK643715-2 Available to backorder	Brush Holder <	£2.02 £1.68
26	MK456245-2 Available to backorder	Brush Holder Cover L >	£1.32 £1.10
26	MK143949-2 Available to backorder	Brush Holder Cover L Complete	£3.92 £3.27
28	MK851U55-2 Available to backorder	Name Plate Ga7060	£0.48 £0.40
29	MK809R72-8 Available to backorder	Clear Label	£0.48 £0.40
30	MK645088-9 Available to backorder	Noise Suppressor	£1.16 £0.97
31	MK686036-9 Available to backorder	Receptacle Sleeve	£0.48 £0.40
33	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
35	MK682573-1 Available to backorder	Cord Guard 10	£0.74 £0.62
36	MK632F75-3 Available to backorder	Switch Unit	£16.92 £14.10
37	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
39	MK183C63-0 Available to backorder	Handle Set (INC. 40)	£10.40 £8.67
41	MK213026-5 Available to backorder	O-Ring 7	£0.48 £0.40
41	MK213A14-8 Available to backorder	O-Ring 7 (Alt.)	£0.48 £0.40
42	MK256571-7 Available to backorder	Shoulder Pin 7	£1.32 £1.10
43	MK210223-4 Available to backorder	Ball Bearing 608Zz (Alt.)	£2.60 £2.17
43	MK211032-4 Available to backorder	Ball Bearing 608Zz	£8.38 £6.98
44	MK233925-5 Available to backorder	Ring Spring 13	£0.48 £0.40
50	MK227656-6 Available to backorder	Spiral Bevel Gear 55	£14.44 £12.03
51	MK265120-9 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
52	MK285741-1 Available to backorder	Bearing Retainer 50	£0.86 £0.72
54	MK211278-2 Available to backorder	Ball Bearing 6203Ddw	£9.54 £7.95
55	MK213760-7 Available to backorder	O-Ring 78	£1.60 £1.33
56	MK319351-3 Available to backorder	Bearing Box	£8.66 £7.22
57	MK265541-5 Available to backorder	Hex. Socket Head Bolt M6x22	£0.58 £0.48
58	MK143484-0 Available to backorder	Spindle Complete	£6.64 £5.53
59	MK8050A1-8 Available to backorder	Caution Label (C30)	£1.24 £1.03
59	MK265198-2 Available to backorder	Pan Head Screw M8x25 (C20)	£0.86 £0.72
59	MK213017-6 Available to backorder	O-Ring 6 (C10)	£0.48 £0.40
59	MK122889-7 Available to backorder	Wheel Cover 180K Assembly	£11.26 £9.38
61	MK224485-8 Available to backorder	Lock Nut 14-45	£4.04 £3.37
901	MK143486-6 Available to backorder	Grip 37 Complete (A01)	£3.12 £2.60
902	MK197610-3 In stock	Lock Nut Wrench 35 Set (Alt.) (A02-1)	£2.56 £2.13
904	MK192227-7 Available to backorder	Inner Flange 47 Set (F04)	£22.62 £18.85
908	MK194305-9 Available to backorder	Lock Nut Release Socket 35 Set (F08)	£68.26 £56.88
933	MK199176-9 Available to backorder	Loop Handle Set (F33)	£29.40 £24.50
