Makita GA6021 - Angle Grinder 150mm - Power Tool Diagram

Description

Model No. GA6021

Angle Grinder 150mm

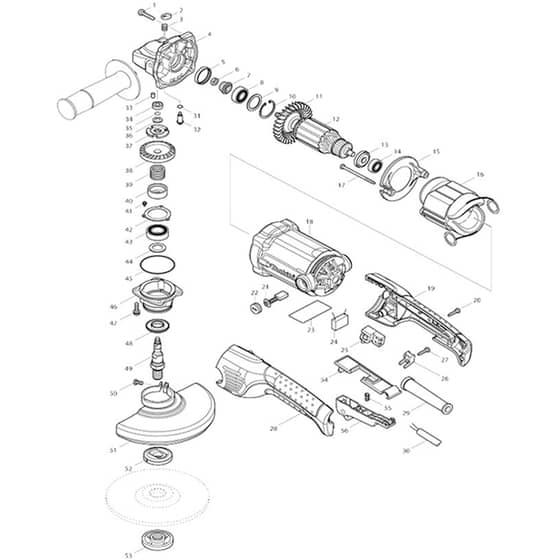

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK266459-3 Available to backorder	Tapping Screw 5x25 (Alt.)	£0.48 £0.40
1	MK266041-8 Available to backorder	Tapping Screw 5x25	£0.58 £0.48
2	MK417771-6 In stock	Pin Cap	£0.48 £0.40
3	MK234057-1 Available to backorder	Compression Spring 8	£0.48 £0.40
4	MK318158-4 Available to backorder	Gear Housing	£7.80 £6.50
5	MK262132-3 Available to backorder	Rubber Ring 27	£0.48 £0.40
6	MK264010-3 Available to backorder	Hex.Nut M7	£0.48 £0.40
7	MK227520-1 Available to backorder	Spiral Bevel Gear 11	£4.20 £3.50
8	MK211088-7 Available to backorder	Ball Bearing 6000Ddw	£5.48 £4.57
8	MK210059-1 Available to backorder	Ball Bearing 6000Ddw <	£5.04 £4.20
9	MK267352-4 Available to backorder	Flat Washer 22	£0.58 £0.48
10	MK962107-9 Available to backorder	Retaining Ring (Int) R-30	£0.86 £0.72
11	MK240094-5 Available to backorder	Fan 70	£1.32 £1.10
12	MK510132-0 Available to backorder	Armature Ass'y 240V (Alt.)	£31.06 £25.88
13	MK681644-1 Available to backorder	Insulation Washer	£0.74 £0.62
14	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
15	MK419961-7 Available to backorder	Baffle Plate	£0.74 £0.62
16	MK654555-3 Available to backorder	Connector 34130 (C20)	£0.48 £0.40
16	MK525803-6 Available to backorder	Field Ass'y 220-240V	£35.98 £29.98
16	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.74 £0.62
17	MK266340-8 Available to backorder	Tapping Screw 4x65	£0.48 £0.40
18	MK643708-9 Available to backorder	Brush Holder 5-11 (C10)	£2.18 £1.82
18	MK158278-0 Available to backorder	Motor Housing Complete	£11.14 £9.28
19	MK188462-3 Available to backorder	Handle Set	£13.44 £11.20
20	MK265A48-7 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
20	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
21	MK194996-6 Available to backorder	Carbon Brush Set Cb-303 (Alt.)	£3.92 £3.27
22	MK643750-0 Available to backorder	Brush Holder Cap 7-11	£1.32 £1.10
25	MK650677-7 Available to backorder	Switch C3Pa-1112 <	£11.56 £9.63
25	MK651922-3 Available to backorder	Switch Tg71B	£14.30 £11.92
26	MK687260-7 Available to backorder	Strain Relief	£0.48 £0.40
29	MK682505-8 Available to backorder	Cord Guard 10-90	£1.32 £1.10
32	MK256505-0 Available to backorder	Shoulder Pin 5	£0.58 £0.48
33	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
34	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.04 £2.53
35	MK233926-3 Available to backorder	Ring Spring 7	£1.60 £1.33
36	MK253835-0 Available to backorder	Flat Washer 8	£0.58 £0.48
37	MK267811-8 Available to backorder	Lock Washer	£1.74 £1.45
38	MK227522-7 Available to backorder	Spiral Bevel Gear 35B	£9.12 £7.60
39	MK234356-1 Available to backorder	Lock Spring 16 <	£5.20 £4.33
40	MK324833-2 Available to backorder	Lock Sleeve	£2.46 £2.05
41	MK911003-8 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
42	MK285728-3 Available to backorder	Bearing Retainer 39	£0.48 £0.40
43	MK211236-8 Available to backorder	Ball Bearing 6002Ddw	£7.80 £6.50
44	MK253853-8 Available to backorder	Flat Washer 15	£0.74 £0.62
45	MK213624-5 Available to backorder	O Ring 48 (Alt.)	£0.48 £0.40
46	MK318299-6 Available to backorder	Bearing Box <	£4.62 £3.85
46	MK318332-4 Available to backorder	Bearing Box S	£6.22 £5.18
47	MK265131-4 Available to backorder	Pan Head Screw M5x18	£0.48 £0.40
48	MK345464-4 Available to backorder	Labyrinth Ring	£0.58 £0.48
49	MK324789-9 Available to backorder	Spindle	£9.12 £7.60
51	MK213009-5 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
51	MK8050A1-8 Available to backorder	Caution Label (C20)	£1.24 £1.03
53	MK224554-5 In stock	Lock Nut 14-45	£5.52 £4.60
54	MK418519-9 Available to backorder	Switch Base	£1.16 £0.97
55	MK233117-6 Available to backorder	Compression Spring 6	£0.58 £0.48
56	MK158401-7 Available to backorder	Switch Lever A Complete	£4.34 £3.62
56	MK158402-5 Available to backorder	Switch Lever B Complete <	£4.62 £3.85
902	MK782423-1 In stock	Lock Nut Wrench 35 (A02)	£1.87 £1.56
904	MK192227-7 Available to backorder	Super Flange (F04)	£22.62 £18.85
925	MK194514-0 Available to backorder	Vibration Proof Grip Set (F25)	£23.38 £19.48
926	MK193956-5 Available to backorder	Dust Cover Attachment (F26)	£21.78 £18.15
