Makita GA5041C - 125mm Angle Grinder - Power Tool Diagram

Description

Model No. GA5041C

125mm Angle Grinder

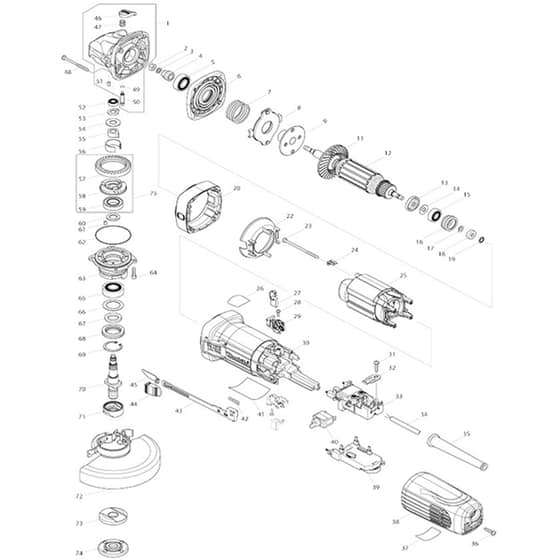

Power Tool Parts Diagrams

	Part No.	Details
1	MK136013-6 Available to backorder	Gear Housing Ass'y < (INC. 46 47 49-51)	£18.60 £15.50
2	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
3	MK253077-6 Available to backorder	Flat Washer 6	£0.48 £0.40
4	MK227591-8 Available to backorder	Spiral Bevel Gear 10	£8.88 £7.40
5	MK211142-7 Available to backorder	Ball Bearing 6001Llb	£5.88 £4.90
6	MK141981-0 Available to backorder	Gear Housing Cover Complete	£14.04 £11.70
7	MK234230-3 Available to backorder	Compression Spring 33	£0.48 £0.40
8	MK141515-9 Available to backorder	Brake Shoe Holder Complete	£31.68 £26.40
9	MK326132-8 Available to backorder	Brake Plate	£23.76 £19.80
11	MK240135-7 Available to backorder	Fan 60 B	£96.84 £80.70
12	MK515398-7 Available to backorder	Armature Ass'y 220-240V x (INC. 13-15)	£103.68 £86.40
13	MK681656-4 Available to backorder	Insulation Washer	£0.70 £0.58
14	MK253823-7 Available to backorder	Flat Washer 7	£0.48 £0.40
15	MK210027-4 Available to backorder	Ball Bearing 627Ddw	£3.12 £2.60
16	MK422750-1 Available to backorder	Labyrinth Rubber Ring 22 <	£4.68 £3.90
17	MK267756-0 Available to backorder	Wave Washer 6	£0.48 £0.40
18	MK688117-5 Available to backorder	Magnet Sleeve	£2.83 £2.36
19	MK259039-2 Available to backorder	Self Lock 6	£0.48 £0.40
20	MK455351-0 Available to backorder	Spacer <	£2.69 £2.24
20	MK453374-2 Available to backorder	Spacer	£3.48 £2.90
22	MK453375-0 Available to backorder	Buffle Plate B	£1.39 £1.16
23	MK266258-3 Available to backorder	Tapping Screw 4x70	£1.22 £1.02
24	MK344871-8 Available to backorder	Retainer	£0.89 £0.74
25	MK626653-3 Available to backorder	Field 220-240V	£39.72 £33.10
26	MK898443-6 Available to backorder	Sjs2 Mark Label	£0.48 £0.40
27	MK191978-9 In stock	A.C. Carbon Brush Cb-318	£10.81 £9.01
28	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10	£0.48 £0.40
29	MK643770-4 Available to backorder	Brush Holder <	£1.74 £1.45
29	MK643769-9 Available to backorder	Brush Holder	£1.74 £1.45
30	MK453376-8 Available to backorder	Motor Housing B	£7.68 £6.40
31	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
31	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
32	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
33	MK632K98-1 Available to backorder	Switch Block <	£14.28 £11.90
34	MK695034-2 Available to backorder	Power Supply Cord 1.0-2-4.0	£17.76 £14.80
35	MK682559-5 Available to backorder	Cord Guard 8	£1.03 £0.86
37	MK898444-4 Available to backorder	Indication Label	£0.48 £0.40
38	MK453365-3 Available to backorder	Rear Cover C	£3.01 £2.51
39	MK620734-5 Available to backorder	Controller <	£70.44 £58.70
39	MK620G02-8 Available to backorder	Controller <	£89.52 £74.60
39	MK620127-6 Available to backorder	Controller	£97.44 £81.20
40	MK651418-4 Available to backorder	Switch St115A-40	£9.48 £7.90
41	MK897102-9 Available to backorder	Ga5041C Name Plate	£1.22 £1.02
42	MK233071-4 Available to backorder	Compression Spring 4	£0.48 £0.40
43	MK453847-5 Available to backorder	Switch Lever	£1.22 £1.02
44	MK453377-6 Available to backorder	Switch Knob B	£0.89 £0.74
45	MK346557-0 Available to backorder	Switchi Plate	£1.03 £0.86
46	MK453369-5 Available to backorder	Pin Cap	£0.70 £0.58
47	MK234057-1 Available to backorder	Compression Spring 8	£0.48 £0.40
48	MK266467-4 Available to backorder	Tapping Screw 4x50	£0.48 £0.40
49	MK213032-0 Available to backorder	O Ring 4 (Alt.)	£0.70 £0.58
50	MK256535-1 Available to backorder	Shoulder Pin 6	£1.03 £0.86
51	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
52	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.12 £2.60
53	MK961005-4 Available to backorder	Retaining Ring S-9	£0.48 £0.40
54	MK253180-3 Available to backorder	Flat Washer 10	£0.70 £0.58
55	MK310683-1 Available to backorder	Joint Sleeve <	£3.60 £3.00
55	MK310508-9 Available to backorder	Joint Sleeve	£2.21 £1.84
55	MK310577-0 Available to backorder	Joint Sleeve <	£2.05 £1.71
56	MK346556-2 Available to backorder	C Type Plate	£2.83 £2.36
57	MK227592-6 Available to backorder	Spiral Bevel Gear 38	£7.32 £6.10
58	MK313228-4 Available to backorder	Coupling	£7.80 £6.50
59	MK210302-8 Available to backorder	Ball Bearing 6903Zz	£14.52 £12.10
60	MK253744-3 Available to backorder	Flat Washer 12	£0.70 £0.58
62	MK213641-5 Available to backorder	O Ring 51 (Alt.)	£0.48 £0.40
63	MK318839-0 Available to backorder	Bearring Box B	£6.72 £5.60
64	MK265490-6 Available to backorder	Hex. Socket Head Bolt M4x16	£0.48 £0.40
65	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
66	MK267279-8 Available to backorder	Flat Washer 21	£0.48 £0.40
67	MK443124-3 Available to backorder	Felt Ring 17	£0.70 £0.58
68	MK285854-8 Available to backorder	Bearing Retainer 20-33	£1.73 £1.44
70	MK326133-6 Available to backorder	Spindle	£48.36 £40.30
71	MK310514-4 Available to backorder	Lead Flange	£13.92 £11.60
72	MK8050A1-8 Available to backorder	Caution Label (C30)	£1.49 £1.24
72	MK123145-8 Available to backorder	Toolless Wheelcover 125Ak Assy	£12.36 £10.30
72	MK213009-5 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
73	MK224447-6 Available to backorder	Inner Flange 42B	£7.68 £6.40
74	MK224554-5 In stock	Lock Nut 14-45	£5.47 £4.56
75	MK135555-7 Available to backorder	Coupling Ass'y (INC. 57-59)	£44.28 £36.90
76	MK804Y42-4 Available to backorder	Clear Label <	£0.48 £0.40
902	MK194514-0 Available to backorder	Vibration Proof Grip Set (F02)	£24.24 £20.20
902	MK197610-3 In stock	Lock Nut Wrench 35 Set (Alt.) (A02-1)	£2.80 £2.33
902	MK782423-1 In stock	Lock Nut Wrench 35 (Alt.) (A02-2)	£1.94 £1.62
903	MKA-80656 Available to backorder	Grinding Wheel 125 Wa36N (A03)	£3.60 £3.00
905	MK198719-4 Available to backorder	Dust Cover Attachment Set < (F05-1)	£17.76 £14.80
913	MK199710-5 Available to backorder	Cutting W.C.A. 125 Set (A13)	£12.24 £10.20
915	MK195239-9 Available to backorder	115/125mm Dust Cover K Set < (F15-1)	£109.56 £91.30
922	MK743129-6 Available to backorder	Brush A (C10)	£26.28 £21.90
922	MK743130-1 Available to backorder	Brush B (C20)	£24.84 £20.70
