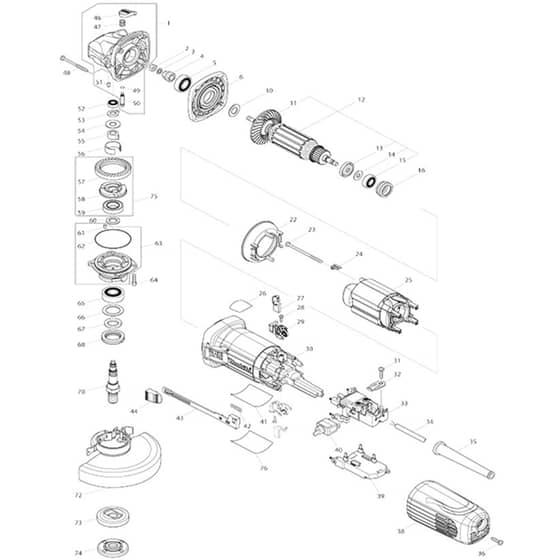

Makita GA5040R - 125mm Angle Grinder - Power Tool Diagram

Description

Model No. GA5040R

125mm Angle Grinder

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK136013-6 Available to backorder	Gear Housing Assembly < (INC. 46 47 49-51)	£18.02 £15.02
2	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
3	MK253077-6 Available to backorder	Flat Washer 6	£0.48 £0.40
4	MK227591-8 Available to backorder	Spiral Bevel Gear 10	£8.54 £7.12
5	MK211142-7 Available to backorder	Ball Bearing 6001Llb	£5.64 £4.70
6	MK141981-0 Available to backorder	Gear Housing Cover Complete	£13.58 £11.32
10	MK253084-9 Available to backorder	Flat Washer 12	£0.58 £0.48
11	MK240134-9 Available to backorder	Fan 60	£1.88 £1.57
12	MK515364-4 Available to backorder	Armature Assembly 240V (INC. 11 13-15)	£73.66 £61.38
13	MK681656-4 Available to backorder	Insulation Washer	£0.58 £0.48
14	MK253823-7 Available to backorder	Flat Washer 7	£0.48 £0.40
15	MK210027-4 Available to backorder	Ball Bearing 627Ddw	£3.04 £2.53
16	MK422750-1 Available to backorder	Labyrinth Rubber Ring 22 <	£4.52 £3.77
22	MK453367-9 Available to backorder	Baffle Plate	£1.02 £0.85
23	MK266258-3 Available to backorder	Binding Head Tapping Screw 4x70	£1.02 £0.85
24	MK344871-8 Available to backorder	Retainer	£0.74 £0.62
25	MK626649-4 Available to backorder	Field 240V	£39.28 £32.73
26	MK898443-6 Available to backorder	Sjs2 Mark Label	£0.48 £0.40
27	MK194074-2 In stock	Carbon Brush Set Cb-325	£2.46 £2.05
28	MK266007-8 Available to backorder	Binding Head Tapping Screw 3x10	£0.48 £0.40
29	MK643770-4 Available to backorder	Brush Holder	£1.60 £1.33
30	MK453366-1 Available to backorder	Motor Housing	£7.96 £6.63
31	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
31	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
32	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
33	MK632K98-1 Available to backorder	Switch Block <	£13.86 £11.55
34	MK695034-2 Available to backorder	Power Supply Cord 1.0-2-4.0	£17.20 £14.33
35	MK682559-5 Available to backorder	Cord Guard 8	£0.86 £0.72
38	MK453365-3 Available to backorder	Rear Cover C	£2.76 £2.30
39	MK620G06-0 Available to backorder	Controller <	£40.56 £33.80
39	MK620343-0 Available to backorder	Controller	£30.92 £25.77
39	MK620786-6 Available to backorder	Controller <	£34.82 £29.02
40	MK651418-4 Available to backorder	Switch St115A-40	£9.12 £7.60
41	MK850M69-0 Available to backorder	Name Plate Ga5040R	£0.48 £0.40
42	MK233071-4 Available to backorder	Compression Spring 4	£0.48 £0.40
43	MK453847-5 Available to backorder	Switch Lever	£1.02 £0.85
44	MK453368-7 Available to backorder	Switch Knob	£0.58 £0.48
46	MK453369-5 Available to backorder	Pin Cap	£0.58 £0.48
47	MK234057-1 Available to backorder	Compression Spring 8	£0.48 £0.40
48	MK265B70-0 Available to backorder	Binding Head Tapping Screw 4x30	£0.48 £0.40
48	MK266361-0 Available to backorder	Binding Head Tapping Screw 4x30	£0.48 £0.40
49	MK213032-0 Available to backorder	O-Ring 4	£0.58 £0.48
50	MK256535-1 Available to backorder	Shoulder Pin 6	£0.86 £0.72
51	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
52	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.04 £2.53
53	MK961005-4 Available to backorder	Retaining Ring (Ext) S-9	£0.48 £0.40
54	MK253180-3 Available to backorder	Flat Washer 10	£0.58 £0.48
55	MK310683-1 Available to backorder	Joint Sleeve <	£3.46 £2.88
55	MK310577-0 Available to backorder	Joint Sleeve	£1.88 £1.57
56	MK346556-2 Available to backorder	C Type Plate	£2.60 £2.17
57	MK227592-6 Available to backorder	Spiral Bevel Gear 38	£7.08 £5.90
58	MK313228-4 Available to backorder	Coupling	£7.52 £6.27
59	MK210302-8 Available to backorder	Ball Bearing 6903Zz	£14.02 £11.68
60	MK253744-3 Available to backorder	Flat Washer 12	£0.58 £0.48
62	MK213641-5 Available to backorder	O-Ring 51	£0.48 £0.40
63	MK136012-8 Available to backorder	Bearing Box Assembly < (INC. 61.62)	£5.06 £4.22
63	MK318837-4 Available to backorder	Bearing Box	£4.24 £3.53
64	MK265490-6 Available to backorder	Hex. Socket Head Bolt M4x16	£0.48 £0.40
65	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
66	MK267279-8 Available to backorder	Flat Washer 21	£0.48 £0.40
67	MK443124-3 Available to backorder	Felt Ring 17	£0.58 £0.48
68	MK285854-8 Available to backorder	Bearing Retainer 20-33	£1.44 £1.20
70	MK326130-2 Available to backorder	Spindle	£7.38 £6.15
72	MK213009-5 Available to backorder	O-Ring 4 (C10)	£0.48 £0.40
72	MK123145-8 Available to backorder	Toolless Wheel Cover 125Ak Assembly	£12.00 £10.00
72	MK8050A1-8 Available to backorder	Caution Label (C30)	£1.24 £1.03
74	MK224554-5 In stock	Lock Nut 14-45	£5.52 £4.60
75	MK135555-7 Available to backorder	Coupling Assembly (INC. 57-59)	£42.76 £35.63
76	MK804Y42-4 Available to backorder	Clear Label	£0.48 £0.40
901	MK153489-2 In stock	Grip 36 Complete (A01)	£1.38 £1.15
902	MK197610-3 In stock	Lock Nut Wrench 35 Set (Alt.) (A02-1)	£2.56 £2.13
902	MK194514-0 Available to backorder	Vibration Proof Grip Set (F02)	£23.38 £19.48
902	MK782423-1 In stock	Lock Nut Wrench 35 (Alt.) (A02-2)	£1.87 £1.56
904	MK195239-9 Available to backorder	Dust Collect Cover K Set (115/125mm) (F04-1)	£114.08 £95.07
907	MK198719-4 Available to backorder	Dust Cover Attachment Set < (F07-1)	£17.20 £14.33
913	MK199710-5 Available to backorder	Cutting Wheel Cover Attachment (A13)	£11.88 £9.90
922	MK743129-6 Available to backorder	Brush A (C10)	£25.38 £21.15
922	MK743130-1 Available to backorder	Brush B (C20)	£24.02 £20.02
