Makita GA5030R - 125mm Angle Grinder - Power Tool Diagram

Description

Model No. GA5030R

125mm Angle Grinder

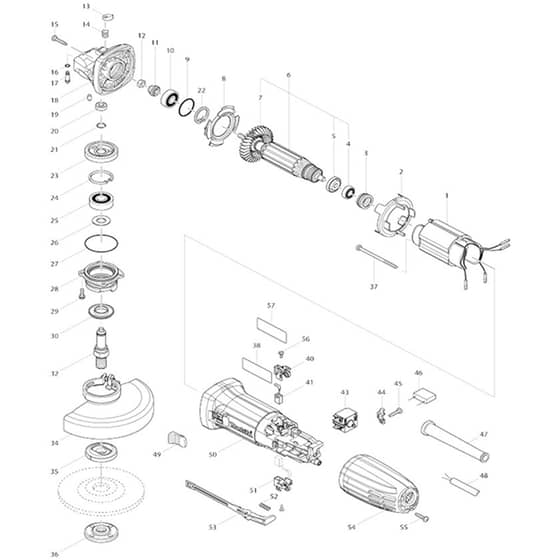

Power Tool Parts Diagrams

	Part No.	Details
1	MK633903-9 Available to backorder	Field 220-240V	£18.84 £15.70
2	MK450796-7 Available to backorder	Baffle Plate	£0.70 £0.58
3	MK421868-5 Available to backorder	Labyrinth Rubber Ring 19	£1.39 £1.16
3	MK422768-2 Available to backorder	Labyrinth Rubber Ring 19 <	£1.39 £1.16
4	MK210034-7 In stock	Ball Bearing 607Llb	£1.73 £1.44
5	MK681636-0 Available to backorder	Insulation Washer	£2.21 £1.84
6	MK517649-4 Available to backorder	Armature Assembly 240V (INC. 4 5 7)	£21.12 £17.60
7	MK240139-9 Available to backorder	Fan 56	£1.03 £0.86
8	MK413126-3 Available to backorder	Guide Plate	£0.89 £0.74
9	MK213407-3 Available to backorder	O-Ring 26 (Alt.)	£1.03 £0.86
9	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
10	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£8.28 £6.90
11	MK227545-5 Available to backorder	Spiral Bevel Gear 10	£3.12 £2.60
12	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
13	MK417771-6 In stock	Pin Cap	£0.52 £0.43
14	MK234057-1 Available to backorder	Compression Spring 8	£0.48 £0.40
15	MK266324-6 Available to backorder	Binding Head Tapping Screw 4x22	£0.48 £0.40
16	MK213032-0 Available to backorder	O-Ring 4	£0.70 £0.58
17	MK256510-7 Available to backorder	Shoulder Pin 4	£0.89 £0.74
18	MK318335-8 Available to backorder	Gear Housing	£6.84 £5.70
19	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
20	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.73 £1.44
21	MK233950-6 Available to backorder	Ring Spring 11	£1.03 £0.86
23	MK227546-3 Available to backorder	Spiral Bevel Gear 37	£6.72 £5.60
24	MK962151-6 Available to backorder	Retaining Ring (Int) R-32	£0.70 £0.58
25	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
26	MK267113-2 Available to backorder	Flat Washer 12	£1.03 £0.86
26	MK267238-2 Available to backorder	Flat Washer 12 (Alt.)	£0.48 £0.40
27	MK213561-3 Available to backorder	O-Ring 42	£1.03 £0.86
28	MK318336-6 Available to backorder	Bearing Box	£3.60 £3.00
29	MK265099-4 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
30	MK345464-4 Available to backorder	Labyrinth Ring	£0.70 £0.58
32	MK324954-0 Available to backorder	Spindle	£3.84 £3.20
34	MK123099-9 Available to backorder	Wheel Cover 125Ak Assembly	£8.40 £7.00
34	MK8050A1-8 Available to backorder	Caution Label (C30)	£1.49 £1.24
34	MK213009-5 Available to backorder	O-Ring 4 (C10)	£0.48 £0.40
36	MK224554-5 In stock	Lock Nut 14-45	£5.47 £4.56
37	MK266325-4 Available to backorder	Binding Head Tapping Screw 4x70	£0.48 £0.40
38	MK851S94-0 Available to backorder	Name Plate Ga5030R	£0.48 £0.40
40	MK643839-4 Available to backorder	Brush Holder 6x9	£1.90 £1.58
41	MK195026-6 In stock	Carbon Brush Set Cb-459 (Alt.)	£2.94 £2.45
43	MK650769-2 Available to backorder	Switch	£16.32 £13.60
45	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
45	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
46	MK638739-1 Available to backorder	Noise Suppressor Unit	£2.69 £2.24
47	MK682559-5 Available to backorder	Cord Guard 8	£1.03 £0.86
49	MK418016-5 Available to backorder	Switch Knob	£0.48 £0.40
50	MK456380-6 Available to backorder	Motor Housing	£7.20 £6.00
52	MK233121-5 Available to backorder	Compression Spring 4	£0.48 £0.40
53	MK450797-5 Available to backorder	Switch Lever	£0.70 £0.58
54	MK413A35-2 Available to backorder	Rear Cover <	£1.79 £1.49
56	MK266492-5 Available to backorder	Binding Head Tapping Screw 3x8	£0.48 £0.40
57	MK806E99-1 Available to backorder	Clear Label	£0.48 £0.40
901	MK153489-2 In stock	Grip 36 Complete (A01)	£1.73 £1.44
901	MK194514-0 Available to backorder	Vibration Proof Grip Set (Alt.) (F01-1)	£24.24 £20.20
901	MK808153-7 Available to backorder	Safety Instruction Label (E01)	£0.48 £0.40
902	MK782423-1 In stock	Lock Nut Wrench 35 (A02)	£1.94 £1.62
903	MKA-80933 Available to backorder	Grinding Wheel 125x6x22(A36P) (A03)	£2.22 £1.85
903	MK192227-7 Available to backorder	Inner Flange 47 Set (F03)	£23.40 £19.50
904	MK183091-7 Available to backorder	Latch Rl Set (C10)	£3.12 £2.60
904	MK824985-4 Available to backorder	Plastic Case (A04C)	£20.52 £17.10
905	MKD-61139 Available to backorder	Diamond Wheel 125x22.23mm (A05-1B)	£11.28 £9.40
912	MK199710-5 Available to backorder	Cutting Wheel Cover Attachment (A12)	£12.24 £10.20
913	MK196845-3 Available to backorder	Dust Collect Cover K Set (125mm) (F13)	£125.16 £104.30
