Makita GA5021C - Angle Grinder 125mm - Power Tool Diagram

Description

Model No. GA5021C

Angle Grinder 125mm

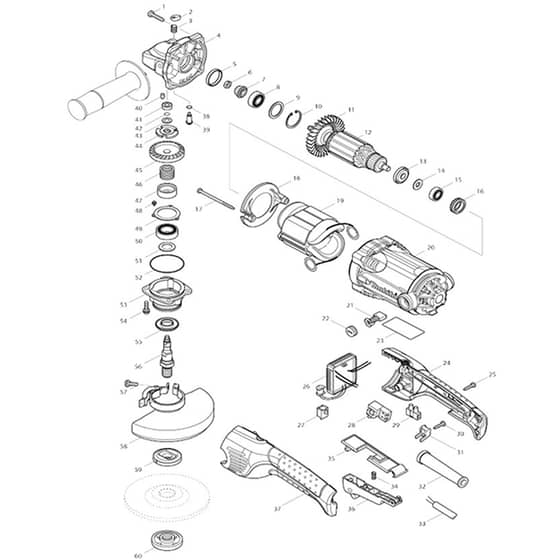

Power Tool Parts Diagrams

	Part No.	Details
1	MK266041-8 Available to backorder	Tapping Screw 5x25	£0.70 £0.58
1	MK266459-3 Available to backorder	Tapping Screw 5x25 (Alt.)	£0.48 £0.40
2	MK417771-6 In stock	Pin Cap	£0.52 £0.43
3	MK234057-1 Available to backorder	Compression Spring 8	£0.48 £0.40
4	MK318158-4 Available to backorder	Gear Housing	£8.04 £6.70
5	MK424051-3 Available to backorder	Rubber Ring 26	£0.70 £0.58
6	MK264010-3 Available to backorder	Hex.Nut M7	£0.48 £0.40
7	MK227520-1 Available to backorder	Spiral Bevel Gear 11	£4.32 £3.60
8	MK211088-7 Available to backorder	Ball Bearing 6000Ddw	£5.64 £4.70
8	MK210059-1 Available to backorder	Ball Bearing 6000Ddw <	£5.16 £4.30
9	MK267352-4 Available to backorder	Flat Washer 22	£0.70 £0.58
10	MK962107-9 Available to backorder	Retaining Ring (Int) R-30	£1.03 £0.86
11	MK240094-5 Available to backorder	Fan 70	£1.58 £1.32
12	MK513799-3 Available to backorder	Armature Ass'y 240V S (INC. 11 13-15)	£48.96 £40.80
12	MK513729-4 Available to backorder	Armature Ass'y 240V (INC. 11 13-15 *)	£53.16 £44.30
13	MK681660-3 Available to backorder	Insulation Washer	£5.52 £4.60
14	MK267281-1 Available to backorder	Flat Washer 8	£0.48 £0.40
15	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£8.04 £6.70
16	MK421720-7 Available to backorder	Rubber Ring 22	£9.48 £7.90
17	MK266325-4 Available to backorder	Tapping Screw 4x70	£0.48 £0.40
18	MK419961-7 Available to backorder	Baffle Plate	£0.89 £0.74
19	MK654020-2 Available to backorder	Ring Terminal (C10)	£0.89 £0.74
19	MK525784-4 Available to backorder	Field Ass'y 240V	£33.96 £28.30
19	MK654555-3 Available to backorder	Connector 34130 (C20)	£0.48 £0.40
20	MK643751-8 Available to backorder	Brush Holder (C10)	£5.40 £4.50
20	MK158398-0 Available to backorder	Motor Housing Complete	£15.48 £12.90
21	MK194994-0 Available to backorder	Carbon Brush Set Cb-253 (Alt.)	£6.12 £5.10
22	MK643750-0 Available to backorder	Brush Holder Cap 7-11	£1.58 £1.32
23	MK864047-6 Available to backorder	Ga5021C Name Plate	£0.70 £0.58
24	MK188452-6 Available to backorder	Handle Set (INC. 37)	£15.72 £13.10
25	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
25	MK265A48-7 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
26	MK631799-2 Available to backorder	Controller	£60.12 £50.10
26	MK620G47-6 Available to backorder	Controller <	£55.68 £46.40
27	MK418518-1 Available to backorder	Sleeve	£0.89 £0.74
28	MK651922-3 Available to backorder	Switch Tg71B	£14.76 £12.30
28	MK650677-7 Available to backorder	Switch C3Pa-1112 <	£12.00 £10.00
29	MK654575-7 Available to backorder	Terminal Block	£2.53 £2.11
31	MK687260-7 Available to backorder	Strain Relief	£0.48 £0.40
32	MK682505-8 Available to backorder	Cord Guard 10-90	£1.58 £1.32
34	MK233117-6 Available to backorder	Compression Spring 6	£0.70 £0.58
35	MK418519-9 Available to backorder	Switch Base	£1.39 £1.16
35	MK451637-0 Available to backorder	Switch Base S	£1.49 £1.24
36	MK158401-7 Available to backorder	Switch Lever A Complete	£4.44 £3.70
36	MK140358-6 Available to backorder	Switch Lever Complete S	£7.08 £5.90
39	MK256505-0 Available to backorder	Shoulder Pin 5	£0.70 £0.58
40	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
41	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.12 £2.60
42	MK233926-3 Available to backorder	Ring Spring 7	£1.74 £1.45
43	MK253835-0 Available to backorder	Flat Washer 8	£0.70 £0.58
44	MK267811-8 Available to backorder	Lock Washer	£1.90 £1.58
45	MK227522-7 Available to backorder	Spiral Bevel Gear 35B	£9.48 £7.90
46	MK234356-1 Available to backorder	Lock Spring 16 <	£5.40 £4.50
47	MK324833-2 Available to backorder	Lock Sleeve	£2.69 £2.24
48	MK911003-8 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
49	MK285728-3 Available to backorder	Bearing Retainer 39	£0.48 £0.40
50	MK211236-8 Available to backorder	Ball Bearing 6002Ddw	£8.04 £6.70
51	MK253853-8 Available to backorder	Flat Washer 15	£0.89 £0.74
52	MK213624-5 Available to backorder	O Ring 48 (Alt.)	£0.48 £0.40
53	MK318299-6 Available to backorder	Bearing Box <	£4.80 £4.00
53	MK318332-4 Available to backorder	Bearing Box S	£6.48 £5.40
54	MK265131-4 Available to backorder	Pan Head Screw M5x18	£0.48 £0.40
55	MK345464-4 Available to backorder	Labyrinth Ring	£0.70 £0.58
56	MK324789-9 Available to backorder	Spindle	£9.48 £7.90
57	MK251391-4 Available to backorder	Pan Head Screw M5x16	£0.48 £0.40
58	MK123145-8 Available to backorder	Toolless Wheelcover 125Ak Assy (INC. 57 *)	£12.36 £10.30
58	MK8050A1-8 Available to backorder	Caution Label (C20)	£1.49 £1.24
58	MK213009-5 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
59	MK122444-5 Available to backorder	Inner Flange 47 Ass'y (INC. 57)	£24.84 £20.70
60	MK224554-5 In stock	Lock Nut 14-45	£5.47 £4.56
61	MK253828-7 Available to backorder	Flat Washer 10	£1.03 £0.86
901	MK193956-5 Available to backorder	Dust Cover Attachment (F01)	£22.56 £18.80
902	MK782423-1 In stock	Lock Nut Wrench 35 (A02)	£1.94 £1.62
903	MK194514-0 Available to backorder	Vibration Proof Grip Set (F03)	£24.24 £20.20
905	MK195239-9 Available to backorder	115/125mm Dust Cover K Set < (F05-1)	£109.56 £91.30
905	MK199710-5 Available to backorder	Cutting W.C.A. 125 Set (A05)	£12.24 £10.20
913	MK743129-6 Available to backorder	Brush A (C10)	£26.28 £21.90
913	MK743130-1 Available to backorder	Brush B (C20)	£24.84 £20.70
