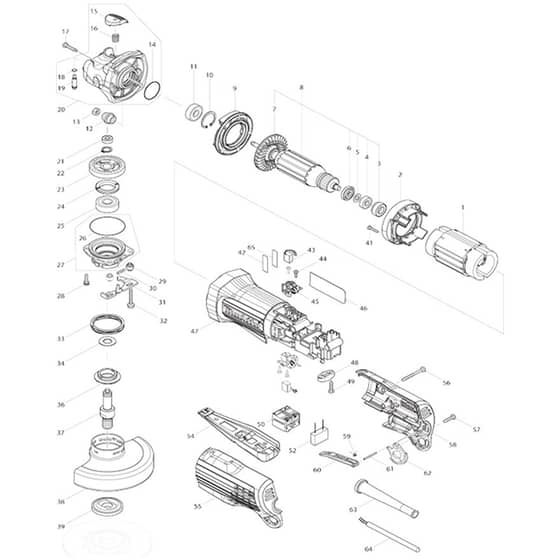

Makita GA4550 - 115mm Angle Grinder - Power Tool Diagram

Description

Model No. GA4550

115mm Angle Grinder

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK634734-9 Available to backorder	Field	£44.78 £37.32
2	MK459003-5 Available to backorder	Baffle Plate	£1.24 £1.03
3	MK422413-9 Available to backorder	Rubber Ring 19	£2.60 £2.17
4	MK210017-7 Available to backorder	Ball Bearing 607Ddw	£4.62 £3.85
5	MK253186-1 Available to backorder	Flat Washer 7	£0.58 £0.48
6	MK681636-0 Available to backorder	Insulation Washer	£2.02 £1.68
7	MK240197-5 Available to backorder	Fan60	£3.28 £2.73
8	MK517994-7 Available to backorder	Armature Ass'y 240V (INC. 3-7)	£45.86 £38.22
9	MK459004-3 Available to backorder	Diffuser	£1.10 £0.92
11	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£7.96 £6.63
12	MK226858-1 Available to backorder	Spiral Bevel Gear 10	£3.92 £3.27
13	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
14	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
15	MK459006-9 Available to backorder	Pin Cap	£1.52 £1.27
16	MK232491-9 Available to backorder	Compression Spring 9	£0.48 £0.40
17	MK266324-6 Available to backorder	Tapping Screw 4x22	£0.48 £0.40
18	MK213877-6 Available to backorder	O-Ring 6	£0.48 £0.40
19	MK256594-5 Available to backorder	Shoulder Pin 6	£1.44 £1.20
20	MK136144-1 Available to backorder	Gear Housing B Ass'y (INC. 14-16 18 19)	£23.68 £19.73
20	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
21	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.04 £2.53
22	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
23	MK226859-9 Available to backorder	Spiral Bevel Gear 37	£10.40 £8.67
24	MK285039-6 Available to backorder	Bearing Retainer 23-33	£1.44 £1.20
25	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
26	MK213624-5 Available to backorder	O Ring 48 (Alt.)	£0.48 £0.40
27	MK136141-7 Available to backorder	Bearing Box A Ass'y (INC. 26 *)	£3.96 £3.30
28	MK911128-8 Available to backorder	P.H.Screw M4x16 With Wr	£0.47 £0.39
29	MK327322-6 Available to backorder	Sleeve 4	£0.86 £0.72
30	MK232490-1 Available to backorder	Compression Spring 4	£0.48 £0.40
31	MK347475-5 Available to backorder	Lever	£2.32 £1.93
32	MK911159-7 Available to backorder	Pan Head Screw M4x30	£0.48 £0.40
33	MK232542-8 Available to backorder	Coiled Wave Spring 41	£4.62 £3.85
34	MK267238-2 Available to backorder	Flat Washer 12	£0.48 £0.40
36	MK319789-2 Available to backorder	Plate Retainer 20	£2.02 £1.68
37	MK327241-6 Available to backorder	Spindle	£3.92 £3.27
38	MK347479-7 Available to backorder	Wheel Cover 115	£7.84 £6.53
38	MK8050A1-8 Available to backorder	Caution Label (C10)	£1.24 £1.03
39	MK224490-5 In stock	Inner Flange 14-45	£1.90 £1.58
40	MK224485-8 Available to backorder	Lock Nut 14-45	£4.04 £3.37
41	MK266429-2 Available to backorder	Tapping Screw 3x16	£0.48 £0.40
42	MK856E08-0 Available to backorder	Ga4550 Serial No. Label	£0.48 £0.40
43	MK191D85-2 Available to backorder	Carbon Brush Set Cb-260	£9.54 £7.95
44	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10	£0.48 £0.40
45	MK643541-9 Available to backorder	Brush Holder	£2.60 £2.17
46	MK856E06-4 Available to backorder	Ga4550 Name Plate	£0.48 £0.40
47	MK458999-7 Available to backorder	Motor Housing	£6.56 £5.47
48	MK687123-7 Available to backorder	Strain Relief	£0.48 £0.40
49	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
50	MK651396-8 Available to backorder	Switch Fpc-2115S-0-03 <	£9.28 £7.73
50	MK650579-7 Available to backorder	Switch 1246.3223	£9.40 £7.83
54	MK459007-7 Available to backorder	Lock Off Lever (C20)	£0.54 £0.45
54	MK231679-8 Available to backorder	Torsion Spring 2 (C10)	£0.48 £0.40
54	MK162540-7 Available to backorder	Switch Lever Complete	£7.22 £6.02
54	MK412971-3 Available to backorder	Lock Off Lever < (C21)	£0.48 £0.40
54	MK951019-1 Available to backorder	Spring Pin 2-20 (C30)	£2.18 £1.82
55	MK183M68-0 Available to backorder	Rear Cover Set (INC. 58)	£5.20 £4.33
56	MK266048-4 Available to backorder	Tapping Screw 4x40	£0.58 £0.48
59	MK232492-7 Available to backorder	Torsion Spring 2	£0.48 £0.40
60	MK459005-1 Available to backorder	Switch Link Lever	£0.82 £0.68
61	MK256595-3 Available to backorder	Pin 2	£0.48 £0.40
62	MK347476-3 Available to backorder	Strap Ring	£2.60 £2.17
63	MK682559-5 Available to backorder	Cord Guard 8	£0.86 £0.72
64	MK692021-2 Available to backorder	Power Supply Cord 1.0-2-2.5	£8.38 £6.98
65	MK807G78-4 Available to backorder	Clear Label	£0.48 £0.40
66	MK213789-3 Available to backorder	O-Ring 38	£3.04 £2.53
901	MK158237-4 Available to backorder	Grip 36 Complete (A01)	£4.92 £4.10
902	MK782423-1 In stock	Lock Nut Wrench 35 (A02)	£1.87 £1.56
903	MK192227-7 Available to backorder	Super Flange (F03)	£22.62 £18.85
903	MK199709-0 Available to backorder	Cutting W.C.A. 115 Set (A03)	£11.60 £9.67
905	MK194514-0 Available to backorder	Vibration Proof Grip Set (F05)	£23.38 £19.48
