Makita GA4530 - 115mm Angle Grinder - Power Tool Diagram

Description

Model No. GA4530

115mm Angle Grinder

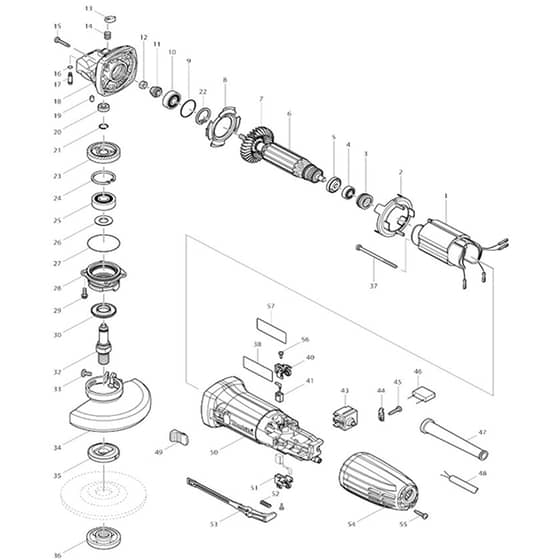

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK635113-4 Available to backorder	Field 220-240V (Alt.)	£22.68 £18.90
2	MK450796-7 Available to backorder	Baffle Plate	£0.58 £0.48
3	MK421868-5 Available to backorder	Labyrinth Rubber Ring 19	£1.16 £0.97
3	MK422768-2 Available to backorder	Labyrinth Rubber Ring19 <	£1.10 £0.92
4	MK210034-7 In stock	Ball Bearing 607Llb	£1.44 £1.20
5	MK681636-0 Available to backorder	Insulation Washer	£2.02 £1.68
6	MK517649-4 Available to backorder	Armature Ass'y 240V (INC. 4 5 7)	£20.38 £16.98
7	MK240139-9 Available to backorder	Fan 56 (Alt.)	£0.86 £0.72
8	MK413126-3 Available to backorder	Guide Plate	£0.74 £0.62
9	MK213407-3 Available to backorder	O Ring 26 (Alt.)	£0.86 £0.72
9	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
10	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£7.96 £6.63
11	MK227545-5 Available to backorder	Spiral Bevel Gear 10	£3.04 £2.53
12	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
13	MK417771-6 In stock	Pin Cap	£0.48 £0.40
14	MK234057-1 Available to backorder	Compression Spring 8	£0.48 £0.40
15	MK266324-6 Available to backorder	Tapping Screw 4x22	£0.48 £0.40
16	MK213032-0 Available to backorder	O Ring 4 < (Alt.)	£0.58 £0.48
17	MK256510-7 Available to backorder	Shoulder Pin 4	£0.74 £0.62
18	MK318335-8 Available to backorder	Gear Housing	£6.64 £5.53
19	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
20	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.44 £1.20
21	MK233950-6 Available to backorder	Ring Spring 11	£0.86 £0.72
23	MK227546-3 Available to backorder	Spiral Bevel Gear 37	£6.52 £5.43
24	MK962151-6 Available to backorder	Retaining Ring R-32	£0.58 £0.48
25	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
26	MK267113-2 Available to backorder	Flat Washer 12	£0.86 £0.72
26	MK267238-2 Available to backorder	Flat Washer 12 (Alt.)	£0.48 £0.40
27	MK213561-3 Available to backorder	O Ring 42 (Alt.)	£0.86 £0.72
28	MK318336-6 Available to backorder	Bearing Box	£3.46 £2.88
29	MK265099-4 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
30	MK345464-4 Available to backorder	Labyrinth Ring	£0.58 £0.48
32	MK324954-0 Available to backorder	Spindle	£3.76 £3.13
34	MK213009-5 Available to backorder	O Ring 4 (Alt.) (C10)	£0.48 £0.40
34	MK123098-1 Available to backorder	Wheel Cover 115Ak Ass'y < (INC. 33)	£7.52 £6.27
36	MK224554-5 In stock	Lock Nut 14-45	£5.52 £4.60
37	MK266325-4 Available to backorder	Tapping Screw 4x70	£0.48 £0.40
38	MK866050-3 Available to backorder	Ga4530 Name Plate	£0.58 £0.48
40	MK643839-4 Available to backorder	Brush Holder 6x9	£1.74 £1.45
41	MK195026-6 Available to backorder	Carbon Brush Set Cb-459 (Alt.)	£2.83 £2.36
43	MK650560-8 Available to backorder	Switch Dpx-2110-R	£2.18 £1.82
45	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
45	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
46	MK638739-1 Available to backorder	Capacitor Unit S	£2.46 £2.05
47	MK682559-5 Available to backorder	Cord Guard 8	£0.86 £0.72
49	MK419566-3 Available to backorder	Switch Knob	£0.48 £0.40
50	MK450795-9 Available to backorder	Motor Housing	£7.80 £6.50
50	MK451128-1 Available to backorder	Motor Housing <	£7.52 £6.27
52	MK233121-5 Available to backorder	Compression Spring 4	£0.48 £0.40
53	MK450797-5 Available to backorder	Switch Lever	£0.58 £0.48
54	MK413A35-2 Available to backorder	Rear Cover <	£1.64 £1.37
54	MK450794-1 Available to backorder	Rear Cover	£3.34 £2.78
56	MK265954-0 Available to backorder	Tapping Screw Bind Pt3x8	£0.48 £0.40
56	MK266492-5 Available to backorder	Tapping Screw 3x8 (Alt.)	£0.48 £0.40
57	MK891976-0 Available to backorder	Clear Label	£0.48 £0.40
57	MK819327-5 Available to backorder	Clear Label	£0.48 £0.40
57	MK806E99-1 Available to backorder	Clear Label (Alt.)	£0.48 £0.40
901	MK153489-2 In stock	Grip 36 Complete (Alt.) (A01-1)	£1.38 £1.15
901	MK808153-7 Available to backorder	Safety Instruction Label (E01)	£0.48 £0.40
901	MK194514-0 Available to backorder	Vibration Proof Grip Set (Alt.) (F01-1)	£23.38 £19.48
902	MK782423-1 In stock	Lock Nut Wrench 35 (A02)	£1.87 £1.56
903	MK192227-7 Available to backorder	Super Flange (F03)	£22.62 £18.85
904	MKA-80927 Available to backorder	Grinding Wheel 115x6x22 (A04-1)	£1.64 £1.37
904	MKA-80640 Available to backorder	Depressed Center Wheel 115x36 (A04)	£1.68 £1.40
