Makita GA4030R - Angle Grinder - Power Tool Diagram

Description

Model No. GA4030R

Angle Grinder

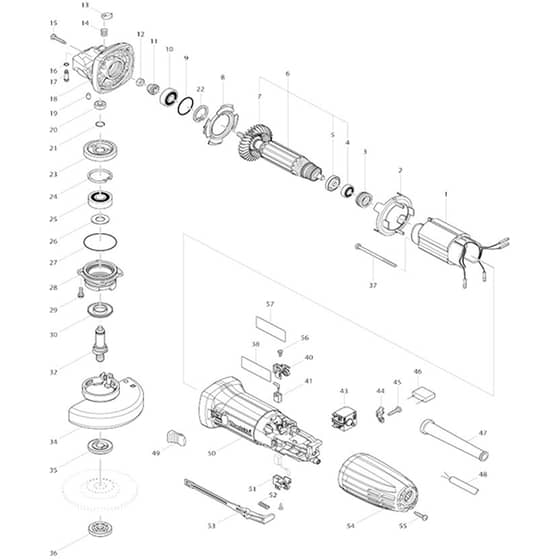

Power Tool Parts Diagrams

	Part No.	Details
1	MK633903-9 Available to backorder	Field 220-240V	£18.84 £15.70
2	MK450796-7 Available to backorder	Baffle Plate	£0.70 £0.58
3	MK422768-2 Available to backorder	Labyrinth Rubber Ring 19	£1.39 £1.16
4	MK211021-9 Available to backorder	Ball Bearing 607Llb	£8.04 £6.70
5	MK681636-0 Available to backorder	Insulation Washer	£2.21 £1.84
7	MK240139-9 Available to backorder	Fan 56	£1.03 £0.86
8	MK413126-3 Available to backorder	Guide Plate	£0.89 £0.74
9	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
10	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£8.28 £6.90
11	MK227545-5 Available to backorder	Spiral Bevel Gear 10	£3.12 £2.60
12	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
13	MK417771-6 In stock	Pin Cap	£0.52 £0.43
14	MK234057-1 Available to backorder	Compression Spring 8	£0.48 £0.40
15	MK266324-6 Available to backorder	Binding Head Tapping Screw 4x22	£0.48 £0.40
16	MK213032-0 Available to backorder	O-Ring 4	£0.70 £0.58
17	MK256510-7 Available to backorder	Shoulder Pin 4	£0.89 £0.74
18	MK318335-8 Available to backorder	Gear Housing	£6.84 £5.70
19	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
20	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.12 £2.60
21	MK233950-6 Available to backorder	Ring Spring 11	£1.03 £0.86
23	MK227546-3 Available to backorder	Spiral Bevel Gear 37	£6.72 £5.60
24	MK962151-6 Available to backorder	Retaining Ring (Int) R-32	£0.70 £0.58
25	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
26	MK267238-2 Available to backorder	Flat Washer 12	£0.48 £0.40
27	MK213561-3 Available to backorder	O-Ring 42	£1.03 £0.86
28	MK318336-6 Available to backorder	Bearing Box	£3.60 £3.00
29	MK265099-4 Available to backorder	Pan Head Screw M4x14	£0.48 £0.40
30	MK345464-4 Available to backorder	Labyrinth Ring	£0.70 £0.58
32	MK324956-6 Available to backorder	Spindle	£3.48 £2.90
34	MK213009-5 Available to backorder	O-Ring 4 (C10)	£0.48 £0.40
34	MK8050A1-8 Available to backorder	Caution Label (C30)	£1.49 £1.24
35	MK224314-5 Available to backorder	Inner Flange 30	£11.40 £9.50
36	MK224559-5 Available to backorder	Lock Nut 10-30	£5.52 £4.60
37	MK266325-4 Available to backorder	Binding Head Tapping Screw 4x70	£0.48 £0.40
38	MK851S88-5 Available to backorder	Name Plate Ga4030R	£0.48 £0.40
40	MK643839-4 Available to backorder	Brush Holder 6x9	£1.90 £1.58
41	MK195026-6 In stock	Carbon Brush Set Cb-459	£2.94 £2.45
43	MK650769-2 Available to backorder	Switch	£16.32 £13.60
45	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
47	MK682559-5 Available to backorder	Cord Guard 8	£1.03 £0.86
48	MK692021-2 Available to backorder	Power Supply Cord 1.0-2-2.5	£8.64 £7.20
49	MK418016-5 Available to backorder	Switch Knob	£0.48 £0.40
50	MK456380-6 Available to backorder	Motor Housing	£7.20 £6.00
52	MK233121-5 Available to backorder	Compression Spring 4	£0.48 £0.40
53	MK450797-5 Available to backorder	Switch Lever	£0.70 £0.58
54	MK413A35-2 Available to backorder	Rear Cover	£1.79 £1.49
56	MK266492-5 Available to backorder	Binding Head Tapping Screw 3x8	£0.48 £0.40
57	MK891976-0 Available to backorder	Clear Label	£0.48 £0.40
901	MK194514-0 Available to backorder	Vibration Proof Grip Set (F01-1)	£24.24 £20.20
902	MK782420-7 Available to backorder	Lock Nut Wrench 20 (A02)	£1.30 £1.08
