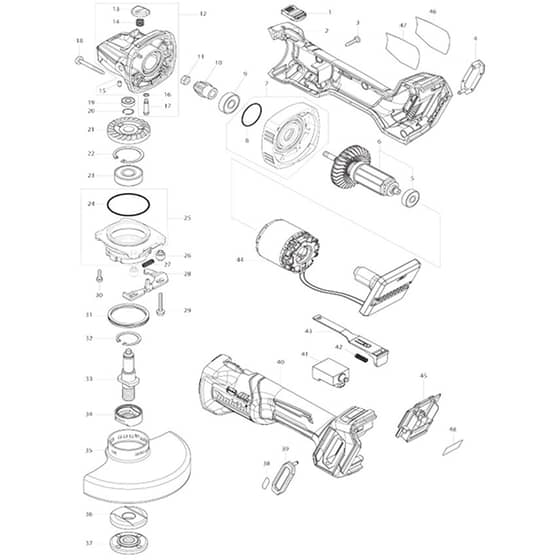

Makita GA005G - 125mm Cordless Angle Grinder - Power Tool Diagram

Description

Model No. GA005G

125mm Cordless Angle Grinder

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK455447-7 Available to backorder	Switch Knob	£0.48 £0.40
2	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
2	MK183N63-6 Available to backorder	Motor Housing Set (INC. 40)	£15.98 £13.32
3	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
4	MK422563-0 Available to backorder	Dust Cover	£1.78 £1.48
5	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.34 £2.78
6	MK519595-7 Available to backorder	Rotor Assembly (INC. 5 *)	£44.38 £36.98
7	MK136190-4 Available to backorder	Gear Housing Cover Assembly (INC. 8)	£7.10 £5.92
8	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
9	MK210042-8 Available to backorder	Ball Bearing 629Llb	£3.04 £2.53
10	MK226976-5 Available to backorder	Spiral Bevel Gear 10	£6.16 £5.13
11	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
12	MK136198-8 Available to backorder	Gear Housing Assembly (INC. 13-17)	£17.90 £14.92
13	MK412234-7 Available to backorder	Pin Cap	£0.54 £0.45
14	MK233072-2 Available to backorder	Compression Spring 8	£0.48 £0.40
15	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
17	MK256546-6 Available to backorder	Shoulder Pin 4	£0.58 £0.48
18	MK266048-4 Available to backorder	Binding Head Tapping Screw 4x40	£0.58 £0.48
19	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.44 £1.20
20	MK233950-6 Available to backorder	Ring Spring 11	£0.86 £0.72
21	MK226862-0 Available to backorder	Spiral Bevel Gear 37	£5.34 £4.45
22	MK962151-6 Available to backorder	Retaining Ring (Int) R-32	£0.58 £0.48
23	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
24	MK213622-9 Available to backorder	O-Ring 45	£0.48 £0.40
25	MK136197-0 Available to backorder	Bearing Box Assembly (INC. 24 *)	£8.20 £6.83
25	MK213510-0 Available to backorder	O-Ring 36 (C10)	£1.44 £1.20
25	MK136262-5 Available to backorder	Bearing Box Assembly < (INC. 24 31)	£13.10 £10.92
26	MK327322-6 Available to backorder	Sleeve 4	£0.86 £0.72
27	MK232490-1 Available to backorder	Compression Spring 4	£0.48 £0.40
28	MK347641-4 Available to backorder	Lever B	£3.42 £2.85
29	MK911159-7 Available to backorder	Pan Head Screw M4x30 Wg	£0.48 £0.40
30	MK911138-5 Available to backorder	Pan Head Screw M4x20 Wr	£0.48 £0.40
31	MK232542-8 Available to backorder	Coiled Wave Spring 41	£4.62 £3.85
33	MK326672-6 Available to backorder	Spindle	£8.08 £6.73
34	MK310514-4 Available to backorder	Lead Flange	£13.44 £11.20
35	MK347480-2 Available to backorder	Wheel Cover 125	£9.08 £7.57
35	MK141P46-4 Available to backorder	Wheel Cover 125 Complete <	£13.38 £11.15
35	MK8050A1-8 Available to backorder	Caution Label (C10)	£1.24 £1.03
36	MK224447-6 Available to backorder	Inner Flange 42B	£7.38 £6.15
37	MK224554-5 In stock	Lock Nut 14-45	£5.52 £4.60
38	MK8007R2-2 Available to backorder	xgt Logo Label	£0.48 £0.40
41	MK651445-1 Available to backorder	Switch Fpm-1130	£13.26 £11.05
42	MK233121-5 Available to backorder	Compression Spring 4	£0.48 £0.40
43	MK412233-9 Available to backorder	Switch Lever	£0.70 £0.58
44	MK629458-0 Available to backorder	Stator Complete	£223.02 £185.85
45	MK632P65-6 Available to backorder	Terminal Unit	£10.64 £8.87
46	MK8008U5-3 Available to backorder	Clear Label	£0.48 £0.40
47	MK856U17-5 Available to backorder	Name Plate Ga005G	£0.48 £0.40
48	MK856U23-0 Available to backorder	Serial No. Label Ga005G	£0.48 £0.40
901	MK158237-4 Available to backorder	Grip 36 Complete (A01)	£4.92 £4.10
902	MKA-80656 Available to backorder	Grinding Wheel 125 Wa36N (A02)	£3.46 £2.88
903	MK782423-1 In stock	Lock Nut Wrench 35 (A03)	£1.87 £1.56
904	MK194514-0 Available to backorder	Vibration Proof Grip Set (F04)	£23.38 £19.48
904	MK412393-7 Available to backorder	Battery Cover (A04B)	£0.58 £0.48
906	MK191B26-6 Available to backorder	Battery Bl4040 Set (A06B)	£313.75 £261.46
907	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
907	MK821552-6 Available to backorder	Connector Plastic Case (Type 4) (A07B)	£74.82 £62.35
910	MK835E79-0 Available to backorder	Inner Tray (A10B)	£10.54 £8.78
912	MK199710-5 Available to backorder	Cutting Wheel Cover Attachment (A12)	£11.88 £9.90
913	MK743129-6 Available to backorder	Brush A (C10)	£25.38 £21.15
913	MK743130-1 Available to backorder	Brush B (C20)	£24.02 £20.02
919	MK1910Y0-7 Available to backorder	Wheel Cover 125C Set (F19)	£18.30 £15.25
