Makita G1100 - Generator - Power Tool 09 Diagram

Description

Model No. G1100

Generator

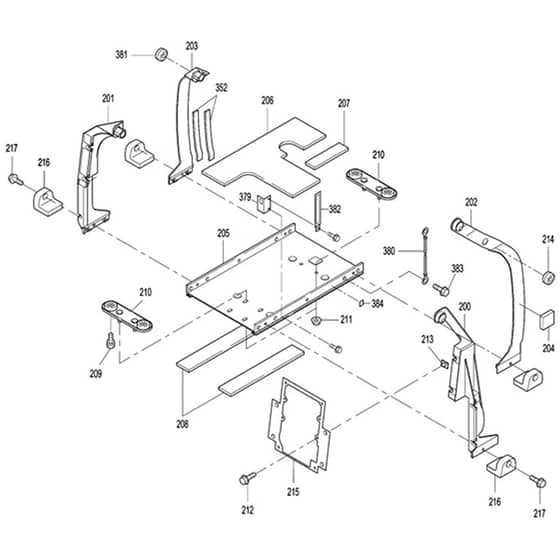

Power Tool 09 Parts Diagrams

	Part No.	Details
200	MK33K3710103 Available to backorder	Front Frame(R)	£14.16 £11.80
201	MK33K3720103 Available to backorder	Front Frame(L)	£17.76 £14.80
202	MK33K3730103 Available to backorder	Rear Frame(R)	£10.56 £8.80
203	MK33K3740103 Available to backorder	Rear Frame(L)	£10.56 £8.80
204	MK33K5841303 Available to backorder	Sponge Rear Frame 35x35x10	£1.03 £0.86
206	MK33K5831003 Available to backorder	Sponge Base	£9.72 £8.10
207	MK33K5831103 Available to backorder	Sponge Base 2 30x110x20	£1.58 £1.32
208	MK33K5832003 Available to backorder	Sponge Base 3 40x240x1.5	£3.84 £3.20
210	MK33K3010101 Available to backorder	Mount Base Complete	£24.48 £20.40
213	MK33K3800103 Available to backorder	Nut	£1.39 £1.16
214	MK33K3800503 Available to backorder	Grommet(Rear Frame)	£1.58 £1.32
215	MK33K3760103 Available to backorder	Back Panel Complete	£14.04 £11.70
216	MK33K3610101 Available to backorder	Mount Complete	£9.72 £8.10
220	MK33K4010103 Available to backorder	Front Panel	£32.04 £26.70
221	MK33K4890203 Available to backorder	Film	£17.76 £14.80
222	MK34K4181203 Available to backorder	Rocker Switch	£6.84 £5.70
228	MK33K4070303 Available to backorder	Consent Bracket	£4.80 £4.00
232	MK33K4181203 Available to backorder	Micro Switch (Alt.)	£14.28 £11.90
232	MK33K4181103 Available to backorder	Micro Switch	£6.24 £5.20
233	MK33K4201003 Available to backorder	Control Dial	£3.60 £3.00
234	MK33K4207103 Available to backorder	Ball(Dial)	£1.03 £0.86
235	MK33K4207403 Available to backorder	Spring(Dial) (Alt.)	£1.39 £1.16
236	MK33K4202003 Available to backorder	Choke Reel	£2.38 £1.98
237	MK33K4203013 Available to backorder	Plate x	£1.22 £1.02
237	MK33K4203023 Available to backorder	Plate (Alt.)	£1.73 £1.44
238	MK33K4204003 Available to backorder	Wire Plate	£3.48 £2.90
241	MK33B4000108 Available to backorder	Tapping Screw (Alt.)	£1.22 £1.02
242	MK33K4205011 Available to backorder	Rolling Wire Complete x	£15.72 £13.10
243	MK33K4208003 Available to backorder	Choke Bracket	£3.12 £2.60
245	MK3524562008 Available to backorder	Circuit Breaker (Dc) 10A	£26.16 £21.80
248	MK33K4181703 Available to backorder	Breaker Cap	£3.48 £2.90
250	MK3634570108 Available to backorder	Terminal Bolt (Red)	£9.00 £7.50
251	MK3634570008 Available to backorder	Terminal Bolt (Black)	£9.00 £7.50
254	MK34K4181613 Available to backorder	Dc Out Harness (Alt.)	£21.96 £18.30
255	MK33K4206021 Available to backorder	Choke Wire Complete (Alt.)	£15.84 £13.20
257	MK33K5841103 Available to backorder	Seal Sponge F 4.5x650x2.5	£2.10 £1.75
262	MK33K5020110 Available to backorder	Rear Cover Complete <	£99.60 £83.00
264	MK33K5020501 Available to backorder	Nut Complete x	£3.72 £3.10
265	MK33K5831813 Available to backorder	Rear Cover Sponge 1 x	£3.48 £2.90
266	MK33K5831913 Available to backorder	Rear Cover Sponge 2 x	£10.32 £8.60
267	MK33K5130113 Available to backorder	Case Body L x	£58.44 £48.70
268	MK33K5131101 Available to backorder	Side Panel L <	£78.84 £65.70
268	MK33K5131103 Available to backorder	Side Panel L	£20.28 £16.90
269	MK33K5140221 Available to backorder	Case Body R Cpl. <	£141.24 £117.70
269	MK33K5140113 Available to backorder	Case Body R x	£67.80 £56.50
270	MK33K5141101 Available to backorder	Side Panel R <	£76.08 £63.40
270	MK33K5141103 Available to backorder	Side Panel R	£24.48 £20.40
272	MK265584-7 Available to backorder	Hex Socket Head Bolt M6x20	£1.39 £1.16
273	MK33K5050103 Available to backorder	Bolt(Panel)	£4.80 £4.00
275	MK33K5830103 Available to backorder	Sponge Case L	£4.44 £3.70
276	MK33K5830703 Available to backorder	Sponge Case L 5	£2.69 £2.24
277	MK33K5830503 Available to backorder	Sponge Case L 3	£5.76 £4.80
278	MK33K5830403 Available to backorder	Sponge Case L 2	£8.88 £7.40
279	MK33K5830803 Available to backorder	Sponge Case L 6 35x102x20	£1.58 £1.32
280	MK33K5830903 Available to backorder	Sponge Case L 7 35x55x20	£1.39 £1.16
281	MK33K5840803 Available to backorder	Sponge Case R 6 125x47x10	£1.73 £1.44
282	MK33K5840903 Available to backorder	Sponge Case R 7 217x40x10	£2.38 £1.98
283	MK33K5830603 Available to backorder	Sponge Case L 4	£2.38 £1.98
284	MK33K5830203 Available to backorder	Sponge Panel L	£9.72 £8.10
285	MK33K5830303 Available to backorder	Seal Sponge L 2.5x5x920	£2.53 £2.11
286	MK33K5840103 Available to backorder	Sponge Case R	£7.44 £6.20
287	MK33K5840603 Available to backorder	Sponge Case R 4	£2.38 £1.98
290	MK33K5840703 Available to backorder	Sponge Case R 5 35x194x20	£2.24 £1.87
291	MK33K5840403 Available to backorder	Sponge Case R 2	£8.88 £7.40
292	MK33K5840503 Available to backorder	Sponge Case R 3	£3.36 £2.80
293	MK33K5840203 Available to backorder	Sponge Panel R	£12.36 £10.30
294	MK33K5840303 Available to backorder	Seal Sponge R 2.5x5x860	£2.38 £1.98
295	MK33K5841003 Available to backorder	Seal Sponge R 2	£1.58 £1.32
296	MK33K5510113 Available to backorder	Tank Cap Cover x	£6.24 £5.20
299	MK33K5300203 Available to backorder	Screw Grommet	£1.73 £1.44
308	MK33K6110112 Available to backorder	Fuel Tank Unit (Alt.)	£65.52 £54.60
309	MK33K6501000 Available to backorder	Fuel Tank Cap Complete (Alt.)	£14.76 £12.30
310	MK33K61201J1 Available to backorder	Fuel Filter Complete x	£6.84 £5.70
311	MK33K6300110 Available to backorder	Fuel Cock Ass'y x	£18.48 £15.40
312	MK33K6140201 Available to backorder	Fuel Strainer (Alt.)	£12.60 £10.50
314	MK264035-7 Available to backorder	Hex. Nut M5 (Alt.)	£0.48 £0.40
315	MK33K6227013 Available to backorder	Rubber Pipe <	£42.60 £35.50
317	MK33K6410103 Available to backorder	Tank Mount	£3.12 £2.60
318	MK33K6400113 Available to backorder	Neck Rubber x	£10.44 £8.70
320	MK33K6300203 Available to backorder	Fuel Cock Bracket	£4.32 £3.60
323	MK33K5841213 Available to backorder	Tank Sponge 80x45x5 x	£6.12 £5.10
324	MK33K6220100 Available to backorder	Fuel Pump Complete	£44.04 £36.70
331	MK2843290401 Available to backorder	Stay Baffle Complete	£4.20 £3.50
332	MK2774670103 Available to backorder	Gasket(Choke)	£0.89 £0.74
334	MK2845360303 Available to backorder	Cylinder Baffle (E/G)	£4.44 £3.70
335	MK2845360903 Available to backorder	Seal Sponge Baffle 2	£1.90 £1.58
336	MK2845361003 Available to backorder	Seal Sponge Baffle 3	£1.73 £1.44
337	MK33K5832303 Available to backorder	Sponge Baffle 4	£5.40 £4.50
338	MK2845360803 Available to backorder	Seal Sponge Baffle	£2.53 £2.11
339	MK2846700111 Available to backorder	Over Frow Pipe Cp <	£7.20 £6.00
342	MK2846710103 Available to backorder	Y Connector	£7.20 £6.00
346	MK33K5832203 Available to backorder	Rear Cover Sponge 3	£6.12 £5.10
347	MK33K5832403 Available to backorder	Rear Cover Sponge 4	£1.39 £1.16
