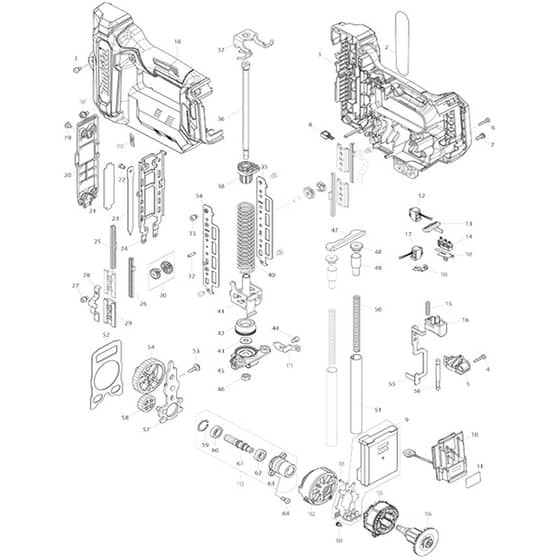

Makita FN001G - 40mm Cordless Brad Nailer - Power Tool 01 Diagram

Name: Makita FN001G - 40mm Cordless Brad Nailer - Power Tool 01 Diagram
SKU: fn001g_40mm_cordless_brad_nailer_power_tool_01-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita FN001G - 40mm Cordless Brad Nailer - Power Tool 01 Diagram

Description

Model No. FN001G

40mm Cordless Brad Nailer

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
1	MK183S31-9 Available to backorder	Housing Set (INC. 18)	£55.42 £46.18
1	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£0.86 £0.72
3	MK266199-3 Available to backorder	Hex.Socket Head Bolt M4x6	£0.58 £0.48
4	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16	£0.48 £0.40
5	MK413327-3 Available to backorder	Housing R Cover	£1.92 £1.60
7	MK911108-4 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
8	MK620507-6 Available to backorder	Led Circuit	£8.66 £7.22
9	MK620F54-3 Available to backorder	Controller	£179.08 £149.23
10	MK632P49-4 Available to backorder	Terminal Unit	£10.64 £8.87
12	MK140W22-7 Available to backorder	Switch Complete	£13.38 £11.15
13	MK456799-9 Available to backorder	Trigger Lock	£2.60 £2.17
14	MK632S31-1 Available to backorder	Switch Unit	£10.38 £8.65
15	MK232370-1 Available to backorder	Compression Spring 5	£0.74 £0.62
16	MK413328-1 Available to backorder	Trigger	£1.92 £1.60
19	MK915101-0 Available to backorder	Binding Head Screw M4x6	£0.48 £0.40
20	MK413326-5 Available to backorder	Front Cover	£5.46 £4.55
21	MK347528-0 Available to backorder	Upper Plate	£1.74 £1.45
22	MK256882-0 Available to backorder	Flat Fillister Hd. Pin 4	£3.28 £2.73
23	MK347791-5 Available to backorder	Driver	£15.02 £12.52
24	MK347793-1 Available to backorder	Rail	£28.82 £24.02
25	MK313352-3 Available to backorder	Counter Weight A	£10.64 £8.87
26	MK310925-3 Available to backorder	Counter Weight B	£11.88 £9.90
27	MK251566-5 Available to backorder	H.S.H Bolt M4x6 With W	£0.96 £0.80
28	MK347146-4 Available to backorder	Pinion Guide	£3.76 £3.13
29	MK413330-4 Available to backorder	Counter Weight Holder	£1.10 £0.92
30	MK136104-3 Available to backorder	Spur Gear Assembly	£5.34 £4.45
32	MK326902-5 Available to backorder	Pinion Shaft	£0.48 £0.40
34	MK347801-8 Available to backorder	Guide Rail L	£19.12 £15.93
35	MK347802-6 Available to backorder	Guide Rail R	£19.12 £15.93
36	MK327756-3 Available to backorder	Guide Bolt	£3.16 £2.63
37	MK347796-5 Available to backorder	Bottom Plate	£10.38 £8.65
38	MK313353-1 Available to backorder	Bottom Holder	£16.26 £13.55
40	MK232670-9 Available to backorder	Compression Spring 16	£27.30 £22.75
41	MK347794-9 Available to backorder	Hammer	£89.28 £74.40
42	MK422664-4 Available to backorder	Cushion	£1.92 £1.60
43	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
44	MK922107-1 Available to backorder	Hex. Socket Head Bolt M4x8	£0.48 £0.40
45	MK312A82-9 Available to backorder	Holder	£24.02 £20.02
46	MK252273-3 Available to backorder	Hex. Nut M6	£1.10 £0.92
47	MK347797-3 Available to backorder	Counter Stopper	£18.02 £15.02
48	MK422663-6 Available to backorder	Counter Cushion	£1.52 £1.27
49	MK327757-1 Available to backorder	Weight	£1.24 £1.03
50	MK232671-7 Available to backorder	Compression Spring 9	£1.36 £1.13
51	MK327754-7 Available to backorder	Guide Pipe	£13.26 £11.05
52	MK347795-7 Available to backorder	Gear Plate	£4.36 £3.63
53	MK266901-4 Available to backorder	Tapping Screw 4x14	£1.02 £0.85
54	MK140Y40-7 Available to backorder	Spur Gear 64 Complete	£16.66 £13.88
55	MK347800-0 Available to backorder	Lock Arm	£8.88 £7.40
56	MK327753-9 Available to backorder	Lock Pin	£1.36 £1.13
57	MK140Y39-2 Available to backorder	Base Plate Complete	£57.88 £48.23
58	MK227860-7 Available to backorder	Spur Gear 29	£1.36 £1.13
59	MK962067-5 Available to backorder	Retaining Ring R-17	£0.70 £0.58
60	MK211099-2 Available to backorder	Ball Bearing 689Zz	£8.38 £6.98
61	MK227859-2 Available to backorder	Spur Gear 9	£3.96 £3.30
62	MK211343-7 Available to backorder	Ball Bearing 688Zz	£1.92 £1.60
63	MK312A84-5 Available to backorder	Bearing Case	£2.60 £2.17
64	MK265911-8 Available to backorder	Hex. Socket Head Bolt M4x8	£0.74 £0.62
65	MK922117-8 Available to backorder	Hex. Socket Head Bolt M4x12	£0.48 £0.40
66	MK347523-0 Available to backorder	Plate	£1.36 £1.13
67	MK127761-8 Available to backorder	Driver Guide Assembly (INC. 68-73)	£136.64 £113.87
69	MK922102-1 Available to backorder	Hex. Socket Head Bolt M4x6	£0.48 £0.40
70	MK313350-7 Available to backorder	Driver Guide	£52.14 £43.45
71	MK232512-7 Available to backorder	Compression Spring 3	£0.70 £0.58
72	MK313351-5 Available to backorder	Center Plate	£51.74 £43.12
73	MK313349-2 Available to backorder	Set Plate	£59.12 £49.27
74	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
76	MK413321-5 Available to backorder	Contact Arm	£2.46 £2.05
77	MK327755-5 Available to backorder	Adjuster Shaft	£1.64 £1.37
78	MK347799-9 Available to backorder	Arm	£8.46 £7.05
79	MK127763-4 Available to backorder	Adjuster Assembly (INC. 98-101)	£5.34 £4.45
80	MK232514-3 Available to backorder	Torsion Spring 7	£0.82 £0.68
81	MK413325-7 Available to backorder	Adjuster Cover	£1.78 £1.48
82	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10	£0.48 £0.40
83	MK310176-8 Available to backorder	Stopper	£2.60 £2.17
84	MK233018-8 Available to backorder	Compression Spring 3	£0.48 £0.40
85	MK347792-3 Available to backorder	Pusher	£9.98 £8.32
86	MK413324-9 Available to backorder	Magazine	£16.26 £13.55
87	MK459313-0 Available to backorder	Sleeve	£2.06 £1.72
88	MK265A52-6 Available to backorder	Hex.Socket Head Bolt M4x14	£2.06 £1.72
89	MK234325-2 Available to backorder	Compression Spring 6	£2.76 £2.30
90	MK346774-2 Available to backorder	Nail Plate	£1.02 £0.85
91	MK140Y45-7 Available to backorder	Slide Door Complete	£17.34 £14.45
92	MK413329-9 Available to backorder	Lever	£1.78 £1.48
93	MK262054-7 Available to backorder	Urethane Ring 3	£1.32 £1.10
94	MK233117-6 Available to backorder	Compression Spring 6	£0.58 £0.48
95	MK256877-3 Available to backorder	Pin 3	£0.96 £0.80
97	MK136392-2 Available to backorder	Magazine Assy (INC. 74 76-95)	£99.24 £82.70
99	MK216031-1 Available to backorder	Steel Ball 2.3	£0.48 £0.40
100	MK234254-9 Available to backorder	Compression Spring 2	£2.18 £1.82
102	MK127760-0 Available to backorder	Gear Assembly	£20.90 £17.42
103	MK266490-9 Available to backorder	Tapping Screw Pt 2x6	£0.48 £0.40
104	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
105	MK629464-5 Available to backorder	Stator	£13.38 £11.15
106	MK619676-8 Available to backorder	Rotor	£53.10 £44.25
107	MK265B75-0 Available to backorder	H.S.H.Bolt M4x8 With Wg	£0.82 £0.68
108	MK232672-5 Available to backorder	Leaf Spring	£1.64 £1.37
109	MK232673-3 Available to backorder	Leaf Spring	£1.64 £1.37
110	MK8007R2-2 Available to backorder	xgt Logo Label	£0.48 £0.40
111	MK347798-1 Available to backorder	Holder Plate	£5.88 £4.90
112	MK136444-9 Available to backorder	Spur Gear 9 Assy (INC. 59-63)	£23.76 £19.80
902	MK251314-2 Available to backorder	+ Truss Head Screw M4x12 (A02)	£0.58 £0.48
903	MK346317-0 Available to backorder	Hook (A03)	£1.84 £1.53
904	MK422665-2 Available to backorder	Nose Adapter S (A04)	£2.20 £1.83
905	MK783201-2 Available to backorder	Hex. Wrench 3 (A05)	£1.24 £1.03
