Model No. EW1050H

Engine Pump

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK135562-0 Available to backorder	Cylinder Block Assembly	£85.92 £71.60
2	MK922217-4 Available to backorder	Hex. Socket Head Bolt M5x14 (Refs 008 \| 014)	£0.70 £0.58
3	MK424530-1 Available to backorder	Oil Case Guard	£2.21 £1.84
4	MK450565-6 Available to backorder	Oil Gauge	£2.21 £1.84
5	MK424100-6 Available to backorder	Gasket	£0.89 £0.74
6	MK318442-7 Available to backorder	Oil Case	£6.24 £5.20
7	MK162276-8 Available to backorder	Case Gasket	£2.69 £2.24
9	MK140B46-7 Available to backorder	Rocker Cover Complete <	£6.96 £5.80
10	MK162275-0 Available to backorder	Rocker Cover Gasket	£2.05 £1.71
11	MK922222-1 Available to backorder	Hex. Socket Head Bolt M5x16	£0.48 £0.40
12	MK162274-2 Available to backorder	Cam Gear Cover Gasket	£2.21 £1.84
13	MK318443-5 Available to backorder	Cam Gear Cover	£4.08 £3.40
15	MK346083-9 Available to backorder	Lead Valve	£2.05 £1.71
16	MK318440-1 Available to backorder	Retainer Plate	£2.05 £1.71
17	MK922112-8 Available to backorder	Hex. Socket Head Bolt M4x10	£0.48 £0.40
17	MK922111-0 Available to backorder	Hex. Socket Head Bolt M4x10	£0.70 £0.58
18	MK126299-0 Available to backorder	Crank Shaft Assembly	£51.72 £43.10
19	MK213089-1 Available to backorder	Oil Seal 12 <	£3.72 £3.10
19	MK213147-3 Available to backorder	Oil Seal 12	£2.38 £1.98
20	MK213769-9 Available to backorder	Oil Seal 10 <	£3.48 £2.90
20	MK213148-1 Available to backorder	Oil Seal 10	£2.83 £2.36
21	MK267400-9 Available to backorder	Flat Washer 23	£1.58 £1.32
22	MK265577-4 Available to backorder	Hex Head Bolt M6x16	£0.70 £0.58
23	MK254040-2 Available to backorder	Woodruff Key 3	£3.84 £3.20
24	MK257781-9 Available to backorder	Piston Pin	£1.58 £1.32
25	MK318441-9 Available to backorder	Piston	£7.44 £6.20
26	MK195145-8 Available to backorder	Piston Ring Set	£15.96 £13.30
26	MK196595-0 Available to backorder	Piston Ring Set (Alt.)	£7.08 £5.90
27	MK233976-8 Available to backorder	Clip	£0.48 £0.40
28	MK326223-5 Available to backorder	Shaft	£17.76 £14.80
29	MK911323-0 Available to backorder	Pan Head Screw M6x16	£0.70 £0.58
30	MK125552-1 Available to backorder	Cam Gear Assembly	£11.76 £9.80
31	MK268238-5 Available to backorder	Pin 5	£1.03 £0.86
32	MK313169-4 Available to backorder	Cam Lifter	£3.48 £2.90
33	MK268239-3 Available to backorder	Pin 4	£0.70 £0.58
34	MK234108-0 Available to backorder	Compression Spring 9	£1.03 £0.86
35	MK325668-4 Available to backorder	Spring Retainer	£1.90 £1.58
36	MK326367-1 Available to backorder	Intake Valve (Alt.)	£4.44 £3.70
36	MK325670-7 Available to backorder	Intake Valve	£5.64 £4.70
37	MK326366-3 Available to backorder	Exhaust Valve (Alt.)	£1.03 £0.86
38	MK256200-2 Available to backorder	Pin 5	£0.89 £0.74
39	MK256865-0 Available to backorder	Rod 2.5	£0.89 £0.74
40	MK125554-7 Available to backorder	Rocker Arm Assembly	£4.44 £3.70
41	MK424200-2 Available to backorder	Spacer	£0.89 £0.74
42	MK168469-5 Available to backorder	Exhaust Muffler	£7.92 £6.60
43	MK324980-9 Available to backorder	Spark Arrester	£1.39 £1.16
44	MK345915-7 Available to backorder	Muffler Cover	£2.69 £2.24
45	MK345916-5 Available to backorder	Muffler Gasket	£2.05 £1.71
46	MK265184-3 Available to backorder	+Truss Head Screw M5x5	£0.70 £0.58
47	MK266440-4 Available to backorder	Hex Socket Head Bolt M5x40	£1.22 £1.02
48	MK450559-1 Available to backorder	Insulator	£3.48 £2.90
49	MK413120-5 Available to backorder	Insulator Gasket	£0.70 £0.58
50	MK413121-3 Available to backorder	Carburetor Gasket	£1.58 £1.32
54	MK450562-2 Available to backorder	Clamp	£0.70 £0.58
55	MK325934-9 Available to backorder	Adjust Screw	£1.22 £1.02
58	MK345918-1 Available to backorder	Hose Clamp	£0.70 £0.58
59	MK422041-0 Available to backorder	Breather Pipe	£1.73 £1.44
60	MK422042-8 Available to backorder	Pipe	£1.03 £0.86
61	MK125468-0 Available to backorder	Cleaner Plate Assembly	£16.92 £14.10
62	MK451925-5 In stock	Choke Lever	£1.28 £1.07
63	MK213540-1 Available to backorder	O Ring 15 (Alt.)	£1.03 £0.86
64	MK424316-3 Available to backorder	Check Valve	£3.84 £3.20
65	MK213539-6 Available to backorder	O Ring 14 (Alt.)	£1.03 £0.86
66	MK451924-7 Available to backorder	Check Valve Plate	£1.39 £1.16
67	MK424315-5 Available to backorder	Check Valve	£1.39 £1.16
68	MK168577-2 Available to backorder	Separator Gasket	£0.89 £0.74
69	MK168576-4 Available to backorder	Separator Plate	£6.12 £5.10
70	MK911218-7 In stock	Pan Head Screw M5x14	£0.52 £0.43
71	MK450561-4 In stock	Air Cleaner Cover	£2.14 £1.78
73	MK450560-6 Available to backorder	Choke Plate	£0.89 £0.74
74	MK423376-2 Available to backorder	Gasket	£0.48 £0.40
75	MK345919-9 Available to backorder	Plate	£0.70 £0.58
76	MK265188-5 Available to backorder	+Pan Head Screw M5x68	£1.22 £1.02
78	MK141766-4 Available to backorder	Blower Housing Complete	£34.68 £28.90
82	MK922223-9 Available to backorder	H.S.H.Bolt M5x16 With Wr	£0.89 £0.74
84	MK922213-2 Available to backorder	H.S.H.Bolt M5x12 With Wr	£0.70 £0.58
85	MK922228-9 Available to backorder	H.S.H.Bolt M5x18 With Wr	£0.70 £0.58
86	MK450564-8 Available to backorder	Cylinder Cover	£9.60 £8.00
87	MK452144-6 Available to backorder	Plug Cover	£1.73 £1.44
88	MK911213-7 Available to backorder	Pan Head Screw M5x12	£0.48 £0.40
89	MK911128-8 In stock	P.H.Screw M4x16 With Wr	£0.54 £0.45
91	MK195146-6 Available to backorder	Recoil Starter Set	£20.28 £16.90
92	MK232258-5 Available to backorder	Spiral Spring	£9.60 £8.00
93	MK451937-8 Available to backorder	Reel	£5.28 £4.40
94	MK444019-3 Available to backorder	Starter Rope	£1.58 £1.32
95	MK424319-7 Available to backorder	Starter Knob	£2.38 £1.98
96	MK325923-4 Available to backorder	Swing Arm	£1.03 £0.86
98	MK168483-1 Available to backorder	Pulley	£1.73 £1.44
99	MK266585-8 Available to backorder	Tapping Screw 5x12	£1.90 £1.58
100	MK450566-4 Available to backorder	Fuel Tank	£6.72 £5.60
101	MK125472-9 Available to backorder	Fuel Tank Cap Assembly	£7.20 £6.00
102	MK163447-0 In stock	Fuel Filter	£2.64 £2.20
103	MK168472-6 Available to backorder	Tube Complete	£5.28 £4.40
104	MK345920-4 Available to backorder	Hose Clamp	£0.70 £0.58
106	MK424103-0 Available to backorder	Plate	£0.89 £0.74
107	MK424104-8 Available to backorder	Damper	£2.05 £1.71
108	MK168781-3 Available to backorder	Carburetor	£80.04 £66.70
109	MKWJ00014070 Available to backorder	Inlet Screen (Alt.)	£1.74 £1.45
110	MK346270-0 Available to backorder	Primer Pump Cover	£4.68 £3.90
113	MK442155-9 Available to backorder	Pump Gasket	£3.01 £2.51
114	MK442154-1 Available to backorder	Metering Diaphragm Gasket	£3.48 £2.90
117	MK266582-4 Available to backorder	Tapping Screw 3x24	£1.90 £1.58
118	MK234183-6 Available to backorder	Conical Compression Spring	£3.12 £2.60
119	MK266581-6 Available to backorder	Pan Head Screw M3x8	£1.90 £1.58
119	MKWJ00096364 Available to backorder	Screw M3x8 With Washer (Alt.)	£2.38 £1.98
121	MK325922-6 Available to backorder	Swivel	£5.28 £4.40
122	MK257964-1 Available to backorder	Stop Ring E-3	£2.83 £2.36
123	MK413140-9 Available to backorder	Washer	£1.90 £1.58
124	MK140437-0 Available to backorder	Pump Body	£29.64 £24.70
125	MK140438-8 Available to backorder	Air Purge Body	£2.21 £1.84
126	MK424314-7 Available to backorder	Primer Pump	£4.44 £3.70
127	MK213538-8 Available to backorder	O Ring 2 (Alt.)	£3.48 £2.90

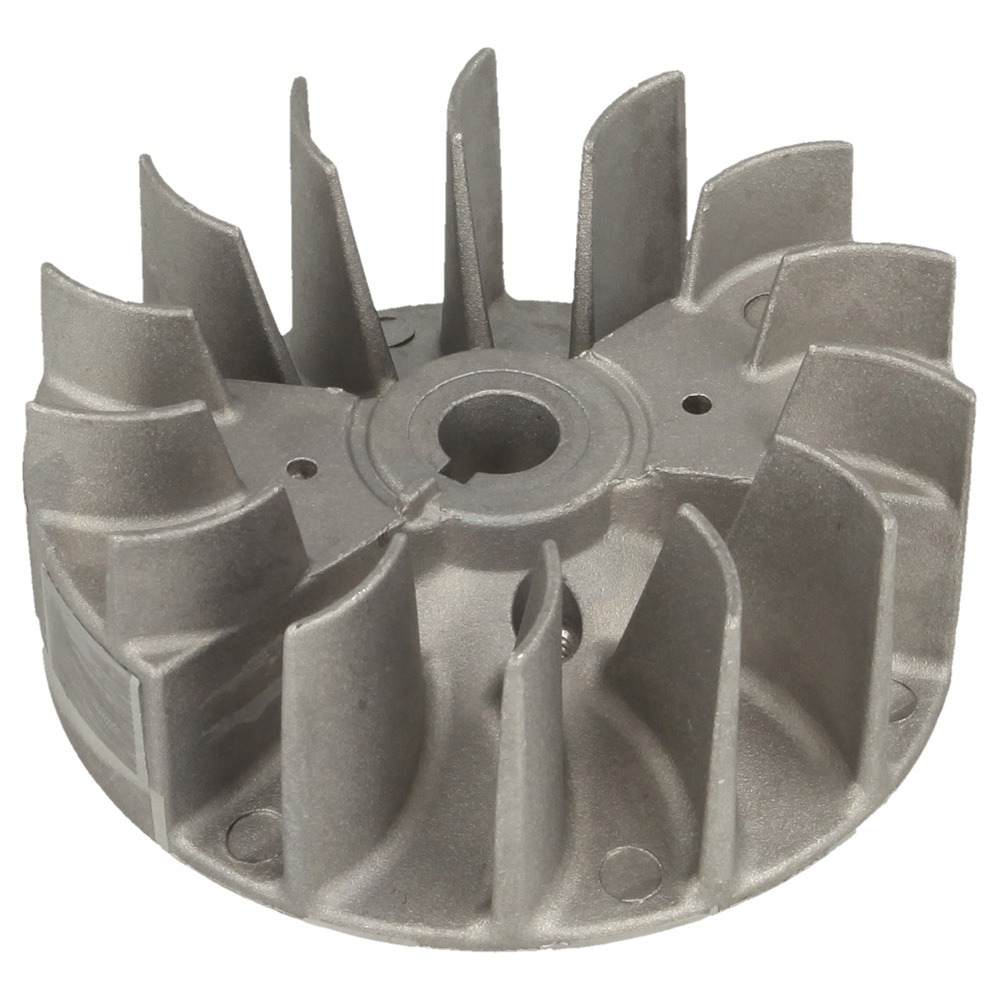

128	MK319205-4 Available to backorder	Flywheel (Alt.)	£14.16 £11.80

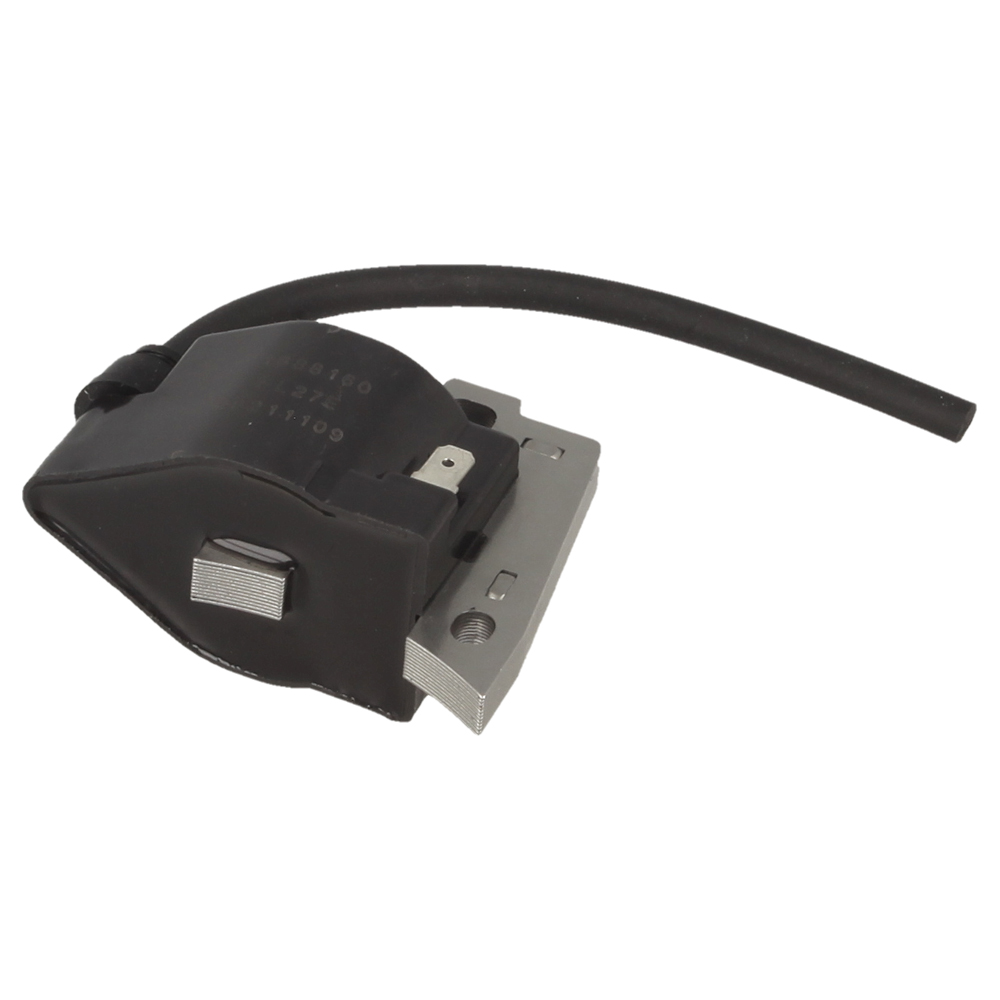

129	MK168816-0 Available to backorder	Ignition Coil S	£15.96 £13.30
130	MK266602-4 Available to backorder	Hex. Socket Head Bolt M4x20	£1.22 £1.02
131	MK141794-9 Available to backorder	Stop Switch Complete S	£3.24 £2.70
131	MK126240-3 Available to backorder	Stop Switch Assembly	£14.28 £11.90
132	MK324891-8 Available to backorder	Plug Cap Spring	£0.70 £0.58
133	7222 In stock	Spark Plug	£8.04 £6.70
134	MK424105-6 Available to backorder	Plug Cap	£1.22 £1.02
