Makita ETR2500 - Engine Edger - Power Tool 03 Diagram

Description

Model No. ETR2500

Engine Edger

Power Tool 03 Parts Diagrams

	Part No.	Details
55	MK5253500300 Available to backorder	Gasket Spacer	£2.69 £2.24
55	MK424450-9 Available to backorder	Spacer Gasket (Alt.)	£2.38 £1.98
56	MK266700-4 Available to backorder	Pan Head Screw M5x25 (Alt.)	£1.03 £0.86
57	MK6165500201 Available to backorder	Wire	£1.74 £1.45
57	MK638784-6 Available to backorder	Wire (Alt.)	£2.24 £1.87
58	MK5423006000 Available to backorder	Insulator Complete	£13.68 £11.40
58	MK140995-6 Available to backorder	Insulator Complete (Alt.)	£12.12 £10.10
59	MK424448-6 Available to backorder	Insulator Gasket (Alt.)	£1.73 £1.44
59	MK5233503902 Available to backorder	Insulator Gasket	£1.73 £1.44
60	MK5233505201 Available to backorder	Carburetor Insulator	£7.32 £6.10
60	MK346490-6 Available to backorder	Carburetor Insulator (Alt.)	£6.96 £5.80
61	MK266814-9 Available to backorder	Hex. Socket Head Bolt M5x20 (Alt.)	£1.66 £1.38
62	MK452918-5 Available to backorder	Cylinder Cover (Alt.)	£38.88 £32.40
62	MK5255503300 Available to backorder	Cylinder Cover	£38.16 £31.80
63	MK424445-2 Available to backorder	Plug Cap Cover (Alt.)	£2.10 £1.75
63	MK5197500100 Available to backorder	Plug Cap Cover	£2.21 £1.84
64	MK266699-3 Available to backorder	Pan Head Screw M5x18 (Alt.)	£0.89 £0.74
65	MK168662-1 Available to backorder	Spark Plug (Bmr7A) (Alt.)	£28.80 £24.00
66	MK5231501804 Available to backorder	Cylinder	£133.56 £111.30
66	MK318762-9 Available to backorder	Cylinder (Alt.)	£138.36 £115.30
67	MK6279505700 Available to backorder	Trade Mark Label "Makita"	£4.68 £3.90
68	MK266702-0 Available to backorder	Binding Head Tapping Screw 5x14	£0.70 £0.58
69	MK424337-5 Available to backorder	Plug Cap (Alt.)	£1.73 £1.44
70	MK324891-8 Available to backorder	Plug Cap Spring (Alt.)	£0.70 £0.58
71	MK412102-4 Available to backorder	Tube (Alt.)	£0.98 £0.82
72	MK424449-4 Available to backorder	Grommet (Alt.)	£1.66 £1.38
74	MK168671-0 Available to backorder	Coil (Alt.)	£62.64 £52.20
75	MK266697-7 Available to backorder	Hex. Socket Head Bolt M5x45 (Alt.)	£2.21 £1.84
76	MK5253073000 Available to backorder	Exhaust Muffler (INC. 77 *)	£47.52 £39.60
76	MK168665-5 Available to backorder	Exhaust Muffler (Alt.) (INC. 77)	£36.36 £30.30
77	MK5253033010 Available to backorder	Spark Arrester	£4.32 £3.60
77	MK352016-4 Available to backorder	Spark Arrester (Alt.)	£3.84 £3.20
78	MK168666-3 Available to backorder	Muffler Gasket (Alt.)	£13.32 £11.10
78	MK5253503100 Available to backorder	Muffler Gasket	£13.32 £11.10
79	MK266703-8 Available to backorder	Hex. Head Bolt M6x14 (Alt.)	£6.84 £5.70
79	MK5235504700 Available to backorder	Bolt Ass'y	£6.84 £5.70
80	MK126010-0 Available to backorder	Recoil Starter Assembly (Alt.) (INC. 81-87)	£40.68 £33.90
80	MK5255011000 Available to backorder	Rewind Starter Assy (INC. 81-87 *)	£54.96 £45.80
81	MK168664-7 Available to backorder	Pulley (Alt.)	£22.68 £18.90
81	MK5235025001 Available to backorder	Pulley	£21.96 £18.30
82	MK266580-8 Available to backorder	Binding Head Tapping Screw 5x10	£1.03 £0.86
82	MK5425003010 Available to backorder	Set Screw	£2.83 £2.36
83	MK452915-1 Available to backorder	Reel (Alt.)	£7.44 £6.20
83	MK5235024012 Available to backorder	Reel	£7.44 £6.20
84	MK5235024032 Available to backorder	Spiral Spring	£15.36 £12.80
84	MK232269-0 Available to backorder	Spiral Spring (Alt.)	£12.36 £10.30
85	MK424319-7 Available to backorder	Starter Knob (Alt.)	£2.38 £1.98
85	MK5225004020 Available to backorder	Handle	£6.12 £5.10
86	MK5255001040 Available to backorder	Damper	£3.60 £3.00
86	MK424359-5 Available to backorder	Damper (Alt.)	£1.22 £1.02
87	MK444024-0 Available to backorder	Starter Rope (Alt.)	£1.90 £1.58
87	MK5255016020 Available to backorder	Starter Rope	£9.48 £7.90
88	MK6029503900 Available to backorder	Model Label	£7.92 £6.60
89	MK5231502304 Available to backorder	Cylinder Gasket	£2.83 £2.36
89	MK442171-1 Available to backorder	Cylinder Gasket (Alt.)	£2.83 £2.36
90	MK5242500701 Available to backorder	Piston Ring	£8.40 £7.00
90	MK257979-8 Available to backorder	Piston Ring (Alt.)	£8.40 £7.00
91	MK5252500800 Available to backorder	Piston	£36.36 £30.30
91	MK318766-1 Available to backorder	Piston (Alt.)	£24.48 £20.40
92	MK257781-9 Available to backorder	Piston Pin (Alt.)	£1.58 £1.32
92	MK5232502600 Available to backorder	Piston Pin	£4.20 £3.50
93	MK233976-8 Available to backorder	Clip (Alt.)	£0.48 £0.40
94	MK140990-6 Available to backorder	Crankshaft Complete (Alt.) (INC. 95 *)	£93.12 £77.60
94	MK144614-6 Available to backorder	Crankshaft Complete S (INC. 95)	£33.60 £28.00
95	MK266696-9 Available to backorder	Stud Bolt M6x30 (Alt.)	£1.49 £1.24
96	MK5231011001 Available to backorder	Crank Case Ass'y (INC. 97-100)	£168.24 £140.20
97	MK213628-7 Available to backorder	Oil Seal (Alt.)	£2.83 £2.36
98	MK5231502202 Available to backorder	Crankcase Gasket	£1.39 £1.16
98	MK424447-8 Available to backorder	Crankcase Gasket (Alt.)	£1.39 £1.16
99	MK210113-1 Available to backorder	Ball Bearing 6001 (Alt.)	£12.00 £10.00

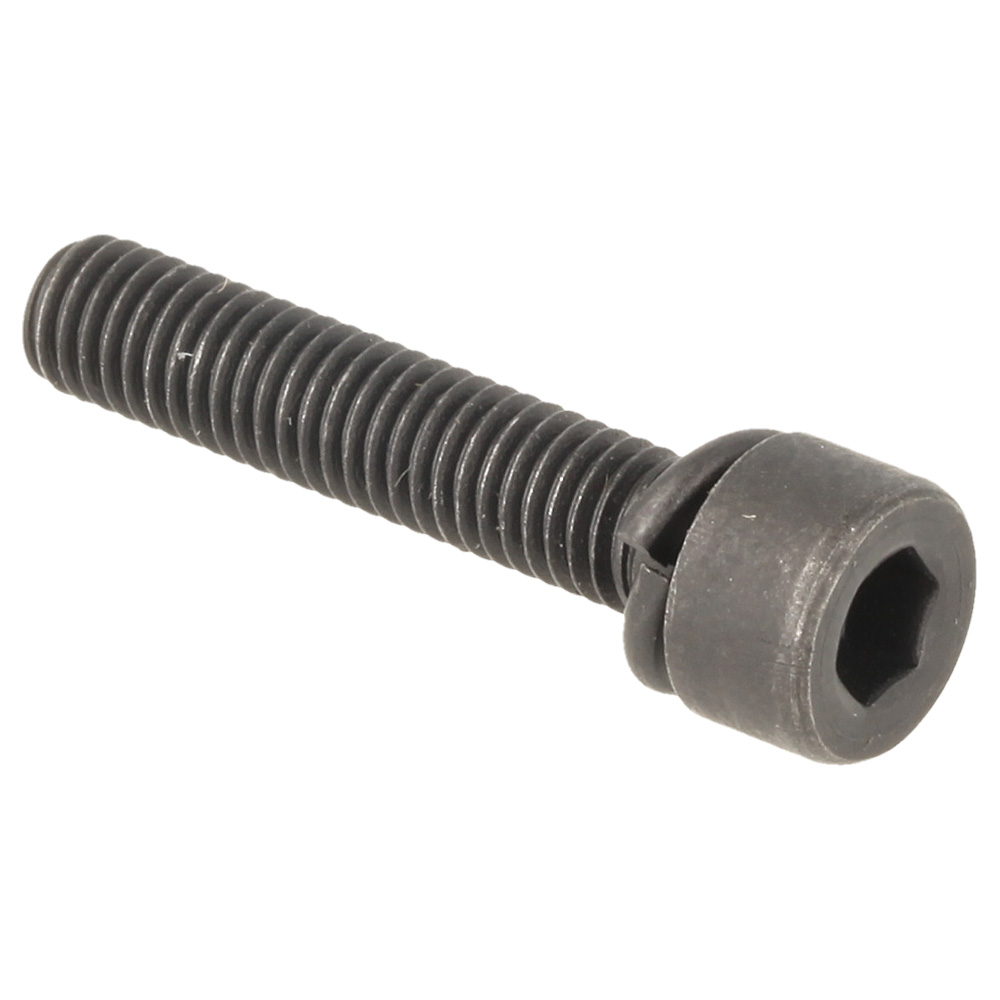

100	MK922241-7 Available to backorder	Hex. Socket Head Bolt M5x25 W (Alt.)	£0.89 £0.74
101	MK318765-3 Available to backorder	Flywheel (Alt.)	£91.44 £76.20
101	MK5237034014 Available to backorder	Flywheel	£88.20 £73.50
102	MK6162010000 Available to backorder	Clutch	£54.96 £45.80
103	MK6022002000 Available to backorder	Clutch Drum Complete	£8.88 £7.40
104	MK140997-2 Available to backorder	Clutch Case Complete (Alt.)	£38.88 £32.40
104	MK6251047003 Available to backorder	Clutch Case Complete (Alt.)	£34.68 £28.90
105	MK345963-6 Available to backorder	Clamp (Alt.)	£0.89 £0.74
106	MK266788-4 Available to backorder	Pan Head Screw M5x20 Wr (Alt.)	£1.39 £1.16
107	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12 (Alt.)	£0.48 £0.40
108	MK424451-7 Available to backorder	Pipe Damper 1 (Alt.)	£4.32 £3.60
109	MK266844-0 Available to backorder	Hex. Socket Head Bolt M5x18 W (Alt.)	£1.66 £1.38
110	MK6251509501 Available to backorder	Pipe Bracket (1)	£9.60 £8.00
110	MK318767-9 Available to backorder	Pipe Bracket 1 (Alt.)	£6.00 £5.00
111	MK318768-7 Available to backorder	Pipe Bracket 2 (Alt.)	£11.40 £9.50
111	MK6251509600 Available to backorder	Pipe Bracket (2)	£11.40 £9.50
112	MK424452-5 Available to backorder	Pipe Damper 2 (Alt.)	£6.24 £5.20
112	MK6251506703 Available to backorder	Pipe Damper 2	£6.24 £5.20

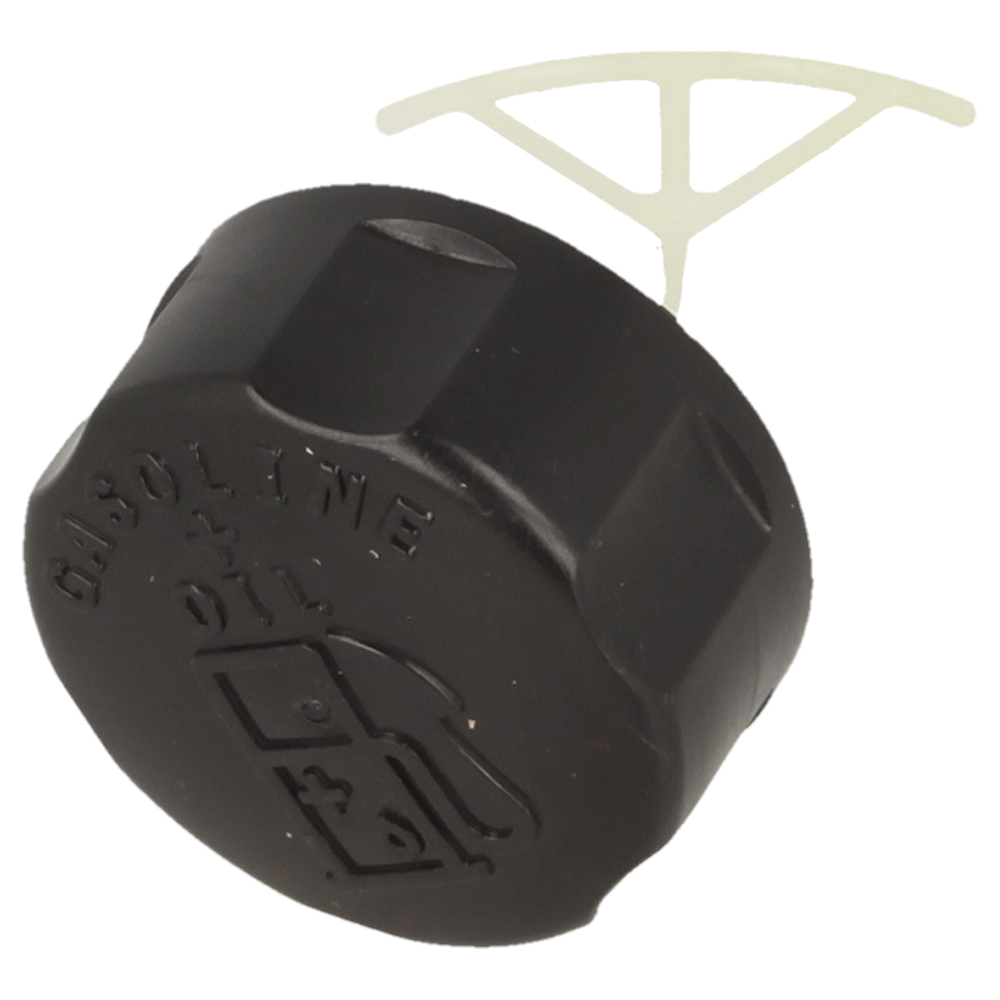

113	MK168668-9 Available to backorder	Fuel Tank Cap Complete (Alt.) (INC. 114-115)	£13.56 £11.30

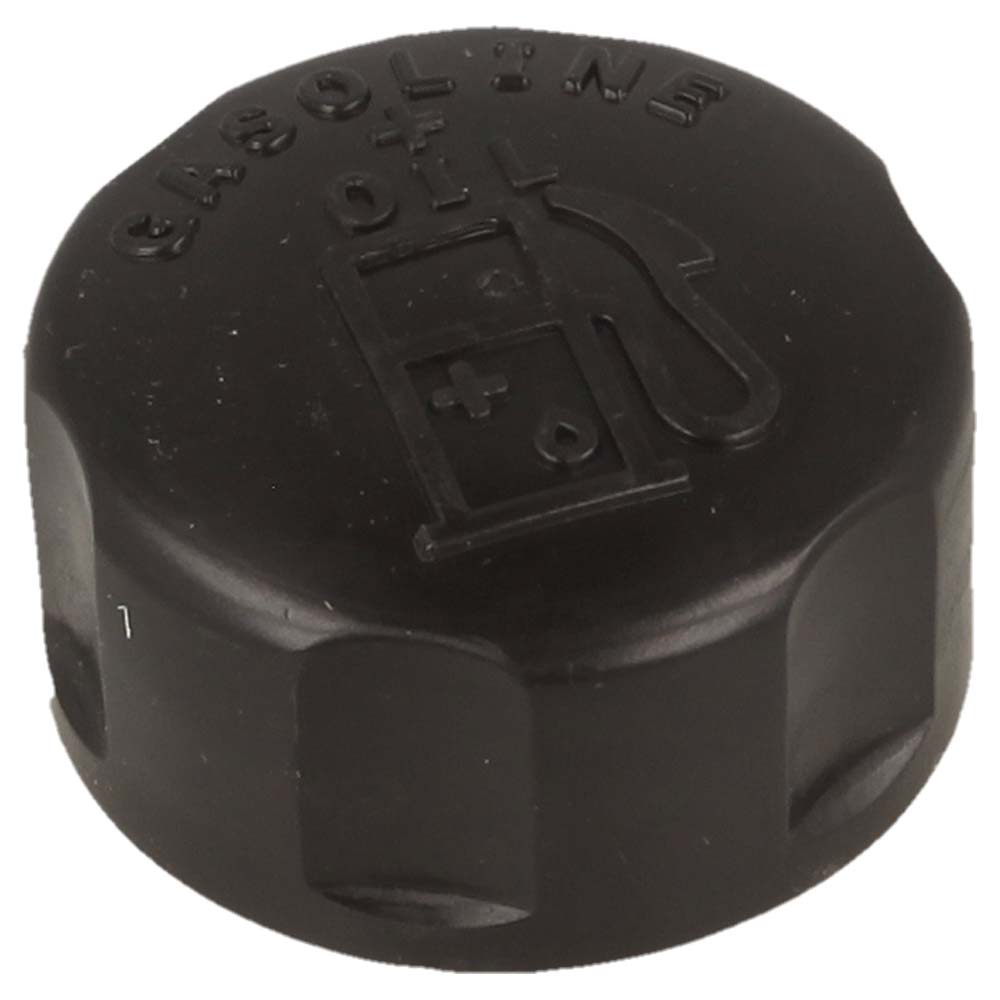

114	MK452920-8 Available to backorder	Fuel Tank Cap (Alt.)	£8.28 £6.90
115	MK140436-2 Available to backorder	Strap Complete (Alt.)	£5.76 £4.80
115	MK5256067000 Available to backorder	Strap	£6.84 £5.70
116	MK5256501801 Available to backorder	Fuel Tank	£29.64 £24.70
116	MK452921-6 Available to backorder	Fuel Tank (Alt.)	£21.96 £18.30
117	MK162328-5 Available to backorder	Tube (Alt.)	£8.04 £6.70
118	MK345920-4 Available to backorder	Hose Clamp (Alt.)	£0.70 £0.58
119	MK163447-0 In stock	Gasoline Filter (Alt.)	£2.64 £2.20
120	MK5036500200 Available to backorder	Plate	£0.89 £0.74
121	MK424103-0 Available to backorder	Plate (Alt.)	£0.89 £0.74
121	MK5036500300 Available to backorder	Plate	£2.21 £1.84
122	MK5216500200 Available to backorder	Damper	£0.89 £0.74
122	MK424446-0 Available to backorder	Damper (Alt.)	£1.58 £1.32
