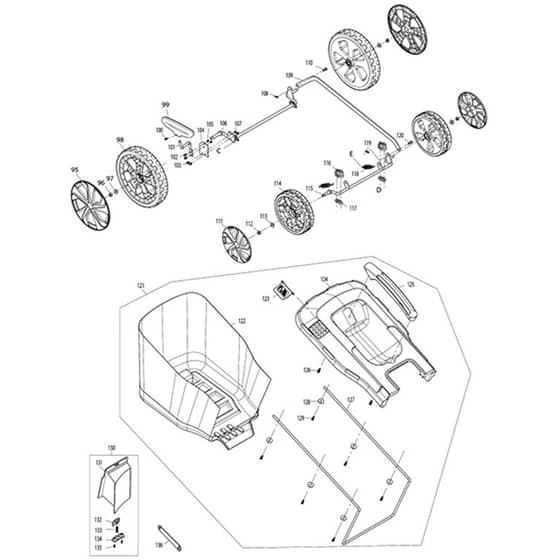

Makita EM411 - 410mm Electric Lawn Mower - Power Tool 03 Diagram

Makita EM411 - 410mm Electric Lawn Mower - Power Tool 03 Diagram
Makita EM411 - 410mm Electric Lawn Mower - Power Tool 03 Diagram

Description

Model No. EM411

410mm Electric Lawn Mower

Power Tool 03 Parts Diagrams

Ref. Img. Part No. Details
  95 Wheel Cap 7Inch
Wheel Cap 7Inch
MKYA00000925
Available to backorder
Wheel Cap 7Inch
£4.24 £3.53

  96 Nylon Insert Hex. Lock Nut M8
Nylon Insert Hex. Lock Nut M8
MK652023843
Available to backorder
Nylon Insert Hex. Lock Nut M8
£0.70 £0.58

  97 Washer
Washer
MKYA00000420
Available to backorder
Washer
£1.32 £1.10

  98 Wheel 8Inch
Wheel 8Inch
MKYA00000926
Available to backorder
Wheel 8Inch
£8.46 £7.05

  99 Height Adjust Grip
Height Adjust Grip
MKYA00000989
Available to backorder
Height Adjust Grip
£4.10 £3.42

  100 Pan Head Screw M4x12
Pan Head Screw M4x12
MKYA00000988
Available to backorder
Pan Head Screw M4x12
£0.54 £0.45

  101 Height Adjust Lever
Height Adjust Lever
MKYA00000987
Available to backorder
Height Adjust Lever
£2.60 £2.17

  102 Hex. Flange Bolt M5x16
Hex. Flange Bolt M5x16
MKYA00000407
Available to backorder
Hex. Flange Bolt M5x16
£3.92 £3.27

  104 Height Adjust Spring
Height Adjust Spring
MKYA00000986
Available to backorder
Height Adjust Spring
£2.18 £1.82

  105 Nylon Insert Hex. Lock Nut M5
Nylon Insert Hex. Lock Nut M5
MKYA00000393
Available to backorder
Nylon Insert Hex. Lock Nut M5
£1.32 £1.10

  106 Rear Axle
Rear Axle
MKYA00000985
Available to backorder
Rear Axle
£17.90 £14.92

  108 R Pin 7
R Pin 7
MKYA00000851
Available to backorder
R Pin 7
£0.54 £0.45

  109 Connecting Rod
Connecting Rod
MKYA00001017
Available to backorder
Connecting Rod
£8.88 £7.40

  110 Pin 7
Pin 7
MKYA00001018
Available to backorder
Pin 7
£0.82 £0.68

  111 Wheel Cap 5.2Inch
Wheel Cap 5.2Inch
MKYA00001022
Available to backorder
Wheel Cap 5.2Inch
£4.10 £3.42

  114 Wheel 6Inch
Wheel 6Inch
MKYA00001023
Available to backorder
Wheel 6Inch
£6.16 £5.13

  115 Front Axle
Front Axle
MKYA00000954
Available to backorder
Front Axle
£13.52 £11.27

  115 Front Axle x
Front Axle x
MKYA00001028
Available to backorder
Front Axle x
£12.16 £10.13

  116 Front Axle Mount Upper
Front Axle Mount Upper
MKYA00001026
Available to backorder
Front Axle Mount Upper
£0.96 £0.80

  117 Front Axle Mount Lower
Front Axle Mount Lower
MKYA00001025
Available to backorder
Front Axle Mount Lower
£0.70 £0.58

  118 Height Adjust Assist Spring
Height Adjust Assist Spring
MKYA00001027
Available to backorder
Height Adjust Assist Spring
£0.96 £0.80

  124 Grass Catcher Upper Broad
Grass Catcher Upper Broad
MKYA00000966
Available to backorder
Grass Catcher Upper Broad
£16.66 £13.88

  125 Grip
Grip
MKYA00000795
Available to backorder
Grip
£1.52 £1.27

  126 Self Tapping Screw St4x14
Self Tapping Screw St4x14
MKYA00000794
Available to backorder
Self Tapping Screw St4x14
£0.48 £0.40

  127 Grass Catcher Frame
Grass Catcher Frame
MKYA00000968
Available to backorder
Grass Catcher Frame
£8.20 £6.83

  128 Washer 4
Washer 4
MKYA00000967
Available to backorder
Washer 4
£0.54 £0.45

  130 Mulching Plug Assy
Mulching Plug Assy
MKYA00000978
Available to backorder
Mulching Plug Assy
£11.56 £9.63

  131 Mulching Plug Box
Mulching Plug Box
MKYA00000979
Available to backorder
Mulching Plug Box
£7.52 £6.27

  132 Latch Handle
Latch Handle
MKYA00000980
Available to backorder
Latch Handle
£0.86 £0.72

  133 Compression Spring
Compression Spring
MKYA00000981
Available to backorder
Compression Spring
£0.58 £0.48

  134 Spring Retainer
Spring Retainer
MKYA00000982
Available to backorder
Spring Retainer
£1.16 £0.97

  135 Self Tapping Screw St4x16
Self Tapping Screw St4x16
MKYA00000778
Available to backorder
Self Tapping Screw St4x16
£0.54 £0.45

  136 Spanner 10-13
Spanner 10-13
MKYA00000798
Available to backorder
Spanner 10-13
£1.92 £1.60


Description

Model No. EM411

410mm Electric Lawn Mower

Power Tool 03 Parts Diagrams
