Makita EM3400U - Petrol Brush Cutter - Power Tool 03 Diagram

Description

Model No. EM3400U

Petrol Brush Cutter

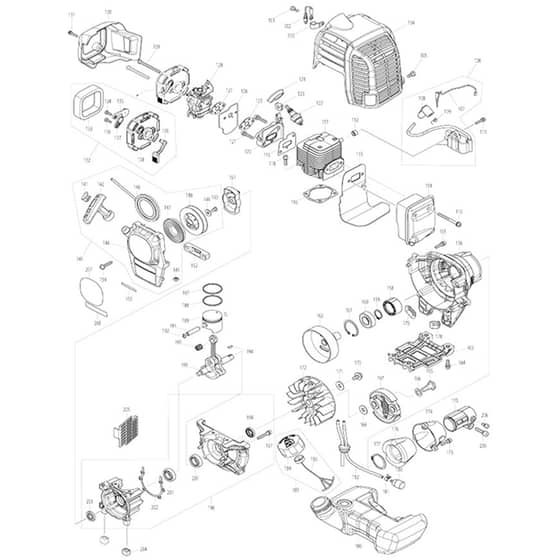

Power Tool 03 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
101	MK911218-7 In stock	Pan Head Screw M5x14 Wr	£0.48 £0.40
103	MK345963-6 Available to backorder	Clamp	£0.74 £0.62
111	MK922138-0 Available to backorder	Hex. Socket Head Bolt M4x20 Wr	£2.76 £2.30
112	MK452049-0 Available to backorder	Spacer	£0.74 £0.62
118	MK922231-0 Available to backorder	Hex. Socket Head Bolt M5x20 W	£0.58 £0.48
121	MK922243-3 Available to backorder	Hex. Socket Head Bolt M5x25 Wr	£0.58 £0.48
122	2134 In stock	Spark Plug (Bpmr7A)	£2.26 £1.88
123	MK424491-5 Available to backorder	Grommet	£0.96 £0.80
125	MK442177-9 Available to backorder	Air Cleaner Gasket	£1.32 £1.10
126	MK346591-0 Available to backorder	Carburetor Plate	£1.32 £1.10
131	MK911138-5 Available to backorder	Pan Head Screw M4x20 Wr	£0.48 £0.40
154	MK911243-8 Available to backorder	Pan Head Screw M5x25 Wr	£0.48 £0.40
155	MK922233-6 Available to backorder	Hex. Socket Head Bolt M5x20 Wr	£0.86 £0.72
158	MK451157-4 Available to backorder	Spacer	£1.60 £1.33
159	MK961057-5 Available to backorder	Retaining Ring (Ext) S-17	£0.48 £0.40
160	MK210126-2 Available to backorder	Ball Bearing 6003Llu	£2.76 £2.30
161	MK962153-2 Available to backorder	Retaining Ring (Int) R-35	£0.74 £0.62
162	MK165577-3 Available to backorder	Clutch Drum	£9.12 £7.60
164	MK922223-9 Available to backorder	Hex. Socket Head Bolt M5x16 Wr	£0.74 £0.62
165	MK266571-9 Available to backorder	Hex. Head Shoulder Bolt M8x23	£2.18 £1.82
166	MK267849-3 Available to backorder	Wave Washer 10	£1.32 £1.10
167	MKAN04002000 Available to backorder	Clutch Shoe (C10)	£8.54 £7.12
167	MK125757-3 Available to backorder	Clutch Assembly	£11.14 £9.28
167	MKAN02010C00 Available to backorder	Tension Spring 9 (C20)	£3.42 £2.85
168	MK253762-1 Available to backorder	Flat Washer 8	£1.44 £1.20
170	MK266596-3 Available to backorder	Hex. Head Bolt M6x16 W	£0.74 £0.62
174	MK318453-2 Available to backorder	Pipe Retainer	£4.78 £3.98
175	MK318454-0 Available to backorder	Pipe Bracket	£7.80 £6.50
176	MK424204-4 Available to backorder	Damper	£4.04 £3.37
177	MK961151-3 Available to backorder	Retaining Ring (Ext) S-32	£1.02 £0.85
178	MK424103-0 Available to backorder	Plate	£0.74 £0.62
180	MK163447-0 In stock	Gasoline Filter	£2.69 £2.24
181	MK345920-4 Available to backorder	Hose Clamp	£0.58 £0.48
182	MK126503-7 Available to backorder	Fuel Tube Assembly	£3.76 £3.13
183	MK168668-9 Available to backorder	Fuel Tank Cap Complete (INC. 184 185)	£13.16 £10.97
184	MK452920-8 Available to backorder	Fuel Tank Cap	£7.96 £6.63
185	MK140436-2 Available to backorder	Strap Complete	£5.56 £4.63
192	MK233976-8 Available to backorder	Clip	£0.48 £0.40
193	MK212702-8 Available to backorder	Needle Cage 810	£7.38 £6.15
194	MK254040-2 Available to backorder	Woodruff Key 3	£3.76 £3.13
197	MK922253-0 Available to backorder	Hex. Socket Head Bolt M5x30 Wr	£1.16 £0.97
198	MK213628-7 Available to backorder	Oil Seal	£2.60 £2.17
200	MK210113-1 Available to backorder	Ball Bearing 6001	£11.56 £9.63
204	MK424446-0 Available to backorder	Damper	£1.32 £1.10
206	MK922213-2 Available to backorder	Hex. Socket Head Bolt M5x12 Wr	£0.58 £0.48
