Makita EM2654LH - Petrol Brushcutter - Power Tool 04 Diagram

Description

Model No. EM2654LH

Petrol Brushcutter

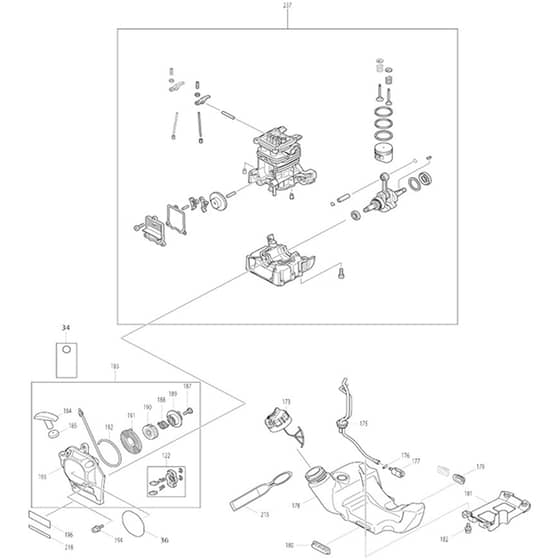

Power Tool 04 Parts Diagrams

	Part No.	Details
34	MK819430-2 Available to backorder	Caution Tag	£0.70 £0.58
36	MK809D38-4 Available to backorder	Model No. Label Em2654Lh	£0.48 £0.40
173	MK125728-0 Available to backorder	Fuel Tank Cap Assembly (INC. 174 *)	£13.56 £11.30
173	MK127112-5 Available to backorder	Fuel Tank Cap Assembly (Alt.) (INC. 174)	£16.32 £13.60
175	MK168755-4 Available to backorder	Tube Complete	£6.12 £5.10
176	MK282020-8 Available to backorder	Hose Clamp	£0.70 £0.58
177	MK163518-3 Available to backorder	Gasoline Filter	£4.68 £3.90
178	MK451736-8 Available to backorder	Fuel Tank	£11.16 £9.30
179	MK424080-6 Available to backorder	Rubber Vibration Isolator	£1.03 £0.86
180	MK424081-4 Available to backorder	Rubber Vibration Isolator	£1.03 £0.86
181	MK451737-6 Available to backorder	Tank Guard	£1.90 £1.58
182	MK922218-2 Available to backorder	Hex. Socket Head Bolt M5x14 Wr	£0.70 £0.58
183	MK125751-5 Available to backorder	Recoil Starter Assembly (INC. 184 185 187-193)	£27.72 £23.10
184	MK424319-7 Available to backorder	Starter Knob	£2.38 £1.98
185	MK424359-5 Available to backorder	Damper	£1.22 £1.02
187	MK266585-8 Available to backorder	Binding Head Tapping Screw 5x12	£1.90 £1.58
188	MK233578-0 Available to backorder	Damper Spring	£6.00 £5.00
189	MK452275-1 Available to backorder	Cam Plate	£4.08 £3.40
190	MK452274-3 Available to backorder	Reel	£8.04 £6.70
191	MK232258-5 Available to backorder	Spiral Spring	£9.60 £8.00
192	MK444024-0 Available to backorder	Starter Rope	£1.90 £1.58
193	MK451732-6 Available to backorder	Starter Case	£40.68 £33.90
194	MK922223-9 Available to backorder	Hex. Socket Head Bolt M5x16 Wr	£0.89 £0.74
196	MK816565-0 Available to backorder	Makita Logo Label	£0.48 £0.40
197	MK168762-7 Available to backorder	Carburetor (INC. 198-207 209-214)	£82.20 £68.50
198	MK325922-6 Available to backorder	Swivel	£5.28 £4.40
199	MK413140-9 Available to backorder	Washer	£1.90 £1.58
200	MK266581-6 Available to backorder	Pan Head Screw M3x8 W	£1.90 £1.58
201	MK257964-1 Available to backorder	Stop Ring (Ext) E3	£2.83 £2.36
202	MK213538-8 Available to backorder	O-Ring 2	£3.48 £2.90
203	MK325985-2 Available to backorder	Jet	£8.40 £7.00
204	MK234183-6 Available to backorder	Conical Compression Spring 5-9	£3.12 £2.60
205	MK442155-9 Available to backorder	Pump Gasket	£3.01 £2.51
207	MK141737-1 Available to backorder	Pump Body (INC. 208)	£25.44 £21.20
208	MK352021-1 Available to backorder	Inlet Screen	£2.05 £1.71
209	MK442154-1 Available to backorder	Metering Diaphragm Gasket	£3.48 £2.90
210	MKWJ00095586 Available to backorder	Metering Diaphragm	£10.92 £9.10
211	MK140438-8 Available to backorder	Air Purge Body	£2.21 £1.84
212	MK424314-7 Available to backorder	Primer Pump	£4.44 £3.70
213	MK346270-0 Available to backorder	Primer Pump Cover	£4.68 £3.90
214	MK266582-4 Available to backorder	Pan Head Tapping Screw 3x24	£1.90 £1.58
215	MK810455-9 Available to backorder	Caution Plate	£1.39 £1.16
216	MK800F73-7 Available to backorder	Operation Label	£0.48 £0.40
217	MK941152-7 Available to backorder	Flat Washer 6	£0.48 £0.40
218	MK816567-6 Available to backorder	Serial No. Label x	£1.03 £0.86
219	MK352020-3 Available to backorder	Separator Mesh	£4.68 £3.90
220	MK453865-3 Available to backorder	Separator Case	£3.01 £2.51
221	MK453862-9 Available to backorder	Oil Case Plate	£1.94 £1.62
224	MK347011-7 Available to backorder	Pipe Clamp 29	£1.74 £1.45
225	MK443170-6 Available to backorder	Felt	£3.60 £3.00
227	MK922212-4 Available to backorder	Hex. Socket Head Bolt M5x12	£0.48 £0.40
228	MK143695-7 Available to backorder	Barrier Complete (INC. 229)	£7.80 £6.50
229	MK911128-8 In stock	Pan Head Screw M4x16 Wr	£0.54 £0.45
230	MK266007-8 Available to backorder	Binding Head Tapping Screw 3x10	£0.48 £0.40
231	MK266427-6 Available to backorder	Binding Head Tapping Screw 4x12	£0.48 £0.40
232	MK452219-1 Available to backorder	Choke Plate	£1.74 £1.45
233	MK452220-6 Available to backorder	Choke Lever	£2.21 £1.84
234	MK263005-3 In stock	Rubber Pin 6	£0.52 £0.43
235	MK135753-3 Available to backorder	Protector Extension Assembly (INC. 33 236)	£9.00 £7.50
