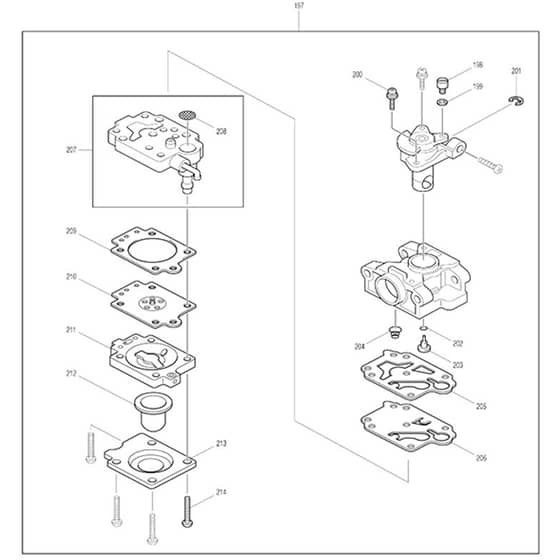

Makita EM2651LH - Petrol Brush Cutter - Power Tool 04 Diagram

Name: Makita EM2651LH - Petrol Brush Cutter - Power Tool 04 Diagram
SKU: em2651lh_petrol_brush_cutter_power_tool_04-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita EM2651LH - Petrol Brush Cutter - Power Tool 04 Diagram

Description

Model No. EM2651LH

Petrol Brush Cutter

Power Tool 04 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
97	MK267817-6 Available to backorder	Washer 8	£0.58 £0.48
98	MK126135-0 Available to backorder	Clutch Assembly < (INC. 99 100)	£20.38 £16.98
99	MK161332-1 Available to backorder	Clutch Shoe (Alt.)	£5.20 £4.33
99	MK168498-8 Available to backorder	Clutch Shoe	£8.66 £7.22
100	MK231858-8 Available to backorder	Tension Spring 6	£4.34 £3.62
100	MK231881-3 Available to backorder	Tension Spring 7 <	£3.46 £2.88
101	MK267812-6 Available to backorder	Washer 6	£0.58 £0.48
102	MK264039-9 Available to backorder	Coned Disc Spring Hex. Nut M8-13	£0.74 £0.62
103	MK318569-3 Available to backorder	Flywheel	£19.64 £16.37
104	MK444021-6 Available to backorder	Tube	£0.82 £0.68
105	MK266602-4 Available to backorder	Hex. Socket Head Bolt M4x20	£1.02 £0.85
106	MK452049-0 Available to backorder	Spacer	£0.74 £0.62
107	MK161483-0 Available to backorder	Ignition Coil <	£56.10 £46.75
108	MK268238-5 Available to backorder	Pin 5	£0.86 £0.72
109	MK125552-1 Available to backorder	Cam Gear Assembly	£11.42 £9.52
110	MK313169-4 Available to backorder	Cam Lifter	£3.34 £2.78
112	MK268239-3 Available to backorder	Pin 4	£0.58 £0.48
113	MK162274-2 Available to backorder	Cam Gear Cover Gasket	£2.02 £1.68
114	MK318443-5 Available to backorder	Cam Gear Cover	£3.92 £3.27
115	MK922222-1 Available to backorder	Hex. Socket Head Bolt M5x16 (Alt.) (Refs 117 \| 160)	£0.48 £0.40
116	MK135478-9 Available to backorder	Cylinder Block Assembly < (INC. 117 *)	£168.58 £140.48
119	MK346331-6 Available to backorder	Muffler Gasket <	£4.78 £3.98
119	MK345916-5 Available to backorder	Muffler Gasket	£1.88 £1.57
120	MK168554-4 Available to backorder	Exhaust Muffler	£8.24 £6.87
121	MK266440-4 Available to backorder	Hex. Socket Head Bolt M5x40	£1.02 £0.85
122	MK168471-8 Available to backorder	Pulley	£7.80 £6.50
123	MK451731-8 Available to backorder	Muffler Plate	£1.16 £0.97
124	MK922206-9 Available to backorder	Hex. Socket Head Bolt M5x10 W > (Refs 128 \| 130 \| 172 \| 182)	£0.58 £0.48
124	MK922218-2 Available to backorder	Hex. Socket Head Bolt M5x14 Wr (Refs 128 \| 130 \| 172 \| 182)	£0.58 £0.48
125	MK638707-4 Available to backorder	Lead Unit	£1.74 £1.45
126	MK638708-2 Available to backorder	Lead Unit	£3.76 £3.13
127	MK808633-3 Available to backorder	4 Stroke Indication Label	£0.48 £0.40
129	MK453266-5 Available to backorder	Cylinder Cover S	£6.64 £5.53
131	MK424082-2 Available to backorder	Rubber Vibration Isolator	£1.60 £1.33
132	MK922211-6 Available to backorder	Hex. Socket Head Bolt M5x12 W	£0.58 £0.48
133	MK922226-3 Available to backorder	Hex. Socket Head Bolt M5x18 W	£0.74 £0.62
134	MK318249-1 Available to backorder	Pipe Holder	£3.04 £2.53
135	MK318250-6 Available to backorder	Pipe Holder	£3.34 £2.78
136	MK424083-0 Available to backorder	Rubber Vibration Isolator	£1.60 £1.33
137	MK424200-2 Available to backorder	Spacer	£0.74 £0.62
138	MK234108-0 Available to backorder	Compression Spring 9	£0.86 £0.72
140	MK326366-3 Available to backorder	Exhaust Valve (Alt.)	£0.86 £0.72
143	MK325670-7 Available to backorder	Intake Valve	£5.48 £4.57
143	MK326367-1 Available to backorder	Intake Valve (Alt.)	£4.34 £3.62
144	MK257298-2 Available to backorder	Piston Ring (Top) 34	£4.20 £3.50
144	MK195145-8 Available to backorder	Piston Ring Set S	£15.46 £12.88
145	MK257299-0 Available to backorder	Piston Ring (Second) 34	£4.20 £3.50
146	MK257300-1 Available to backorder	Piston Ring 34	£5.64 £4.70
147	MK318441-9 Available to backorder	Piston	£7.22 £6.02
148	MK254040-2 Available to backorder	Woodruff Key 3	£3.76 £3.13
149	MK123774-7 Available to backorder	Crankshaft Assembly < (INC. 150-152)	£46.52 £38.77
149	MK126204-7 Available to backorder	Crankshaft Assembly S (INC. 150-152 *)	£117.86 £98.22
149	MK126359-8 Available to backorder	Crankshaft Assembly (Alt.) (INC. 150-152 *)	£61.82 £51.52
149	MK135481-0 Available to backorder	Crankshaft Assembly <	£95.04 £79.20
150	MK213769-9 Available to backorder	Oil Seal 10 <	£3.34 £2.78
150	MK213148-1 Available to backorder	Oil Seal 10	£2.60 £2.17
151	MK267400-9 Available to backorder	Flat Washer 23	£1.32 £1.10
152	MK213147-3 Available to backorder	Oil Seal 12	£2.18 £1.82
152	MK213089-1 Available to backorder	Oil Seal 12 <	£3.62 £3.02
153	MK257781-9 Available to backorder	Piston Pin	£1.32 £1.10
154	MK233976-8 Available to backorder	Clip	£0.48 £0.40
155	MK162323-5 Available to backorder	Oil Case Gasket S	£3.76 £3.13
155	MK162345-5 Available to backorder	Oil Case Gasket S	£2.32 £1.93
156	MK346083-9 Available to backorder	Reed Valve	£1.88 £1.57
157	MK318910-0 Available to backorder	Retainer Plate S	£1.88 £1.57
158	MK922112-8 Available to backorder	Hex. Socket Head Bolt M4x10 (Alt.)	£0.48 £0.40
159	MK318588-9 Available to backorder	Oil Case	£24.56 £20.47
161	MK424344-8 Available to backorder	Damper	£0.74 £0.62
162	MK346305-7 Available to backorder	Gasket	£0.48 £0.40
163	MK266611-3 Available to backorder	Hex. Head Bolt M6x8	£0.58 £0.48
164	MK213548-5 Available to backorder	O-Ring 20	£1.74 £1.45
165	MK325665-0 Available to backorder	Joint Pipe S	£0.86 £0.72
166	MK282020-8 Available to backorder	Hose Clamp	£0.58 £0.48
167	MK325666-8 Available to backorder	Oil Weight	£1.32 £1.10
168	MK424301-6 Available to backorder	Oil Tube	£3.34 £2.78
168	MK125805-8 Available to backorder	Oil Tube Assembly S (INC. 166 167)	£5.78 £4.82
169	MK452047-4 In stock	Oil Cap	£1.32 £1.10
170	MK424343-0 Available to backorder	Gasket	£0.86 £0.72
171	MK452048-2 Available to backorder	Oil Pipe	£2.12 £1.77
173	MK127112-5 Available to backorder	Fuel Tank Cap Assembly (Alt.) (INC. 174)	£15.76 £13.13
173	MK125728-0 Available to backorder	Fuel Tank Cap Assembly (INC. 174 *)	£13.16 £10.97
175	MK168755-4 Available to backorder	Tube Complete <	£5.94 £4.95
177	MK163518-3 Available to backorder	Gasoline Filter	£3.76 £3.13
178	MK451736-8 Available to backorder	Fuel Tank	£10.84 £9.03
179	MK424080-6 Available to backorder	Rubber Vibration Isolator	£0.86 £0.72
180	MK424081-4 Available to backorder	Rubber Vibration Isolator	£0.86 £0.72
181	MK451737-6 Available to backorder	Tank Guard	£1.74 £1.45
183	MK195309-4 Available to backorder	Recoil Starter Set (INC. 122 184 185 187-193)	£58.06 £48.38
184	MK424319-7 Available to backorder	Starter Knob	£2.18 £1.82
185	MK424359-5 Available to backorder	Damper	£1.02 £0.85
187	MK266585-8 Available to backorder	Binding Head Tapping Screw 5x12	£1.74 £1.45
188	MK233578-0 Available to backorder	Damper Spring	£6.30 £5.25
189	MK452275-1 Available to backorder	Cam Plate	£3.92 £3.27
190	MK452274-3 Available to backorder	Reel	£7.80 £6.50
191	MK232258-5 Available to backorder	Spiral Spring	£9.24 £7.70
192	MK444024-0 Available to backorder	Starter Rope	£1.74 £1.45
193	MK451732-6 Available to backorder	Starter Case	£39.28 £32.73
194	MK922223-9 Available to backorder	Hex. Socket Head Bolt M5x16 Wr	£0.74 £0.62
196	MK816565-0 Available to backorder	Makita Logo Label	£0.48 £0.40
197	MK168762-7 Available to backorder	Carburetor < (INC. 198-207 209-214)	£79.44 £66.20
198	MK325922-6 Available to backorder	Swivel	£5.06 £4.22
199	MK413140-9 Available to backorder	Washer	£1.74 £1.45
200	MKWJ00096364 Available to backorder	Screw M3x8 With Washer (Alt.)	£2.18 £1.82
200	MK266581-6 Available to backorder	Pan Head Screw M3x8 W	£1.74 £1.45
201	MK257964-1 Available to backorder	Stop Ring (Ext) E3	£2.60 £2.17
202	MK213538-8 Available to backorder	O-Ring 2	£3.34 £2.78
203	MK325985-2 Available to backorder	Jet	£8.08 £6.73
204	MK234183-6 Available to backorder	Conical Compression Spring 5-9	£3.04 £2.53
205	MK442155-9 Available to backorder	Pump Gasket	£2.76 £2.30
207	MK141737-1 Available to backorder	Pump Body x (INC. 208)	£24.56 £20.47
207	MK140437-0 Available to backorder	Pump Body (INC. 208 *)	£28.60 £23.83
208	MK352021-1 Available to backorder	Inlet Screen x	£1.88 £1.57
209	MK442154-1 Available to backorder	Metering Diaphragm Gasket	£3.34 £2.78
210	MK168620-7 Available to backorder	Metering Diaphragm	£18.78 £15.65
211	MK140438-8 Available to backorder	Air Purge Body	£2.02 £1.68
212	MK424314-7 Available to backorder	Primer Pump	£4.67 £3.89
213	MK346270-0 Available to backorder	Primer Pump Cover	£4.48 £3.73
214	MK266582-4 Available to backorder	Pan Head Tapping Screw 3x24	£1.74 £1.45
