Model No. EM2650LH

Petrol Brush Cutter

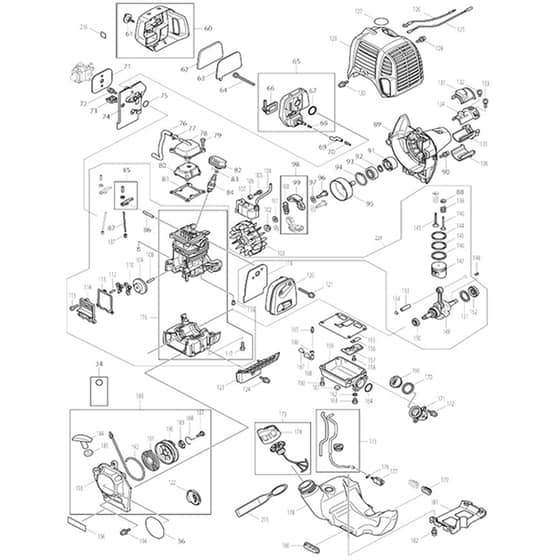

Power Tool 03 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
34	MK819430-2 Available to backorder	Caution Tag	£0.58 £0.48
35	MK346074-0 Available to backorder	Cutter	£1.16 £0.97
60	MK123499-3 Available to backorder	Cleaner Cover Assembly S	£5.06 £4.22
61	MK265791-2 Available to backorder	Thumb Screw M4	£1.32 £1.10
62	MK443171-4 Available to backorder	Air Cleaner Element S	£1.44 £1.20
63	MK443140-5 In stock	Air Cleaner Element	£1.74 £1.45
63	MK443169-1 Available to backorder	Air Cleaner Element S	£7.38 £6.15
64	MK266601-6 Available to backorder	Hex. Socket Head Bolt M5x60	£0.58 £0.48
64	MK266618-9 Available to backorder	H.S.Button Head Bolt M5x60 (Alt.)	£0.74 £0.62
65	MK123501-2 Available to backorder	Cleaner Plate Assembly S	£39.44 £32.87
65	MK162325-1 Available to backorder	Separator Gasket (C20)	£0.82 £0.68
65	MK352013-0 Available to backorder	Separator Net (C30)	£7.52 £6.27
65	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10 (C10)	£0.48 £0.40
65	MK162322-7 Available to backorder	Separator Stopper (C10)	£4.92 £4.10
65	MK126198-6 Available to backorder	Cleaner Plate Assembly S	£50.08 £41.73
66	MK162346-3 Available to backorder	Separator Plate S	£8.96 £7.47
67	MK213540-1 Available to backorder	O Ring 15 (Alt.)	£0.86 £0.72
68	MK424316-3 Available to backorder	Check Valve	£3.76 £3.13
69	MK422099-9 Available to backorder	Pipe S	£5.48 £4.57
70	MK325665-0 Available to backorder	Joint Pipe	£0.86 £0.72
71	MK442153-3 Available to backorder	Carburetor Gasket	£0.74 £0.62
72	MK922228-9 Available to backorder	H.S.H.Bolt M5x18 With Wr	£0.58 £0.48
72	MK266787-6 Available to backorder	H.S.H.Bolt M5x18 With Wr <	£0.74 £0.62
73	MK451825-9 Available to backorder	Clamp	£0.58 £0.48
74	MK451729-5 Available to backorder	Insulator	£2.60 £2.17
75	MK213547-7 Available to backorder	O-Ring 12	£1.32 £1.10
76	MK422109-2 Available to backorder	Breather Pipe <	£6.52 £5.43
77	MK345918-1 Available to backorder	Hose Clamp	£0.58 £0.48
78	MK318745-9 Available to backorder	Rocker Cover Outer <	£3.46 £2.88
79	MK922222-1 Available to backorder	Hex. Socket Head Bolt M5x16 (Alt.) (Refs 115 \| 117 \| 160)	£0.48 £0.40
80	MK453860-3 Available to backorder	Rocker Cover Inner S	£0.86 £0.72
81	MK162304-9 Available to backorder	Rocker Cover Gasket	£1.60 £1.33
82	MK424302-4 Available to backorder	Plug Cap	£2.60 £2.17
83	MK324891-8 Available to backorder	Plug Cap Spring	£0.58 £0.48
84	MK168534-0 Available to backorder	Spark Plug	£8.20 £6.83
85	MK125554-7 Available to backorder	Rocker Arm Assembly	£4.34 £3.62
86	MK256200-2 Available to backorder	Pin 5	£0.74 £0.62
87	MK256865-0 Available to backorder	Rod 2.5	£0.74 £0.62
88	MK325668-4 Available to backorder	Spring Retainer	£1.74 £1.45
89	MK143823-4 Available to backorder	Clutch Case Complete <	£24.84 £20.70
89	MK451735-0 Available to backorder	Clutch Case	£9.54 £7.95
91	MK450569-8 Available to backorder	Spacer	£0.86 £0.72
92	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
93	MK210111-5 Available to backorder	Ball Bearing 6201Llu	£5.06 £4.22
94	MK962151-6 Available to backorder	Retaining Ring R-32	£0.58 £0.48
95	MK161588-6 Available to backorder	Clutch Drum Complete <	£6.70 £5.58
95	MK168809-7 Available to backorder	Clutch Drum Complete (Alt.)	£7.38 £6.15
96	MK266864-4 Available to backorder	Shoulder Hex. Bolt M6x25 (Alt.)	£1.60 £1.33
96	MK266457-7 Available to backorder	Shoulder Hex. Bolt M6x25	£2.18 £1.82
97	MK267817-6 Available to backorder	Washer 8	£0.58 £0.48
98	MK126135-0 Available to backorder	Clutch Assembly <	£20.38 £16.98
99	MK168498-8 Available to backorder	Clutch Shoe	£8.66 £7.22
99	MK161332-1 Available to backorder	Clutch Shoe (Alt.)	£5.20 £4.33
100	MK231858-8 Available to backorder	Tension Spring 6	£4.34 £3.62
100	MK231881-3 Available to backorder	Tension Spring 7 <	£3.46 £2.88
101	MK267812-6 Available to backorder	Washer 6	£0.58 £0.48
102	MK264039-9 Available to backorder	Coned Disk Spring Hexnut M8-13	£0.74 £0.62
103	MK318569-3 Available to backorder	Flywheel	£19.64 £16.37
104	MK444021-6 Available to backorder	Tube	£0.82 £0.68
105	MK266602-4 Available to backorder	Hex. Socket Head Bolt M4x20	£1.02 £0.85
106	MK452049-0 Available to backorder	Spacer	£0.74 £0.62
107	MK161483-0 Available to backorder	Ignition Coil	£56.10 £46.75
108	MK268238-5 Available to backorder	Pin 5	£0.86 £0.72
109	MK125552-1 Available to backorder	Cam Gear Assembly	£11.42 £9.52
110	MK313169-4 Available to backorder	Cam Lifter	£3.34 £2.78
112	MK268239-3 Available to backorder	Pin 4	£0.58 £0.48
113	MK162274-2 Available to backorder	Cam Gear Cover Gasket	£2.02 £1.68
114	MK318443-5 Available to backorder	Cam Gear Cover	£3.92 £3.27
116	MK135478-9 Available to backorder	Cylinder Block Assembly <	£168.58 £140.48
119	MK346331-6 Available to backorder	Muffler Gasket <	£4.78 £3.98
119	MK345916-5 Available to backorder	Muffler Gasket	£1.88 £1.57
120	MK168554-4 Available to backorder	Exhaust Muffler	£8.24 £6.87
121	MK266440-4 Available to backorder	Hex Socket Head Bolt M5x40	£1.02 £0.85
122	MK168483-1 Available to backorder	Pulley	£1.44 £1.20
123	MK451731-8 Available to backorder	Muffler Plate	£1.16 £0.97
124	MK922206-9 Available to backorder	Hex. Socket Head Bolt M5x10 > (Refs 128 \| 130 \| 172 \| 182)	£0.58 £0.48
124	MK922218-2 Available to backorder	H.S.H.Bolt M5x14 With Wr (Refs 128 \| 130 \| 172 \| 182)	£0.58 £0.48
125	MK638707-4 Available to backorder	Lead Unit	£1.74 £1.45
126	MK638708-2 Available to backorder	Lead Unit	£3.76 £3.13
127	MK808633-3 Available to backorder	4Stroke Indication Label	£0.48 £0.40
129	MK453266-5 Available to backorder	Cylinder Cover S	£6.64 £5.53
131	MK424082-2 Available to backorder	Buffer Rubber	£1.60 £1.33
132	MK922211-6 Available to backorder	H.S.H.Bolt M5x12 With W	£0.58 £0.48
133	MK922226-3 Available to backorder	Hex. Socket Head Bolt M5x18	£0.74 £0.62
134	MK318249-1 Available to backorder	Pipe Holder	£3.04 £2.53
135	MK318250-6 Available to backorder	Pipe Holder	£3.34 £2.78
136	MK424083-0 Available to backorder	Buffer Rubber	£1.60 £1.33
137	MK424200-2 Available to backorder	Spacer	£0.74 £0.62
138	MK234108-0 Available to backorder	Compression Spring 9	£0.86 £0.72
140	MK326366-3 Available to backorder	Exhaust Valve (Alt.)	£0.86 £0.72
143	MK325670-7 Available to backorder	Intake Valve	£5.48 £4.57
143	MK326367-1 Available to backorder	Intake Valve (Alt.)	£4.34 £3.62
144	MK257298-2 Available to backorder	Piston Ring (Top) 34	£4.20 £3.50
144	MK195145-8 Available to backorder	Piston Ring Set S	£15.46 £12.88
145	MK257299-0 Available to backorder	Piston Ring (Second) 34	£4.20 £3.50
146	MK257300-1 Available to backorder	Piston Ring 34	£5.64 £4.70
147	MK318441-9 Available to backorder	Piston	£7.22 £6.02
148	MK254040-2 Available to backorder	Woodruff Key 3	£3.76 £3.13
149	MK126204-7 Available to backorder	Crank Shaft Ass'y S	£117.86 £98.22
149	MK123774-7 Available to backorder	Crank Shaft Assembly <	£46.52 £38.77
149	MK126359-8 Available to backorder	Crank Shaft Assembly (Alt.)	£61.82 £51.52
149	MK135481-0 Available to backorder	Crank Shaft Ass'y <	£95.04 £79.20
150	MK213769-9 Available to backorder	Oil Seal 10 <	£3.34 £2.78
150	MK213148-1 Available to backorder	Oil Seal 10	£2.60 £2.17
151	MK267400-9 Available to backorder	Flat Washer 23	£1.32 £1.10
152	MK213089-1 Available to backorder	Oil Seal 12 <	£3.62 £3.02
152	MK213147-3 Available to backorder	Oil Seal 12	£2.18 £1.82
153	MK257781-9 Available to backorder	Piston Pin	£1.32 £1.10
154	MK233976-8 Available to backorder	Clip	£0.48 £0.40
155	MK162345-5 Available to backorder	Oil Case Gasket S	£2.32 £1.93
155	MK162323-5 Available to backorder	Oil Case Gasket S	£3.76 £3.13
156	MK346083-9 Available to backorder	Lead Valve	£1.88 £1.57
157	MK318910-0 Available to backorder	Retainer Plate S	£1.88 £1.57
158	MK922112-8 Available to backorder	Hex. Socket Head Bolt M4x10 (Alt.)	£0.48 £0.40
159	MK318588-9 Available to backorder	Oil Case	£24.56 £20.47
161	MK424344-8 Available to backorder	Damper	£0.74 £0.62
162	MK346305-7 Available to backorder	Gasket	£0.48 £0.40
163	MK266611-3 Available to backorder	Hex Bolt M6x8	£0.58 £0.48
164	MK213548-5 Available to backorder	O-Ring 20	£1.74 £1.45
166	MK282020-8 Available to backorder	Hose Clamp	£0.58 £0.48
167	MK325666-8 Available to backorder	Oil Weight	£1.32 £1.10
168	MK424301-6 Available to backorder	Oil Tube	£3.34 £2.78
168	MK125805-8 Available to backorder	Oil Tube Assembly S	£5.78 £4.82
169	MK452047-4 In stock	Oil Cap	£1.32 £1.10
170	MK424343-0 Available to backorder	Gasket	£0.86 £0.72
171	MK452048-2 Available to backorder	Oil Pipe	£2.12 £1.77
173	MK125728-0 Available to backorder	Fuel Tank Cap Assembly	£13.16 £10.97
173	MK127112-5 Available to backorder	Fuel Tank Cap Assembly (Alt.)	£15.76 £13.13
175	MK168755-4 Available to backorder	Tube Complete <	£5.94 £4.95
177	MK163518-3 Available to backorder	Gasoline Filter	£3.76 £3.13
178	MK451736-8 Available to backorder	Fuel Tank	£10.84 £9.03
179	MK424080-6 Available to backorder	Buffer Rubber	£0.86 £0.72
180	MK424081-4 Available to backorder	Buffer Rubber	£0.86 £0.72
181	MK451737-6 Available to backorder	Tank Guard	£1.74 £1.45
183	MK195308-6 Available to backorder	Recoil Starter Set <	£43.81 £36.51
184	MK424319-7 Available to backorder	Starter Knob	£2.18 £1.82
185	MK424359-5 Available to backorder	Damper	£1.02 £0.85
187	MK266585-8 Available to backorder	Tapping Screw 5x12	£1.74 £1.45
188	MK325923-4 Available to backorder	Swing Arm	£0.86 £0.72
190	MK451937-8 Available to backorder	Reel	£5.06 £4.22
191	MK232258-5 Available to backorder	Spiral Spring	£9.24 £7.70
192	MK444023-2 Available to backorder	Starter Rope	£9.40 £7.83
193	MK451733-4 Available to backorder	Starter Case	£27.02 £22.52
194	MK922223-9 Available to backorder	H.S.H.Bolt M5x16 With Wr	£0.74 £0.62
196	MK816565-0 Available to backorder	Makita Logo Label	£0.48 £0.40
197	MK168762-7 Available to backorder	Carburetor <	£79.44 £66.20
198	MK325922-6 Available to backorder	Swivel	£5.06 £4.22
199	MK413140-9 Available to backorder	Washer	£1.74 £1.45
200	MKWJ00096364 Available to backorder	Screw M3x8 With Washer (Alt.)	£2.18 £1.82
200	MK266581-6 Available to backorder	Pan Head Screw M3x8 With W	£1.74 £1.45
201	MK257964-1 Available to backorder	Stop Ring E-3	£2.60 £2.17
202	MK213538-8 Available to backorder	O Ring 2 (Alt.)	£3.34 £2.78
203	MK325985-2 Available to backorder	Jet	£8.08 £6.73
204	MK234183-6 Available to backorder	Conical Compression Spring	£3.04 £2.53
205	MK442155-9 Available to backorder	Pump Gasket	£2.76 £2.30
207	MK140437-0 Available to backorder	Pump Body	£28.60 £23.83
207	MK141737-1 Available to backorder	Pump Body x	£24.56 £20.47
208	MK352021-1 Available to backorder	Inlet Screen x	£1.88 £1.57
209	MK442154-1 Available to backorder	Metering Diaphragm Gasket	£3.34 £2.78
210	MK168620-7 Available to backorder	Metering Diaphragm	£18.78 £15.65
211	MK140438-8 Available to backorder	Air Purge Body	£2.02 £1.68
212	MK424314-7 Available to backorder	Primer Pump	£4.67 £3.89
213	MK346270-0 Available to backorder	Primer Pump Cover	£4.48 £3.73
214	MK266582-4 Available to backorder	Tapping Screw 3x24	£1.74 £1.45
215	MK810455-9 Available to backorder	Caution Plate	£1.16 £0.97
216	MK800F73-7 Available to backorder	Indication Label (Alt.)	£0.48 £0.40
217	MK941152-7 Available to backorder	Flat Washer 6	£0.48 £0.40
218	MK443170-6 Available to backorder	Felt	£3.46 £2.88
219	MK352020-3 Available to backorder	Separator Mesh S	£4.48 £3.73
220	MK453865-3 Available to backorder	Separator Case S	£2.76 £2.30
221	MK453862-9 Available to backorder	Oil Case Plate S	£1.78 £1.48
222	MK808723-2 Available to backorder	Caution Label	£0.48 £0.40
223	MK801D19-4 Available to backorder	Serial No. Label <	£1.02 £0.85
224	MK135668-4 Available to backorder	Short Block Ass'y 25.4Cc (Alt.)	£189.08 £157.57
224	MK135599-7 Available to backorder	Short Block Ass'y 25.4Cc	£190.28 £158.57
901	MK125516-5 Available to backorder	Band Assembly (A01)	£5.82 £4.85
901	MK266427-6 Available to backorder	Tapping Screw 4x12 (E01)	£0.48 £0.40
902	MK242072-1 Available to backorder	Oil Bottle (A02)	£5.56 £4.63
902	MK452219-1 Available to backorder	Choke Plate (E02)	£1.60 £1.33
903	MK783013-3 Available to backorder	Box Driver 16-17 (A03)	£4.92 £4.10
903	MK452220-6 Available to backorder	Choke Lever (E03)	£2.02 £1.68
904	MK783217-7 Available to backorder	Hex. Wrench 5 (A04)	£0.56 £0.47
905	MK783202-0 Available to backorder	Hex. Wrench 4 (Alt.) (A05-1)	£1.88 £1.57
905	MK801P53-6 Available to backorder	Gas Emission Approval Label (E05)	£0.48 £0.40
906	MK831304-7 Available to backorder	Accessory Bag (A06)	£2.76 £2.30
907	MKB-05125 Available to backorder	Ultra Auto 4 M Brand Mhi (A07)	£46.28 £38.57
910	MK197007-6 Available to backorder	Oil Set (Alt.) (A10-1)	£7.64 £6.37
