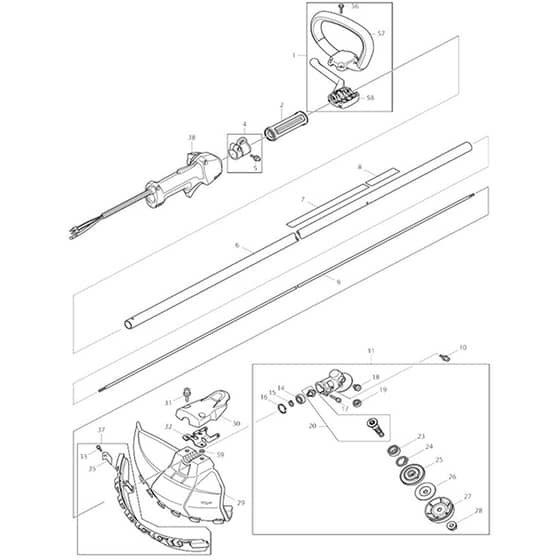

Makita EM2650LH - Petrol Brush Cutter - Power Tool 01 Diagram

Description

Model No. EM2650LH

Petrol Brush Cutter

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK195215-3 Available to backorder	Loop Handle Set	£13.68 £11.40
1	MK783014-1 Available to backorder	+ Screw Driver 2 (C10)	£2.42 £2.02
2	MK451601-1 Available to backorder	Spacer 24	£2.69 £2.24
4	MK195143-2 Available to backorder	Hanger Set	£4.08 £3.40
5	MK911233-1 Available to backorder	Pan Head Screw M5x20	£0.48 £0.40
6	MK140431-2 Available to backorder	Shaft Pipe Complete	£48.24 £40.20
8	MK819312-8 Available to backorder	Makita Logo Label	£0.70 £0.58
9	MK327056-1 Available to backorder	Shaft (Alt.)	£6.72 £5.60
9	MK324893-4 Available to backorder	Shaft	£15.40 £12.83
10	MK922218-2 Available to backorder	H.S.H.Bolt M5x14 With Wr	£0.70 £0.58
10	MK922206-9 Available to backorder	Hex. Socket Head Bolt M5x10 >	£0.70 £0.58
11	MK123833-7 Available to backorder	Gear Case Assembly S	£56.28 £46.90
14	MK210157-1 Available to backorder	Ball Bearing 609Zz (Alt.)	£1.79 £1.49
14	MK210049-4 Available to backorder	Ball Bearing 609Zz	£4.08 £3.40
15	MK961005-4 Available to backorder	Retaining Ring S-9	£0.48 £0.40
15	MK257986-1 Available to backorder	Retaining Ring (Ext) S-9 (Alt.)	£4.08 £3.40
16	MK257987-9 Available to backorder	Retaining Ring (Int)R-24 (Alt.)	£1.39 £1.16
16	MK962103-7 Available to backorder	Retaining Ring R-24	£0.89 £0.74
17	MK922241-7 Available to backorder	Hex. Socket Head Bolt M5x25	£0.89 £0.74
18	MK265590-2 Available to backorder	+Hex.Bolt M8x10 With R	£0.70 £0.58
19	MK211019-6 Available to backorder	Ball Bearing 626	£7.68 £6.40
20	MK183A00-2 Available to backorder	Cutter Shaft Set (Alt.)	£42.12 £35.10
23	MK210115-7 Available to backorder	Ball Bearing 6001Llu	£8.88 £7.40
24	MK962106-1 Available to backorder	Retaining Ring R-28	£1.58 £1.32
25	MK331861-0 Available to backorder	Receive Washer	£12.36 £10.30
26	MK346084-7 Available to backorder	Clamp Washer	£1.74 £1.45
27	MK168526-9 In stock	Cup	£15.72 £13.10
28	MK264025-0 Available to backorder	Hex. Nut M10-17	£3.12 £2.60
29	MK452260-4 Available to backorder	Protector	£12.48 £10.40
30	MK451097-6 Available to backorder	Protector Cover	£2.69 £2.24
31	MK266280-0 Available to backorder	Hex. Socket Head Bolt M6x25 >	£1.03 £0.86
31	MK266579-3 Available to backorder	Hex Socket Head Bolt M6x30	£0.70 £0.58
32	MK346073-2 Available to backorder	Protector Clamp	£1.74 £1.45
33	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
34	MK819430-2 Available to backorder	Caution Tag	£0.70 £0.58
35	MK346074-0 Available to backorder	Cutter	£1.39 £1.16
37	MK135398-7 Available to backorder	Protector Extension Assy	£8.16 £6.80
38	MK125776-9 Available to backorder	Control Lever Assembly	£31.44 £26.20
38	MK126488-7 Available to backorder	Control Lever Assembly <	£30.24 £25.20
39	MK266130-9 Available to backorder	Tapping Screw Bind Pt 3x16	£0.48 £0.40
40	MK451595-0 Available to backorder	Switch Cover	£1.58 £1.32
41	MK451594-2 Available to backorder	Switch Lever	£1.58 £1.32
42	MK232251-9 Available to backorder	Leaf Spring	£0.89 £0.74
43	MK188832-6 Available to backorder	Lever Case Set	£12.00 £10.00
44	MK346248-3 Available to backorder	Clamp 24	£1.39 £1.16
46	MK451593-4 Available to backorder	Lock Lever	£1.58 £1.32
47	MK233541-3 Available to backorder	Torsion Spring 7	£0.48 £0.40
48	MK168571-4 Available to backorder	Control Cable	£3.12 £2.60
49	MK233540-5 Available to backorder	Torsion Spring 11	£0.48 £0.40
50	MK455313-8 Available to backorder	Throttle Lever <	£2.69 £2.24
50	MK451592-6 Available to backorder	Throttle Lever	£2.21 £1.84
51	MK638714-7 Available to backorder	Lead Unit	£1.73 £1.44
52	MK638713-9 Available to backorder	Lead Unit	£1.73 £1.44
53	MK452071-7 Available to backorder	Corrugate Tube	£2.05 £1.71
56	MK911253-5 Available to backorder	Pan Head Screw M5x30	£0.70 £0.58
57	MK451598-4 Available to backorder	Loop Handle 24	£10.20 £8.50
58	MK451599-2 Available to backorder	Handle Clamp 24	£3.60 £3.00
59	MK413143-3 Available to backorder	Washer	£0.48 £0.40
