Makita EM2510L - Petrol Brushcutter - Power Tool 01 Diagram

Description

Model No. EM2510L

Petrol Brushcutter

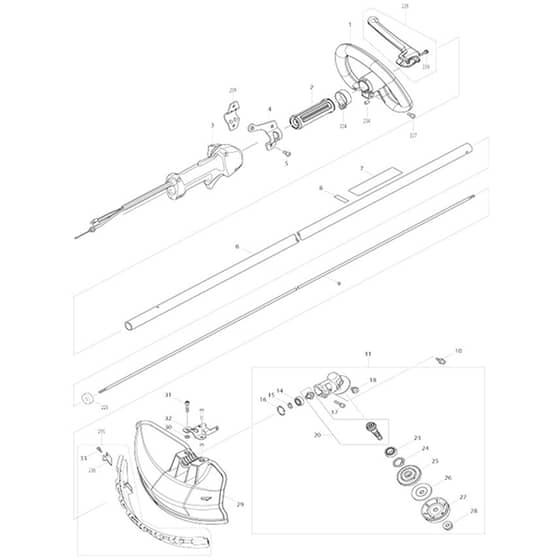

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK456675-7 Available to backorder	Loop Handle 24	£11.40 £9.50
2	MK451601-1 Available to backorder	Spacer 24	£2.69 £2.24
3	MK126487-9 Available to backorder	Control Lever Assembly (INC. 208-223)	£30.12 £25.10
4	MK347091-3 Available to backorder	Hanger 24	£1.90 £1.58
5	MK922212-4 Available to backorder	Hex. Socket Head Bolt M5x12	£0.48 £0.40
6	MK808723-2 Available to backorder	Caution Label (C10)	£0.48 £0.40
7	MK819312-8 Available to backorder	Makita Logo Label	£0.70 £0.58
8	MK801D19-4 Available to backorder	Serial No. Label	£1.22 £1.02
9	MK324893-4 Available to backorder	Shaft	£15.40 £12.83
9	MK327056-1 Available to backorder	Shaft (Alt.)	£6.72 £5.60
10	MK922206-9 Available to backorder	Hex. Socket Head Bolt M5x10 W	£0.70 £0.58
11	MK123846-8 Available to backorder	Gear Case Assembly (INC. 14-18 20 23-28 *)	£65.16 £54.30
14	MK210049-4 Available to backorder	Ball Bearing 609Zz	£4.08 £3.40
15	MK961005-4 Available to backorder	Retaining Ring (Ext) S-9	£0.48 £0.40
16	MK962103-7 Available to backorder	Retaining Ring (Int) R-24	£0.89 £0.74
17	MK922241-7 Available to backorder	Hex. Socket Head Bolt M5x25 W	£0.89 £0.74
18	MK265590-2 Available to backorder	Hex. Head Bolt M8x10 R	£0.70 £0.58
20	MK183A00-2 Available to backorder	Cutter Shaft Set	£42.12 £35.10
23	MK210115-7 Available to backorder	Ball Bearing 6001Llu	£8.88 £7.40
24	MK962106-1 Available to backorder	Retaining Ring (Int) R-28	£1.58 £1.32
25	MK326840-1 Available to backorder	Receive Washer	£8.40 £7.00
26	MK346084-7 Available to backorder	Clamp Washer	£1.74 £1.45
27	MK168526-9 In stock	Cup	£15.72 £13.10
28	MK264025-0 Available to backorder	Hex. Nut M10-17	£3.12 £2.60
29	MK452260-4 Available to backorder	Protector	£12.48 £10.40
30	MK413143-3 Available to backorder	Washer	£0.48 £0.40
31	MK266280-0 Available to backorder	Hex. Socket Head Bolt M6x25	£1.03 £0.86
33	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
225	MK443170-6 Available to backorder	Felt	£3.60 £3.00
228	MK143695-7 Available to backorder	Barrier Complete (INC. 229)	£7.80 £6.50
229	MK911128-8 In stock	Pan Head Screw M4x16 Wr	£0.54 £0.45
234	MK263005-3 In stock	Rubber Pin 6	£0.52 £0.43
235	MK135753-3 Available to backorder	Protector Extension Assembly (INC. 33 236)	£9.00 £7.50
237	MK126135-0 Available to backorder	Clutch Assembly (INC. 108 112)	£21.12 £17.60
238	MK123465-0 Available to backorder	Engine Short Block	£205.56 £171.30
239	MK347094-7 Available to backorder	Clamp 24	£1.73 £1.44
