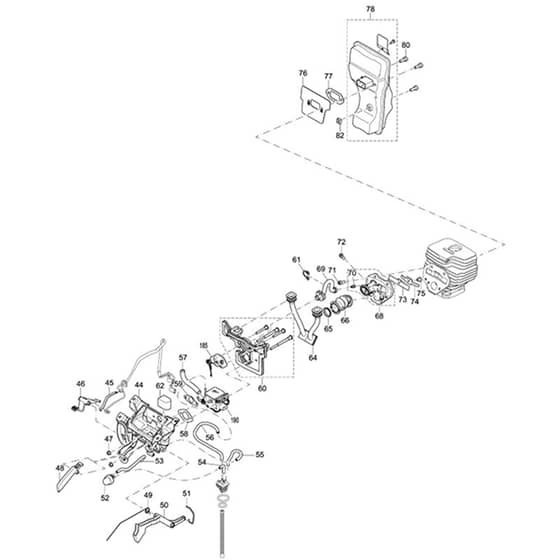

Makita EK6100 - Power Cutter - Power Tool 03 Diagram

Description

Model No. EK6100

Power Cutter

Power Tool 03 Parts Diagrams

	Part No.	Details
44	MK456291-5 Available to backorder	Intake Manifold	£5.40 £4.50
46	MK456292-3 Available to backorder	Choke Lever	£1.22 £1.02
47	MK264119-1 Available to backorder	Hexagonal Nut M4	£0.48 £0.40
48	MK456294-9 Available to backorder	Catch Lever	£0.89 £0.74
49	MK233631-2 Available to backorder	Spring	£1.15 £0.96
52	MK168398-2 In stock	Primer Pump	£7.67 £6.39
53	MK424785-8 Available to backorder	Viton Tube L 122mm	£2.83 £2.36

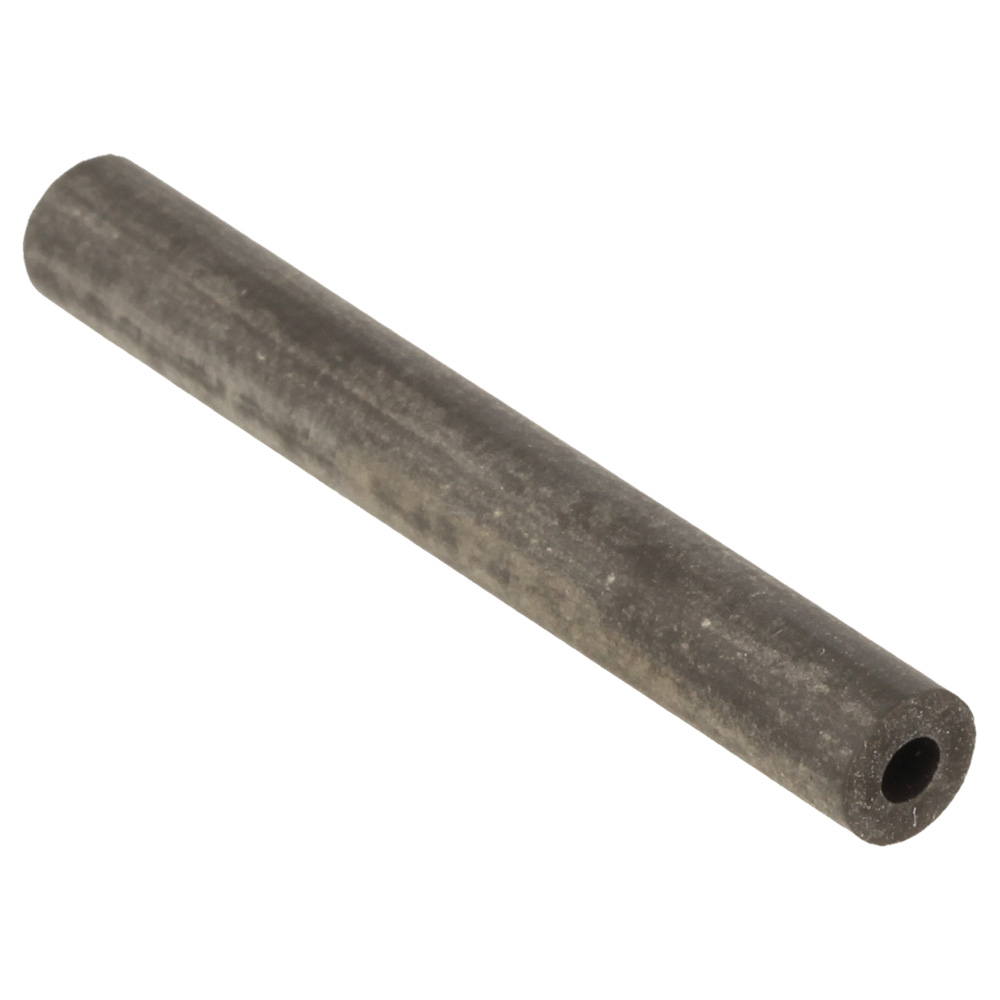

54	MK424783-2 Available to backorder	Viton Tube L 40mm	£1.58 £1.32
55	MK424784-0 Available to backorder	Viton Tube L 84mm	£2.21 £1.84
56	MK424786-6 Available to backorder	Viton Tube L 200mm	£4.80 £4.00
57	MK424787-4 Available to backorder	Tube. Viton 10x6 L 82mm	£10.68 £8.90
60	MK143440-0 Available to backorder	Intermediate Wall Cpl.	£5.04 £4.20
68	MK143439-5 Available to backorder	Air Hose Cpl.	£95.52 £79.60
71	MK266986-0 Available to backorder	H.L. Socket Head Bolt M5x14	£0.70 £0.58
71	MK251577-0 Available to backorder	H.L. Socket Head Bolt M5x16	£0.84 £0.70
73	MK346951-6 Available to backorder	Reedvalve	£7.32 £6.10
74	MK310674-2 Available to backorder	Valve Stopper	£2.38 £1.98
75	MK266985-2 Available to backorder	H.L. Socket Head Bolt M4x8	£0.65 £0.54
77	MK346876-4 Available to backorder	Muffler Gasket	£1.03 £0.86

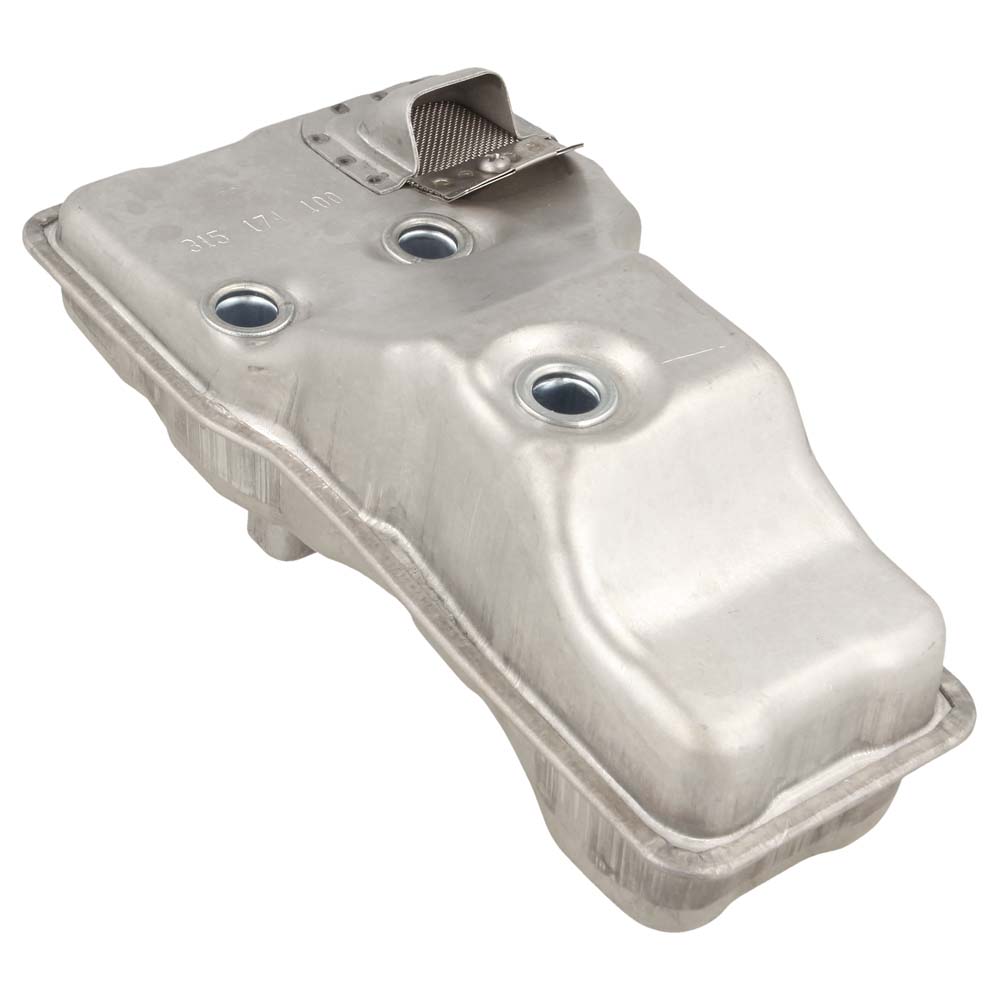

78	MK161392-3 Available to backorder	Muffler Cpl.	£12.72 £10.60
80	MK266605-8 Available to backorder	H.L. Socket Head Bolt M5x16	£0.52 £0.43

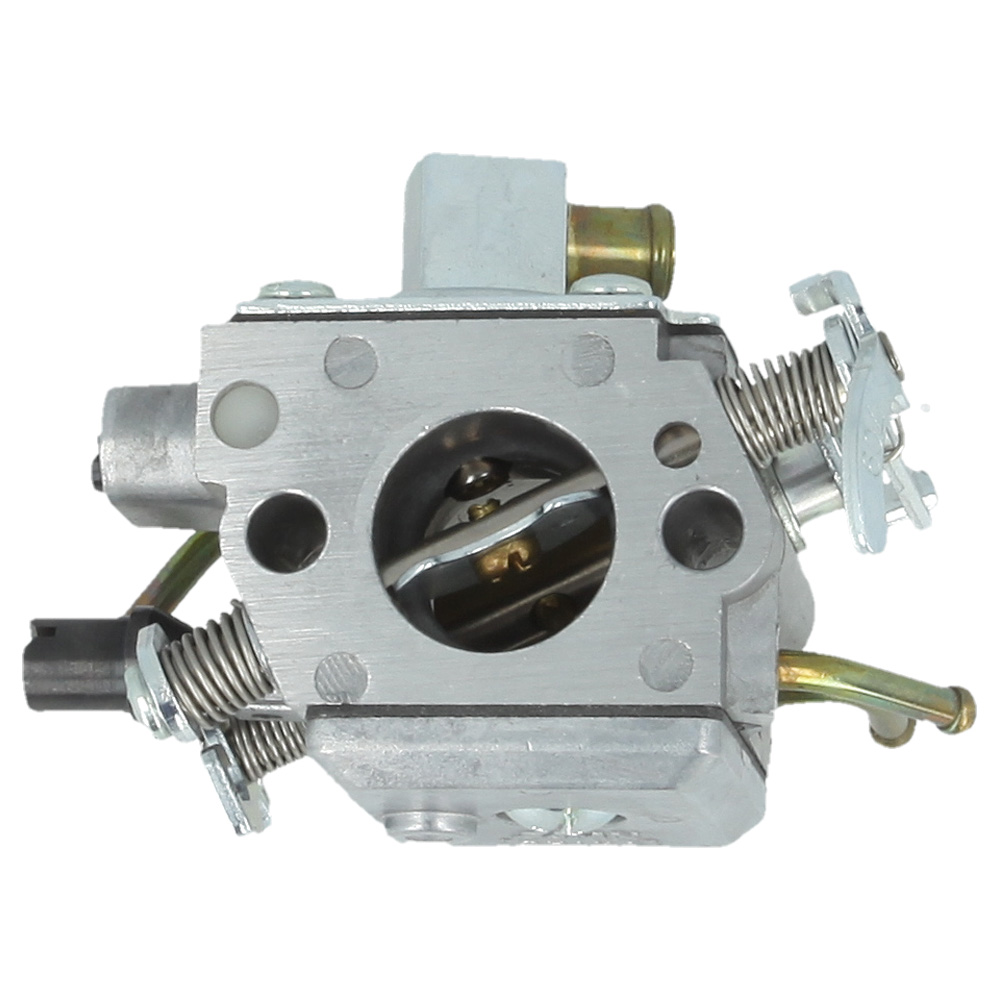

190	MK161395-7 In stock	Carburetor Dm21A	£76.62 £63.85
