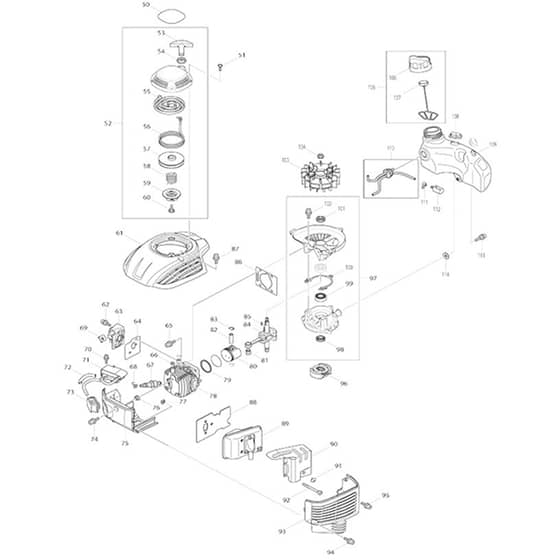

Makita EH7500S - Petrol Hedge Trimmer - Power Tool 02 Diagram

Description

Model No. EH7500S

Petrol Hedge Trimmer

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
50	MK819807-1 Available to backorder	Model No. Label Eh7500S	£3.46 £2.88
52	MK125753-1 Available to backorder	Recoil Starter Assembly	£53.16 £44.30
53	MK424319-7 Available to backorder	Starter Knob (Alt.)	£2.18 £1.82
53	MK5225004020 Available to backorder	Handle	£5.94 £4.95
54	MK5255001040 Available to backorder	Damper	£3.46 £2.88
54	MK424359-5 Available to backorder	Damper (Alt.)	£1.02 £0.85
55	MK232258-5 Available to backorder	Spiral Spring (Alt.)	£9.24 £7.70
55	MK5215002030 Available to backorder	Spiral Spring	£9.12 £7.60
56	MK444028-2 Available to backorder	Starter Rope	£3.92 £3.27
57	MK452402-0 Available to backorder	Reel	£13.28 £11.07
58	MK233991-2 Available to backorder	Damper Spring	£9.12 £7.60
59	MK452403-8 Available to backorder	Cam Plate	£10.84 £9.03
60	MK5195002060 Available to backorder	Set Screw	£3.34 £2.78
60	MK266585-8 Available to backorder	Tapping Screw 5x12 (Alt.)	£1.74 £1.45
61	MK452948-6 Available to backorder	Blower Housing S	£18.78 £15.65
62	MK266760-6 Available to backorder	H.S.H.Bolt M5x18 With Wrm (Alt.) (Refs 074 \| 094)	£0.74 £0.62
63	MK451911-6 Available to backorder	Insulator	£8.38 £6.98
64	MK346268-7 Available to backorder	Insulator Gasket	£1.88 £1.57
65	MK266787-6 Available to backorder	H.S.H.Bolt M5x18 With Wr (Alt.) (Refs 087 \| 095 \| 102)	£0.74 £0.62
66	MK452556-3 Available to backorder	Spacer (Alt.)	£1.78 £1.48
67	7222 In stock	Spark Plug (Alt.)	£4.99 £4.16
68	MK324891-8 Available to backorder	Plug Cap Spring (Alt.)	£0.58 £0.48
69	MK424491-5 Available to backorder	Grommet (Alt.)	£0.96 £0.80
70	MK922138-0 Available to backorder	H.S.H.Bolt M4x20 With Wr (Alt.)	£2.76 £2.30
72	MK412102-4 Available to backorder	Tube (Alt.)	£0.82 £0.68
73	MK424302-4 Available to backorder	Plug Cap	£2.60 £2.17
75	MK451860-7 Available to backorder	Cylinder Cover	£5.48 £4.57
76	MK5503503001 Available to backorder	Spacer	£2.18 £1.82
77	MK264050-1 Available to backorder	Square Nut M5-8 (Alt.)	£0.48 £0.40
78	MK141381-4 Available to backorder	Cylinder Complete (Alt.)	£51.42 £42.85
79	MK257334-4 Available to backorder	Piston Ring 33 (Alt.)	£2.18 £1.82
79	MKS115113650 Available to backorder	Piston Ring	£3.04 £2.53
80	MKS115313750 Available to backorder	Piston	£11.42 £9.52
80	MK318858-6 Available to backorder	Piston (Alt.)	£10.12 £8.43
81	MK212702-8 Available to backorder	Needle Cage 810 (Alt.)	£7.38 £6.15
82	MK268287-2 Available to backorder	Piston Pin 8 (Alt.)	£1.64 £1.37
82	MK256543-2 Available to backorder	Piston Pin 8 (Alt.)	£1.60 £1.33
83	MKS198343210 Available to backorder	Clip	£0.74 £0.62
83	MK234243-4 Available to backorder	Clip (Alt.)	£0.48 £0.40
84	MK140429-9 Available to backorder	Crankshaft Complete	£45.94 £38.28
85	MK254041-0 Available to backorder	Woodruff Key (Alt.)	£0.82 £0.68
86	MK346267-9 Available to backorder	Cylinder Gasket	£2.02 £1.68
88	MK346260-3 Available to backorder	Muffler Gasket	£3.92 £3.27
89	MK168565-9 Available to backorder	Muffler	£92.82 £77.35
89	MK161555-1 Available to backorder	Muffler <	£57.64 £48.03
89	MK162530-0 Available to backorder	Muffler <	£65.24 £54.37
90	MK346343-9 Available to backorder	Muffler Cover	£8.66 £7.22
92	MK266754-1 Available to backorder	Socket Head Bolt (Alt.)	£1.74 £1.45
93	MK451861-5 Available to backorder	Muffler Cover	£7.22 £6.02
96	MK141150-3 Available to backorder	Clutch Complete (Alt.)	£40.88 £34.07
97	MK5231016000 Available to backorder	Crankcase Assembly	£129.28 £107.73
98	MK213148-1 Available to backorder	Oil Seal 10 (Alt.)	£2.60 £2.17
98	MK213769-9 Available to backorder	Oil Seal 10 (Alt.)	£3.34 £2.78
99	MK211064-1 Available to backorder	Ball Bearing 6000 (Alt.)	£2.18 £1.82
99	MK210086-8 Available to backorder	Ball Bearing 6000 (Alt.)	£10.84 £9.03
100	MK413139-4 Available to backorder	Crankcase Gasket	£1.44 £1.20
103	MK126046-9 Available to backorder	Flywheel Assembly S	£32.80 £27.33
104	MK264073-9 Available to backorder	Corned Disc Spring Hex Nut	£1.36 £1.13
105	MK127110-9 Available to backorder	Fuel Tank Cap Assembly (Alt.)	£17.04 £14.20
105	MK125770-1 Available to backorder	Fuel Tank Cap Assembly	£21.24 £17.70
108	MK424080-6 Available to backorder	Buffer Rubber	£0.86 £0.72
109	MK451867-3 Available to backorder	Fuel Tank	£15.44 £12.87
109	MK458743-2 Available to backorder	Fuel Tank S	£10.56 £8.80

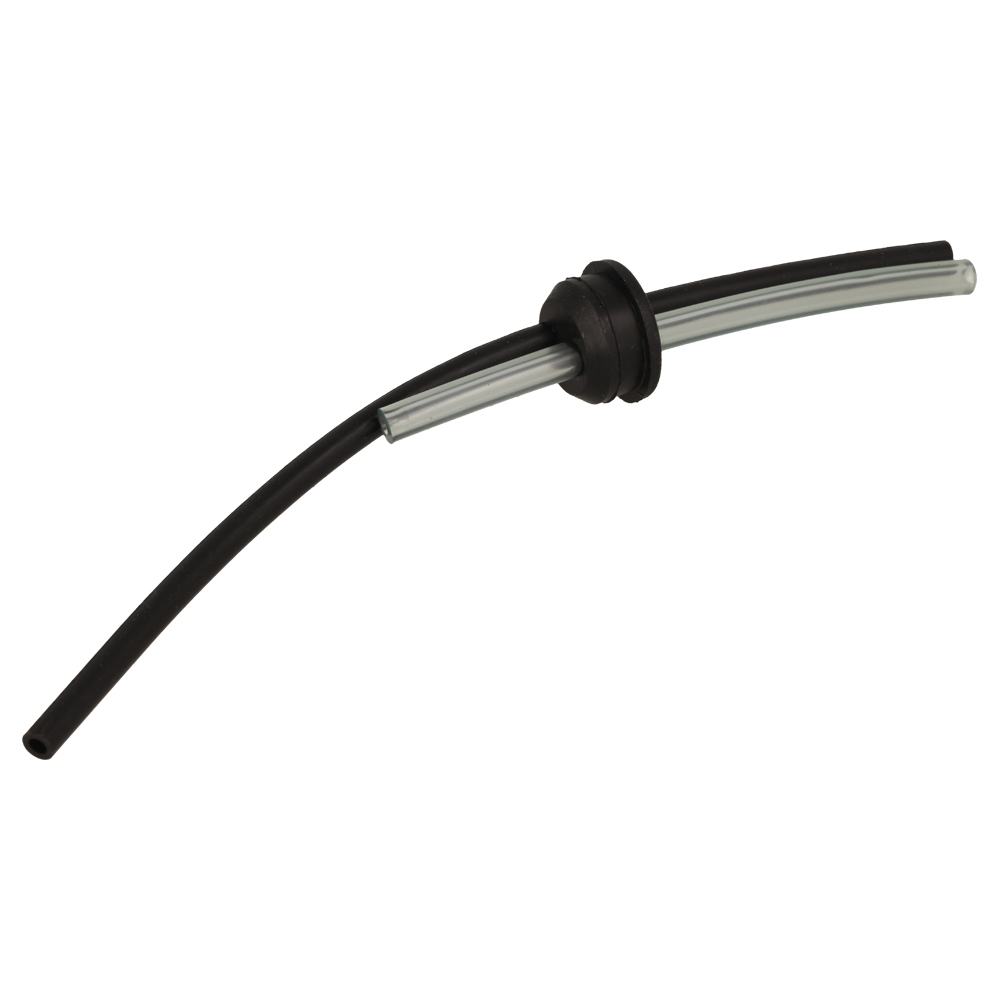

110	MK168568-3 Available to backorder	Fuel Tube Assembly	£7.22 £6.02
111	MK345920-4 Available to backorder	Hose Clamp (Alt.)	£0.58 £0.48
112	MK163518-3 Available to backorder	Gasoline Filter (Alt.)	£3.76 £3.13
113	MK251583-5 Available to backorder	H.Socket Head Shoulder Bol	£1.24 £1.03
114	MK452197-5 Available to backorder	Spacer	£1.64 £1.37
