Model No. EBH252U

Brush Cutter

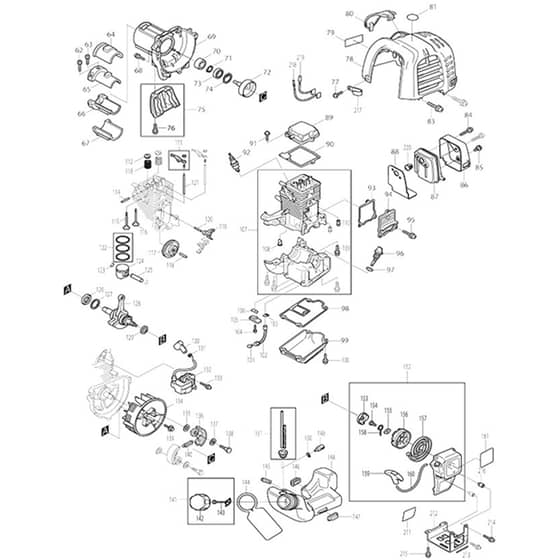

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
62	MK922226-3 Available to backorder	Hex. Socket Head Bolt M5x18 W	£0.74 £0.62
63	MK922211-6 Available to backorder	Hex. Socket Head Bolt M5x12 W	£0.58 £0.48
64	MK424191-7 Available to backorder	Pipe Damper 1	£1.44 £1.20
65	MK318270-0 Available to backorder	Pipe Bracket 1	£1.74 £1.45
66	MK318271-8 Available to backorder	Pipe Bracket 2	£2.02 £1.68
67	MK424107-2 Available to backorder	Pipe Damper 2	£1.88 £1.57
68	MK922222-1 Available to backorder	Hex. Socket Head Bolt M5x16 x	£0.48 £0.40
69	MK318329-3 Available to backorder	Clutch Case	£12.00 £10.00
70	MK450569-8 Available to backorder	Spacer	£0.86 £0.72
71	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
72	MK168809-7 Available to backorder	Clutch Drum (Alt.)	£7.38 £6.15
72	MK168475-0 Available to backorder	Clutch Drum	£12.14 £10.12
73	MK210111-5 Available to backorder	Ball Bearing 6201Llu	£5.06 £4.22
74	MK962151-6 Available to backorder	Retaining Ring (Int) R-32	£0.58 £0.48
75	MK195144-0 Available to backorder	Stand Set (INC. 76)	£2.60 £2.17
76	MK911218-7 In stock	Pan Head Screw M5x14 Wr (Refs 095 \| 166)	£0.48 £0.40
77	MK911213-7 Available to backorder	Pan Head Screw M5x12 Wr (Alt.)	£0.48 £0.40
78	MK450654-7 Available to backorder	Cylinder Cover	£7.66 £6.38
79	MK819312-8 Available to backorder	Makita Logo Label	£0.58 £0.48
80	MK452144-6 Available to backorder	Plug Cover (Alt.)	£1.44 £1.20
81	MK808633-3 Available to backorder	4 Stroke Indication Label	£0.48 £0.40
83	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr (Alt.)	£0.47 £0.39
84	MK266440-4 Available to backorder	Hex. Socket Head Bolt M5x40	£1.02 £0.85
85	MK265184-3 Available to backorder	Truss Head Screw M5x5	£0.58 £0.48
86	MK345915-7 Available to backorder	Muffler Cover	£2.46 £2.05
87	MK168469-5 Available to backorder	Exhaust Muffler	£7.66 £6.38
88	MK345916-5 Available to backorder	Muffler Gasket	£1.88 £1.57
89	MK140B46-7 Available to backorder	Rocker Cover Complete <	£6.70 £5.58
90	MK162275-0 Available to backorder	Rocker Cover Gasket	£1.88 £1.57
91	MK266494-1 Available to backorder	Pan Head Screw M5x16	£0.70 £0.58
91	MK922223-9 Available to backorder	Hex. Socket Head Bolt M5x16 Wr x	£0.74 £0.62
92	MK168534-0 Available to backorder	Spark Plug	£8.20 £6.83
93	MK162274-2 Available to backorder	Cam Gear Cover Gasket	£2.02 £1.68
94	MK318443-5 Available to backorder	Cam Gear Cover	£3.92 £3.27
95	MK922217-4 Available to backorder	Hex. Socket Head Bolt M5x14 (Alt.) (Refs 100 \| 109)	£0.58 £0.48
96	MK450565-6 Available to backorder	Oil Gauge	£2.02 £1.68
97	MK424100-6 Available to backorder	Gasket	£0.74 £0.62
98	MK162276-8 Available to backorder	Case Gasket	£2.46 £2.05
99	MK318442-7 Available to backorder	Oil Case	£6.06 £5.05
101	MK325666-8 Available to backorder	Oil Weight	£1.32 £1.10
102	MK424202-8 Available to backorder	Oil Tube	£3.46 £2.88
103	MK282020-8 Available to backorder	Hose Clamp	£0.58 £0.48
104	MK922111-0 Available to backorder	Hex. Socket Head Bolt M4x10 W (Alt.)	£0.58 £0.48
104	MK922112-8 Available to backorder	Hex. Socket Head Bolt M4x10 (Alt.)	£0.48 £0.40
105	MK318440-1 Available to backorder	Retainer Plate	£1.88 £1.57
106	MK346083-9 Available to backorder	Reed Valve	£1.88 £1.57
107	MK135375-9 Available to backorder	Cylinder Block Assembly (INC. 108-110)	£165.40 £137.83
110	MK424200-2 Available to backorder	Spacer	£0.74 £0.62
111	MK125554-7 Available to backorder	Rocker Arm Assembly	£4.34 £3.62
112	MK325668-4 Available to backorder	Spring Retainer	£1.74 £1.45
113	MK234108-0 Available to backorder	Compression Spring 9	£0.86 £0.72
114	MK256200-2 Available to backorder	Pin 5	£0.74 £0.62
115	MK325670-7 Available to backorder	Intake Valve	£5.48 £4.57
115	MK326367-1 Available to backorder	Intake Valve (Alt.)	£4.34 £3.62
116	MK326366-3 Available to backorder	Exhaust Valve (Alt.)	£0.86 £0.72
117	MK125552-1 Available to backorder	Cam Gear Assembly	£11.42 £9.52
118	MK268238-5 Available to backorder	Pin 5	£0.86 £0.72
119	MK313169-4 Available to backorder	Cam Lifter	£3.34 £2.78
120	MK268239-3 Available to backorder	Pin 4	£0.58 £0.48
121	MK256865-0 Available to backorder	Rod 2.5	£0.74 £0.62
122	MK196595-0 Available to backorder	Piston Ring Set (Alt.)	£6.82 £5.68
122	MK195145-8 Available to backorder	Piston Ring Set	£15.46 £12.88
123	MK233976-8 Available to backorder	Clip	£0.48 £0.40
124	MK197453-3 Available to backorder	Piston Set < (INC. 122 123)	£14.34 £11.95
124	MK318441-9 Available to backorder	Piston	£7.22 £6.02
125	MK257781-9 Available to backorder	Piston Pin	£1.32 £1.10
126	MK213089-1 Available to backorder	Oil Seal 12 <	£3.62 £3.02
126	MK213147-3 Available to backorder	Oil Seal 12	£2.18 £1.82
127	MK267400-9 Available to backorder	Flat Washer 23	£1.32 £1.10
128	MK135374-1 Available to backorder	Crankshaft Assembly	£40.44 £33.70
129	MK213148-1 Available to backorder	Oil Seal 10	£2.60 £2.17
129	MK213769-9 Available to backorder	Oil Seal 10 <	£3.34 £2.78
130	MK424105-6 Available to backorder	Plug Cap	£1.02 £0.85
131	MK324891-8 Available to backorder	Plug Cap Spring	£0.58 £0.48
132	MK168816-0 Available to backorder	Ignition Coil S	£15.46 £12.88
133	MK911139-3 Available to backorder	Pan Head Screw M4x20 Wg	£0.48 £0.40
133	MK922138-0 Available to backorder	Hex. Socket Head Bolt M4x20 Wr x	£2.76 £2.30
134	MK318343-9 Available to backorder	Flywheel	£13.74 £11.45
134	MK319012-5 Available to backorder	Flywheel (Alt.)	£14.08 £11.73
135	MK267812-6 Available to backorder	Washer 6	£0.58 £0.48
136	MK168498-8 Available to backorder	Clutch Shoe	£8.66 £7.22
136	MK161332-1 Available to backorder	Clutch Shoe (Alt.)	£5.20 £4.33
137	MK267817-6 Available to backorder	Washer 8	£0.58 £0.48
138	MK266457-7 Available to backorder	Hex. Head Shoulder Bolt M6x25	£2.18 £1.82
138	MK266864-4 Available to backorder	Hex. Head Shoulder Bolt M6x25 (Alt.)	£1.60 £1.33
139	MK265577-4 Available to backorder	Hex. Head Bolt M6x16	£0.58 £0.48
140	MK231858-8 Available to backorder	Tension Spring 6	£4.34 £3.62
140	MK231881-3 Available to backorder	Tension Spring 7 <	£3.46 £2.88
141	MK125472-9 Available to backorder	Fuel Tank Cap Assembly (INC. 142 143 *)	£6.94 £5.78
141	MK127108-6 Available to backorder	Fuel Tank Cap Assembly (Alt.) (INC. 142 143)	£9.24 £7.70
142	MK140435-4 Available to backorder	Fuel Tank Cap	£6.22 £5.18
142	MK127109-4 Available to backorder	Fuel Tank Cap Assembly (Alt.)	£7.80 £6.50
143	MK140436-2 Available to backorder	Strap Complete	£5.56 £4.63
144	MK810455-9 Available to backorder	Caution Plate	£1.16 £0.97
146	MK424103-0 Available to backorder	Plate	£0.74 £0.62
147	MK424104-8 Available to backorder	Damper	£1.88 £1.57
148	MK450566-4 Available to backorder	Fuel Tank	£6.52 £5.43
149	MK163447-0 In stock	Gasoline Filter	£2.69 £2.24
150	MK345920-4 Available to backorder	Hose Clamp	£0.58 £0.48
151	MK168472-6 Available to backorder	Tube Complete	£5.06 £4.22
152	MK195146-6 Available to backorder	Recoil Starter Set (INC. 153-160)	£19.64 £16.37
153	MK168483-1 Available to backorder	Pulley	£1.44 £1.20
154	MK266585-8 Available to backorder	Binding Head Tapping Screw 5x12	£1.74 £1.45
156	MK451937-8 Available to backorder	Reel	£5.06 £4.22
157	MK232258-5 Available to backorder	Spiral Spring	£9.24 £7.70
158	MK325923-4 Available to backorder	Swing Arm	£0.86 £0.72
159	MK424319-7 Available to backorder	Starter Knob	£2.18 £1.82
160	MK444019-3 Available to backorder	Starter Rope	£1.32 £1.10
161	MK809115-8 Available to backorder	Model No. Label Ebh252U	£0.48 £0.40
162	MK265188-5 Available to backorder	Pan Head Screw M5x68	£1.02 £0.85
163	MK345919-9 Available to backorder	Plate	£0.58 £0.48
164	MK423376-2 Available to backorder	Gasket	£0.48 £0.40
165	MK450560-6 Available to backorder	Choke Plate	£0.74 £0.62
167	MK450561-4 Available to backorder	Air Cleaner Cover	£1.88 £1.57
169	MK443140-5 In stock	Air Cleaner Element	£1.74 £1.45
170	MK345918-1 Available to backorder	Hose Clamp	£0.58 £0.48
171	MK422041-0 Available to backorder	Breather Pipe	£1.44 £1.20
172	MK422042-8 Available to backorder	Pipe	£0.86 £0.72
173	MK123845-0 Available to backorder	Cleaner Plate Assembly (Alt.) (INC. 173-181)	£35.24 £29.37
173	MK125468-0 Available to backorder	Cleaner Plate Assembly (INC. 173-181 *)	£16.34 £13.62
173	MK455407-9 Available to backorder	Air Cleaner Plate x (C11)	£8.62 £7.18
174	MK451925-5 In stock	Choke Lever	£1.12 £0.93
174	MK457241-3 Available to backorder	Choke Lever x	£4.10 £3.42
175	MK213540-1 Available to backorder	O-Ring 15	£0.86 £0.72
175	MK213094-8 Available to backorder	O-Ring 15 x	£1.10 £0.92
176	MK424316-3 Available to backorder	Check Valve	£3.76 £3.13
176	MK424938-9 Available to backorder	Check Valve x	£2.18 £1.82
177	MK213539-6 Available to backorder	O-Ring 14	£0.86 £0.72
177	MK213093-0 Available to backorder	O-Ring 14 x	£0.48 £0.40
178	MK457240-5 Available to backorder	Check Valve Plate x	£3.82 £3.18
178	MK451924-7 Available to backorder	Check Valve Plate	£1.16 £0.97
179	MK424937-1 Available to backorder	Check Valve x	£1.36 £1.13
179	MK424315-5 Available to backorder	Check Valve	£1.16 £0.97
180	MK168577-2 Available to backorder	Separator Gasket	£0.80 £0.67
181	MK161571-3 Available to backorder	Separator Plate x	£2.18 £1.82
181	MK168576-4 Available to backorder	Separator Plate	£5.94 £4.95
182	MK413121-3 Available to backorder	Carburetor Gasket	£1.32 £1.10
183	MK922228-9 Available to backorder	Hex. Socket Head Bolt M5x18 Wr	£0.58 £0.48
184	MK450559-1 Available to backorder	Insulator	£3.34 £2.78
187	MK324961-3 Available to backorder	Intake Pipe	£1.44 £1.20
188	MK413120-5 Available to backorder	Insulator Gasket	£0.58 £0.48
189	MK213078-6 Available to backorder	O-Ring 10	£0.48 £0.40
190	MK922213-2 Available to backorder	Hex. Socket Head Bolt M5x12 Wr	£0.58 £0.48
191	MK450562-2 Available to backorder	Clamp	£0.58 £0.48
193	MK168497-0 Available to backorder	Carburetor (INC. 194 196-210)	£82.39 £68.66
194	MK140437-0 Available to backorder	Pump Body (INC. 195)	£28.60 £23.83
195	MKWJ00014070 Available to backorder	Inlet Screen (Alt.)	£1.60 £1.33
196	MK442154-1 Available to backorder	Metering Diaphragm Gasket	£3.34 £2.78
197	MKWJ00095586 Available to backorder	Diaphragm Ass'y x	£10.56 £8.80
198	MK140438-8 Available to backorder	Air Purge Body	£2.02 £1.68
199	MK424314-7 Available to backorder	Primer Pump	£4.67 £3.89
200	MK346270-0 Available to backorder	Primer Pump Cover	£4.48 £3.73
201	MK266582-4 Available to backorder	Pan Head Tapping Screw 3x24	£1.74 £1.45
203	MK442155-9 Available to backorder	Pump Gasket	£2.76 £2.30
204	MK325924-2 Available to backorder	Jet	£8.96 £7.47
205	MK213538-8 Available to backorder	O-Ring 2	£3.34 £2.78
206	MK234183-6 Available to backorder	Conical Compression Spring 5-9	£3.04 £2.53
207	MKWJ00096364 Available to backorder	Screw M3x8 With Washer (Alt.)	£2.18 £1.82
207	MK266581-6 Available to backorder	Pan Head Screw M3x8 W	£1.74 £1.45
208	MK325922-6 Available to backorder	Swivel	£5.06 £4.22
209	MK413140-9 Available to backorder	Washer	£1.74 £1.45
210	MK257964-1 Available to backorder	Stop Ring (Ext) E3	£2.60 £2.17
211	MK806902-6 Available to backorder	Gas Emission Approval Label	£1.10 £0.92
212	MK345964-4 Available to backorder	Tank Guard	£2.46 £2.05
213	MK814998-3 Available to backorder	Serial No. Label <	£0.86 £0.72
214	MK911148-2 Available to backorder	Pan Head Screw M4x25 Wr	£0.48 £0.40
216	MK331835-1 Available to backorder	Spacer	£0.58 £0.48
