Makita EA5600F - Petrol Chain Saw - Power Tool 04 Diagram

Description

Model No. EA5600F

Petrol Chain Saw

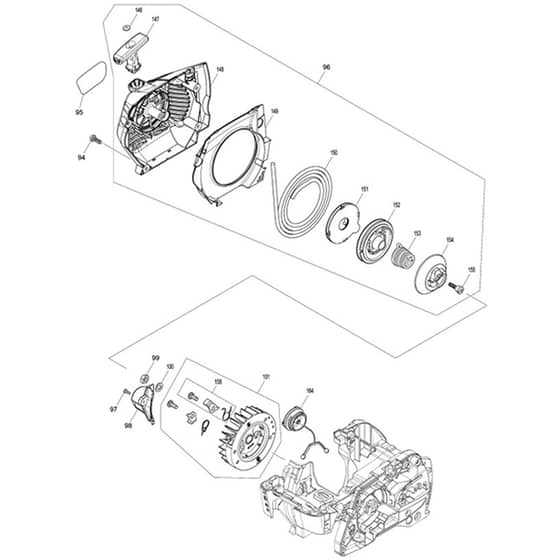

Power Tool 04 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
97	MK266421-8 Available to backorder	Tapping Screw 3x10	£0.48 £0.40
98	MK456377-5 Available to backorder	Air Duct	£1.52 £1.27
99	MK920308024 Available to backorder	Hex. Nut M8x1	£0.48 £0.40
100	MK926208001 Available to backorder	Spring Washer 8	£0.48 £0.40
101	MK181141105 Available to backorder	Flywheel Cpl.	£181.00 £150.83
101	MK143331-5 Available to backorder	Flywheel Complete (Alt.)	£36.56 £30.47
103	MK131132100 Available to backorder	Piston Complete	£55.70 £46.42
106	MK131118600 Available to backorder	Hood Set	£19.64 £16.37
107	MK424878-1 Available to backorder	Buffer (Alt.)	£0.70 £0.58
107	MK965402360 Available to backorder	Rubber Buffer	£0.82 £0.68
108	MK131213050 Available to backorder	Hand Guard Guide	£17.78 £14.82
110	MK326676-8 Available to backorder	Bush 10	£2.32 £1.93
111	MK131174090 Available to backorder	Cooling Plate	£2.18 £1.82
112	MK346876-4 Available to backorder	Muffler Gasket (Alt.)	£0.86 £0.72
113	MK131174100 Available to backorder	Muffler Complete	£40.44 £33.70
114	MK266605-8 In stock	H.L. Socket Head Bolt M5x16	£0.47 £0.39
115	MK131174040 Available to backorder	Spark Arrester	£1.92 £1.60
116	MK914535105 Available to backorder	Self Tapping Screw 3.5x9.5	£1.32 £1.10
117	MK213141-5 Available to backorder	Oil Seal 12 (Alt.)	£4.54 £3.78
118	MK131111100 Available to backorder	Crankcase Ms Complete	£39.86 £33.22
119	MK211494-6 Available to backorder	Ball Bearing 6201 (Alt.)	£33.22 £27.68
120	MK131111060 Available to backorder	Crankcase Gasket	£4.52 £3.77
121	MK131131020 Available to backorder	Cylinder-Base Gasket	£3.70 £3.08
122	MK258038-1 Available to backorder	Clamping Pin (Alt.)	£0.48 £0.40
122	MK936430160 Available to backorder	Pin 3x16	£0.70 £0.58
123	MK962210111 Available to backorder	Needle Cage	£6.28 £5.23
123	MK212164-0 Available to backorder	Needle Cage (Alt.)	£6.64 £5.53
124	MK131120100 Available to backorder	Crankshaft Complete	£111.12 £92.60
125	MK211154-0 Available to backorder	Ball Bearing 6202 (Alt.)	£5.78 £4.82
126	MK131111111 Available to backorder	Crankcase Cs Complete	£43.00 £35.83
128	MK908705165 Available to backorder	Hl Socket Head Bolt M5x16	£0.82 £0.68
129	MK962900160 Available to backorder	Oil Seal 20	£17.62 £14.68
130	MK326658-0 Available to backorder	Sleeve 15	£2.34 £1.95
131	MK266479-7 Available to backorder	H.L. Socket Head Bolt M6x20	£0.70 £0.58
131	MK908006205 Available to backorder	H.L. Socket Head Bolt M6x20	£0.70 £0.58
132	MK143754-7 Available to backorder	Damping Spring Assembly	£8.88 £7.40
133	MK130118070 Available to backorder	Steelclip	£0.96 £0.80
133	MK347071-9 Available to backorder	Clamp (Alt.)	£0.70 £0.58
134	MK424806-6 Available to backorder	Intake Manifold Damper	£0.82 £0.68
135	MK313212-9 Available to backorder	Hand Guard Guide	£0.58 £0.48
136	MK234093-7 Available to backorder	Compression Spring 3 (Alt.)	£0.58 £0.48
137	MK456613-9 Available to backorder	Spacer	£1.10 £0.92
139	MK181111230 Available to backorder	Rubber Buffer	£3.54 £2.95
140	MK914105656 Available to backorder	H.L. Socket Head Bolt M5x65	£1.78 £1.48
141	MK195762-4 Available to backorder	Air Valve Set (Alt.)	£2.18 £1.82
142	MK131111080 Available to backorder	Heat Protection Foil	£4.52 £3.77
143	MK327008-2 Available to backorder	Sleeve 5	£1.10 £0.92
144	MK908605505 Available to backorder	H.L Socket Head Bolt M5x50	£0.96 £0.80
145	MK905708215 Available to backorder	Bolt	£2.46 £2.05
146	MK267821-5 Available to backorder	Spring Washer 5 (Alt.)	£0.48 £0.40
147	MK181164010 Available to backorder	Starter Grip	£5.04 £4.20
151	MK140587-1 In stock	Rewind Spring Complete (Alt.)	£13.55 £11.29
152	MK452224-8 Available to backorder	Cable Drum (Alt.)	£23.68 £19.73
153	MK234193-3 Available to backorder	Spring Easy Start (Alt.)	£7.57 £6.31
154	MK181163090 Available to backorder	Starter Wheel	£3.82 £3.18
154	MK452227-2 Available to backorder	Driver Easy Start (Alt.)	£7.38 £6.15
155	MK266616-3 Available to backorder	Screw (Alt.)	£1.74 £1.45
156	MK181132080 Available to backorder	Piston Ring 45mm	£22.38 £18.65
157	MK234390-1 Available to backorder	Circlip 11 (Alt.)	£2.46 £2.05
158	MK181166100 Available to backorder	Starter Ratchet Cp (2Pcs Each)	£8.96 £7.47
162	MK181224090 Available to backorder	Flat Washer 10	£0.54 £0.45
163	MK181224040 Available to backorder	Rim Sprocket .325" Sm7-7	£11.34 £9.45
163	MK026224010 Available to backorder	Rim Sprocket 3/8" Sm7-7	£6.56 £5.47
164	MK213080-9 Available to backorder	O Ring 29.5 (Alt.) (C10)	£0.96 £0.80
164	MK181114202 Available to backorder	Tank Cap Cpl.	£1.92 £1.60
