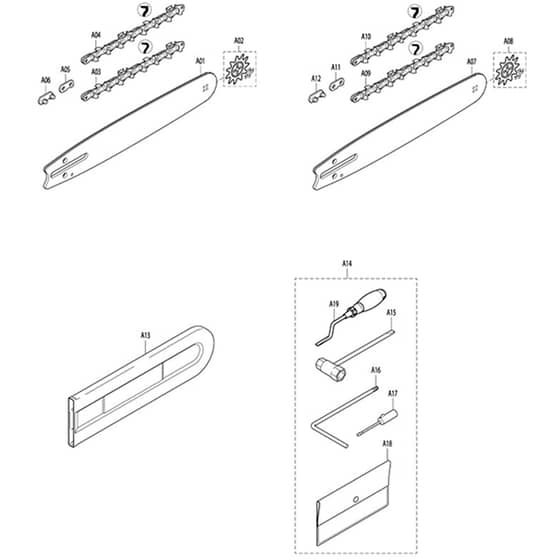

Makita EA5000P - Petrol Chain Saw - Power Tool 07 Diagram

Name: Makita EA5000P - Petrol Chain Saw - Power Tool 07 Diagram
SKU: ea5000p_petrol_chain_saw_power_tool_07-group
Price: 0.48 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita EA5000P - Petrol Chain Saw - Power Tool 07 Diagram

Description

Model No. EA5000P

Petrol Chain Saw

Power Tool 07 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
901	MK445033631 Available to backorder	Guide Bar Std 13".325".058" M (A01B)	£43.48 £36.23
901	MK445038631 Available to backorder	Guide Bar Std 15".325".058" M (A01A)	£33.48 £27.90
901	MK445045631 Available to backorder	Guide Bar Std 18".325".058" M (A01)	£38.26 £31.88
902	MK415325710 Available to backorder	Nose Sprocket Rp.Kit .325".058 (A02)	£22.78 £18.98
903	MK528086656 Available to backorder	Saw Chain .325" .058" L56 Mc M (A03B)	£23.48 £19.57
903	MK528086664 Available to backorder	Saw Chain .325" .058" L64 Mc M (A03A)	£21.52 £17.93
903	MK528086672 Available to backorder	Saw Chain .325" .058" L72 Mc M (A03)	£31.52 £26.27
904	MK534686064 Available to backorder	Saw Chain .325" .058" L64 Fc M (A04A)	£35.06 £29.22
904	MK534686072 Available to backorder	Saw Chain .325" .058" L72 Fc M (A04)	£30.46 £25.38
904	MK534686056 Available to backorder	Saw Chain .325" .058" L56 Fc M (A04B)	£31.16 £25.97
906	MK558083010 Available to backorder	Tie Strap With Rivets.325".058 (A06)	£0.60 £0.50
907	MK445050651 Available to backorder	Guide Bar Std 20"3/8".058 M (A07B1)	£56.34 £46.95

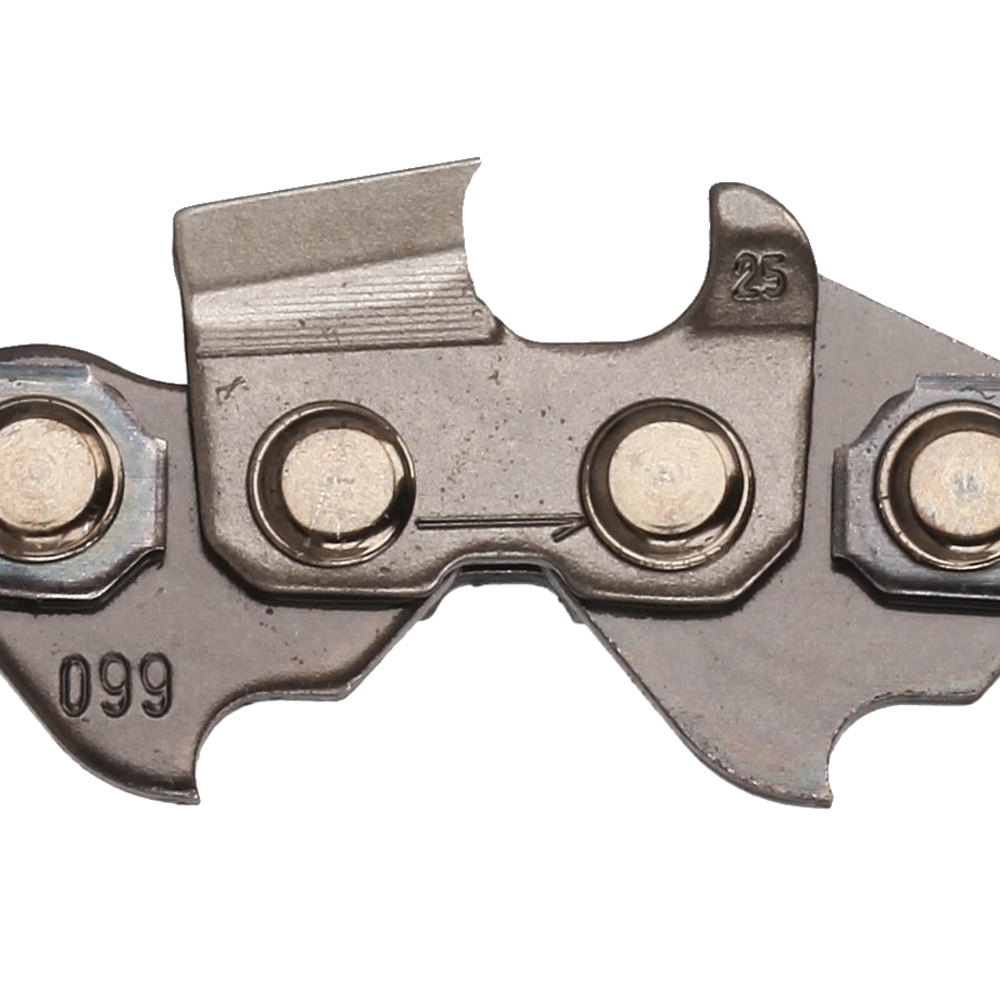

909	MK523093664 Available to backorder	Saw Chain 3/8" .058" L64 Sc M (A09A)	£28.24 £23.53
909	MK523093656 Available to backorder	Saw Chain 3/8" .058" L56 Sc M (A09B)	£22.22 £18.52
909	MK523093672 Available to backorder	Saw Chain 3/8" .058" L72 Sc M (A09)	£30.94 £25.78
910	MK528099672 Available to backorder	Saw Chain 3/8 .058 L72 Fc M (A10)	£28.72 £23.93
911	MK558093000 Available to backorder	Tie Strap 3/8" 1.5mm/.058 (A11)	£0.58 £0.48
912	MK558093010 Available to backorder	Tie Strap With Rivets 3/8 0.058 (A12)	£1.16 £0.97
913	MK952010130 Available to backorder	Bar Cover 13"/33Cm Dolmar (A13)	£9.24 £7.70
913	MK952020640 Available to backorder	Bar Cover 14-17"35-43Cm (A13A)	£9.48 £7.90
913	MK952020650 Available to backorder	Bar Cover 18-20"45-50Cm (A13B)	£16.26 £13.55
914	MK957004011 Available to backorder	Tool Cpl. (A14)	£27.02 £22.52
915	MK782033-4 Available to backorder	Universal Wrench 13/19 (Alt.) (A15-2)	£4.24 £3.53
915	MK941719131 Available to backorder	Universal Wrench (A15)	£5.60 £4.67
915	MK941719133 Available to backorder	Universal Wrench 13/19 (Alt.) (A15-1)	£5.60 £4.67
916	MK782025-3 Available to backorder	Hexalobular Wrench 27 (Alt.) (A16-1)	£1.16 £0.97
916	MK940827000 Available to backorder	Hexalobular Angled Driver (A16)	£3.96 £3.30
917	MK944340001 Available to backorder	Screw Driver (A17)	£0.88 £0.73
917	MK783012-5 Available to backorder	Screwdriver (Alt.) (A17-1)	£0.88 £0.73
918	MK831340-3 Available to backorder	Tool Bag (Alt.) (A18-1)	£3.16 £2.63
918	MK950004002 Available to backorder	Plastic Bag (A18)	£0.82 £0.68
919	MK944500795 Available to backorder	Cylinder Fin Cleaner (A19)	£2.76 £2.30
