Model No. DVC866L

Cordless Vacuum Cleaner

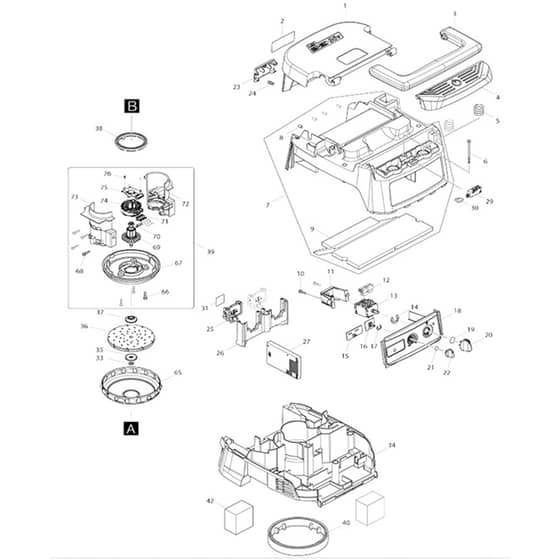

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK891977-8 Available to backorder	Caution Label (C10)	£0.48 £0.40
2	MK857B31-0 Available to backorder	Name Plate Dvc866L	£0.48 £0.40
3	MK455734-4 Available to backorder	Grip	£7.52 £6.27
5	MK234273-5 Available to backorder	Compression Spring 20	£0.48 £0.40
6	MK266340-8 Available to backorder	Binding Head Tapping Screw 4x65	£0.48 £0.40
7	MK144409-7 Available to backorder	Cowling Complete (INC. 8 9)	£25.80 £21.50
8	MK263005-3 In stock	Rubber Pin 6	£0.47 £0.39
9	MK424688-6 Available to backorder	Top Damper	£3.34 £2.78
10	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 066 \| 068)	£0.48 £0.40
11	MK451343-7 Available to backorder	Switch Holder	£0.86 £0.72
12	MK686023-8 Available to backorder	Receptacle Sleeve	£0.48 £0.40
13	MK650622-2 Available to backorder	Switch	£11.14 £9.28
14	MK961062-2 Available to backorder	Stop Ring (Ext) E-12	£0.48 £0.40
15	MK620649-6 Available to backorder	Led Circuit	£16.10 £13.42
16	MK631922-9 Available to backorder	Sub Controller	£10.12 £8.43
17	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.47 £0.39
18	MK812D41-6 Available to backorder	Indication Label (C10)	£1.78 £1.48
18	MK144479-6 Available to backorder	Switch Base Complete	£8.20 £6.83
19	MK213176-6 Available to backorder	O-Ring 14	£0.48 £0.40
20	MK455733-6 Available to backorder	Switch Lever	£2.06 £1.72
21	MK213054-0 Available to backorder	O-Ring 9	£0.48 £0.40
22	MK451344-5 Available to backorder	Switch Dial	£0.58 £0.48
23	MK455728-9 Available to backorder	Battery Cover Hook	£1.78 £1.48
24	MK231240-1 Available to backorder	Compression Spring 7	£0.48 £0.40
25	MK644808-8 In stock	Terminal	£3.76 £3.13
26	MK455729-7 Available to backorder	Terminal Base	£4.62 £3.85
27	MK620639-9 Available to backorder	Controller	£177.46 £147.88
29	MK651910-0 Available to backorder	Switch D2Vw-01-3Hs	£7.52 £6.27
30	MK686039-3 Available to backorder	Receptacle Sleeve	£0.48 £0.40
31	MK857B37-8 Available to backorder	Serial No. Label Dvc866L	£0.48 £0.40
33	MK252268-6 Available to backorder	Hex. Nut M6	£0.48 £0.40
34	MK412666-8 Available to backorder	Separator	£21.72 £18.10
35	MK253752-4 Available to backorder	Flat Washer 8	£0.86 £0.72
36	MK240178-9 Available to backorder	Fan 104	£4.78 £3.98
37	MK313062-2 Available to backorder	Flange	£1.88 £1.57
38	MK424685-2 Available to backorder	Rubber Ring 60	£2.18 £1.82
39	MK127602-8 Available to backorder	Motor Assembly (INC. 66-76)	£78.22 £65.18
40	MK424686-0 Available to backorder	Rubber Ring 120	£7.10 £5.92
41	MK422590-7 Available to backorder	Support Ring	£5.46 £4.55
42	MK424690-9 Available to backorder	Rear Block Filter	£0.86 £0.72
43	MK140U41-1 Available to backorder	Tank Cover Complete (INC. 44 45)	£41.76 £34.80
44	MK424691-7 Available to backorder	Band Damper	£3.82 £3.18
45	MK424689-4 Available to backorder	Front Damper	£0.96 £0.80
48	MK412590-5 Available to backorder	Filter Cage	£14.74 £12.28
50	MK191G88-4 Available to backorder	Cloth Filter Set	£28.38 £23.65
53	MK266257-5 Available to backorder	Binding Head Tapping Screw 4x28	£0.58 £0.48
54	MK419351-4 Available to backorder	Holder Plate	£2.02 £1.68
55	MK419350-6 Available to backorder	Holder	£1.88 £1.57
56	MK421468-1 Available to backorder	Cord Seal	£0.48 £0.40
57	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
57	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
58	MK213655-4 Available to backorder	O-Ring 56	£1.74 £1.45
59	MK451348-7 Available to backorder	Inlet	£3.76 £3.13
60	MK168537-4 Available to backorder	Hook	£12.86 £10.72
61	MK168535-8 Available to backorder	Caster 50	£6.06 £5.05
62	MK168434-4 Available to backorder	Caster 50	£5.06 £4.22
63	MK649150-2 Available to backorder	Earth Line 120	£3.62 £3.02
64	MK451334-8 Available to backorder	Tank	£31.26 £26.05
65	MK347171-5 Available to backorder	Fan Cover	£5.18 £4.32
67	MK457486-3 Available to backorder	Fan Base	£5.34 £4.45
69	MK619431-8 Available to backorder	Rotor	£21.30 £17.75
70	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
71	MK632J83-8 Available to backorder	Lead Unit	£3.96 £3.30
72	MK183F90-5 Available to backorder	Motor Housing Set (INC. 73)	£7.64 £6.37
74	MK629491-2 Available to backorder	Stator	£9.82 £8.18
75	MK620648-8 Available to backorder	Controller B	£21.30 £17.75
76	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
77	MK891978-6 Available to backorder	Caution Label	£0.54 £0.45
901	MK199493-7 Available to backorder	Hose Complete 32-1.7 Set (A01)	£26.36 £21.97
902	MK195432-5 Available to backorder	Poly Bag Set (A02)	£15.32 £12.77
903	MK198919-6 Available to backorder	Long Corner Nozzle Set (A03)	£3.76 £3.13
904	MK191M77-5 Available to backorder	Joint A32 Set (G04)	£13.46 £11.22
904	MK127082-8 Available to backorder	Nozzle Assembly (A04)	£44.04 £36.70
905	MK140G19-0 Available to backorder	Telescopic Pipe Complete (A05)	£29.82 £24.85
906	MK140G26-3 Available to backorder	Bent Pipe Complete (A06)	£12.10 £10.08
908	MK127621-4 Available to backorder	Tool Box Assembly (A08)	£23.76 £19.80
909	MK911133-5 Available to backorder	Pan Head Screw M4x18 Wr (A09)	£0.48 £0.40
909	MK1912G4-5 Available to backorder	Telescopic Pipe Complete Set (G09)	£43.56 £36.30
910	MK1912G5-3 Available to backorder	Bent Pipe Complete Set (G10)	£18.30 £15.25
911	MK413R35-4 Available to backorder	Stopper (G11)	£2.88 £2.40
911	MK451350-0 Available to backorder	Stopper (A11)	£0.76 £0.63
922	MK191E30-3 Available to backorder	Flexible Hose With Lock Set (F22)	£18.78 £15.65
940	MK195435-9 Available to backorder	Hose Complete 38-5 Set (F40)	£228.44 £190.37
941	MK195436-7 Available to backorder	Hose Complete 28-5 Set (F41)	£163.86 £136.55
945	MK195545-2 Available to backorder	Front Cuff 38 Set (F45)	£5.96 £4.97
946	MK195546-0 Available to backorder	Front Cuff 24 Set (F46)	£3.36 £2.80
947	MK195547-8 Available to backorder	Front Cuff 22 Set (F47)	£6.08 £5.07
948	MK195548-6 Available to backorder	Joint 22-38 Set (F48)	£9.66 £8.05
951	MK195551-7 Available to backorder	Nozzle Assembly Set (F51)	£35.04 £29.20
952	MK195552-5 Available to backorder	Damper Set (F52)	£14.74 £12.28
953	MK195553-3 Available to backorder	Pre-Filter Set (F53)	£23.20 £19.33
955	MK195557-5 Available to backorder	Filter Bag Set (F55)	£26.00 £21.67
955	MK1912R3-4 Available to backorder	Filter Bag Set (Alt.) (F55-1)	£22.60 £18.83
957	MK197166-6 Available to backorder	Powder Filter H Set (F57)	£82.28 £68.57
959	MK197323-6 Available to backorder	Hose Stand Set (F59)	£264.92 £220.77
968	MK198533-8 Available to backorder	Nozzle Assembly Set (F68)	£55.48 £46.23
972	MK198560-5 Available to backorder	Telescopic Pipe Assembly Set (F72)	£30.38 £25.32
974	MK198873-4 Available to backorder	Shelf Brush Set (F74)	£7.40 £6.17
975	MK198878-4 Available to backorder	Round Brush Set (F75)	£8.22 £6.85
978	MK199038-1 Available to backorder	Seat Nozzle Set (F78)	£11.20 £9.33
981	MK199439-3 Available to backorder	Crevice Nozzle 415 Set (F81)	£5.72 £4.77
