Makita DVC864L - Cordless Vacuum Cleaner - Power Tool 01 Diagram

Description

Model No. DVC864L

Cordless Vacuum Cleaner

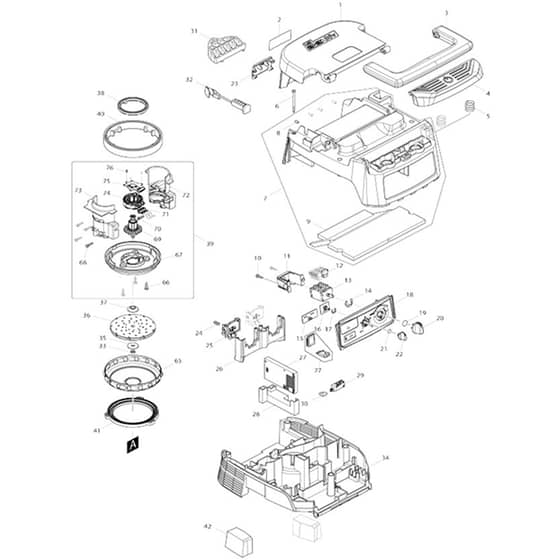

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK144486-9 Available to backorder	Battery Cover Complete	£10.56 £8.80
1	MK891977-8 Available to backorder	Caution Label (C10)	£0.48 £0.40
2	MK853U58-2 Available to backorder	Name Plate Dvc864L	£0.48 £0.40
3	MK455734-4 Available to backorder	Grip	£7.80 £6.50
4	MK455730-2 Available to backorder	Switch Button	£5.88 £4.90
5	MK234273-5 Available to backorder	Compression Spring 20	£0.48 £0.40
6	MK266340-8 Available to backorder	Binding Head Tapping Screw 4x65	£0.48 £0.40
7	MK144973-8 Available to backorder	Cowling Complete (INC. 8 9)	£27.48 £22.90
8	MK263005-3 In stock	Rubber Pin 6	£0.52 £0.43
9	MK424688-6 Available to backorder	Top Damper	£3.48 £2.90
10	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 066 \| 068)	£0.48 £0.40
11	MK451343-7 Available to backorder	Switch Holder	£1.03 £0.86
12	MK686023-8 Available to backorder	Receptacle Sleeve	£0.48 £0.40
13	MK651098-6 Available to backorder	Switch 1703. 4801	£24.00 £20.00
14	MK961062-2 Available to backorder	Stop Ring (Ext) E-12	£0.48 £0.40
15	MK620649-6 Available to backorder	Led Circuit	£16.68 £13.90
16	MK631922-9 Available to backorder	Sub Controller	£10.44 £8.70
17	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.48 £0.40
18	MK140H44-7 Available to backorder	Switch Base Complete <	£15.36 £12.80
19	MK213176-6 Available to backorder	O-Ring 14	£0.48 £0.40
20	MK455733-6 Available to backorder	Switch Lever	£2.24 £1.87
21	MK213054-0 Available to backorder	O-Ring 9	£0.48 £0.40
22	MK451344-5 Available to backorder	Switch Dial	£0.70 £0.58
23	MK455728-9 Available to backorder	Battery Cover Hook	£1.94 £1.62
24	MK231240-1 Available to backorder	Compression Spring 7	£0.48 £0.40
25	MK644808-8 In stock	Terminal	£3.98 £3.32
26	MK455729-7 Available to backorder	Terminal Base	£4.80 £4.00
27	MK620726-4 Available to backorder	Controller	£228.24 £190.20
28	MK457609-3 Available to backorder	Controller Holder	£2.56 £2.13
29	MK651910-0 Available to backorder	Switch D2Vw-01-3Hs	£7.80 £6.50
30	MK686039-3 Available to backorder	Receptacle Sleeve	£0.48 £0.40
31	MK424981-8 Available to backorder	Spacer	£2.83 £2.36
32	MK424980-0 Available to backorder	Cap	£1.66 £1.38
33	MK931303-0 Available to backorder	Hex. Nut M6	£0.48 £0.40
33	MK252268-6 Available to backorder	Hex. Nut M6 (Alt.)	£0.48 £0.40
34	MK455726-3 Available to backorder	Separator	£27.36 £22.80
35	MK253752-4 Available to backorder	Flat Washer 8	£1.03 £0.86
36	MK240178-9 Available to backorder	Fan 104	£4.92 £4.10
37	MK313062-2 Available to backorder	Flange	£2.05 £1.71
38	MK424685-2 Available to backorder	Rubber Ring 60	£2.38 £1.98
39	MK123974-9 Available to backorder	Motor Assembly (INC. 66-76)	£79.44 £66.20
40	MK424686-0 Available to backorder	Rubber Ring 120	£7.32 £6.10
41	MK424687-8 Available to backorder	Support Ring	£4.92 £4.10
42	MK424690-9 Available to backorder	Rear Block Filter	£1.03 £0.86
43	MK143175-3 Available to backorder	Tank Cover Complete (INC. 44 45)	£47.64 £39.70
44	MK424691-7 Available to backorder	Band Damper	£3.96 £3.30
45	MK424689-4 Available to backorder	Front Damper	£1.15 £0.96
48	MK197166-6 Available to backorder	Powder Filter H Set	£85.08 £70.90
49	MK423398-2 Available to backorder	Damper	£16.56 £13.80
50	MK140253-0 Available to backorder	Pre-Filter Complete	£31.08 £25.90
52	MK424382-0 Available to backorder	Rubber Holder	£1.90 £1.58
53	MK266257-5 Available to backorder	Binding Head Tapping Screw 4x28	£0.70 £0.58
54	MK419351-4 Available to backorder	Holder Plate	£2.21 £1.84
55	MK419350-6 Available to backorder	Holder	£2.05 £1.71
56	MK421468-1 Available to backorder	Cord Seal	£0.48 £0.40
57	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
57	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
58	MK213655-4 Available to backorder	O-Ring 56	£1.90 £1.58
59	MK451348-7 Available to backorder	Inlet	£3.84 £3.20
60	MK168537-4 Available to backorder	Hook	£13.32 £11.10
61	MK168535-8 Available to backorder	Caster 50	£6.24 £5.20
62	MK168434-4 Available to backorder	Caster 50	£5.28 £4.40
63	MK649150-2 Available to backorder	Earth Line 120	£3.72 £3.10
64	MK457623-9 Available to backorder	Tank	£28.92 £24.10
65	MK347171-5 Available to backorder	Fan Cover	£5.40 £4.50
67	MK457486-3 Available to backorder	Fan Base	£5.52 £4.60
69	MK619431-8 Available to backorder	Rotor	£22.08 £18.40
70	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
71	MK632J83-8 Available to backorder	Lead Unit	£4.08 £3.40
72	MK183F90-5 Available to backorder	Motor Housing Set (INC. 73)	£7.92 £6.60
74	MK629256-2 Available to backorder	Stator	£11.76 £9.80
75	MK620648-8 Available to backorder	Controller B	£22.08 £18.40
76	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
77	MK620755-7 Available to backorder	Wireless Unit Complete	£119.64 £99.70
901	MK417191-4 Available to backorder	Cuff Lock (C10)	£7.56 £6.30
901	MK417586-1 Available to backorder	Stopper (C20)	£2.56 £2.13
901	MK891978-6 Available to backorder	Caution Label (E01)	£0.65 £0.54
901	MK195433-3 Available to backorder	Hose Complete 28-3.5 Set (A01)	£98.88 £82.40
901	MK417766-9 Available to backorder	Front Cuff 38 (C40)	£5.04 £4.20
901	MK417662-1 Available to backorder	Sleeve (C30)	£4.32 £3.60
902	MK195432-5 Available to backorder	Poly Bag Set (A02)	£15.84 £13.20
903	MK417765-1 Available to backorder	Front Cuff 22 (A03)	£2.21 £1.84
904	MK424379-9 Available to backorder	Front Cuff 24 (A04)	£3.36 £2.80
905	MK455732-8 Available to backorder	Tool Box (A05)	£30.96 £25.80
906	MK417307-1 Available to backorder	Front Cuff (C30)	£9.12 £7.60
906	MK417306-3 Available to backorder	Sleeve (C20)	£3.04 £2.53
906	MK195434-1 Available to backorder	Hose Complete 38-2.5 Set (A06A)	£98.88 £82.40
907	MK151449-8 Available to backorder	Roller 40 Complete (C01)	£10.56 £8.80
907	MK265871-4 Available to backorder	Pan Head Tapping Screw 4x16 (C16)	£0.48 £0.40
907	MK415965-7 Available to backorder	Upper Nozzle (C26)	£17.76 £14.80
907	MK154427-7 Available to backorder	Elbow Joint Complete (C21)	£17.76 £14.80
907	MK415962-3 Available to backorder	Roller 14 (C06)	£5.04 £4.20
907	MK743327-2 Available to backorder	Wiper (C41)	£16.80 £14.00
907	MK122512-4 Available to backorder	Nozzle Assembly (A07A)	£34.92 £29.10
907	MK256241-8 Available to backorder	Pin 3 (C11)	£4.92 £4.10
907	MK415964-9 Available to backorder	Joint Holder (C31)	£16.80 £14.00
907	MK743328-0 Available to backorder	Brush (C36)	£17.76 £14.80
908	MK192563-1 Available to backorder	Straight Pipe Set (A08A)	£20.16 £16.80
909	MK192562-3 Available to backorder	Bent Pipe (A09A)	£26.04 £21.70
910	MK410306-2 Available to backorder	Corner Nozzle (A10A)	£3.84 £3.20
911	MK451350-0 Available to backorder	Stopper (A11A)	£0.91 £0.76
912	MK911138-5 Available to backorder	Pan Head Screw M4x20 Wr (A12A)	£0.48 £0.40
913	MK195435-9 Available to backorder	Hose Complete 38-5 Set (F13)	£228.48 £190.40
914	MK195436-7 Available to backorder	Hose Complete 28-5 Set (F14)	£157.32 £131.10
917	MK195545-2 Available to backorder	Front Cuff 38 Set (F17)	£6.12 £5.10
918	MK195546-0 Available to backorder	Front Cuff 24 Set (F18)	£3.48 £2.90
919	MK195547-8 Available to backorder	Front Cuff 22 Set (F19)	£6.24 £5.20
920	MK195548-6 Available to backorder	Joint 22-38 Set (F20)	£9.96 £8.30
922	MK195551-7 Available to backorder	Nozzle Assembly Set (F22)	£36.24 £30.20
923	MK195552-5 Available to backorder	Damper Set (F23)	£15.24 £12.70
924	MK195553-3 Available to backorder	Pre-Filter Set (F24)	£24.00 £20.00
925	MK1912R3-4 Available to backorder	Filter Bag Set (Alt.) (F25-1)	£23.40 £19.50
925	MK195557-5 Available to backorder	Filter Bag Set (F25)	£26.88 £22.40
929	MK197265-4 Available to backorder	Battery Bl1840B Set (Alt.) (F29-1)	£229.42 £191.18
938	MK198533-8 Available to backorder	Nozzle Assembly Set (F38)	£57.36 £47.80
947	MK191G76-1 Available to backorder	Mesh Sleeve Hose 28-5 Set (F47)	£123.72 £103.10
