Model No. DVC156L

Cordless Vacuum Cleaner

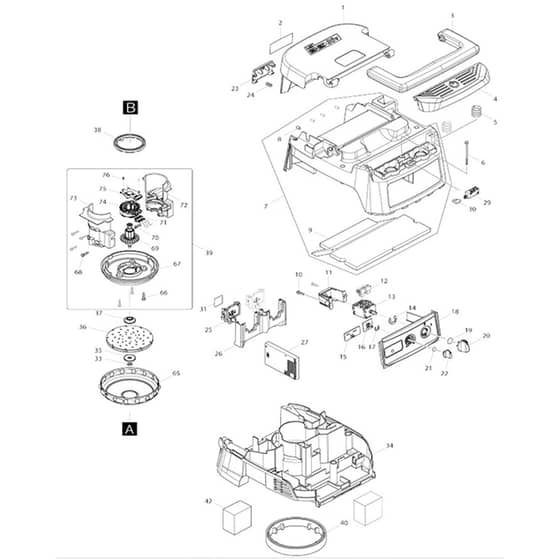

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK891977-8 Available to backorder	Caution Label (C10)	£0.48 £0.40
2	MK857B88-1 Available to backorder	Name Plate Dvc156L	£0.48 £0.40
3	MK455734-4 Available to backorder	Grip	£7.80 £6.50
5	MK234273-5 Available to backorder	Compression Spring 20	£0.48 £0.40
6	MK266340-8 Available to backorder	Binding Head Tapping Screw 4x65	£0.48 £0.40
7	MK144409-7 Available to backorder	Cowling Complete (INC. 8 9)	£26.64 £22.20
8	MK263005-3 In stock	Rubber Pin 6	£0.52 £0.43
9	MK424688-6 Available to backorder	Top Damper	£3.48 £2.90
10	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 066 \| 068)	£0.48 £0.40
11	MK451343-7 Available to backorder	Switch Holder	£1.03 £0.86
12	MK686023-8 Available to backorder	Receptacle Sleeve	£0.48 £0.40
13	MK650622-2 Available to backorder	Switch	£11.52 £9.60
14	MK961062-2 Available to backorder	Stop Ring (Ext) E-12	£0.48 £0.40
15	MK620649-6 Available to backorder	Led Circuit	£16.68 £13.90
16	MK631922-9 Available to backorder	Sub Controller	£10.44 £8.70
17	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.48 £0.40
18	MK812D41-6 Available to backorder	Indication Label (C10)	£1.94 £1.62
18	MK144479-6 Available to backorder	Switch Base Complete	£8.52 £7.10
19	MK213176-6 Available to backorder	O-Ring 14	£0.48 £0.40
20	MK455733-6 Available to backorder	Switch Lever	£2.24 £1.87
21	MK213054-0 Available to backorder	O-Ring 9	£0.48 £0.40
22	MK451344-5 Available to backorder	Switch Dial	£0.70 £0.58
23	MK455728-9 Available to backorder	Battery Cover Hook	£1.94 £1.62
24	MK231240-1 Available to backorder	Compression Spring 7	£0.48 £0.40
25	MK644808-8 In stock	Terminal	£3.98 £3.32
26	MK455729-7 Available to backorder	Terminal Base	£4.80 £4.00
27	MK620639-9 Available to backorder	Controller	£170.40 £142.00
29	MK651910-0 Available to backorder	Switch D2Vw-01-3Hs	£7.80 £6.50
30	MK686039-3 Available to backorder	Receptacle Sleeve	£0.48 £0.40
31	MK857B93-8 Available to backorder	Serial No. Label Dvc156L	£0.48 £0.40
33	MK252268-6 Available to backorder	Hex. Nut M6	£0.48 £0.40
34	MK412666-8 Available to backorder	Separator	£22.44 £18.70
35	MK253752-4 Available to backorder	Flat Washer 8	£1.03 £0.86
36	MK240178-9 Available to backorder	Fan 104	£4.92 £4.10
37	MK313062-2 Available to backorder	Flange	£2.05 £1.71
38	MK424685-2 Available to backorder	Rubber Ring 60	£2.38 £1.98
39	MK127602-8 Available to backorder	Motor Assembly (INC. 66-76)	£80.88 £67.40
40	MK424686-0 Available to backorder	Rubber Ring 120	£7.32 £6.10
41	MK422590-7 Available to backorder	Support Ring	£5.64 £4.70
42	MK424690-9 Available to backorder	Rear Block Filter	£1.03 £0.86
43	MK140U41-1 Available to backorder	Tank Cover Complete (INC. 44 45)	£43.20 £36.00
44	MK424691-7 Available to backorder	Band Damper	£3.96 £3.30
45	MK424689-4 Available to backorder	Front Damper	£1.15 £0.96
48	MK412590-5 Available to backorder	Filter Cage	£15.24 £12.70
50	MK191G88-4 Available to backorder	Cloth Filter Set	£29.40 £24.50
53	MK266257-5 Available to backorder	Binding Head Tapping Screw 4x28	£0.70 £0.58
54	MK419351-4 Available to backorder	Holder Plate	£2.21 £1.84
55	MK419350-6 Available to backorder	Holder	£2.05 £1.71
56	MK421468-1 Available to backorder	Cord Seal	£0.48 £0.40
57	MK266385-6 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
57	MK266192-7 Available to backorder	Binding Head Tapping Screw 4x14	£0.48 £0.40
58	MK213655-4 Available to backorder	O-Ring 56	£1.90 £1.58
59	MK451348-7 Available to backorder	Inlet	£3.84 £3.20
60	MK168537-4 Available to backorder	Hook	£13.32 £11.10
61	MK168535-8 Available to backorder	Caster 50	£6.24 £5.20
62	MK168434-4 Available to backorder	Caster 50	£5.28 £4.40
63	MK649150-2 Available to backorder	Earth Line 120	£3.72 £3.10
64	MK452291-3 Available to backorder	Tank	£36.36 £30.30
65	MK347171-5 Available to backorder	Fan Cover	£5.40 £4.50
67	MK457486-3 Available to backorder	Fan Base	£5.52 £4.60
69	MK619431-8 Available to backorder	Rotor	£22.08 £18.40
70	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
71	MK632J83-8 Available to backorder	Lead Unit	£4.08 £3.40
72	MK183F90-5 Available to backorder	Motor Housing Set (INC. 73)	£7.92 £6.60
74	MK629491-2 Available to backorder	Stator	£10.20 £8.50
75	MK620648-8 Available to backorder	Controller B	£22.08 £18.40
76	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
901	MK891978-6 Available to backorder	Caution Label (E01)	£0.65 £0.54
901	MK199493-7 Available to backorder	Hose Complete 32-1.7 Set (A01)	£27.24 £22.70
902	MK195432-5 Available to backorder	Poly Bag Set (A02)	£15.84 £13.20
903	MK198919-6 Available to backorder	Long Corner Nozzle Set (A03)	£3.84 £3.20
904	MK127082-8 Available to backorder	Nozzle Assembly (A04)	£45.60 £38.00
905	MK140G19-0 Available to backorder	Telescopic Pipe Complete (A05)	£30.84 £25.70
906	MK140G26-3 Available to backorder	Bent Pipe Complete (A06)	£12.48 £10.40
908	MK127622-2 Available to backorder	Tool Box Assembly (A08)	£24.60 £20.50
909	MK911133-5 Available to backorder	Pan Head Screw M4x18 Wr (A09)	£0.48 £0.40
909	MK1912G4-5 Available to backorder	Telescopic Pipe Complete Set (G09)	£45.12 £37.60
910	MK1912G5-3 Available to backorder	Bent Pipe Complete Set (G10)	£18.96 £15.80
911	MK413R35-4 Available to backorder	Stopper (G11)	£3.14 £2.62
911	MK451350-0 Available to backorder	Stopper (A11)	£0.91 £0.76
922	MK191E30-3 Available to backorder	Flexible Hose With Lock Set (F22)	£19.44 £16.20
940	MK195435-9 Available to backorder	Hose Complete 38-5 Set (F40)	£228.48 £190.40
941	MK195436-7 Available to backorder	Hose Complete 28-5 Set (F41)	£157.32 £131.10
945	MK195545-2 Available to backorder	Front Cuff 38 Set (F45)	£6.12 £5.10
946	MK195546-0 Available to backorder	Front Cuff 24 Set (F46)	£3.48 £2.90
947	MK195547-8 Available to backorder	Front Cuff 22 Set (F47)	£6.24 £5.20
948	MK195548-6 Available to backorder	Joint 22-38 Set (F48)	£9.96 £8.30
951	MK195551-7 Available to backorder	Nozzle Assembly Set (F51)	£36.24 £30.20
952	MK195552-5 Available to backorder	Damper Set (F52)	£15.24 £12.70
953	MK195553-3 Available to backorder	Pre-Filter Set (F53)	£24.00 £20.00
955	MK195557-5 Available to backorder	Filter Bag Set (F55)	£26.88 £22.40
957	MK197166-6 Available to backorder	Powder Filter H Set (F57)	£85.08 £70.90
959	MK197323-6 Available to backorder	Hose Stand Set (F59)	£264.96 £220.80
968	MK198533-8 Available to backorder	Nozzle Assembly Set (F68)	£57.36 £47.80
972	MK198560-5 Available to backorder	Telescopic Pipe Assembly Set (F72)	£31.44 £26.20
974	MK198873-4 Available to backorder	Shelf Brush Set (F74)	£7.68 £6.40
975	MK198878-4 Available to backorder	Round Brush Set (F75)	£8.52 £7.10
978	MK199038-1 Available to backorder	Seat Nozzle Set (F78)	£11.64 £9.70
981	MK199439-3 Available to backorder	Crevice Nozzle 415 Set (F81)	£5.88 £4.90
986	MK191M77-5 Available to backorder	Joint A32 Set (F86)	£13.92 £11.60
