Model No. DUR369A

Cordless Grass Trimmer

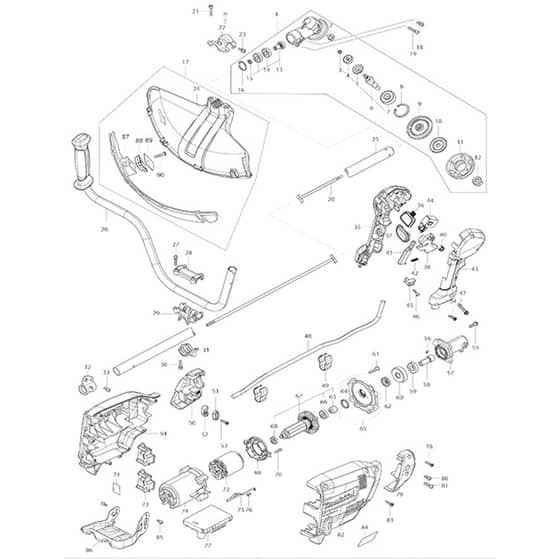

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK123853-1 Available to backorder	Gear Case Assembly Us (INC. 2-16)	£84.90 £70.75
2	MK265590-2 Available to backorder	Hex. Head Bolt M8x10 R	£0.58 £0.48
3	MK232350-7 Available to backorder	Ring Spring 6	£0.70 £0.58
4	MK210030-5 Available to backorder	Ball Bearing 627Zz	£1.16 £0.97
5	MK221484-1 Available to backorder	Spiral Bevel Gear 19	£26.62 £22.18
6	MK136233-2 Available to backorder	Cutter Shaft Assembly (INC. 3-5 7)	£58.42 £48.68
7	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.40 £7.83
8	MK257432-4 Available to backorder	Retaining Ring (Int) R-35	£1.10 £0.92
9	MK144312-2 Available to backorder	Receive Washer Complete	£20.38 £16.98

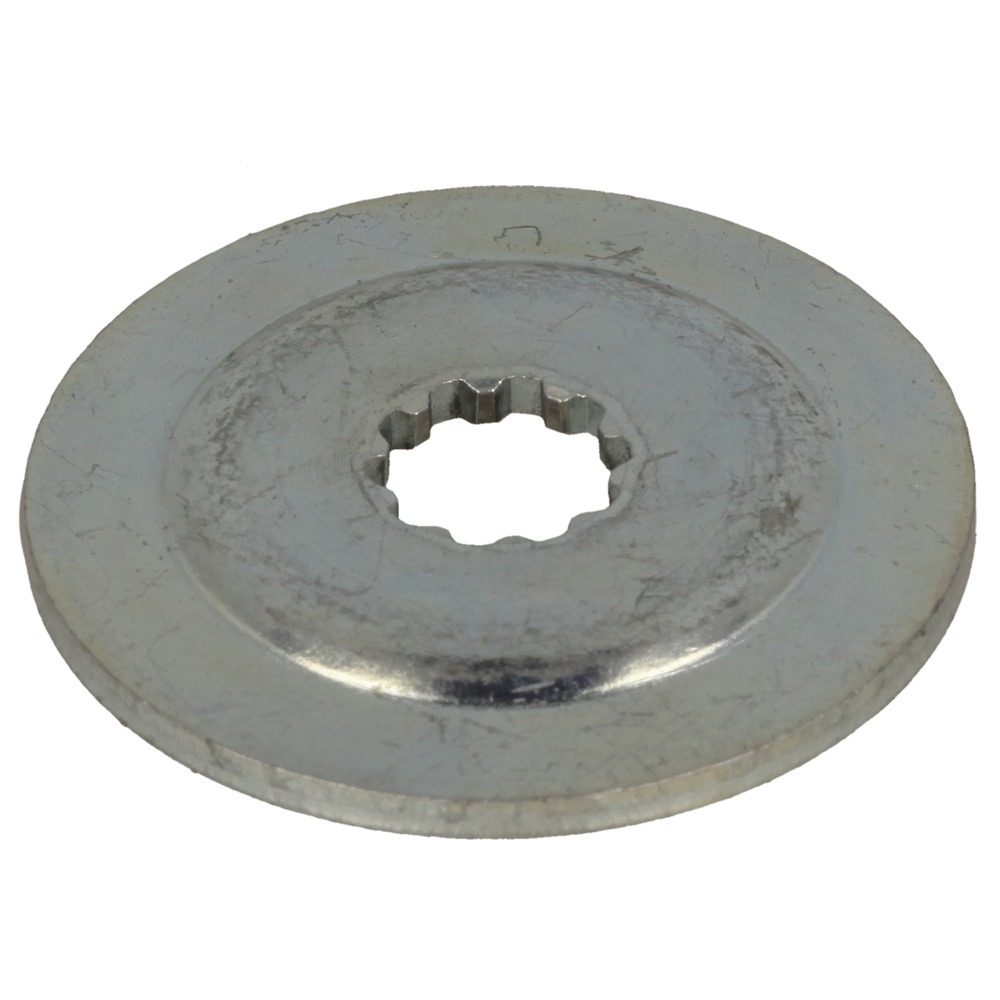

10	MK347104-0 Available to backorder	Clamp Washer Us	£3.86 £3.22
11	MK457274-8 Available to backorder	Cup Us	£4.52 £3.77
12	MK252236-9 Available to backorder	Hex. Lock Nut M10-17	£2.60 £2.17
13	MK136235-8 Available to backorder	Spiral Bevel Gear Assembly (INC. 14 15)	£30.18 £25.15
14	MK210049-4 Available to backorder	Ball Bearing 609Zz	£3.92 £3.27
15	MK257986-1 Available to backorder	Retaining Ring (Ext) S-9	£3.92 £3.27
16	MK257987-9 Available to backorder	Retaining Ring (Int) R-24	£1.16 £0.97
17	MK191B54-1 Available to backorder	Protector U 430 Set Mg (INC. 24 87-90)	£28.00 £23.33
18	MK922216-6 Available to backorder	Hex. Socket Head Bolt M5x14 W (Refs 023 \| 080)	£0.58 £0.48
19	MK922241-7 Available to backorder	Hex. Socket Head Bolt M5x25 W (Alt.) (Refs 027 \| 030)	£0.80 £0.67
19	MK922242-5 Available to backorder	Hex. Socket Head Bolt M5x25	£0.48 £0.40

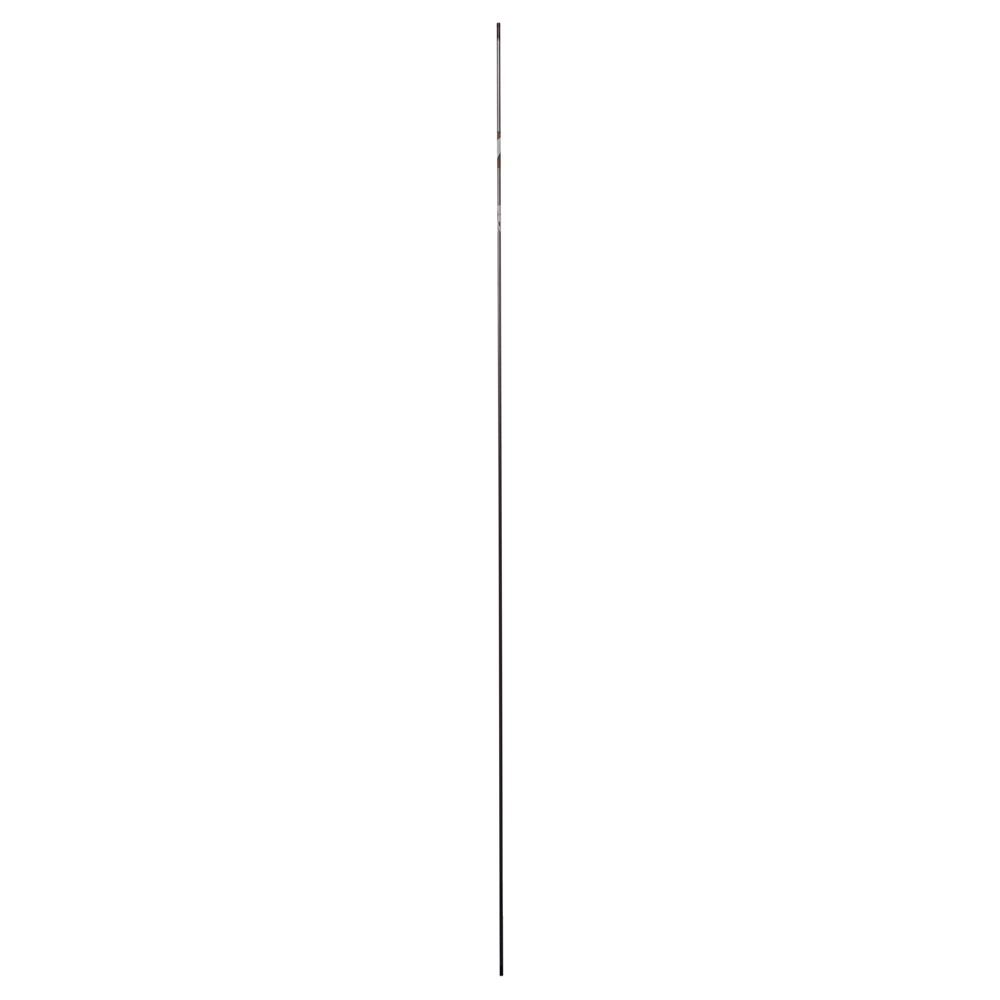

20	MK327056-1 Available to backorder	Shaft	£6.52 £5.43
21	MK251513-6 Available to backorder	Hex. Socket Head Bolt M5x25	£0.48 £0.40
22	MK347107-4 Available to backorder	Protector Clamp 24	£2.06 £1.72
24	MK457271-4 Available to backorder	Protector U 450	£9.28 £7.73
25	MK819N87-3 Available to backorder	Caution Label (C20)	£0.82 £0.68
25	MK140M97-6 Available to backorder	Shaft Pipe Complete A	£29.76 £24.80
25	MK819312-8 Available to backorder	Makita Logo Label (C10)	£0.58 £0.48
26	MK140L83-1 Available to backorder	Handle 19 Complete	£25.00 £20.83

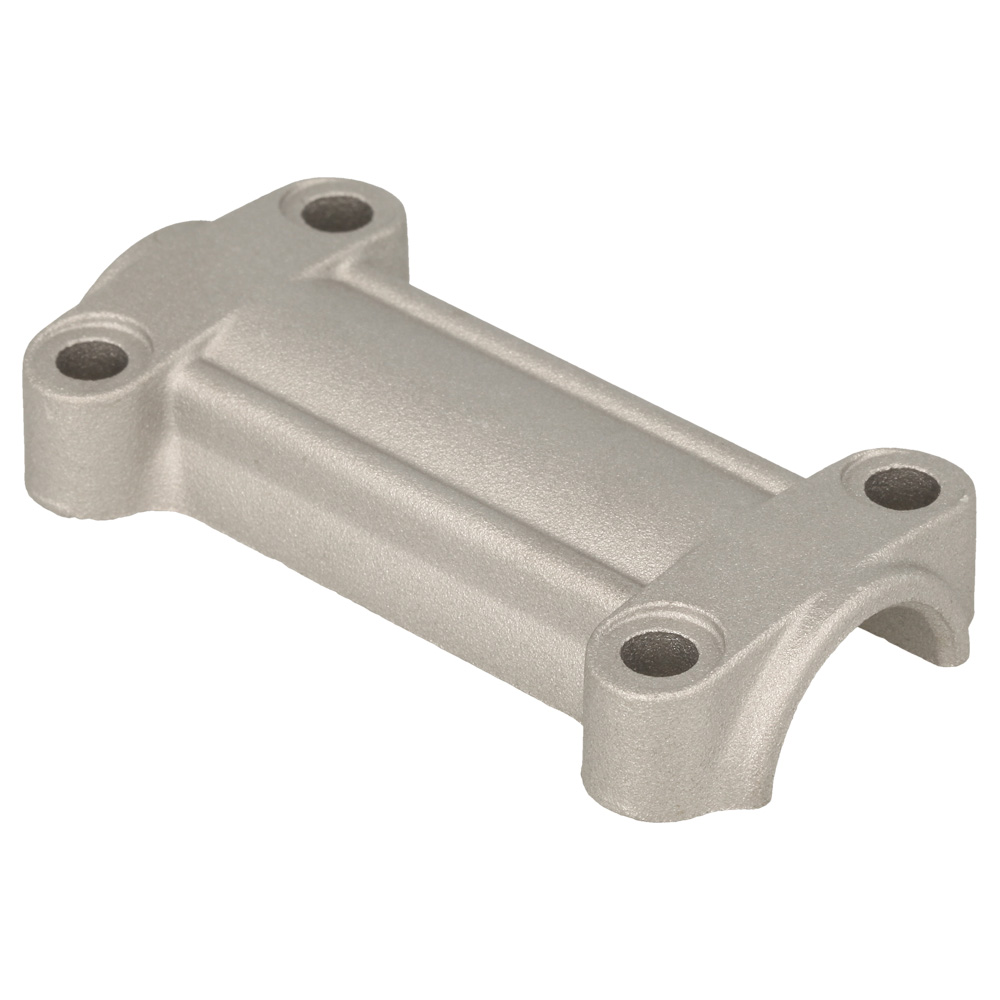

28	MK318272-6 Available to backorder	Handle Holder 1	£4.88 £4.07
29	MK319705-4 Available to backorder	Handle Holder	£4.36 £3.63
31	MK319703-8 Available to backorder	Pipe Clamp	£1.52 £1.27
32	MK347116-3 Available to backorder	Hanger	£1.36 £1.13
33	MK922212-4 Available to backorder	Hex. Socket Head Bolt M5x12	£0.48 £0.40
34	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 046 \| 053 \| 070 \| 078 \| 083)	£0.48 £0.40
35	MK183L61-8 Available to backorder	Grip Set (INC. 43)	£19.80 £16.50
35	MK252180-0 Available to backorder	Hex. Lock Nut M5-8 (C10)	£0.54 £0.45
36	MK140K37-2 Available to backorder	Indication Circuit Complete E	£27.44 £22.87
37	MK140K35-6 Available to backorder	Switch Circuit Complete G	£21.98 £18.32
37	MK819J26-9 Available to backorder	Switch Label (C10)	£2.34 £1.95
38	MK459145-5 Available to backorder	Switch Lever	£3.28 £2.73
40	MK233540-5 Available to backorder	Torsion Spring 11	£0.48 £0.40
41	MK459146-3 Available to backorder	Lock Off Lever	£2.88 £2.40
42	MK233101-1 Available to backorder	Compression Spring 4	£0.48 £0.40
44	MK651436-2 Available to backorder	Switch C3Jw-1A-P-2	£20.20 £16.83
45	MK687260-7 Available to backorder	Strain Relief	£0.48 £0.40
47	MK911258-5 Available to backorder	Pan Head Screw M5x35 Wr	£0.58 £0.48
48	MK699132-4 Available to backorder	Power Supply Cord Unit	£17.62 £14.68
49	MK457458-8 Available to backorder	Clamp	£0.96 £0.80
50	MK183N25-4 Available to backorder	Housing Cover Set (INC. 79)	£6.56 £5.47
51	MK687052-4 Available to backorder	Strain Relief (Alt.)	£0.74 £0.62
51	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
52	MK687051-6 Available to backorder	Strain Relief	£0.74 £0.62
54	MK183N23-8 Available to backorder	Housing Set (INC. 82 *)	£30.30 £25.25
54	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£0.86 £0.72
54	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
55	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
56	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
57	MK319919-5 Available to backorder	Pipe Bracket	£12.84 £10.70
58	MK325811-5 Available to backorder	Spindle Hub	£19.64 £16.37
59	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
60	MK226931-7 Available to backorder	Helical Gear 29	£5.60 £4.67
61	MK266459-3 Available to backorder	Binding Head Tapping Screw 5x25	£0.48 £0.40
62	MK211150-8 Available to backorder	Ball Bearing 6901Zz	£4.48 £3.73
63	MK226932-5 Available to backorder	Helical Gear 10	£5.06 £4.22
64	MK213961-7 Available to backorder	O-Ring 22	£0.48 £0.40
65	MK136230-8 Available to backorder	Gear Box Assembly (INC. 64)	£11.62 £9.68
66	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
67	MK519587-6 Available to backorder	Rotor Assembly (INC. 63 66 68)	£54.06 £45.05
68	MK210062-2 Available to backorder	Ball Bearing 607Zz	£1.16 £0.97
69	MK459764-7 Available to backorder	Baffle Plate	£1.52 £1.27
71	MK856H96-5 Available to backorder	Serial No. Label Dur369A	£0.48 £0.40
72	MK629471-8 Available to backorder	Stator (Alt.)	£55.96 £46.63
72	MK629C13-6 Available to backorder	Stator S	£27.72 £23.10
72	MK629443-3 Available to backorder	Stator	£57.60 £48.00
73	MK644809-6 Available to backorder	Terminal	£3.92 £3.27
74	MK459763-9 Available to backorder	Motor Housing	£6.98 £5.82
75	MK347620-2 Available to backorder	Plate	£0.82 £0.68
76	MK911102-6 Available to backorder	Pan Head Screw M4x6	£0.48 £0.40
77	MK620C08-2 Available to backorder	Controller	£189.14 £157.62
80	MK922211-6 Available to backorder	Hex. Socket Head Bolt M5x12 W	£0.58 £0.48
81	MK922233-6 Available to backorder	Hex. Socket Head Bolt M5x20 Wr	£0.86 £0.72
84	MK856H88-4 Available to backorder	Name Plate Dur369A	£0.48 £0.40
85	MK251314-2 Available to backorder	Truss Head Screw M4x12	£0.58 £0.48
86	MK347563-8 Available to backorder	Battery Guard	£7.10 £5.92
87	MK232284-4 Available to backorder	Leaf Spring (C20)	£0.58 £0.48
87	MK144316-4 Available to backorder	Protector U Extension 420-450 Complete	£6.70 £5.58
87	MK346696-6 Available to backorder	Hook (C10)	£0.74 £0.62
88	MK459765-5 Available to backorder	Cutter Extension	£1.36 £1.13
89	MK347115-5 Available to backorder	Cutter	£2.18 £1.82
91	MK620L68-8 Available to backorder	Controller B S	£23.62 £19.68
92	MK638A31-1 Available to backorder	Lead Unit S	£7.10 £5.92
93	MK652119-7 Available to backorder	Pan Head Screw M2x6 S	£0.48 £0.40
901	MK122906-3 Available to backorder	Band Assembly (A01A)	£48.94 £40.78
901	MK196129-9 Available to backorder	Band Assembly Set (A01)	£75.36 £62.80

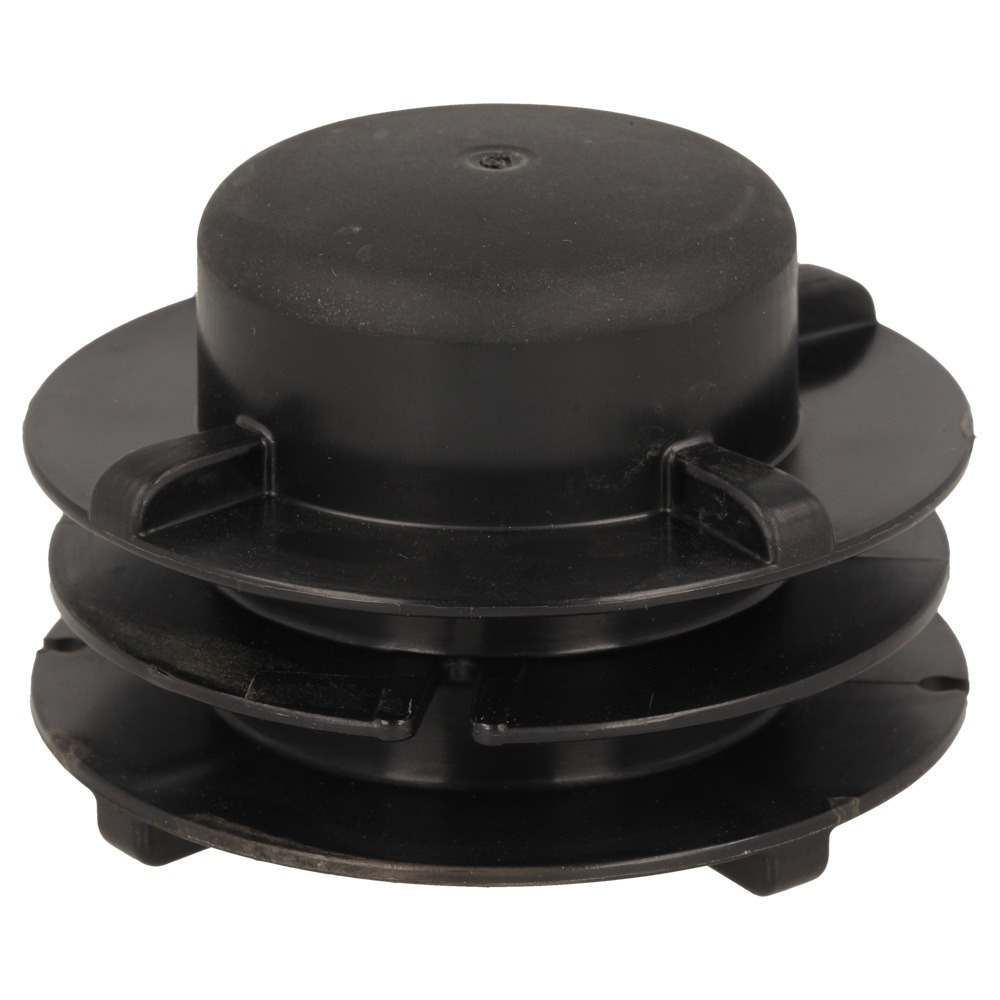

902	MK456642-2 Available to backorder	Spool (C40)	£4.32 £3.60

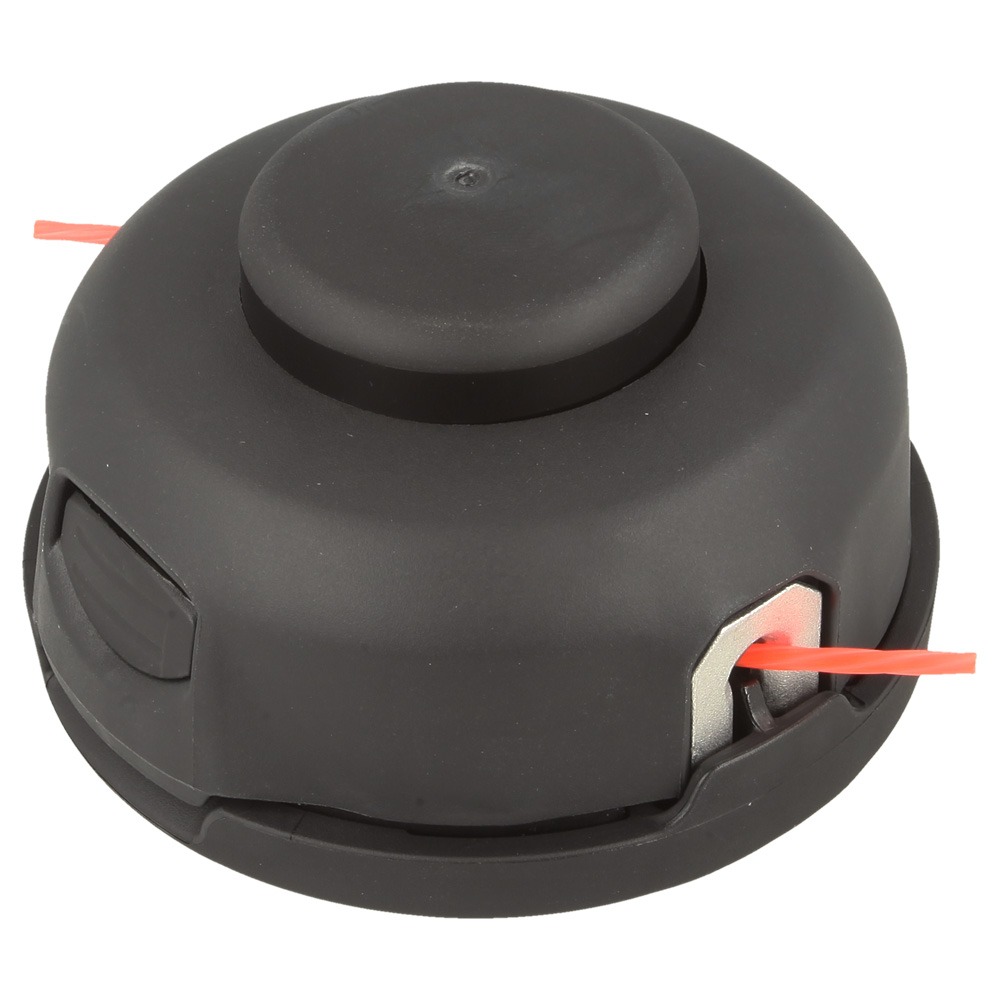

902	MK197993-1 Available to backorder	Nylon Cutting Head Assembly (A02)	£27.42 £22.85
902	MK232289-4 Available to backorder	Compression Spring 15 (C20)	£0.48 £0.40
902	MK456640-6 Available to backorder	Spool Holder (C10)	£4.52 £3.77
903	MK126642-3 Available to backorder	Plastic Blade Assembly 255-M10L (A03)	£20.58 £17.15
904	MK144392-8 Available to backorder	Tool Cover 2T (A04)	£3.86 £3.22
905	MK198345-9 Available to backorder	Cutter Blade 255-2 Set Me (A05)	£15.04 £12.53
906	MK782238-6 Available to backorder	Box Wrench 17 (A06)	£2.74 £2.28
907	MK783202-0 Available to backorder	Hex. Wrench 4 (A07)	£1.88 £1.57
908	MK831304-7 Available to backorder	Accessory Bag (A08)	£2.76 £2.30
911	MKDC18RD Available to backorder	Dc18Rd Two Port Fast Charger (A11C)	£192.50 £160.42
914	MK1912L4-0 Available to backorder	Protector 225 Set Mg (F14)	£23.76 £19.80
917	MK197472-9 Available to backorder	Nylon Cord 2.0-15M Set (F17)	£16.22 £13.52
919	MK197474-5 Available to backorder	Nylon Cord 2.0-160M Set (F19)	£116.56 £97.13
926	MK199868-0 Available to backorder	Plastic Blade 305 Set Mg (F26)	£37.54 £31.28
927	MK199870-3 Available to backorder	Plastic Blade 305 Set Mg (F27)	£40.68 £33.90
933	MK198501-1 Available to backorder	Nylon Cord 2.4-15M Set (F33)	£17.32 £14.43
939	MK199378-7 Available to backorder	Band Assembly Set (F39)	£102.10 £85.08
940	MK199450-5 Available to backorder	Grease Vessel Set (Alt.) (F40-1)	£14.80 £12.33
