Makita DUR368A - Cordless Grass Trimmer - Power Tool 01 Diagram

Name: Makita DUR368A - Cordless Grass Trimmer - Power Tool 01 Diagram
SKU: dur368a_cordless_grass_trimmer_power_tool_01-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

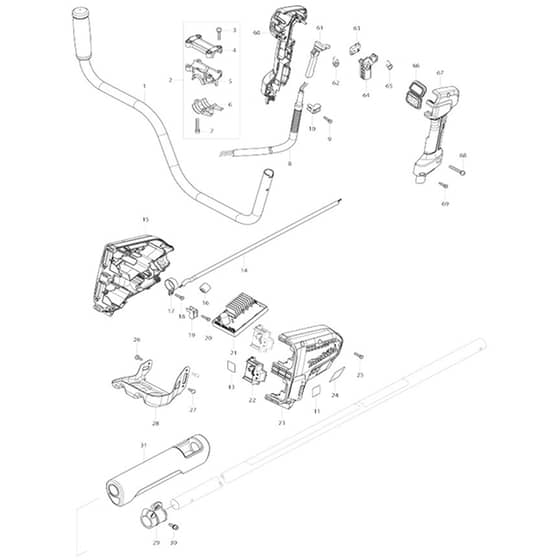

Makita DUR368A - Cordless Grass Trimmer - Power Tool 01 Diagram

Description

Model No. DUR368A

Cordless Grass Trimmer

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK140L83-1 Available to backorder	Handle 19 Complete	£25.00 £20.83
2	MK135395-3 Available to backorder	Handle Holder Assembly (INC. 3-7 *)	£10.98 £9.15
3	MK922241-7 Available to backorder	Hex. Socket Head Bolt M5x25 W (Refs 007 \| 043)	£0.80 £0.67
4	MK318272-6 Available to backorder	Handle Holder 1	£4.88 £4.07
5	MK318273-4 Available to backorder	Handle Holder 2	£4.62 £3.85
5	MK319705-4 Available to backorder	Handle Holder S	£4.36 £3.63
6	MK318274-2 Available to backorder	Handle Holder 3	£1.60 £1.33
6	MK319703-8 Available to backorder	Pipe Clamp S	£1.52 £1.27
7	MK922251-4 Available to backorder	Hex. Socket Head Bolt M5x30 W	£0.74 £0.62
8	MK699118-8 Available to backorder	Power Supply Cord Unit	£13.38 £11.15
9	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 018 \| 020 \| 025 \| 055 \| 069)	£0.48 £0.40
10	MK687260-7 Available to backorder	Strain Relief	£0.48 £0.40
11	MK800A66-4 Available to backorder	Sound 91Db Label <	£0.48 £0.40
11	MK807E85-5 Available to backorder	Sound 92Db Label	£0.48 £0.40
13	MK855V64-9 Available to backorder	Serial No. Label Dur368A	£0.48 £0.40
14	MK699067-9 Available to backorder	Power Supply Cord Unit	£42.34 £35.28
15	MK183L33-3 Available to backorder	Housing Set (INC. 23 *)	£24.18 £20.15
15	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
15	MK252126-6 Available to backorder	Hex. Lock Nut M4-7 (C20)	£0.86 £0.72
16	MK688163-8 Available to backorder	Line Filter	£1.32 £1.10
17	MK346248-3 Available to backorder	Clamp 24	£1.16 £0.97
21	MK620A36-5 Available to backorder	Controller	£183.88 £153.23
21	MK620J84-8 Available to backorder	Controller S	£157.80 £131.50
21	MK620G00-2 Available to backorder	Controller <	£139.92 £116.60
22	MK644808-8 In stock	Terminal	£3.76 £3.13
24	MK855V55-0 Available to backorder	Name Plate Dur368A	£0.48 £0.40
26	MK251314-2 Available to backorder	Truss Head Screw M4x12	£0.58 £0.48
28	MK346858-6 Available to backorder	Battery Guard	£12.28 £10.23
29	MK168478-4 Available to backorder	Hanger	£5.78 £4.82
30	MK922228-9 Available to backorder	Hex. Socket Head Bolt M5x18 Wr	£0.58 £0.48
31	MK424463-0 Available to backorder	Cushion	£14.88 £12.40
32	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
33	MK455626-7 Available to backorder	Top Cover	£5.36 £4.47
34	MK210062-2 Available to backorder	Ball Bearing 607Zz	£1.16 £0.97
34	MK210269-0 Available to backorder	Ball Bearing 607Zz (Alt.)	£0.94 £0.78
35	MK520135-6 Available to backorder	Stator Assembly (Alt.) (INC. 34 57 *)	£36.30 £30.25
35	MK592E25-3 Available to backorder	Stator Assembly S (INC. 34 57 *)	£40.96 £34.13
35	MK520136-4 Available to backorder	Stator Assembly < (INC. 34 57 *)	£38.22 £31.85
35	MK529146-8 Available to backorder	Stator Assembly (INC. 34 57 *)	£91.16 £75.97
36	MK619462-7 Available to backorder	Rotor	£94.18 £78.48
37	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr	£0.47 £0.39
38	MK455628-3 Available to backorder	Inner Cover	£1.32 £1.10
39	MK620J62-8 Available to backorder	Controller B S	£18.84 £15.70
39	MK620E48-2 Available to backorder	Controller B (Alt.)	£20.08 £16.73
39	MK620562-8 Available to backorder	Controller B	£20.96 £17.47
41	MK687042-7 Available to backorder	Strain Relief	£0.58 £0.48
42	MK922223-9 Available to backorder	Hex. Socket Head Bolt M5x16 Wr	£0.74 £0.62
44	MK143039-1 Available to backorder	Motor Housing Complete	£29.18 £24.32
45	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
46	MK962106-1 Available to backorder	Retaining Ring (Int) R-28	£1.32 £1.10
47	MK346084-7 Available to backorder	Clamp Washer	£1.60 £1.33
48	MK140L84-9 Available to backorder	Receive Washer Complete G	£12.58 £10.48
49	MK266579-3 Available to backorder	Hex. Socket Head Bolt M6x30	£0.58 £0.48
51	MK346073-2 Available to backorder	Protector Clamp	£1.60 £1.33
52	MK261156-6 Available to backorder	Polypropylene Washer 4	£1.60 £1.33
53	MK455926-5 Available to backorder	Protector	£15.88 £13.23
54	MK346855-2 Available to backorder	Cutter	£3.46 £2.88
56	MK819312-8 Available to backorder	Makita Logo Label (C10)	£0.58 £0.48
56	MK819N87-3 Available to backorder	Caution Label (C20)	£0.82 £0.68
56	MK140L89-9 Available to backorder	Pipe Complete (Alt.)	£27.58 £22.98
57	MK213325-5 Available to backorder	O-Ring 19	£0.58 £0.48
58	MK168526-9 Available to backorder	Cup	£4.78 £3.98
59	MK264025-0 Available to backorder	Hex. Nut M10-17	£3.04 £2.53
60	MK183A77-7 Available to backorder	Grip Set (INC. 67)	£23.36 £19.47
61	MK455629-1 Available to backorder	Lock Off Lever	£2.46 £2.05
62	MK233621-5 Available to backorder	Torsion Spring 9	£0.48 £0.40
63	MK632E40-6 Available to backorder	Switch Unit	£17.20 £14.33
64	MK455816-2 Available to backorder	Switch Lever	£3.82 £3.18
65	MK233612-6 Available to backorder	Torsion Spring 10	£2.76 £2.30
66	MK819N38-6 Available to backorder	Switch Label (C10)	£1.10 £0.92
66	MK819N39-4 Available to backorder	Indication Label (C20)	£0.82 £0.68
66	MK140L81-5 Available to backorder	Sub Controller Complete G	£27.58 £22.98
68	MK911258-5 Available to backorder	Pan Head Screw M5x35 Wr	£0.58 £0.48
