Makita DUR192L - Cordless Grass Trimmer - Power Tool Diagram

Description

Model No. DUR192L

Cordless Grass Trimmer

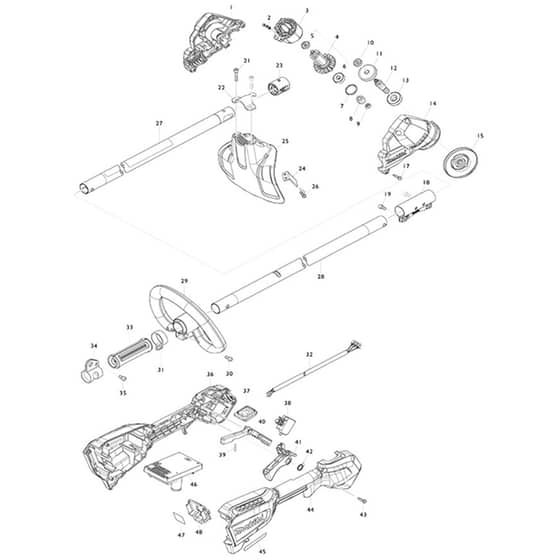

Power Tool Parts Diagrams

	Part No.	Details
1	MK183R54-1 Available to backorder	Motor Housing Set (INC. 14)	£7.80 £6.50
2	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
3	MK629A22-3 Available to backorder	Stator	£11.16 £9.30
4	MK519643-2 Available to backorder	Rotor Ass'y (INC. 5 6)	£20.88 £17.40
5	MK210235-7 Available to backorder	Ball Bearing 625Zz	£1.32 £1.10
6	MK210236-5 Available to backorder	Ball Bearing 627Zz	£1.66 £1.38
7	MK213925-1 Available to backorder	O-Ring 21 (Alt.)	£0.48 £0.40
8	MK227831-4 Available to backorder	Helical Gear 11	£0.84 £0.70
8	MK227883-5 Available to backorder	Helical Gear 11 <	£3.24 £2.70
9	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
11	MK227830-6 Available to backorder	Helical Gear 32	£2.56 £2.13
12	MK327678-7 Available to backorder	Cutter Shaft	£2.69 £2.24
13	MK210216-1 Available to backorder	Ball Bearing 6001Ddw	£2.38 £1.98
15	MK140W47-1 Available to backorder	Receive Washer Complete	£4.92 £4.10
15	MK213134-2 Available to backorder	O-Ring 11 (C10)	£0.48 £0.40
17	MK265B67-9 Available to backorder	Tapping Screw 4x18 (Refs 026 \| 043)	£0.48 £0.40
17	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 026 \| 043)	£0.48 £0.40
18	MK347747-8 Available to backorder	Joint 24	£6.84 £5.70
19	MK922207-7 Available to backorder	Hex. Socket Head Bolt M5x10	£0.48 £0.40
21	MK251513-6 Available to backorder	H.S.H.Bolt M5x25	£0.48 £0.40
22	MK347667-6 Available to backorder	Protector Clamp	£1.63 £1.36
23	MK424567-8 Available to backorder	Rubber Sleeve 24	£2.38 £1.98
24	MK346855-2 Available to backorder	Cutter	£3.60 £3.00
25	MK412580-8 Available to backorder	Protector N 330	£8.04 £6.70
27	MK819312-8 Available to backorder	Makita Logo Label (C20)	£0.70 £0.58
27	MK8023L9-8 Available to backorder	Caution Label (C10)	£0.48 £0.40
27	MK140W46-3 Available to backorder	Pipe Complete C	£12.60 £10.50
28	MK808723-2 Available to backorder	Caution Label (C10)	£0.48 £0.40
28	MK140W45-5 Available to backorder	Pipe Complete B	£11.76 £9.80
29	MK413L67-5 Available to backorder	Loop Handle 24 (Alt.)	£51.84 £43.20
29	MK457937-6 Available to backorder	Loop Handle 24	£14.40 £12.00
30	MK922212-4 Available to backorder	Hex. Socket Head Bolt M5x12	£0.48 £0.40
31	MK347011-7 Available to backorder	Pipe Clamp 29	£1.74 £1.45
32	MK699157-8 Available to backorder	Power Supply Cord Unit	£16.08 £13.40
33	MK451601-1 Available to backorder	Spacer 24	£2.69 £2.24
34	MK347116-3 Available to backorder	Hanger	£1.73 £1.44
36	MK183R55-9 Available to backorder	Grip Housing Set (INC. 44)	£14.16 £11.80
36	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
37	MK140W41-3 Available to backorder	Switch Circuit Complete	£15.24 £12.70
37	MK8007N9-0 Available to backorder	Switch Label (C10)	£3.14 £2.62
38	MK651494-8 Available to backorder	Switch C3Jw-1A-Pa-2	£19.92 £16.60
39	MK233101-1 Available to backorder	Compression Spring 4	£0.48 £0.40
40	MK412863-6 Available to backorder	Lock Off Lever	£1.15 £0.96
41	MK459758-2 Available to backorder	Switch Lever	£1.94 £1.62
42	MK233622-3 Available to backorder	Torsion Spring 12	£0.48 £0.40
45	MK857T44-9 Available to backorder	Dur192L Name Plate	£0.48 £0.40
46	MK620D79-5 Available to backorder	Controller	£103.68 £86.40
47	MK857T51-2 Available to backorder	Dur192L Serial No. Label	£0.48 £0.40
48	MK644809-6 Available to backorder	Terminal	£4.08 £3.40
901	MK191D89-4 Available to backorder	Trimmer Head 96-M10L Set (A01)	£18.60 £15.50
901	MK802H58-1 Available to backorder	Sound 90Db Label < (E01-1)	£0.70 £0.58
901	MK198893-8 Available to backorder	Cutter Assembly 95-M10L Set (A01)	£24.12 £20.10
901	MK800A41-0 Available to backorder	Sound 89Db Label (E01)	£1.13 £0.94
902	MK127508-0 Available to backorder	Band Ass'y (A02)	£6.36 £5.30
903	MK783202-0 Available to backorder	Hex. Wrench 4 (A03)	£2.05 £1.71
903	MK197472-9 Available to backorder	Nylon Cord 2.0-15M Set (F03)	£16.80 £14.00
905	MK197474-5 Available to backorder	Nylon Cord 2.0-160M Set (F05)	£111.84 £93.20
906	MK197280-8 In stock	Battery Bl1850B Set (A06)	£76.24 £63.53
907	MK450128-8 Available to backorder	Battery Cover (A07)	£0.77 £0.64
