Model No. DUR190L

Cordless Grass Trimmer

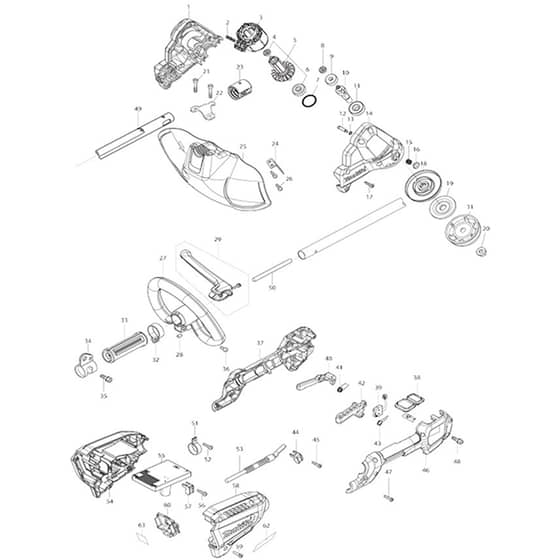

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK183P06-0 Available to backorder	Motor Housing Set (INC. 14)	£11.04 £9.20
2	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
3	MK629248-1 Available to backorder	Stator	£17.40 £14.50
4	MK210215-3 Available to backorder	Ball Bearing 695Zz	£1.49 £1.24
5	MK510449-1 Available to backorder	Rotor Assembly (INC. 4 6)	£26.28 £21.90
6	MK210049-4 Available to backorder	Ball Bearing 609Zz	£4.08 £3.40
7	MK213380-7 Available to backorder	O-Ring 24	£0.89 £0.74
9	MK221492-2 Available to backorder	Helical Gear 26	£3.24 £2.70
10	MK327542-2 Available to backorder	Cutter Shaft	£3.96 £3.30
11	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.44 £6.20
12	MK256546-6 Available to backorder	Shoulder Pin 4	£0.70 £0.58
13	MK213021-5 Available to backorder	O-Ring 5	£0.48 £0.40
15	MK233072-2 Available to backorder	Compression Spring 8	£0.48 £0.40
16	MK412408-0 Available to backorder	Pin Cap	£0.84 £0.70
17	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 026 \| 045 \| 047 \| 052 \| 056 \| 059)	£0.48 £0.40
18	MK140T23-7 Available to backorder	Receive Washer Complete	£7.44 £6.20
21	MK251513-6 Available to backorder	Hex. Socket Head Bolt M5x25	£0.48 £0.40
22	MK347667-6 Available to backorder	Protector Clamp	£1.63 £1.36
23	MK424567-8 Available to backorder	Rubber Sleeve 24	£2.38 £1.98
24	MK346855-2 Available to backorder	Cutter	£3.60 £3.00
25	MK412392-9 Available to backorder	Protector	£9.84 £8.20
27	MK457937-6 Available to backorder	Loop Handle 24	£14.40 £12.00
27	MK413L67-5 Available to backorder	Loop Handle 24 (Alt.)	£51.84 £43.20
28	MK263005-3 In stock	Rubber Pin 6	£0.52 £0.43
29	MK143695-7 Available to backorder	Barrier Complete	£7.80 £6.50
29	MK911128-8 In stock	Pan Head Screw M4x16 Wr (C10)	£0.54 £0.45
32	MK347011-7 Available to backorder	Pipe Clamp 29	£1.74 £1.45
33	MK451601-1 Available to backorder	Spacer 24	£2.69 £2.24
34	MK347116-3 Available to backorder	Hanger	£1.73 £1.44
35	MK922212-4 Available to backorder	Hex. Socket Head Bolt M5x12	£0.48 £0.40
37	MK931202-6 Available to backorder	Hex. Nut M5 (C10)	£0.48 £0.40
37	MK183P04-4 Available to backorder	Grip Set (INC. 46)	£16.56 £13.80
38	MK140T18-0 Available to backorder	Sub Controller Complete	£28.92 £24.10
38	MK8010M7-8 Available to backorder	Switch Label (C10)	£1.49 £1.24
38	MK8010M8-6 Available to backorder	Indication Label (C20)	£0.98 £0.82
40	MK455629-1 Available to backorder	Lock Off Lever	£2.69 £2.24
41	MK233621-5 Available to backorder	Torsion Spring 9	£0.48 £0.40
42	MK455625-9 Available to backorder	Switch Lever	£4.08 £3.40
43	MK233612-6 Available to backorder	Torsion Spring 10	£3.01 £2.51
44	MK687260-7 Available to backorder	Strain Relief	£0.48 £0.40
48	MK922228-9 Available to backorder	Hex. Socket Head Bolt M5x18 Wr	£0.70 £0.58
49	MK819N87-3 Available to backorder	Caution Label (C10)	£0.98 £0.82
49	MK819312-8 Available to backorder	Makita Logo Label (C20)	£0.70 £0.58
49	MK140T21-1 Available to backorder	Pipe Complete	£23.16 £19.30
50	MK699090-4 Available to backorder	Power Supply Cord Unit	£10.32 £8.60
51	MK346248-3 Available to backorder	Clamp 24	£1.39 £1.16
53	MK699149-7 Available to backorder	Power Supply Cord Unit	£10.68 £8.90
54	MK422749-6 Available to backorder	Rubber Sheet (C20)	£0.48 £0.40
54	MK183P07-8 Available to backorder	Housing Set (INC. 58 *)	£9.84 £8.20
54	MK183T27-6 Available to backorder	Housing Set (INC. 58 *)	£8.52 £7.10
55	MK620F98-3 Available to backorder	Controller <	£109.32 £91.10
55	MK620C56-1 Available to backorder	Controller	£140.76 £117.30
60	MK644809-6 Available to backorder	Terminal	£4.08 £3.40
62	MK857D04-5 Available to backorder	Name Plate Dur190L	£0.48 £0.40
63	MK857D09-5 Available to backorder	Serial No. Label Dur190L	£0.48 £0.40
901	MK807E85-5 Available to backorder	Sound 92Db Label < (E01-1)	£0.48 £0.40
901	MK807949-3 Available to backorder	Sound 94Db Label (E01)	£0.48 £0.40
901	MK125516-5 Available to backorder	Band Assembly (A01)	£6.00 £5.00
905	MK198893-8 Available to backorder	Cutter Assembly 95-M10L Set Me (A05)	£24.12 £20.10
905	MK456640-6 Available to backorder	Spool Holder (C30)	£4.68 £3.90
905	MK456642-2 Available to backorder	Spool (C40)	£4.08 £3.40
905	MK191D89-4 Available to backorder	Trimmer Head 96-M10L Set (A05)	£18.60 £15.50
905	MK232289-4 Available to backorder	Compression Spring 15 (C20)	£0.48 £0.40
906	MK831304-7 Available to backorder	Accessory Bag (A06)	£3.01 £2.51
907	MK450128-8 Available to backorder	Battery Cover (A07)	£0.77 £0.64
908	MK197280-8 In stock	Battery Bl1850B Set (A08)	£76.24 £63.53
912	MK783202-0 Available to backorder	Hex. Wrench 4 (A12)	£2.05 £1.71
