Makita DUR183L - Cordless Grass Trimmer - Power Tool 01 Diagram

Description

Model No. DUR183L

Cordless Grass Trimmer

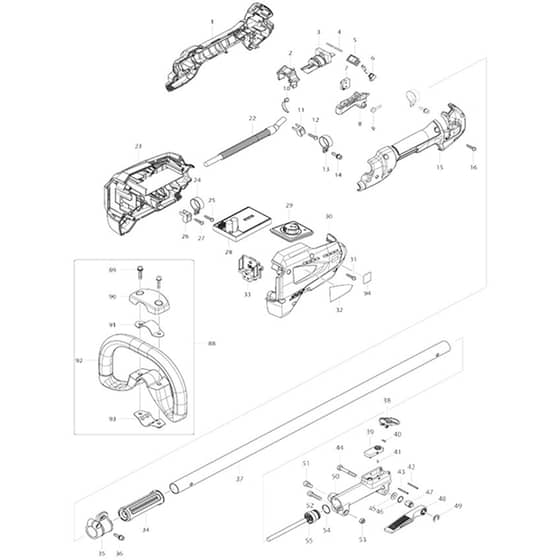

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK187698-1 Available to backorder	Grip Set (INC. 15)	£68.40 £57.00
2	MK454737-5 Available to backorder	Lock Off Lever	£7.92 £6.60
3	MK454738-3 Available to backorder	Lever Base	£8.64 £7.20
4	MK234079-1 Available to backorder	Compression Spring 4	£1.03 £0.86
5	MK651533-4 Available to backorder	Switch Sle6A2-33	£4.92 £4.10
6	MK686015-7 Available to backorder	Receptacle Sleeve	£0.48 £0.40
7	MK650704-0 Available to backorder	Switch D2Sw-P01L1-3M	£14.52 £12.10
8	MK454736-7 Available to backorder	Switch Lever	£9.48 £7.90
9	MK233612-6 Available to backorder	Torsion Spring 10	£3.01 £2.51
10	MK451985-7 Available to backorder	Lead Cover	£19.44 £16.20
11	MK687261-5 Available to backorder	Strain Relief	£0.89 £0.74
12	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 016 \| 025 \| 027 \| 031 \| 070)	£0.48 £0.40
13	MK346248-3 Available to backorder	Clamp 24	£1.39 £1.16
14	MK922228-9 Available to backorder	Hex. Socket Head Bolt M5x18 Wr	£0.70 £0.58
22	MK699064-5 Available to backorder	Power Supply Cord Unit	£17.28 £14.40
23	MK187665-6 Available to backorder	Housing Set (INC. 30)	£61.92 £51.60
23	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
28	MK620196-7 Available to backorder	Controller A	£224.88 £187.40
29	MK142134-4 Available to backorder	Sub Controller Complete	£56.40 £47.00
32	MK814X34-9 Available to backorder	Name Plate Dur183L	£0.48 £0.40
33	MK644808-8 In stock	Terminal	£3.98 £3.32
34	MK451601-1 Available to backorder	Spacer 24	£2.69 £2.24
35	MK168478-4 Available to backorder	Hanger	£6.00 £5.00
37	MK332069-9 Available to backorder	Pipe B	£25.56 £21.30
38	MK454304-6 Available to backorder	Joint Cover	£6.96 £5.80
39	MK454303-8 Available to backorder	Lock Lever	£7.20 £6.00
40	MK233604-5 Available to backorder	Torsion Spring 3	£1.94 £1.62
41	MK233211-4 Available to backorder	Compression Spring 2	£0.48 £0.40
42	MK258010-3 Available to backorder	Spring Pin 2.5-25	£0.48 £0.40
44	MK265596-0 Available to backorder	Hex. Head Bolt M6x40	£0.70 £0.58
45	MK253332-6 Available to backorder	Thin Washer 6	£0.70 £0.58
46	MK213105-9 Available to backorder	O-Ring 11	£0.48 £0.40
47	MK252159-1 Available to backorder	Hex. Nut M6	£2.38 £1.98
48	MK272268-0 Available to backorder	Lever 94	£2.53 £2.11
49	MK961014-3 Available to backorder	Stop Ring (Ext) E-8	£0.48 £0.40
50	MK319089-0 Available to backorder	Joint 24B	£54.72 £45.60
51	MK922311-2 Available to backorder	Hex. Socket Head Bolt M6x12 W	£0.89 £0.74
52	MK922342-1 Available to backorder	Hex. Socket Head Bolt M6x25	£0.48 £0.40
53	MK931302-2 Available to backorder	Hex. Nut M6	£0.48 £0.40
54	MK213275-4 Available to backorder	O-Ring 18	£0.70 £0.58
55	MK699061-1 Available to backorder	Power Supply Cord Unit	£59.88 £49.90
56	MK187585-4 Available to backorder	Motor Housing Set (INC. 69)	£38.16 £31.80
57	MK629985-7 Available to backorder	Stator	£104.40 £87.00
58	MK619324-9 Available to backorder	Rotor	£157.80 £131.50
59	MK213373-4 Available to backorder	O-Ring 22 (Alt.)	£1.58 £1.32
59	MK213961-7 Available to backorder	O-Ring 22	£0.48 £0.40
60	MK318978-6 Available to backorder	Bearing Box	£5.88 £4.90
61	MK213325-5 Available to backorder	O-Ring 19	£0.70 £0.58
62	MK210143-2 Available to backorder	Ball Bearing 626Zz (Alt.)	£1.74 £1.45
62	MK210022-4 Available to backorder	Ball Bearing 626Ddw	£3.48 £2.90
62	MK211499-6 Available to backorder	Ball Bearing 626Zz (Alt.)	£1.58 £1.32
63	MK227773-2 Available to backorder	Helical Gear 31	£7.92 £6.60
64	MK326275-6 Available to backorder	Cutter Shaft	£22.68 £18.90
65	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
66	MK324917-6 Available to backorder	Receive Washer	£22.68 £18.90
66	MK326906-7 Available to backorder	Receive Washer <	£6.24 £5.20
71	MK424567-8 Available to backorder	Rubber Sleeve 24	£2.38 £1.98
75	MK142242-1 Available to backorder	Pipe A Complete	£52.56 £43.80
75	MK819312-8 Available to backorder	Makita Logo Label (C10)	£0.70 £0.58
75	MK898861-8 Available to backorder	Caution Label (C20)	£21.12 £17.60
76	MK326369-7 Available to backorder	Stopper Pin B	£2.24 £1.87
77	MK699062-9 Available to backorder	Power Supply Cord Unit	£54.84 £45.70
79	MK346622-5 Available to backorder	Guard	£6.72 £5.60
80	MK326348-5 Available to backorder	Wire Guard	£17.88 £14.90
81	MK413143-3 Available to backorder	Washer	£0.48 £0.40
82	MK454641-8 Available to backorder	Protector Holder	£24.24 £20.20
83	MK253428-3 Available to backorder	Spring Washer 6 (Alt.)	£0.48 £0.40
84	MK266579-3 Available to backorder	Hex. Socket Head Bolt M6x30	£0.70 £0.58
85	MK266427-6 Available to backorder	Binding Head Tapping Screw 4x12	£0.48 £0.40
86	MK346725-5 Available to backorder	Cutter	£13.56 £11.30
86	MK347274-5 Available to backorder	Cutter S	£9.00 £7.50
87	MK457980-5 Available to backorder	Protector S	£14.40 £12.00
87	MK454640-0 Available to backorder	Protector	£45.84 £38.20
88	MK195626-2 Available to backorder	Loop Handle Set (INC. 89-93)	£13.32 £11.10
89	MK922243-3 Available to backorder	Hex. Socket Head Bolt M5x25 Wr	£0.70 £0.58
90	MK452843-0 Available to backorder	Clamp Cover	£2.38 £1.98
91	MK346468-9 Available to backorder	Clamp 33	£1.22 £1.02
92	MK452841-4 Available to backorder	Loop Handle	£9.24 £7.70
93	MK346467-1 Available to backorder	Pipe Clamp 24	£1.73 £1.44
93	MK347094-7 Available to backorder	Clamp 24 (Alt.)	£1.73 £1.44
94	MK802H58-1 Available to backorder	Sound 90Db Label	£0.70 £0.58
901	MK123235-7 Available to backorder	Nylon Cutting Head Assembly (A01)	£26.76 £22.30
902	MK125516-5 Available to backorder	Band Assembly (A02)	£6.00 £5.00
903	MK195246-2 Available to backorder	Safety Goggle Set (A03)	£4.32 £3.60
903	MK197606-4 Available to backorder	Battery Bl1830B Set (2 Pcs) (Alt.) (F03-3)	£421.68 £351.40
904	MK783202-0 Available to backorder	Hex. Wrench 4 (A04)	£2.05 £1.71
905	MK783217-7 Available to backorder	Hex. Wrench 5 (A05)	£0.67 £0.56
906	MK831304-7 Available to backorder	Accessory Bag (A06)	£3.01 £2.51
906	MK196577-2 Available to backorder	Protector Set (F06)	£25.44 £21.20
907	MK424596-1 Available to backorder	Cap 24 (A07)	£1.63 £1.36
909	MK197600-6 Available to backorder	Battery Bl1830B Set < (A09-2B)	£197.76 £164.80
910	MK450128-8 Available to backorder	Battery Cover (A10B)	£0.77 £0.64
911	MK196591-8 Available to backorder	Nylon Cord 2.0-15M Set (F11)	£11.04 £9.20
918	MK191D91-7 Available to backorder	Trimmer Head 96-M8L Set (F18)	£17.52 £14.60
