Makita DUN461W - 460mm Dc Pole Hedge Trimmer - Power Tool Diagram

Description

Model No. DUN461W

460mm Dc Pole Hedge Trimmer

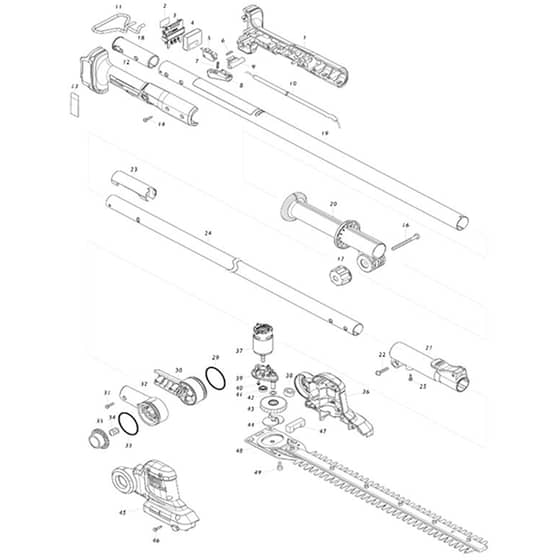

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK183S96-1 Available to backorder	Grip Housing Set (INC. 12)	£6.16 £5.13
1	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
3	MK643874-2 Available to backorder	Terminal	£4.20 £3.50
4	MK620F42-0 Available to backorder	Controller	£31.00 £25.83
5	MK651398-4 Available to backorder	Switch Bmc-1112-001	£3.70 £3.08
6	MK231473-8 Available to backorder	Compression Spring 4	£0.48 £0.40
8	MK413714-6 Available to backorder	Switch Lever	£0.70 £0.58
9	MK413713-8 Available to backorder	Lock Off Button A	£0.54 £0.45
10	MK654069-2 Available to backorder	Receptacle 41-187N (C10)	£0.48 £0.40
10	MK699168-3 Available to backorder	Power Supply Cord Unit	£14.74 £12.28
11	MK327810-3 Available to backorder	Battery Guard	£2.34 £1.95
14	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 031 \| 046)	£0.48 £0.40
16	MK921362-2 Available to backorder	Hex. Head Bolt M6x40	£0.86 £0.72
17	MK264072-1 Available to backorder	Thumb Nut M6	£1.16 £0.97
17	MK931302-2 Available to backorder	Hex. Nut M6 (C10)	£0.48 £0.40
18	MK413712-0 Available to backorder	Pipe Cap 32	£1.24 £1.03
19	MK8008A7-9 Available to backorder	Caution Label (C10)	£0.54 £0.45
19	MK808723-2 Available to backorder	Caution Label (C20)	£0.48 £0.40
20	MK413719-6 Available to backorder	Front Grip A	£4.52 £3.77
21	MK252103-8 Available to backorder	Hex. Lock Nut M5-8 (C10)	£0.48 £0.40
21	MK141C39-3 Available to backorder	Pipe Holder 32 Complete	£4.24 £3.53
22	MK911243-8 Available to backorder	Pan Head Screw M5x25 Wr	£0.48 £0.40
23	MK413711-2 Available to backorder	Pipe Cap 28	£0.82 £0.68
25	MK251568-1 Available to backorder	Hex. Socket Head Bolt M3x12 Wr	£0.48 £0.40
29	MK213616-4 Available to backorder	O-Ring 48	£0.86 £0.72
30	MK183T14-5 Available to backorder	Pipe Holder Set (INC. 32)	£3.16 £2.63
34	MK231113-8 Available to backorder	Compression Spring 12	£0.86 £0.72
35	MK413715-4 Available to backorder	Lock Off Button B	£0.70 £0.58
36	MK183T13-7 Available to backorder	Motor Housing Set (INC. 45)	£8.46 £7.05
37	MK629A62-1 Available to backorder	Dc Motor	£21.02 £17.52
38	MK688131-1 Available to backorder	Line Filter	£0.58 £0.48

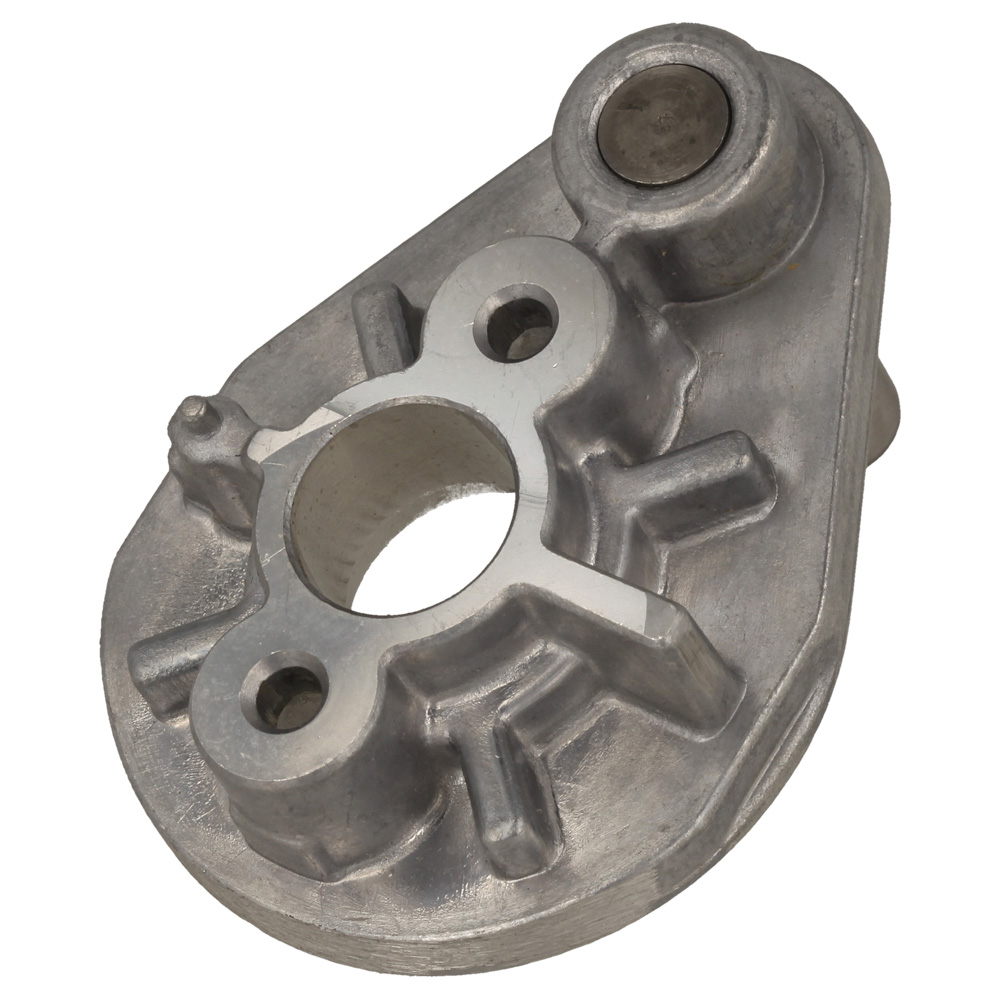

39	MK141B58-3 Available to backorder	Motor Holder Complete	£5.98 £4.98
40	MK265199-0 Available to backorder	Pan Head Screw M3x8	£0.64 £0.53
41	MK210124-6 Available to backorder	Ball Bearing 688Zz	£1.36 £1.13
42	MK253215-0 Available to backorder	Flat Washer 8	£0.48 £0.40
43	MK141B59-1 Available to backorder	Gear Complete	£9.98 £8.32
44	MK165734-3 Available to backorder	Crank	£3.82 £3.18
47	MK424958-3 Available to backorder	Sponge Seal	£0.48 £0.40
48	MK188369-3 Available to backorder	Oil Vessel Set (C10)	£2.76 £2.30
48	MK191P00-8 Available to backorder	Shear Blade 460 Assembly Set	£76.10 £63.42
49	MK265074-0 Available to backorder	Pan Head Screw M5x16	£0.58 £0.48
50	MK136621-3 Available to backorder	Pipe Assembly (INC. 21-23 25 *)	£43.56 £36.30
901	MK413720-1 Available to backorder	Blade Cover (A01)	£5.68 £4.73
902	MK191T43-4 Available to backorder	Chip Receiver Assembly 460 Set (F02)	£21.82 £18.18
